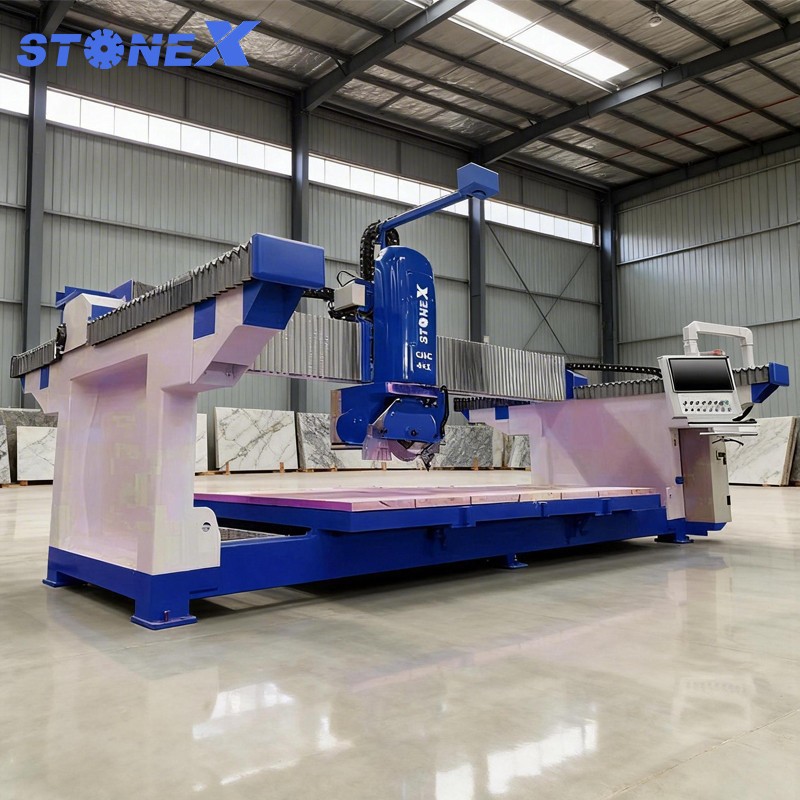

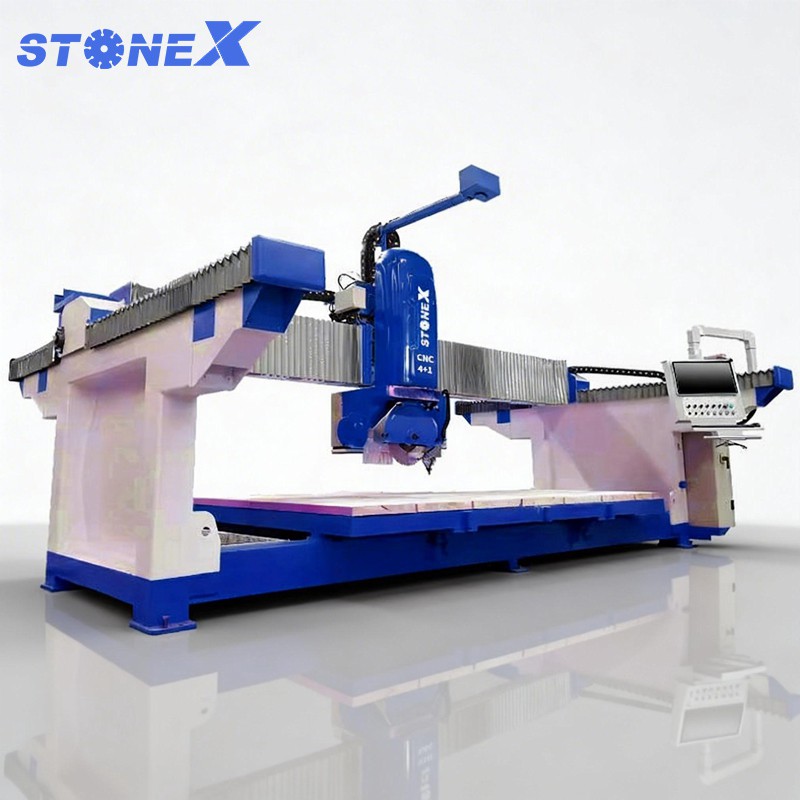

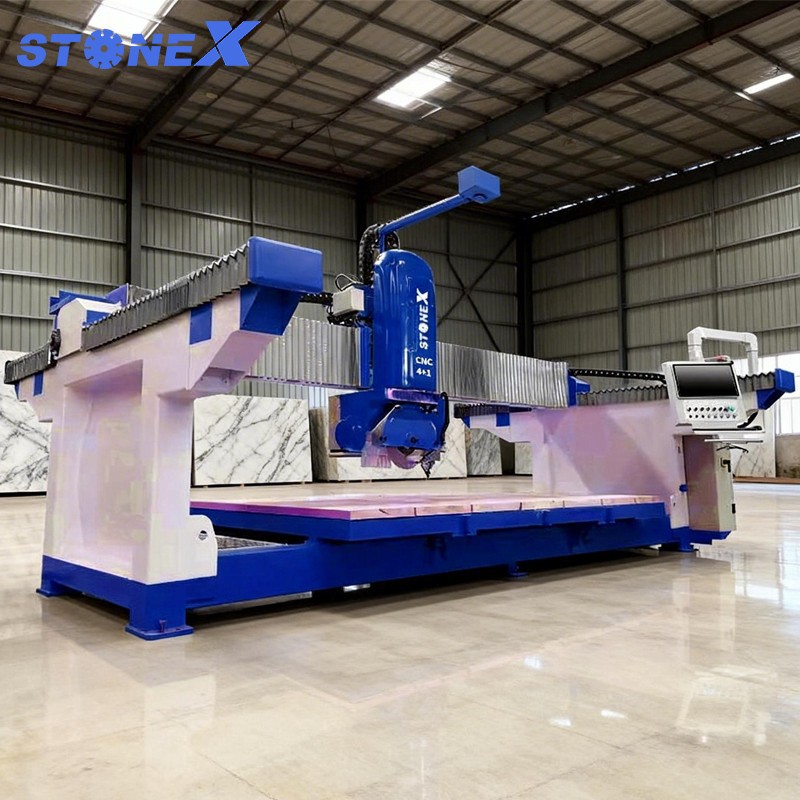

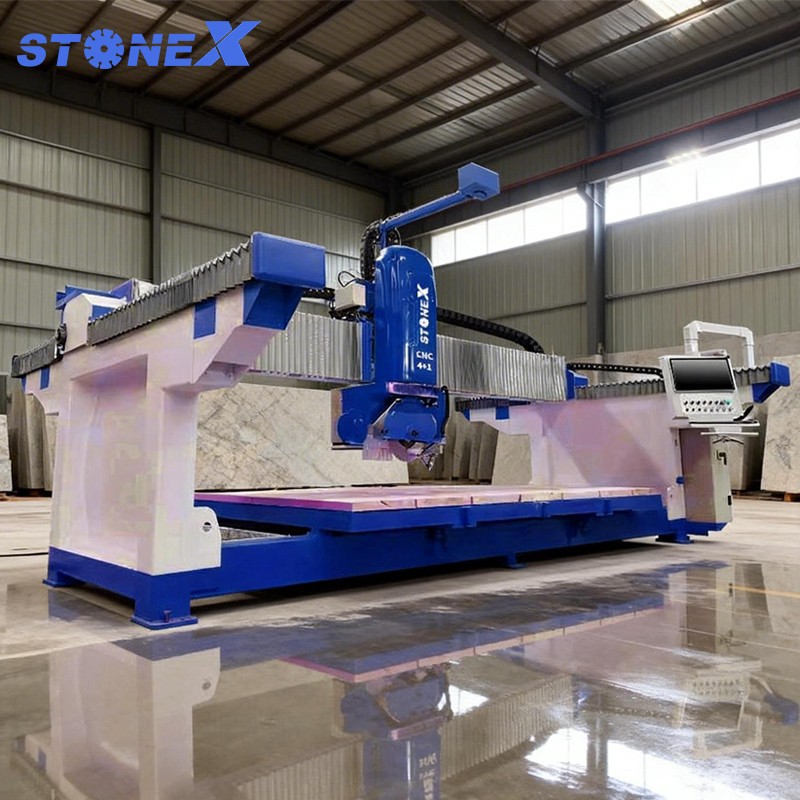

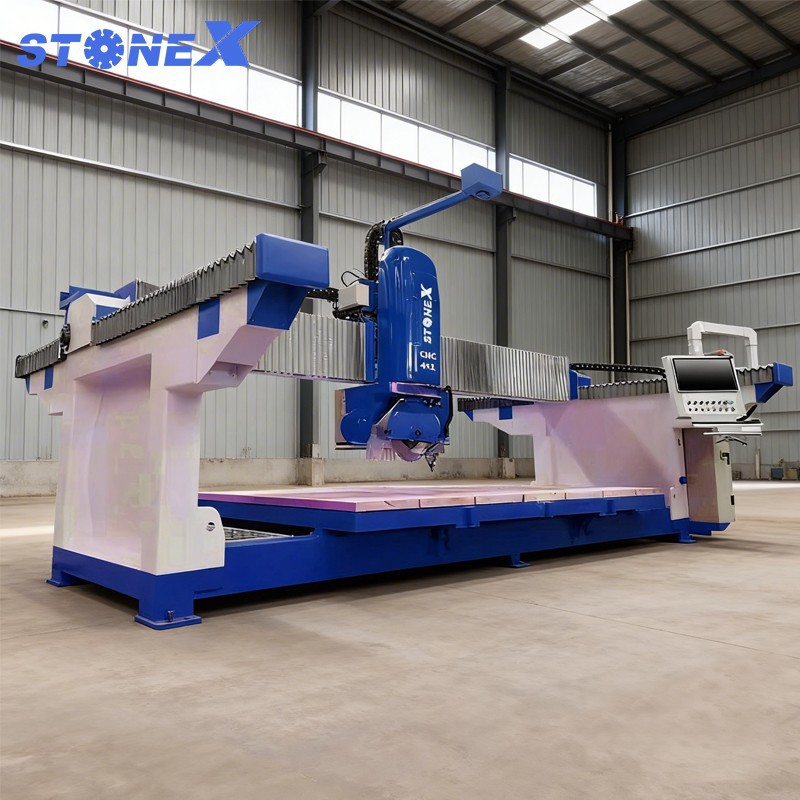

The HYNC 400 PLUS is a 4+1 axis CNC bridge saw for stone processing. It is not only a CNC granite saw, but also capable of cutting marble, quartz stone and other materials. It is mainly used for processing kitchen countertops, bathroom renovations, custom furniture and other applications.
Adopting an integrated machine structure design, the equipment is built with a cast beam to ensure quality. This structure prevents deformation during continuous operation and guarantees high cutting precision.

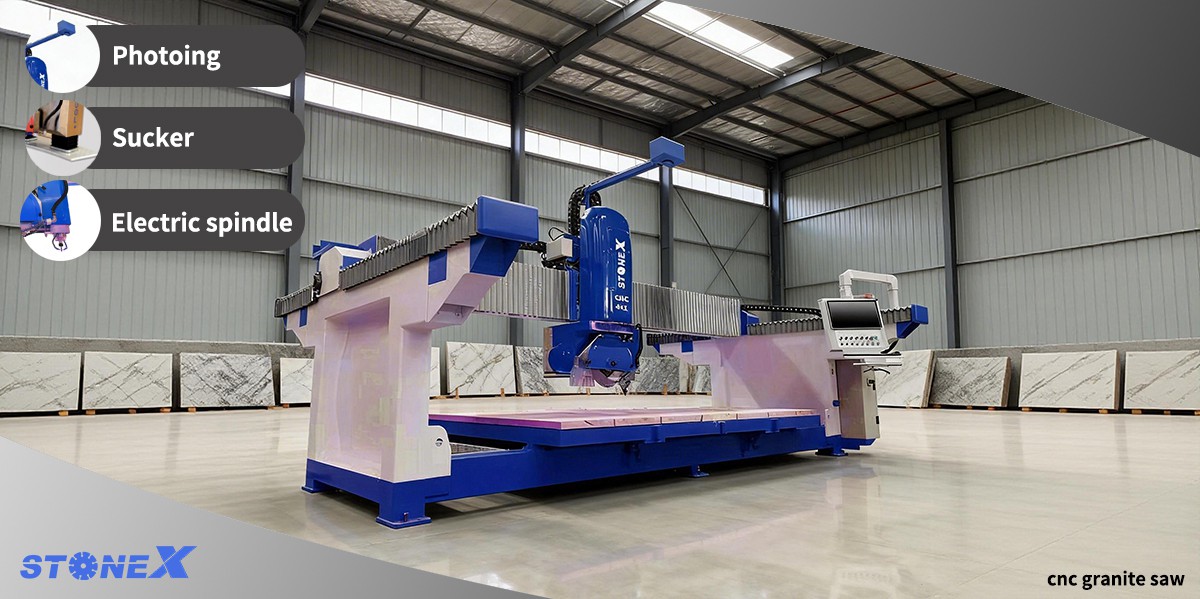

Machine Features
- Adopts Italian ESA control system.
- Equipped with a camera function to capture slab images for cutting layout optimization and path planning.
- The cutting head can rotate 360° for cutting polygons, arcs and special shapes.
- The saw blade can tilt 45° for chamfer cutting.
- The worktable can flip up to 85° for easy loading.
- Equipped with an independent milling cutter.
- Equipped with vacuum suction cups for slab movement during cutting
- Equipped with permanent magnet motor.
|
Name |
Unit |
HYNC-400 PLUS |
|
Diameter of saw blade |
mm |
Φ350-400 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
70 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.5 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5400 |
Huali Intelligent Equipment provides a full range of bridge saws from 3-axis to 5-axis to meet the diverse needs of stone customers. As a stone machinery manufacturer with rich production and technical experience as well as comprehensive after-sales service, Huali Machinery has established a complete service system, offering precise equipment matching and long-term efficient service support for customers.
The HYNC400 PLUS has gained great popularity among numerous customers for its outstanding performance. It features a worktable size of 3500*2100mm, allowing the cutting of larger slabs. The saw blade diameter ranges from 350 to 400mm, and it is equipped with a high-speed electric spindle that enables drilling and milling on slabs. With the combination of saw blade and milling cutter, it cuts sink holes for kitchen and bathroom countertops more efficiently without wasting materials.
Huali Intelligent Equipment provides one-stop services for stone machinery, including quarrying machines, cutting machines, polishing machines, etc. For inquiries or purchases, please contact us via email or other channels.
