Product Introduction

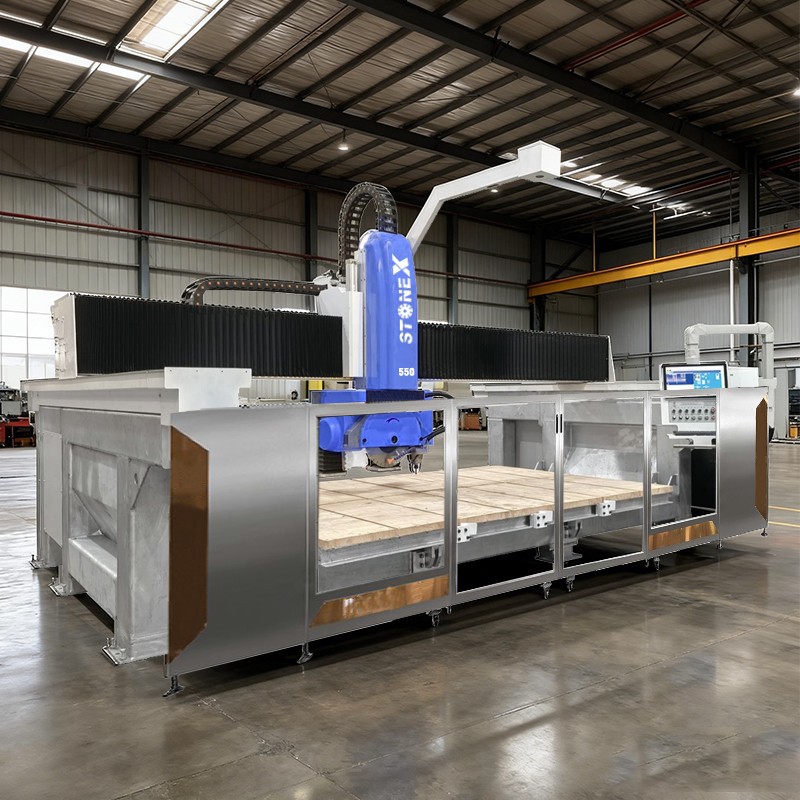

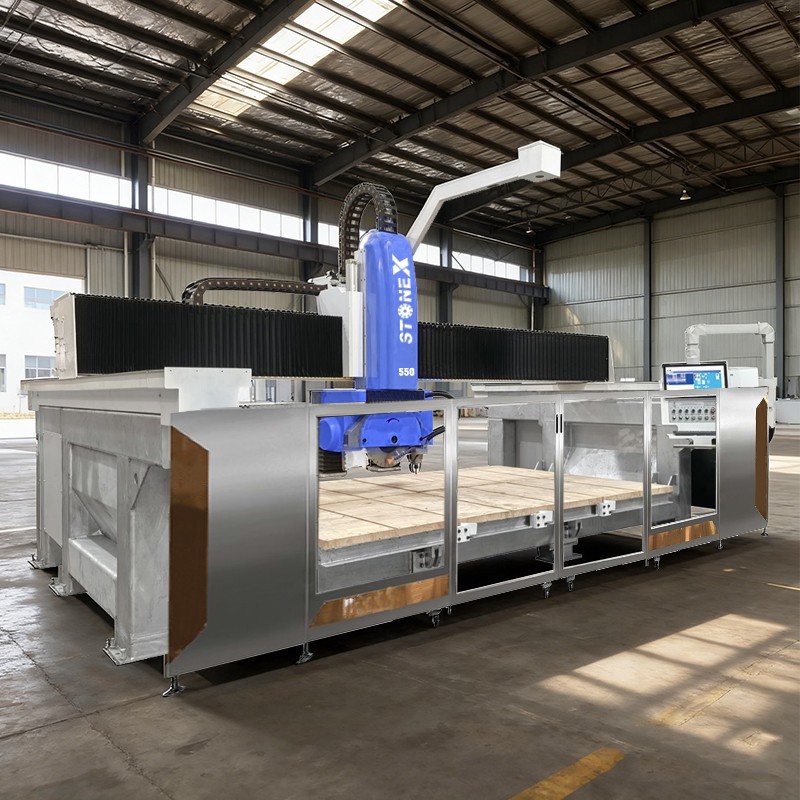

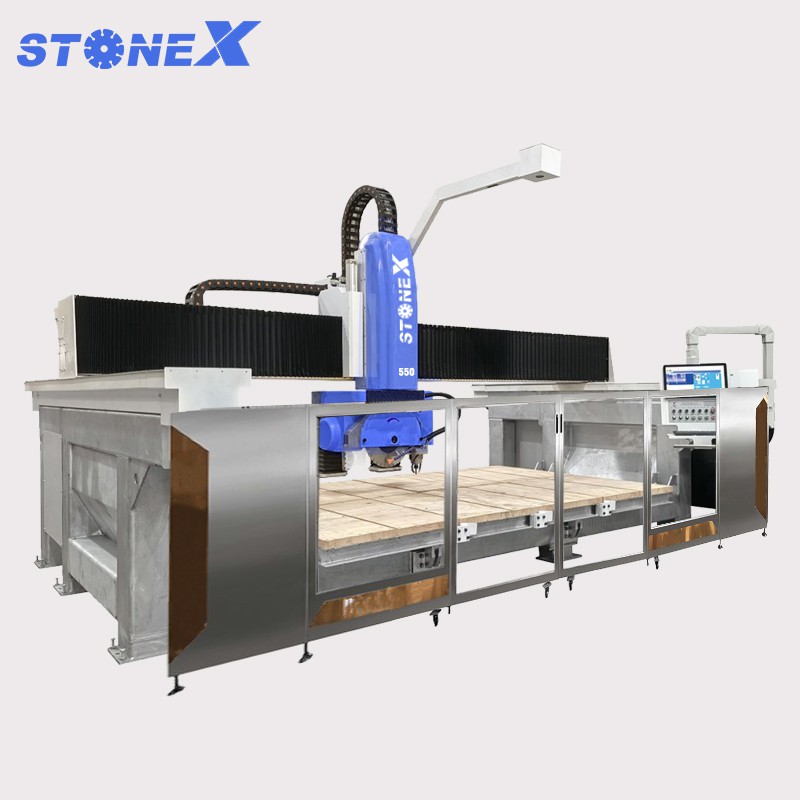

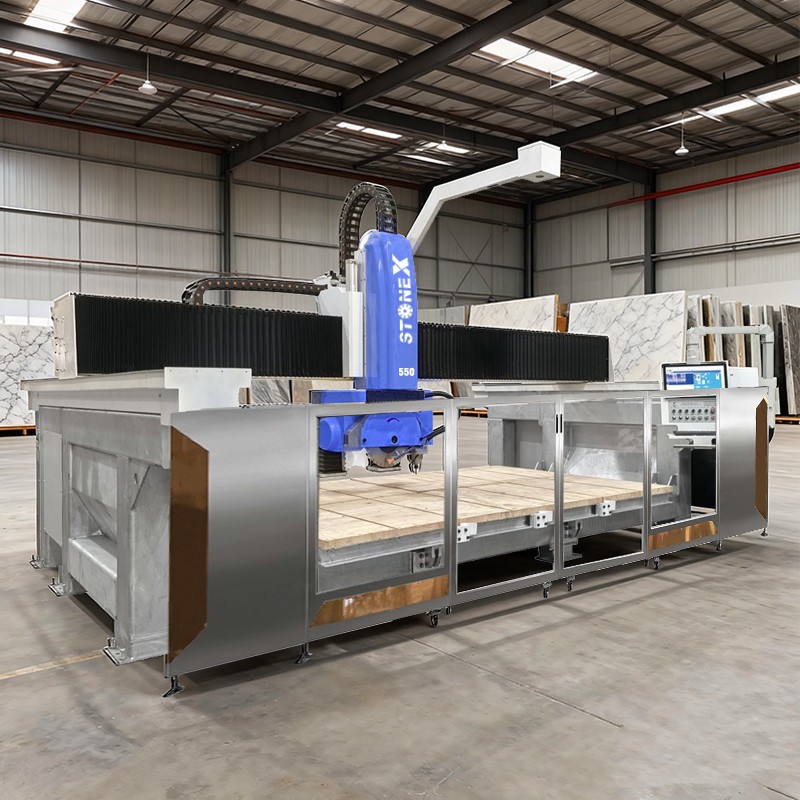

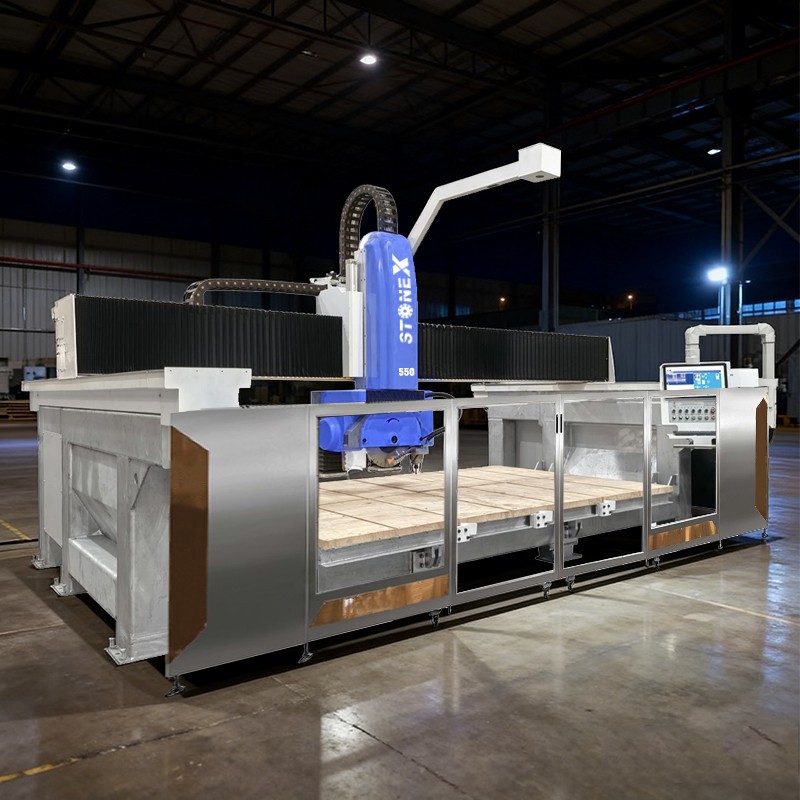

The Huayi HYNC550 5-axis stone bridge saw adopts an Italian CNC system with 5-axis linkage and an independent electric spindle. It is designed for cutting marble, granite, sintered stone, quartz stone, artificial stone and other stone materials.
The worktable can tilt up to 85°, and the machine is equipped with camera shooting function and vacuum suction cups, making it ideal for kitchen and bathroom countertop processing.
One-unit order is available. You are warmly welcome to visit Huayi Intelligent Equipment factory for inspection.
Main Functions

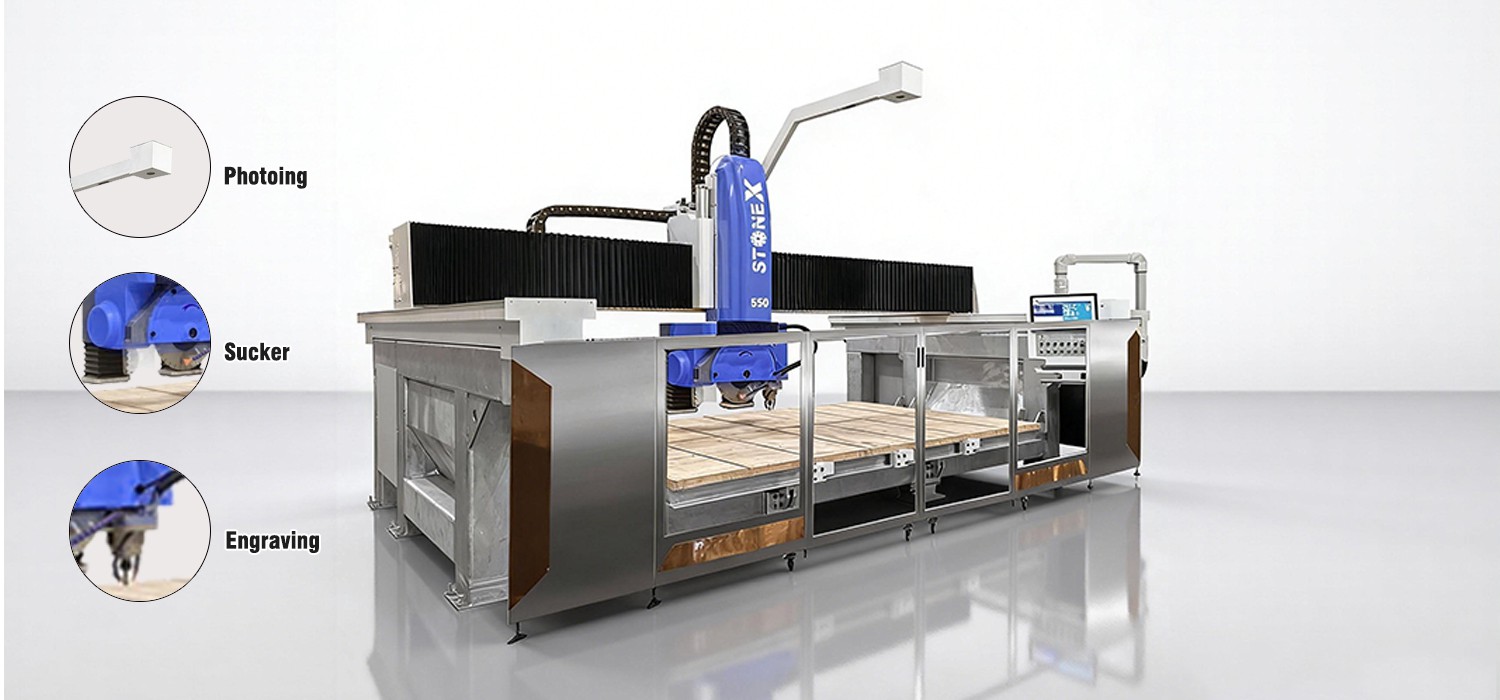

* Capture slab images by camera to arrange and optimize cutting paths.
* Equipped with vacuum suction cups to safely fix and move slabs during cutting.
* The independent electric spindle supports milling, drilling and letter engraving.
* The worktable can be tilted by 85°.
* Saw blade diameter measuring function – optional
* Slab thickness measuring function – optional
* Stainless steel safety protection door – optional
* Please contact us for more customized functions
Product Parameters
|
Name |
Unit |
HYNC-550 |
|
Diameter of saw blade |
mm |
Φ400–500 |
|
Dimensions of working platform |
mm |
3500×2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
150 |
|
Power of electro-spindle |
kW |
5.5 |
|
Power of main motor |
kW |
18.8 |
|
Power of cutter frame reciprocating motor |
kW |
2 |
|
Power of crossbeam shifting motor |
kW |
1.1 |
|
Power of hydraulic station motor |
kW |
2.2 |
|
Power of lifting motor |
kW |
0.85 |
|
Gross power |
kW |
33.7 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L×W×H) |
mm |
5900×3680×3200 |
|
Gross weight |
kg |
6500 |
The HYNC550 5-axis stone bridge saw is mainly used for processing kitchen and bathroom countertops, sink holes, feature walls, paving stones, exterior wall dry-hanging panels, stair treads, door casings, window casings, standard slabs and customized stone furniture.
FAQ
Q: How many axes does the machine have?
A: This machine is a 5+1 axis model.
Q: What is the production lead time?
A: About 30 days after receiving the advance payment, depending on the machine model and configuration.
Q: What trade terms are available?
A: We support common trade terms including FOB, EXW and CIF.
Q: What is the warranty period?
A: The warranty period is 12 months.
Q: Do you provide overseas on-site installation?
A: Yes, on-site installation service is available.
Q: What after-sales services are provided for overseas customers?
A: Online remote support and on-site service by dispatched technicians.
After-sales Service
* All our equipment comes with a 12-month warranty. Free spare parts will be provided for non-human damage within the warranty period.
* We provide lifelong technical support
