Product Introduction

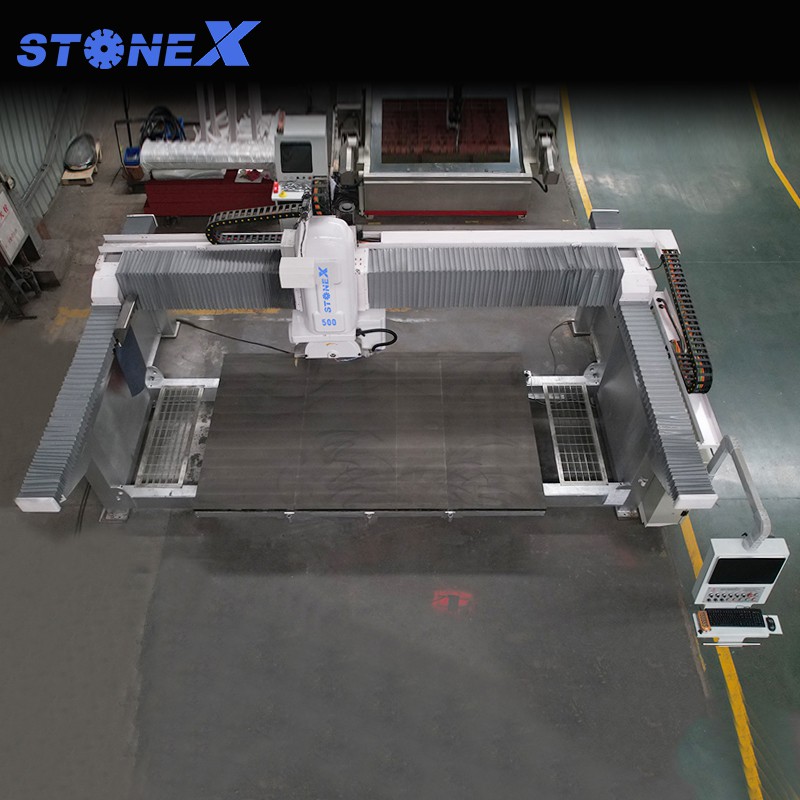

500mm Blade 5 Axis Bridge Saw - Huayi Intelligent Equipment

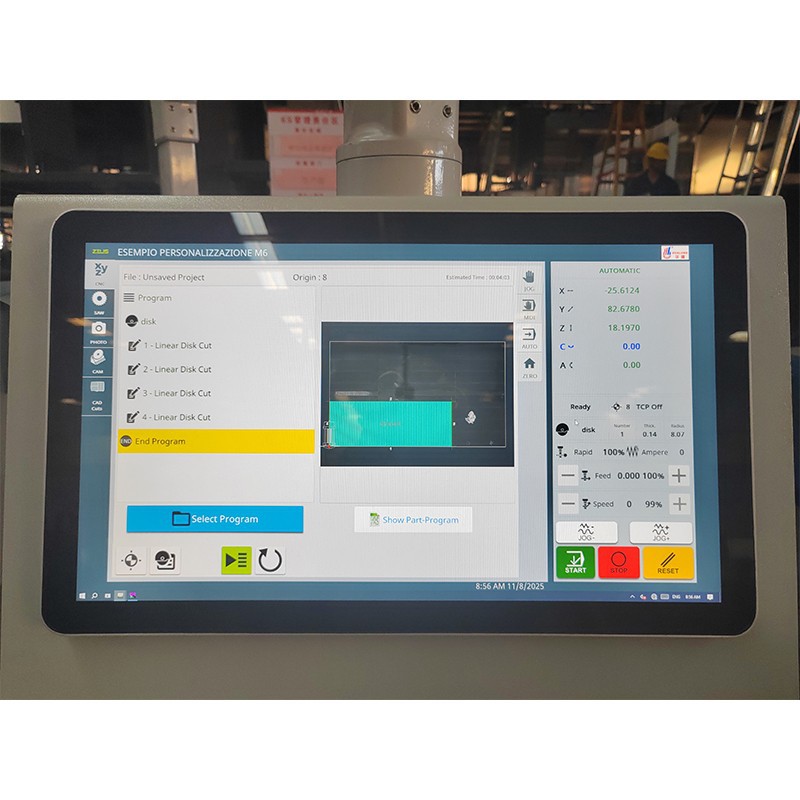

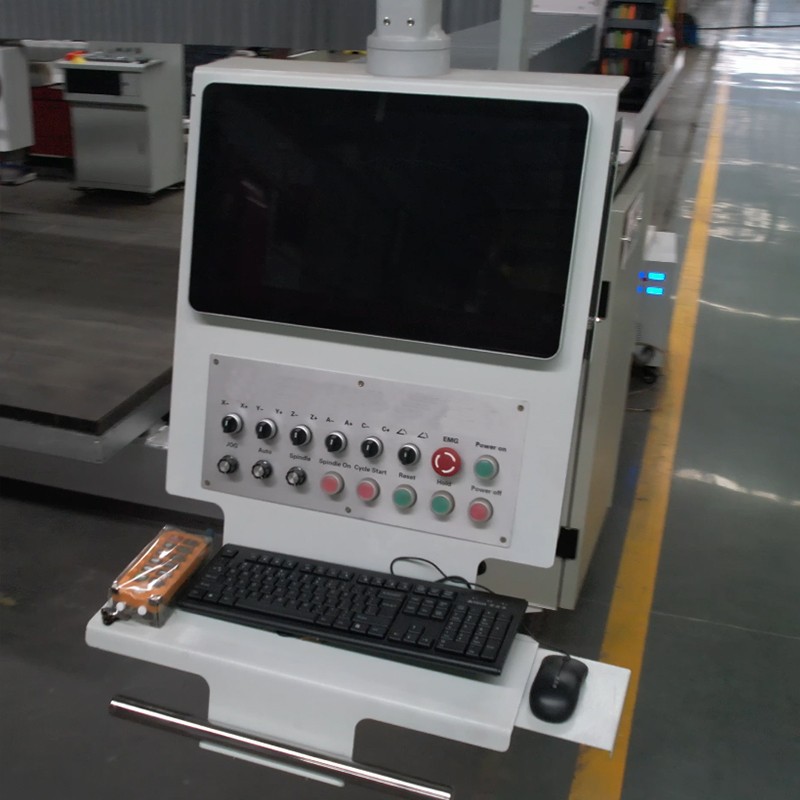

The Huayi HYNC500+ is equipped with an Italian ESA control system and a large 21.8-inch touch display screen.

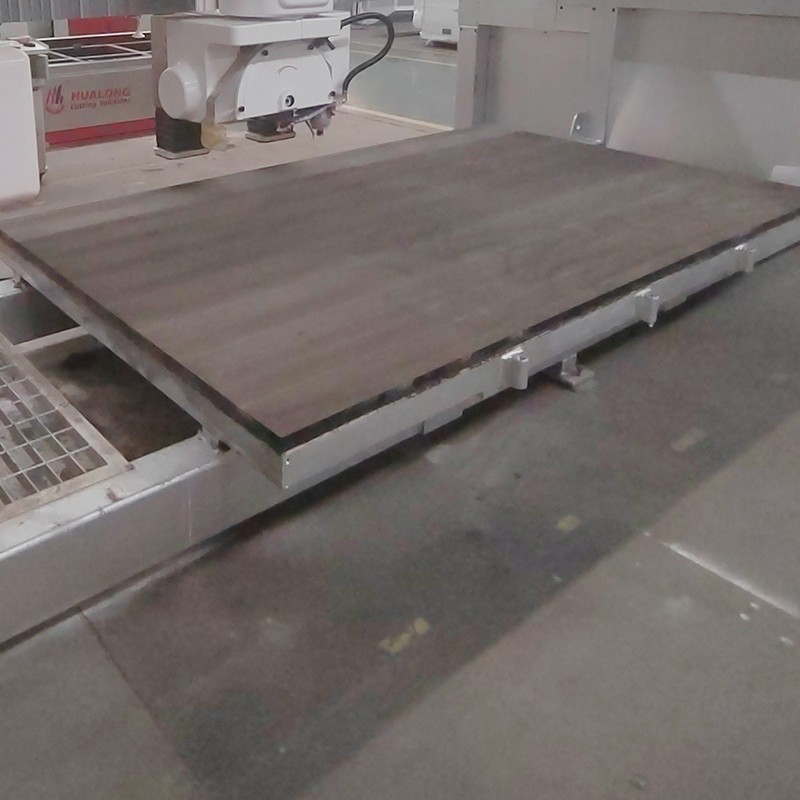

It features an upgraded 3500×2100mm worktable with wooden or rubber surface optional.
Adopting an integral cast iron beam, it ensures stable and firm operation of the cutting head with durable performance for long-term use.
This machine is widely applicable for processing kitchen & bathroom basin cutouts, feature walls, special-shaped cutting, curved surface shaping, relief carving and more.
One unit minimum order is accepted, and the production cycle is about 30 days.
500mm Blade 5-Axis Bridge Saw: Suitable for marble, granite, sintered stone, quartz stone, artificial stone, ceramics and other materials.
Product Parameters
|
Model No |
Unit |
HYNC-500+ |
|
Diameter of saw blade |
mm |
400-500 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.8 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5800 |
Main Functions & Configurations

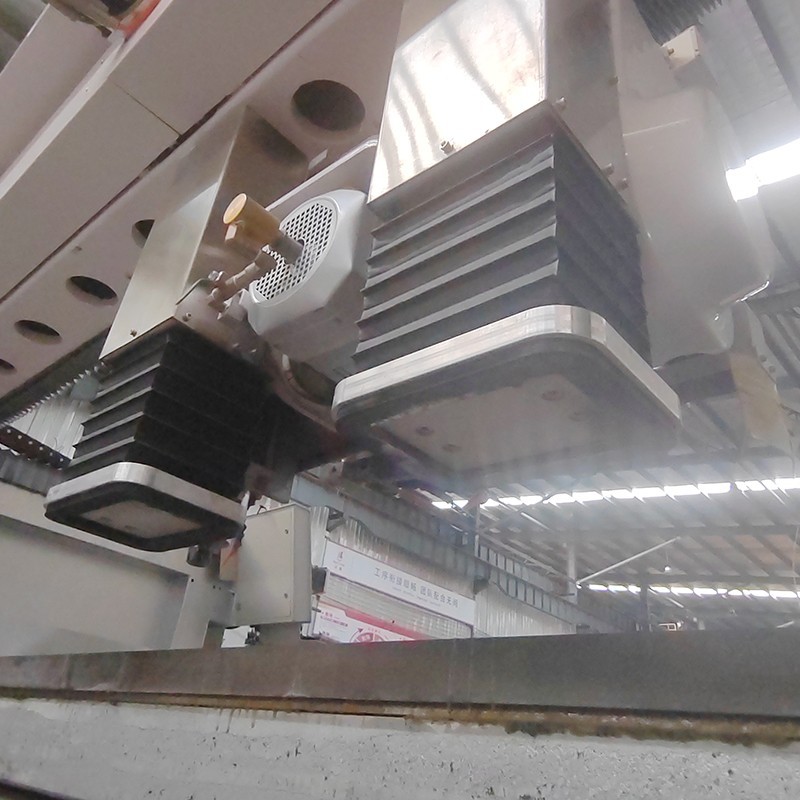

1. 360° rotatable cutting head, capable of cutting straight edges, bevel edges, diamonds, sectors, polygons, arcs, ellipses, bullnose edges and more.
2. The saw blade supports chamfer cutting at any angle from 0° to 90°.
3. Worktable tilts up to 85°.

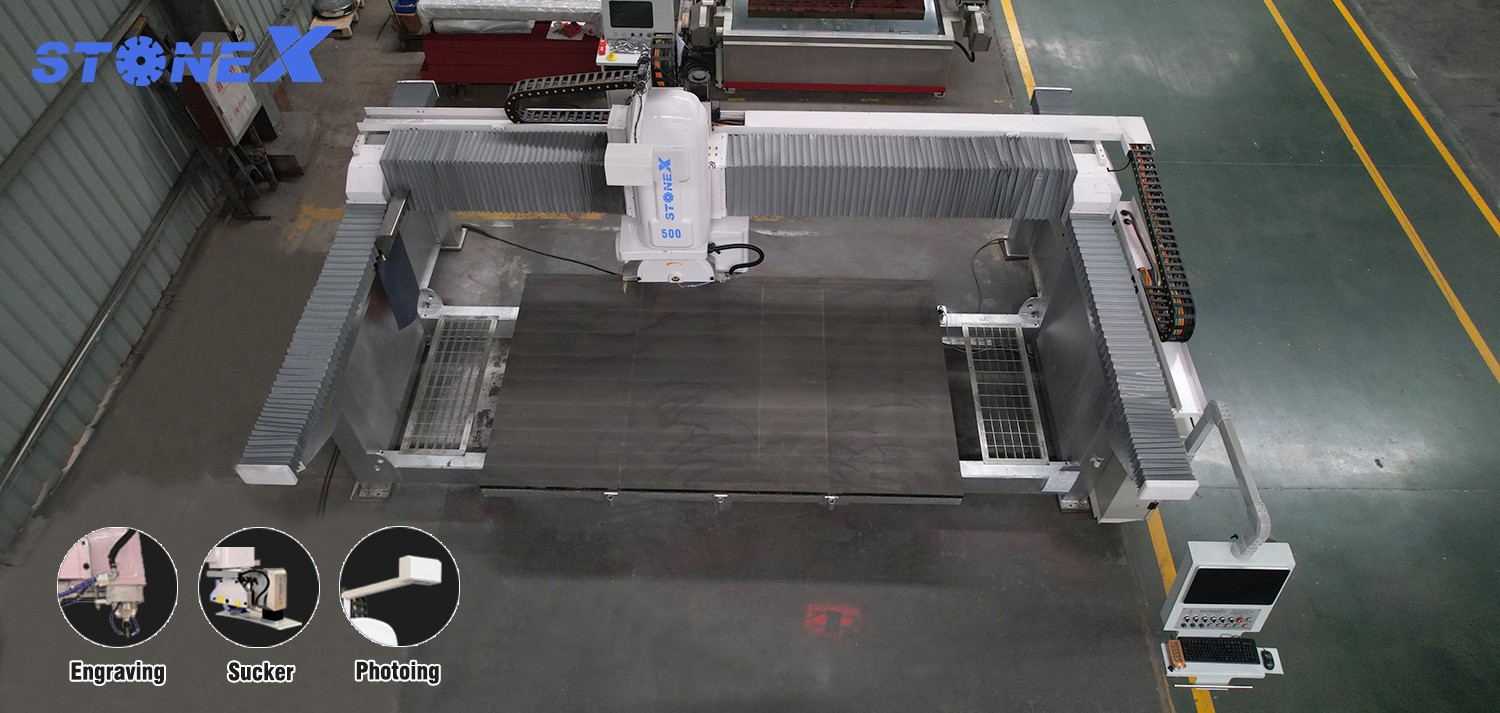

4. Camera function to capture slab images and edit cutting paths.
5. Grain matching & splicing function.
6. Vacuum suction cups move slabs during cutting to prevent over-cutting and reduce material loss.
7. Independent electric spindle for milling, drilling, engraving and other processing operations.
8. Optional configuration: Saw blade size measurement.
9. Optional configuration: Slab thickness detection.
10. Optional configuration: Slab fixing device.
11. Optional configuration: Stainless steel safety protection door.
FAQ
Q: What stone machinery does your company mainly deal in?
A: Our product range includes quarry equipment, CNC bridge saws, polishing machines, engraving machines, wire saws, waterjets and more.
Q: What control system do the machines adopt?
A: All machines are equipped with Italian ESA control system.
Q: Do your machines have CE certification?
A: Yes, all equipment is CE certified.
Q: What structure is adopted for the beam?
A: It adopts an integral cast beam with high rigidity, stable performance and long service life.
Q: What is the production lead time?
A: Approximately 30 days after receiving the deposit, subject to machine model and configurations.
Q: How long is the warranty period?
A: We provide a 1-year warranty for all machines.
Q: Do you offer overseas on-site installation and training?
A: Yes, we provide global on-site installation and operational training services.
After-sales Service
- All our machines come with a 12-month warranty period. Free spare parts will be provided for non-artificial damage within the warranty term.
- Exclusive after-sales groups are established online for customers to ensure rapid consultation and problem resolution.
- Overseas technician dispatch service is available, which requires prior communication and arrangement with our company.
