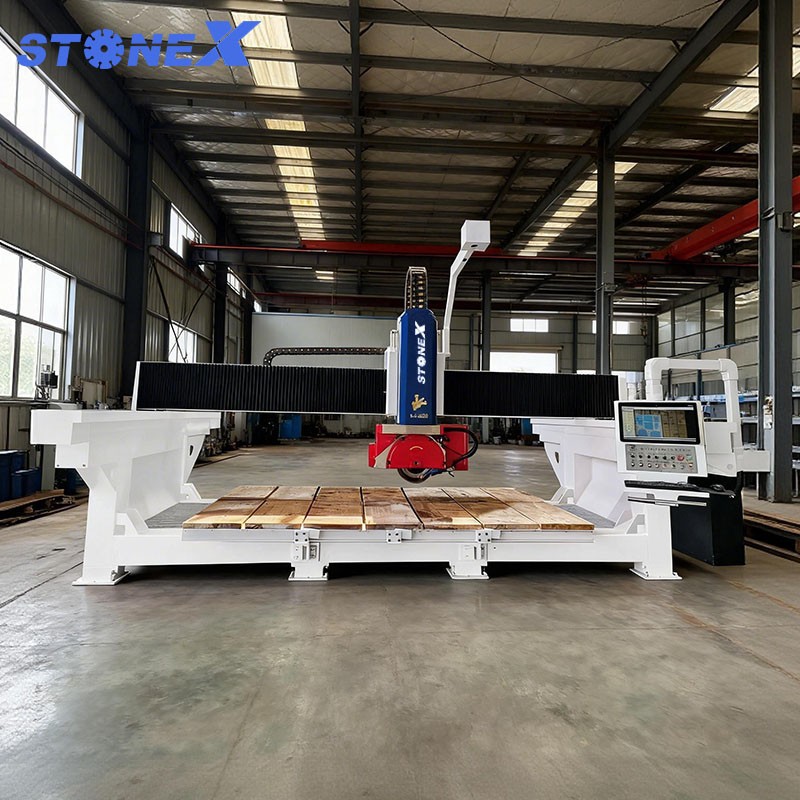

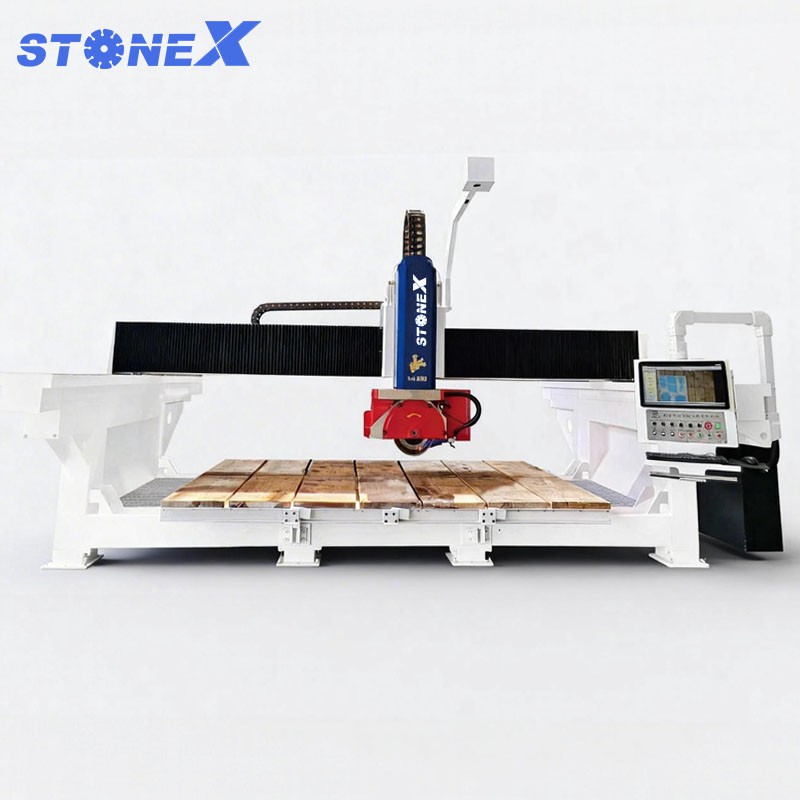

Intelligent 5-Axis CNC Bridge Saw, Combining saw blade and milling cutter, it can be flexibly switched for various processing modes, serving as the core equipment for stone processing factories.

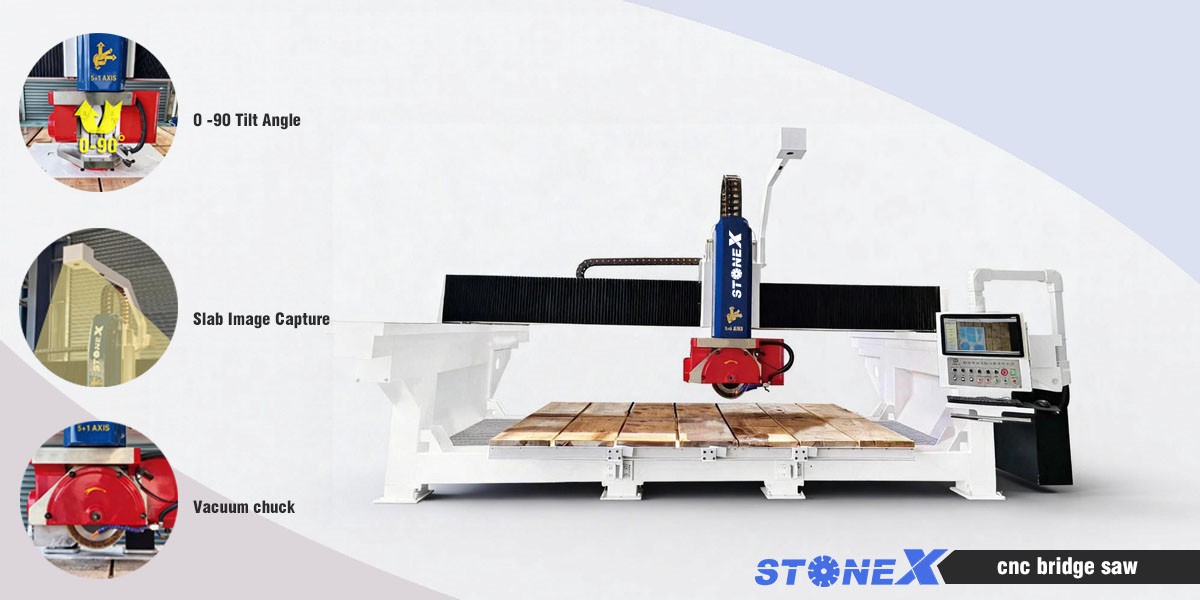

CNC Bridge Saw Features
1. Saw cutting shapes: circles, sectors, arcs, polygons, bullnose edges, chamfering, slotting, etc.
2. Equipped with high-speed milling cutter for drilling and milling round and square sink holes.
3. Adopts Italian control software with high intelligence.
4. Photo scanning function captures slab profile and veins, improving layout efficiency and enabling vein matching.
5. Equipped with suction cups to prevent over-cutting and save materials.
6. Customizable options: slab thickness measurement, tool setter, rubber working table, and other functions.
|
Model NO |
Unit |
HYCNC2 5+1 |
|
Diameter of saw blade |
mm |
350-500 |
|
Power of Permanent Magnet Spindle Motor |
kw |
18.8 |
|
Speed of Permanent Magnet Main Motor |
rpm |
0–6000 |
|
Speed of Electric Spindle |
rpm |
0–24000 |
|
Rotation of Axis A |
deg |
0–90° |
|
Rotation of Axis C |
deg |
±185° |
|
Maximum Vertical Cutting Thickness |
mm |
150 |
|
X-Axis Travel |
mm |
3500 |
|
Y-Axis Travel |
mm |
2500 |
|
Z-Axis Travel |
mm |
350 |
|
Worktable Size |
mm |
2100 × 3500 |
|
Air Pressure |
bar |
5 |
|
Water consumption |
m³/h |
3 |
|
Total Power |
kw |
33.7 |
|
Dimensions (L x W x H) |
mm |
5900×3680×3200 |
|
Gross weight |
kg |
6800 |
|
|

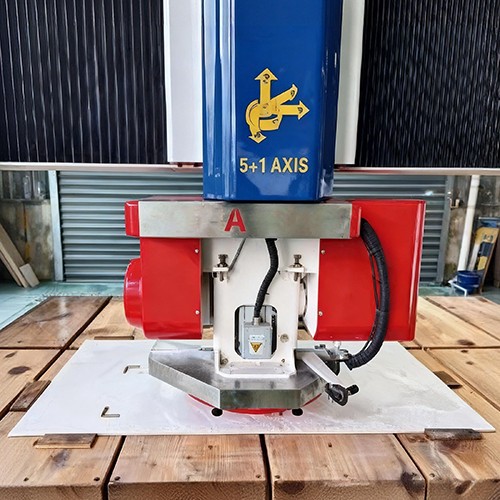

The CNC bridge saw is equipped with a vacuum suction cup function, which can timely remove the cut slabs during processing. This prevents material loss caused by over-cutting and avoids interference with subsequent cutting processes, effectively improving processing efficiency and material utilization. |
|
|

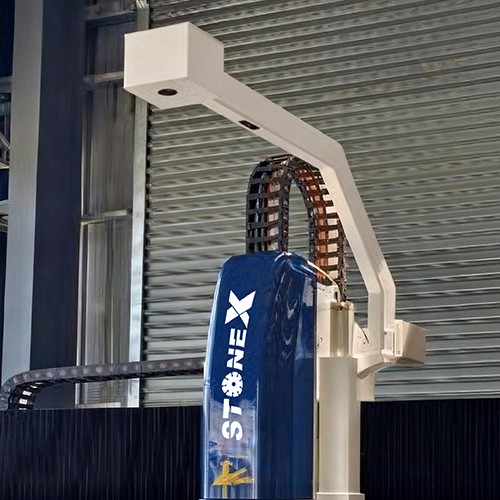

The photo scanning function accurately captures the contour and texture pattern of stone slabs. During cutting, it enables visual intelligent layout based on the collected data, greatly optimizing the cutting path and effectively reducing material waste. The machine can also be upgraded with a vein matching function, ensuring seamless and natural texture continuity at joints, improving both the aesthetic appearance of finished products and stone utilization. |
|
|

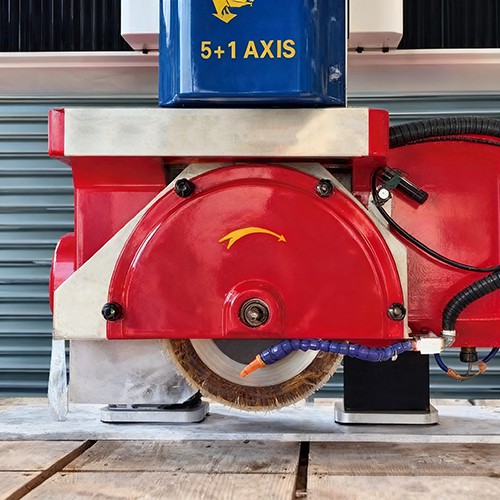

The head can tilt at any angle from 0° to 90° for chamfering, and can be equipped with a milling cutter for drilling and milling operations. |

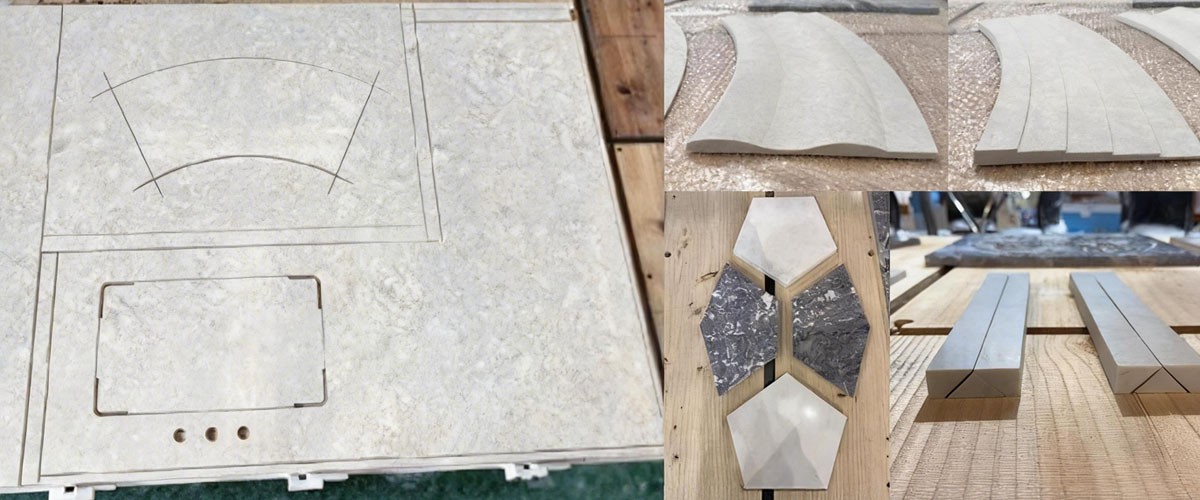

The CNC bridge saw boasts a wide range of applications. It can machine sink holes for kitchen countertops, and when used with a milling cutter, it delivers higher processing efficiency and lower material waste. The machine is also capable of performing complex processing such as various special-shaped lines, 3D profiles, polygonal shapes, etc.
With over 30 years of technical accumulation, superior equipment quality and comprehensive after-sales service, Huayi Intelligent Machinery has gained wide recognition in the market.
Welcome to contact us for detailed product information.
