Product Introduction

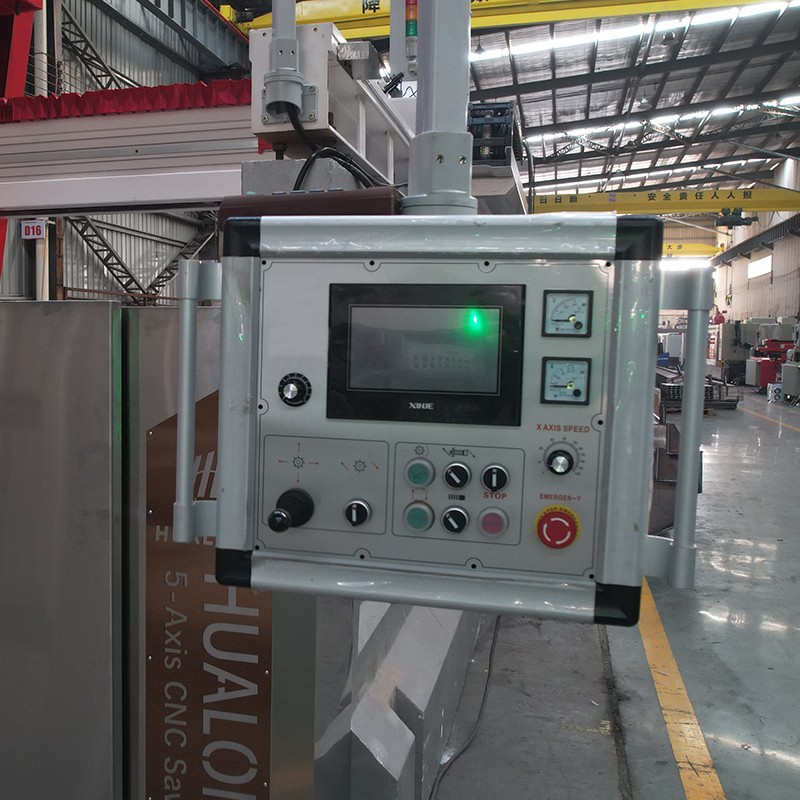

The HYSM1400 is a medium-sized bridge cutting machine that can be fitted with a saw blade of up to 1400mm in diameter. It is equipped with a PLC control system for simple operation, and we provide professional operation training services.
This machine is suitable for cutting marble, granite, quartz stone, artificial stone and cement boards.
It features a 3200×2000mm worktable with optional 0–90° or 0–360° rotation. A safety protection door is available as an optional configuration.
Product Parameters
|
Name |
Unit |
HYSM-1400 |
|
Blade diameter |
mm |
Φ600-1400 |
|
Max.vertical traver |
mm |
800 |
|
Workbench dimensaions |
mm |
3200×2000 |
|
Workbench rotating degree |
° |
0-90° |
|
Water consumption |
m³/h |
4 |
|
Power of main motor |
kw |
22 |
|
Gross power |
kw |
25 |
|
Gross weight |
kg |
9000 |
|
Dimensions(L* W* H) |
mm |
6400×5500×4000 |

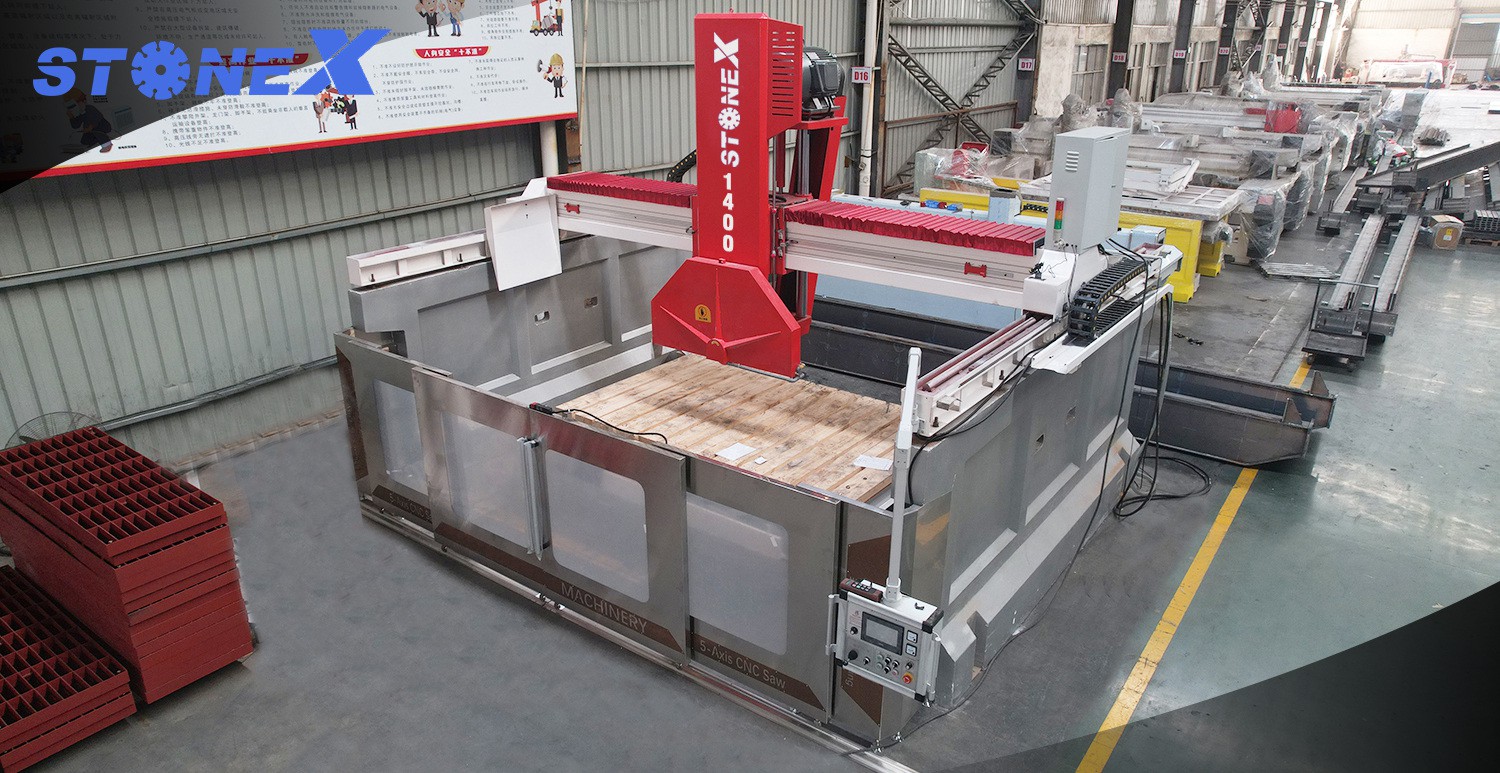

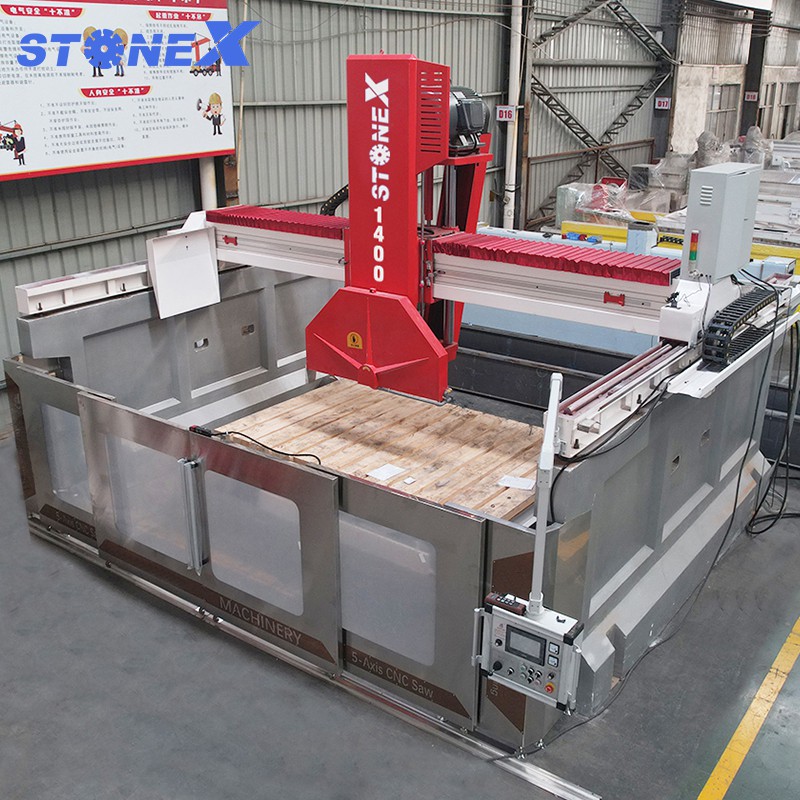

1400mm Blade Stone Bridge Saw
The HYSM1400 stone bridge cutting machine is mainly used for processing paving stones, exterior wall dry-hanging stones, square stones, rectangular stones, standard slabs, step stones, curbstones and strip stones.
The machine adopts transverse traveling design. Combined with worktable rotation, it realizes straight cutting and cross cutting. Featuring a simple structure and user-friendly operation, it requires no professional skills. Operators can master the operation quickly after simple training.
FAQ
Q: What control system does the machine use?
A: It adopts a PLC control system.
Q: Is the machine CE certified?
A: All our equipment has passed CE certification and meets safety and quality standards.
Q: What trade terms are available?
A: We support common trade terms such as FOB, EXW and CIF.
Q: How long is the production cycle?
A: The lead time is generally about 30 days after receiving the advance payment.
Q: What is the warranty period of the machine?
A: A 12-month warranty is provided.
Q: Do you provide overseas on-site installation?
A: We can arrange professional technicians for on-site installation.
Q: Is there a minimum order quantity?
A: One unit is acceptable.
Q: Is operation training provided?
A: Yes, we offer professional operation training services.
After-sales Service
* Our equipment comes with a 12-month warranty. Within the warranty period, free replacement parts will be provided for non-human damage to components.
* We offer lifelong technical services for all customers.
