Product Introduction

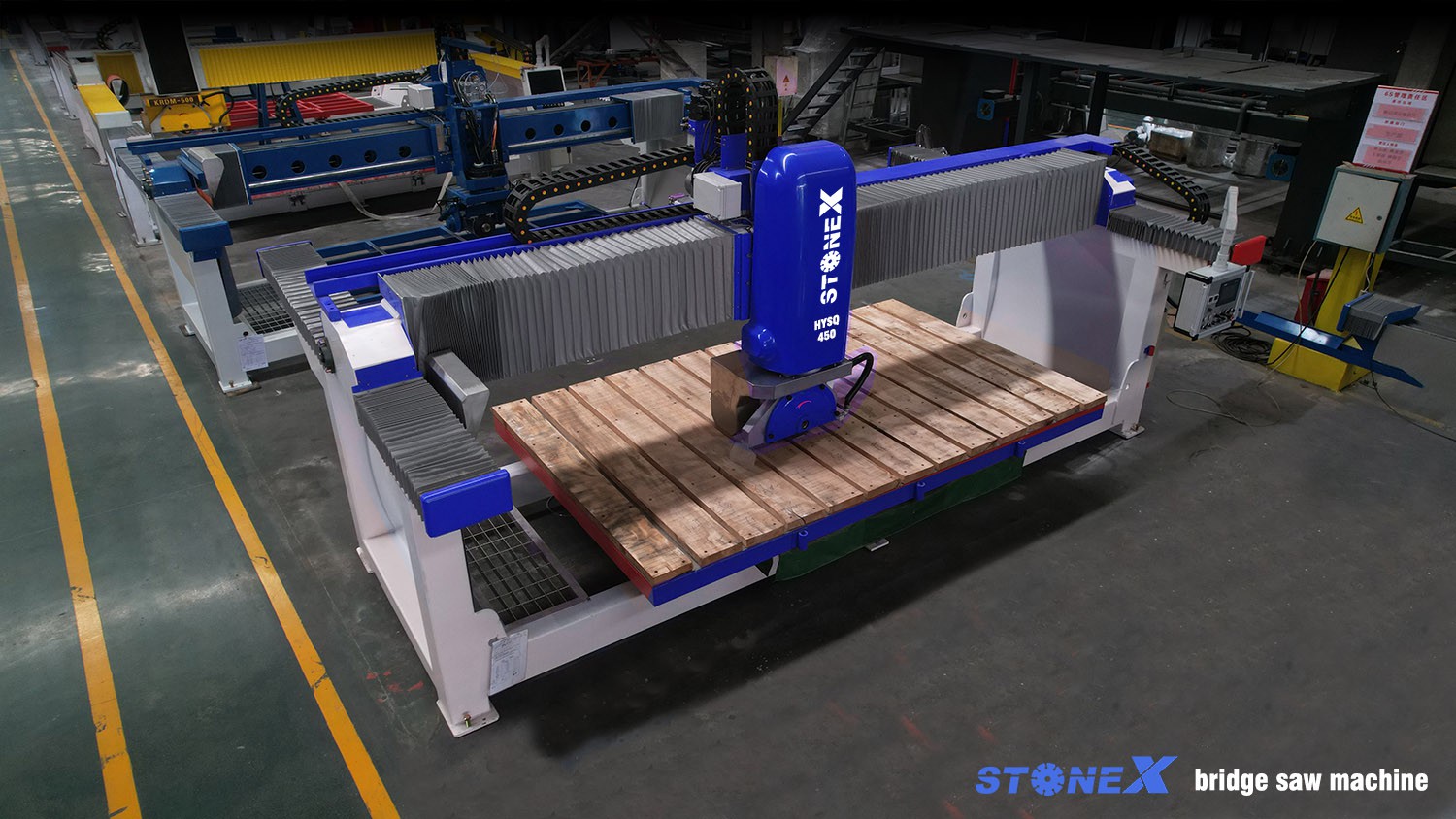

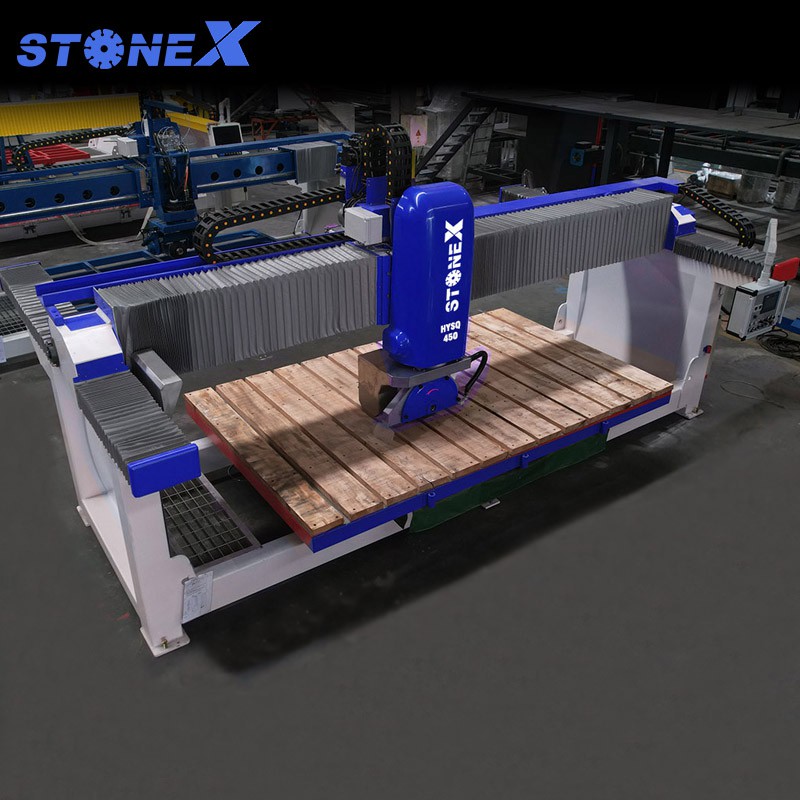

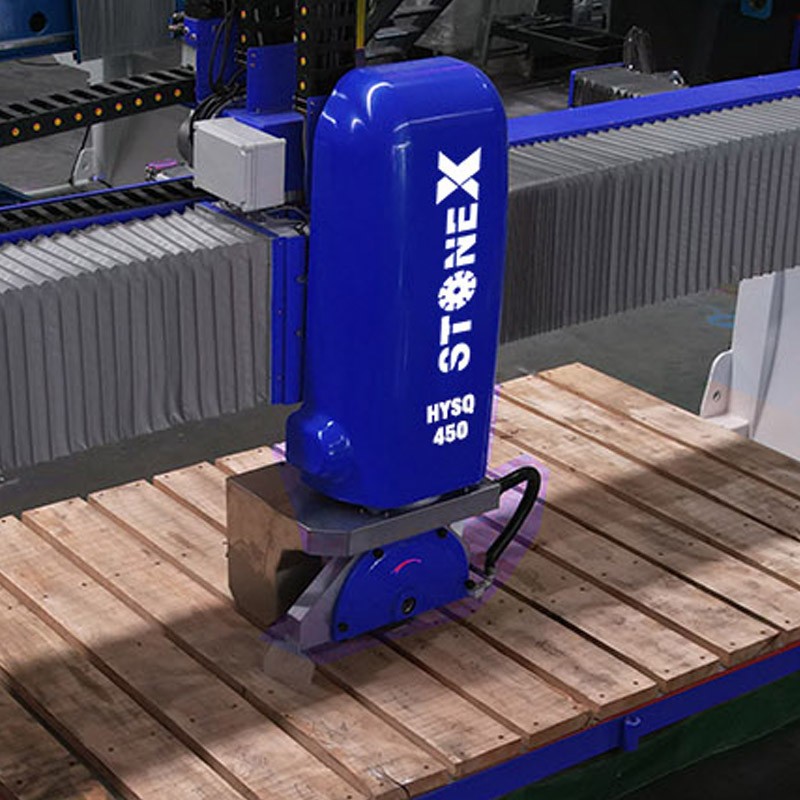

The Huayi HYSQ-450 stone bridge saw machine is a 3-axis stone bridge saw equipped with a PLC control system. The saw blade supports vertical cutting, horizontal cutting and chamfer cutting.
It is fitted with a 360° rotating worktable, which enables the cutting of circles and polygons by table rotation.
This machine has obtained CE certification, ensuring reliable performance and stable quality.

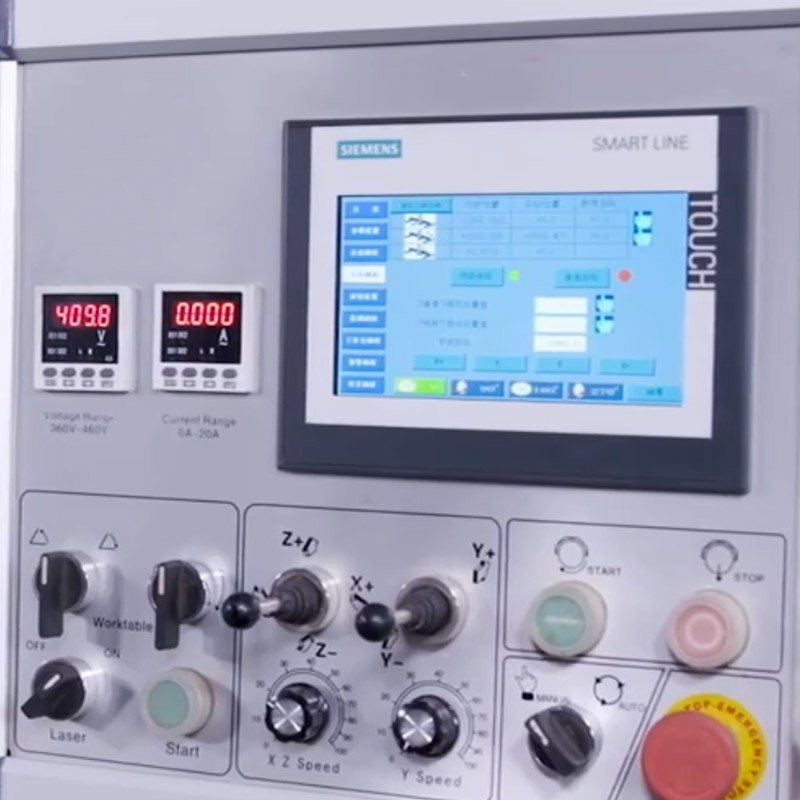

The control system is user-friendly with multiple built-in processing models. Operators can quickly set parameter values and start cutting tasks efficiently.
Main Purpose
It is used for cutting marble, granite, quartz stone, artificial stone and other stone materials, recommended for slabs with a thickness within 100mm.
Main Functions & Products

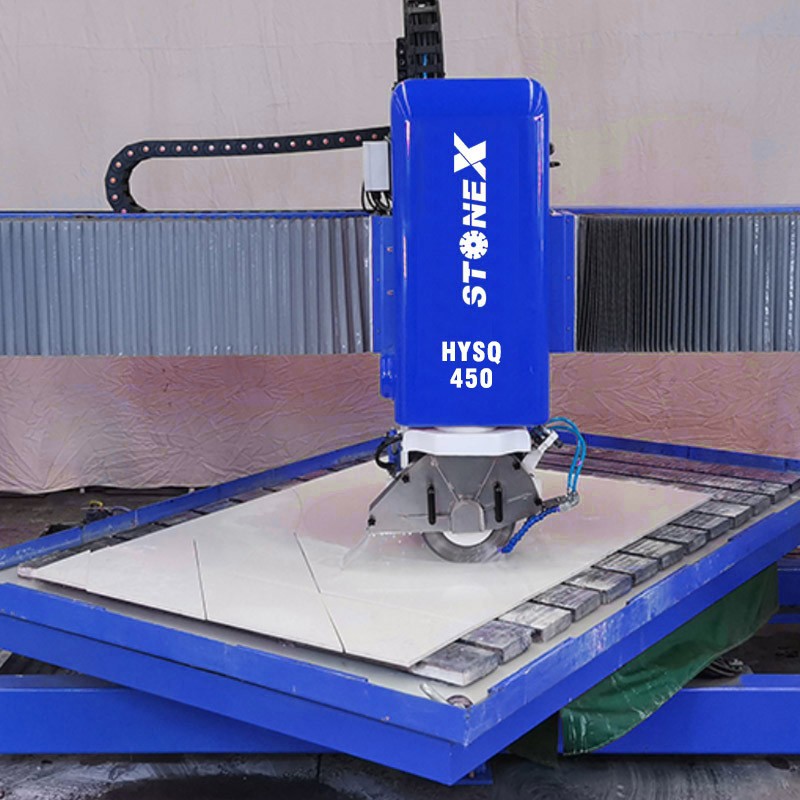

The saw blade supports straight cutting, cross cutting and 45° chamfer cutting. Combined with the rotating worktable, it can realize circular and polygonal cutting.
Main processing products include standard slabs, paving materials, countertop edge trimming, feature walls, 45° splicing and more.
Technical Specifications
|
Name |
Unit |
HLSQ-450 |
|
Diameter of saw blade |
mm |
Φ400-450 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
100 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
15 |
|
Power of cutter frame reciproctating motor |
kw |
1.1 |
|
Power of crossbeam shifting motor |
kw |
1.5 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
1.5 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5700×3260×2765 |
|
Gross weight |
kg |
5400 |
FAQ
Q: What control system does the HYSQ450 adopt?
A: It is equipped with a PLC control system, featuring simple operation. The training is easy to understand, helping operators get started quickly.
Q: Is the machine CE certified?
A: All our bridge saws have obtained CE certification.
Q: Is customization available?
A: We have multiple models and support optional configuration and personalized customization.
Q: Is single-unit order acceptable?
A: Yes, one unit is available for order.
Q: What is the delivery time?
A: Normally, the delivery cycle is about 30 days after receiving the advance payment, subject to the specific machine model.
After-sales Service & Technical Support
* All our machines are covered by a 12-month warranty.
* During the warranty period, spare parts damaged under non-artificial conditions will be provided free of charge.
* Lifetime technical support is available.
* Overseas remote assistance is provided with timely response and fast problem solving.
* Overseas technician dispatch service is available upon request.
