Product Introduction

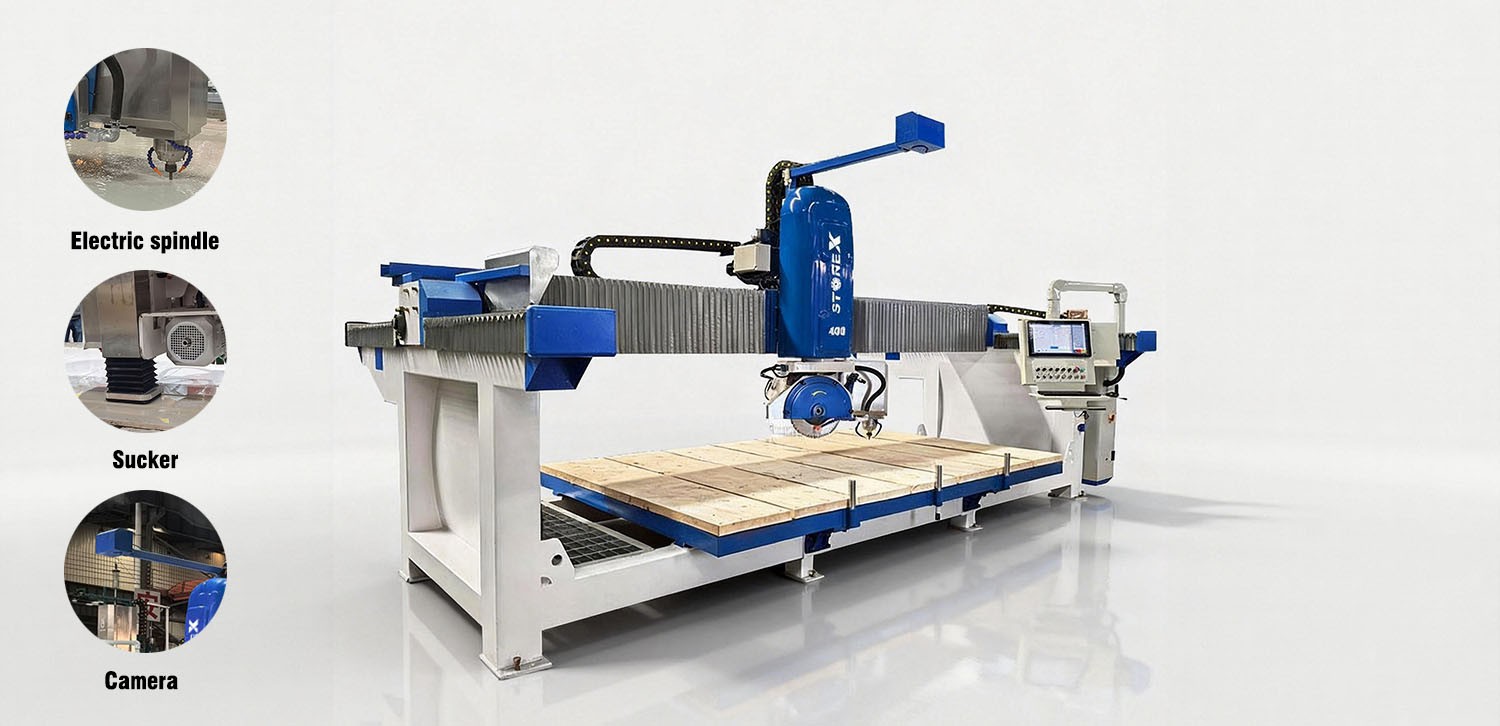

The Huayi HYNC-400+ is a 4+1 cnc bridge saw. It adopts 4-axis linkage plus an independent electric spindle, equipped with an imported Italian ESA control system.
It is widely applicable for cutting marble, granite, sintered stone, quartz stone, artificial stone, ceramics and other stone slabs.
Equipped with camera positioning function and vacuum suction cups, the machine is mainly used for processing kitchen & bathroom countertops, floor paving, feature walls and other stone products.
The 4+1 cnc bridge saw features an integral cast beam, delivering stable operation, high durability and long service life. It maintains stable processing precision for long-term operation, making it an essential core model for stone processing factories.
Product Parameters
|
Name |
Unit |
HLNC-400 Plus |
|
Diameter of saw blade |
mm |
Φ400 |
|
Dimensions of working platform |
mm |
3500×2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
70 |
|
Max. lifting travel |
mm |
250 |
|
Max. lifting weight by suction cups |
kg |
100 |
|
Power of main motor |
kW |
15 |
|
Power of electric spindle motor |
kW |
5.5 |
|
Power of cutter frame reciprocating motor |
kW |
2 |
|
Power of crossbeam shifting motor |
kW |
1.1 |
|
Gross power |
kW |
28.7 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L×W×H) |
mm |
5800×3380×2770 |
|
Gross weight |
kg |
4500 |
Machine Functions

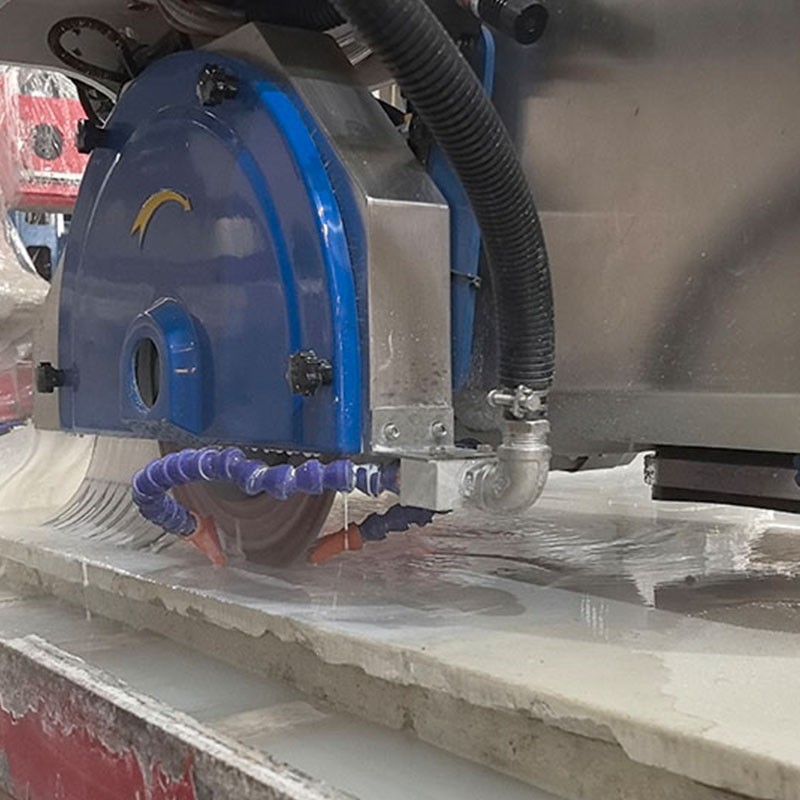

* The cutting head can rotate 360°, enabling straight cutting, cross cutting, bevel cutting, rhombus, fan shape, circle, ellipse, horse-belly edge and other special-shaped processing.
* The saw blade supports 45° chamfer cutting.
* The worktable can be tilted by 85 degrees.

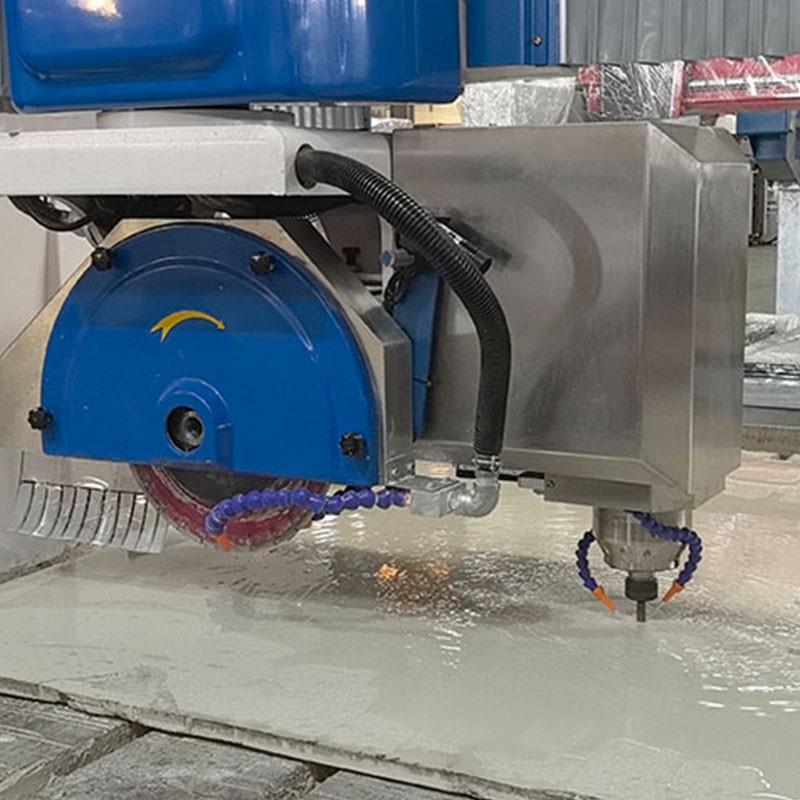

* Equipped with an independent electric spindle to complete milling, drilling, letter engraving and other processing tasks.

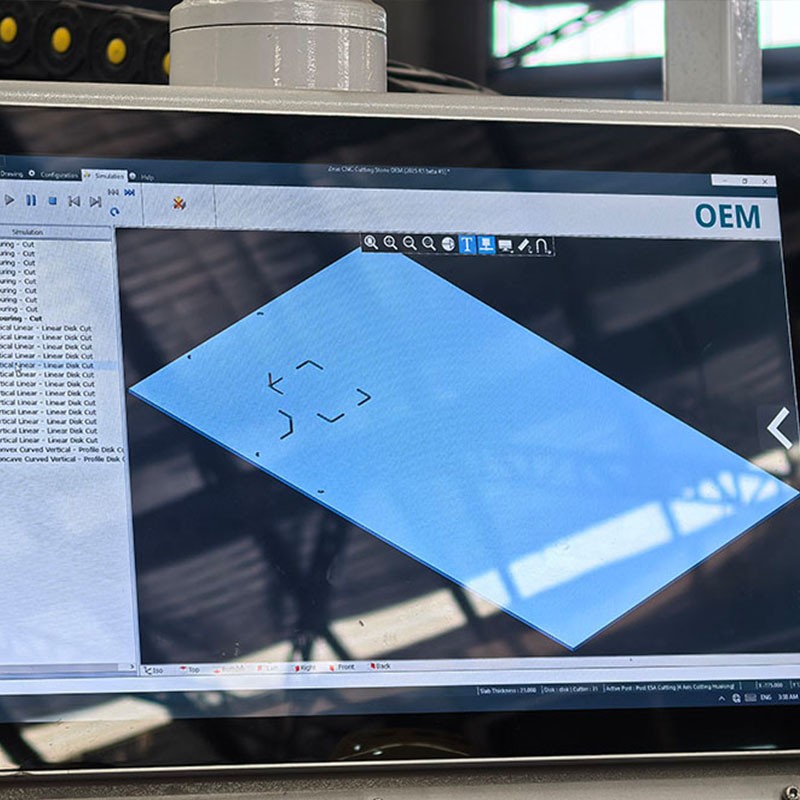

* Camera shooting function: capture slab graphics to optimize and arrange cutting paths.

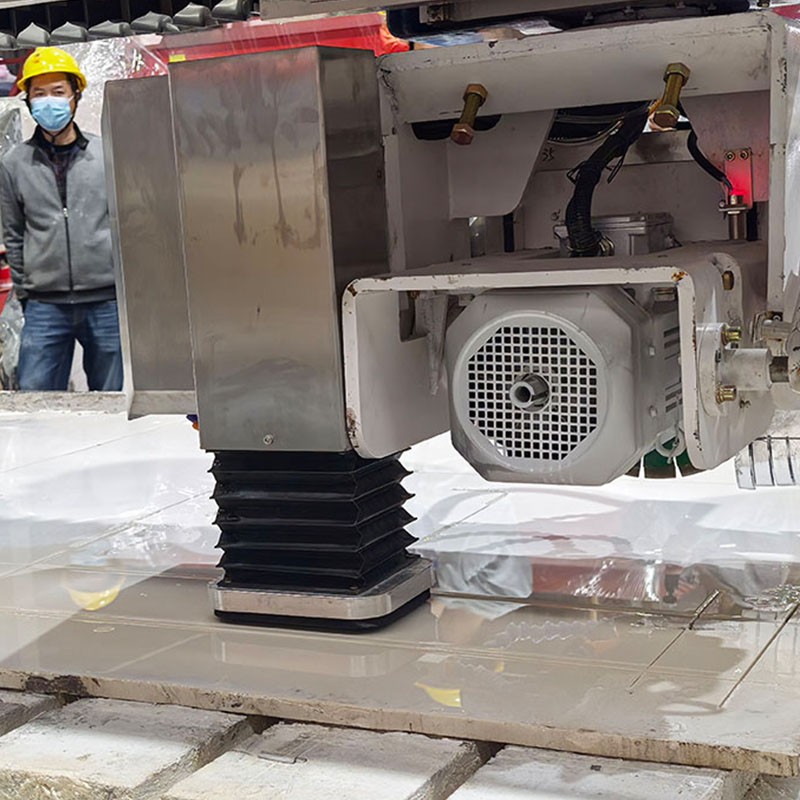

* Vacuum suction cup function: move slabs to safe positions during cutting.
Optional Functions
* Slab thickness measurement
* Saw blade diameter detection
* Stainless steel safety guard door
* Slab fixing device
* Please contact us for more customized functions
FAQ
Q: What control system does the machine adopt?
A: Italian ESA control system.
Q: Does the machine have CE certification?
A: Yes, it is fully CE certified.
Q: Are you a direct manufacturer/factory source?
A: Yes. We are a professional stone machinery manufacturer, and factory visits are warmly welcomed.
Q: What is the production lead time?
A: Delivery within 30 days after receiving the deposit, subject to machine model and configuration.
Q: What trade terms are available?
A: We support common terms including FOB, CIF, EXW, etc.
Q: How long is the equipment warranty?
A: We provide a 12-month warranty period.
Q: Do you offer overseas on-site installation and training?
A: Yes, on-site installation and operation training services are available for overseas customers.
After-sales Service
* Within the warranty period, we provide free spare parts for damages caused by non-human factors.
* We offer lifelong technical support for all customers.
