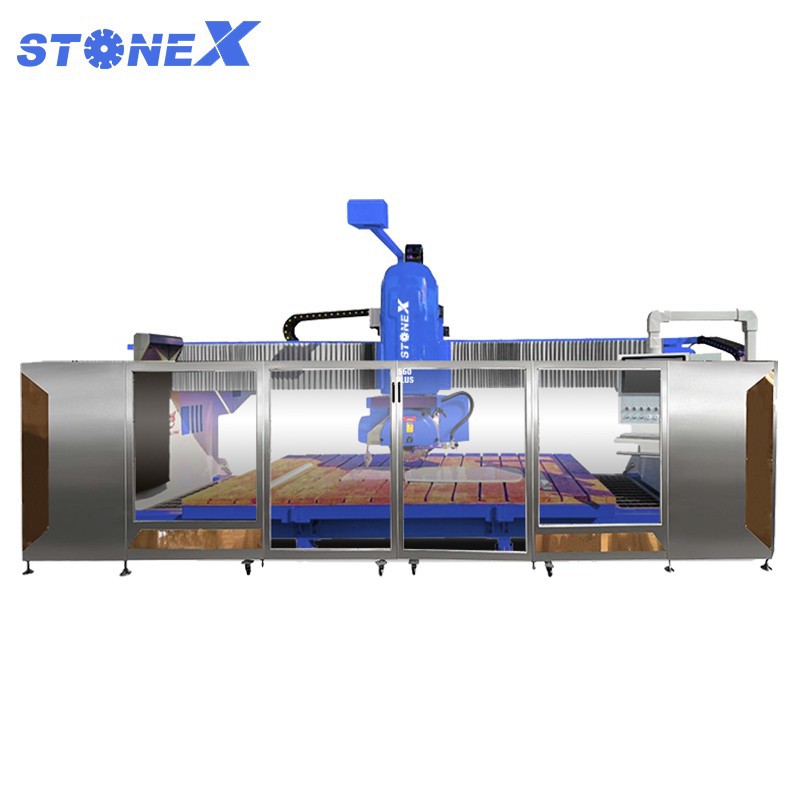

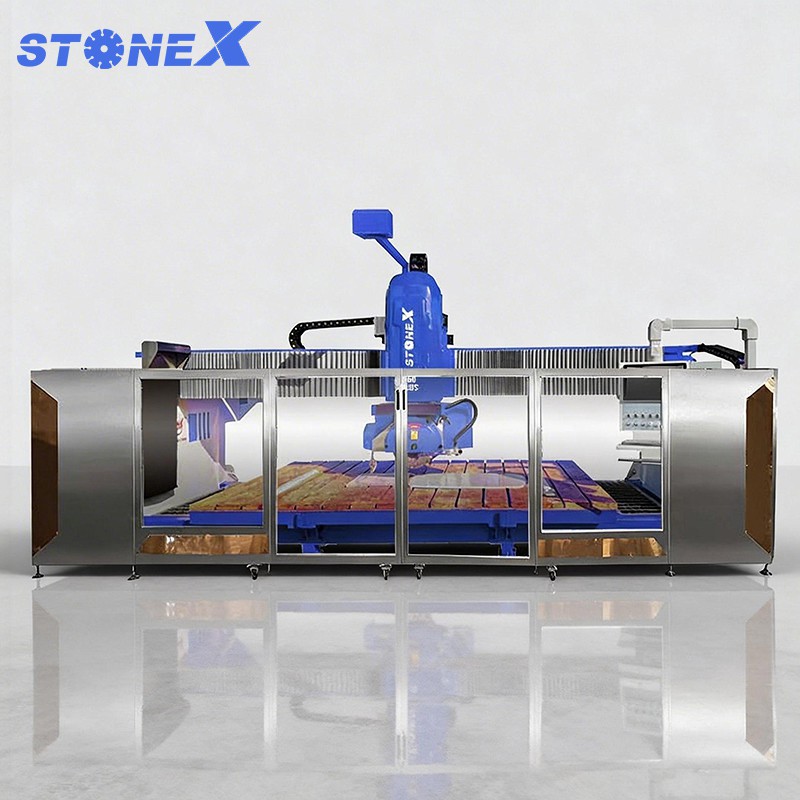

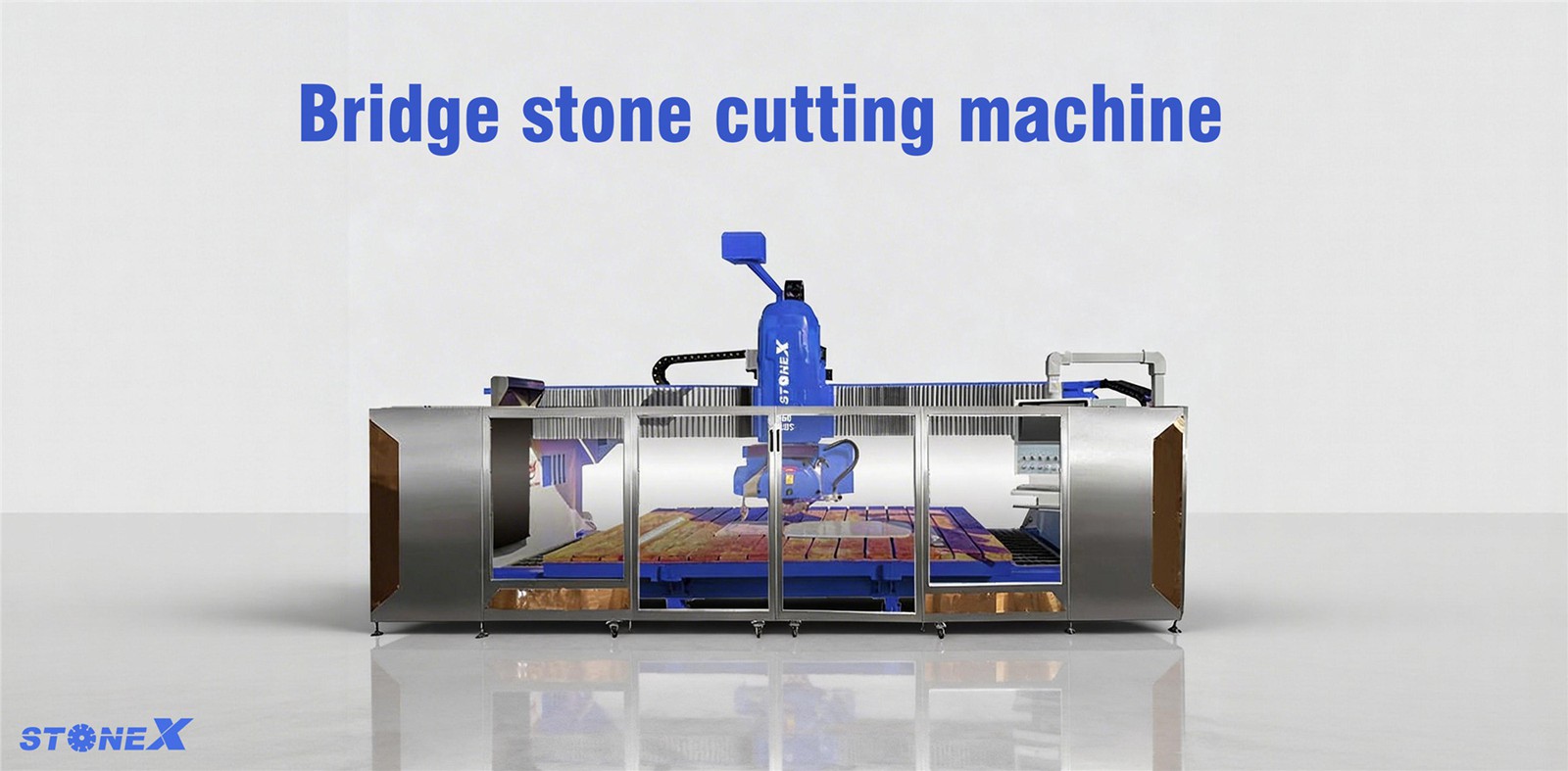

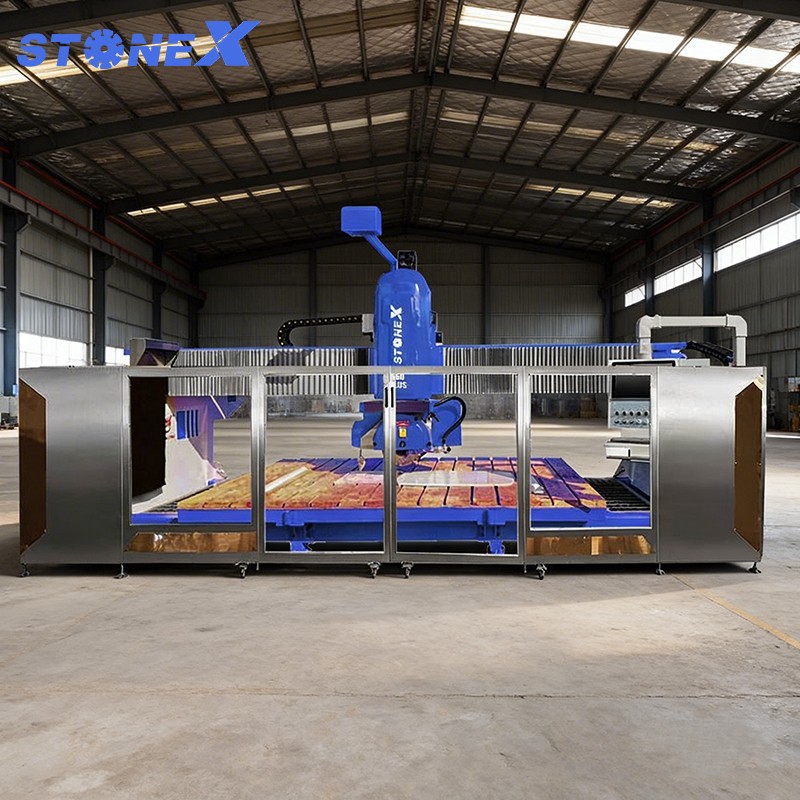

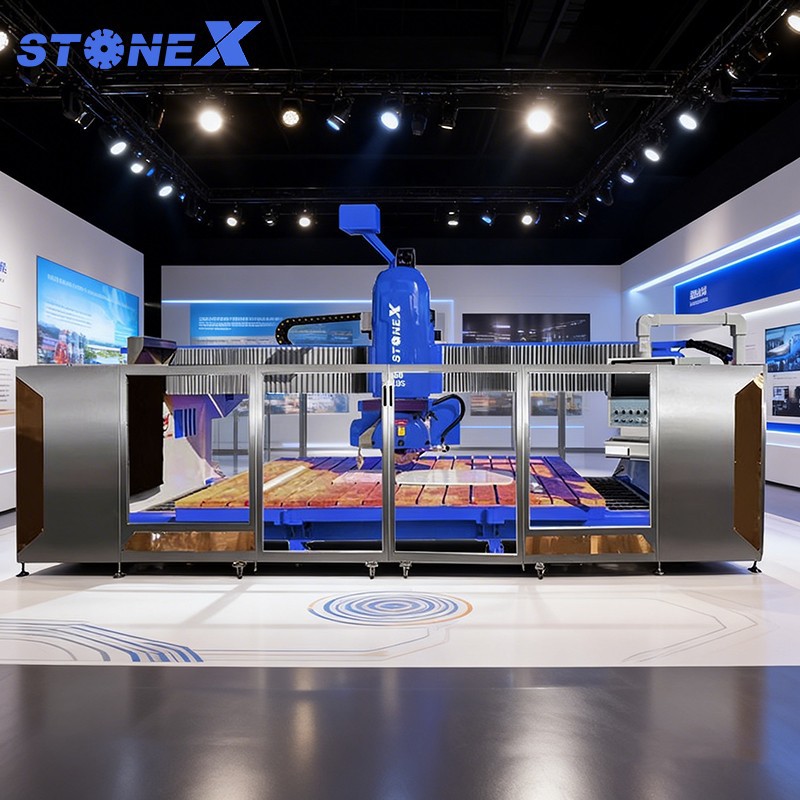

HYNC560 5+1 Axis CNC Bridge Stone Cutting Machine is a highly popular model in stone processing factories.
It is mainly used for the processing of home decoration building materials, such as kitchen and bathroom countertops, furniture components, floor and wall paving, stair treads, stone decorations, etc.
On the basis of 5-axis functionality, the machine is equipped with an additional engraving cutter, enabling relief carving during the processing.
By integrating these two functions into one unit, it significantly reduces costs while greatly improving processing efficiency.
|
Name |
Unit |
HKNC560 5+1 |
|
Diameter of saw blade |
mm |
ø400-ø560 |
|
Dimension of working platform |
mm |
3500x2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
150 |
|
Max. lifting stroke |
kg |
300 |
|
Max. lifting weight by sunction cups |
kw |
200 |
|
Power of main motor |
kw |
18.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Power of electric spindle |
kw |
5.5 |
|
Gross power |
kw |
32.5 |
|
Water consumption |
m3/h |
2 |
|
Gross weight |
kg |
5900 |
|
Dimensions (L x W x H) |
mm |
5900x3380x3000 |
Main Functions and Features of the Bridge Stone Cutting Machine
* Uses Italian ESA control system, a branded CNC system, with a touchscreen.
* 5-axis linkage, capable of multiple processing modes.
