Bridge Saw Cutting Machine

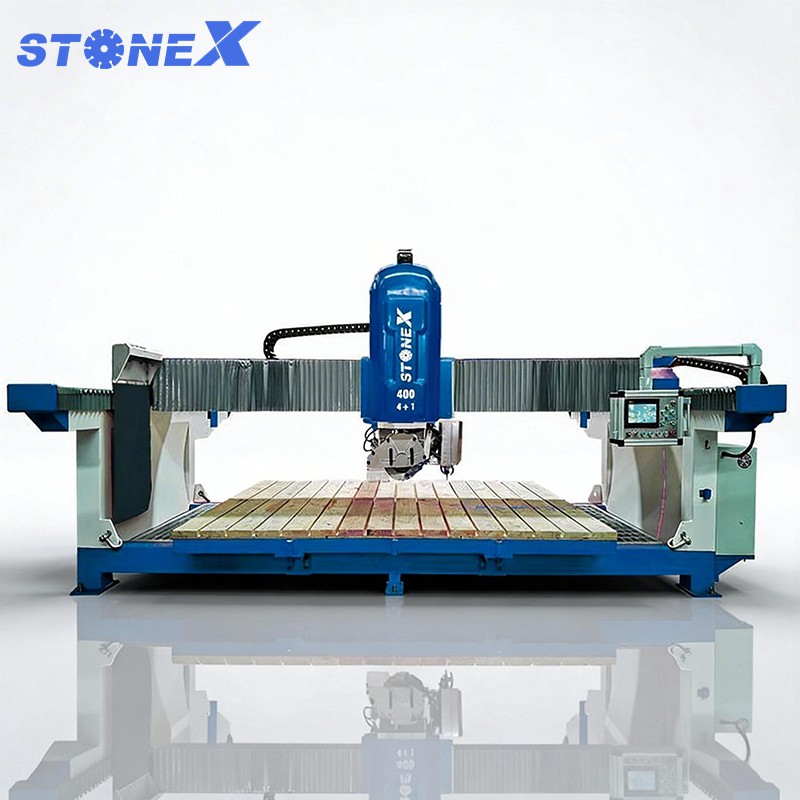

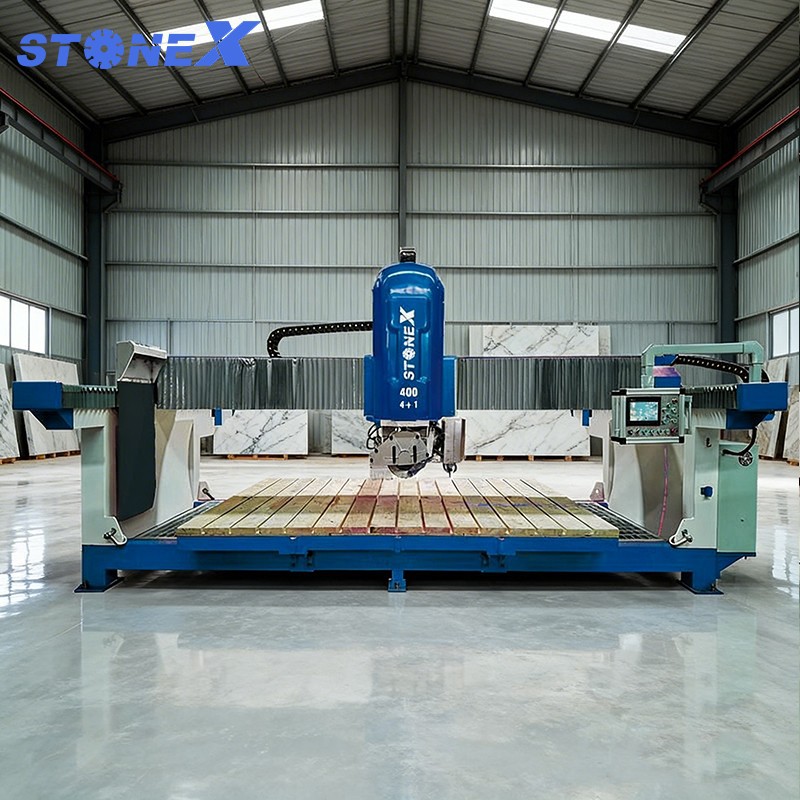

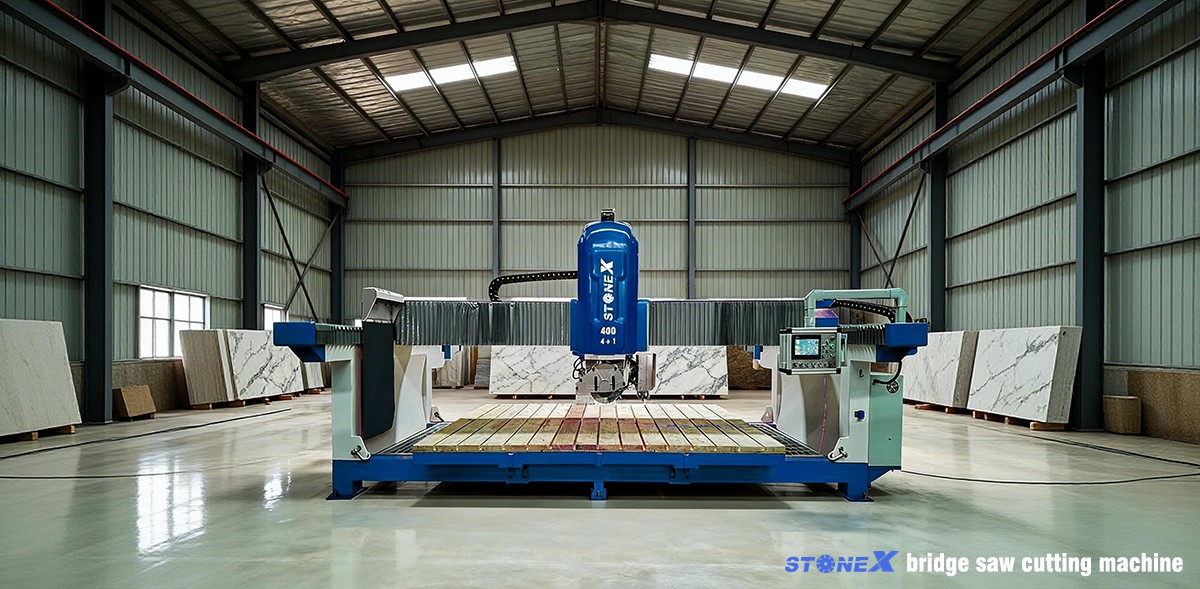

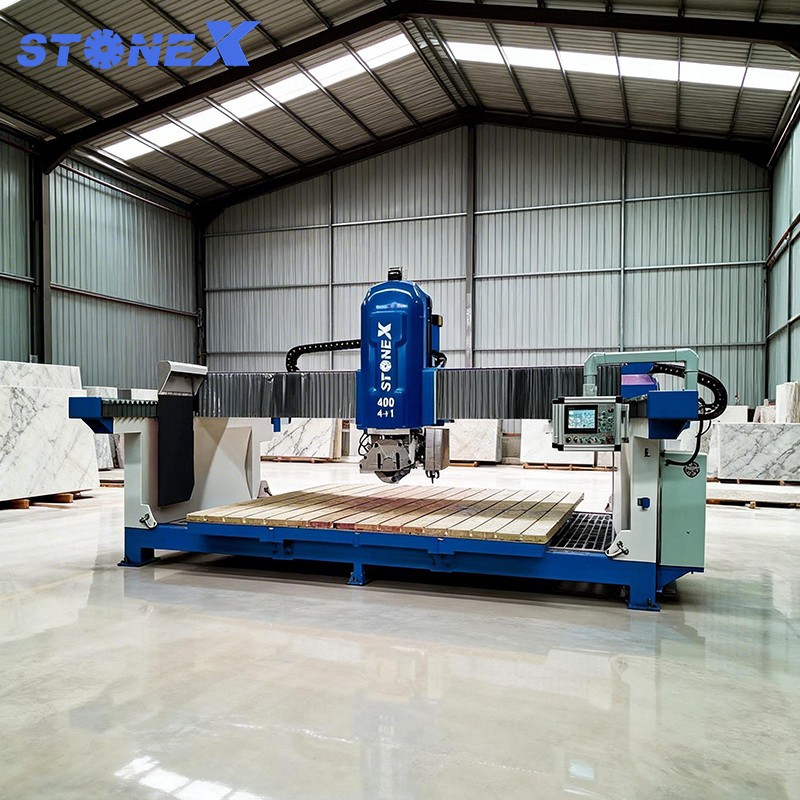

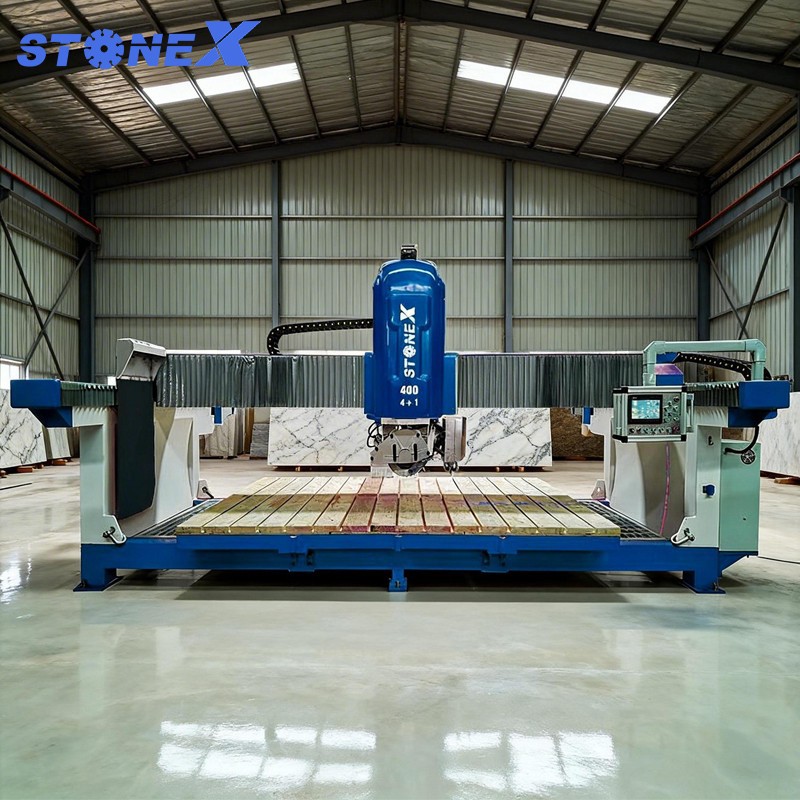

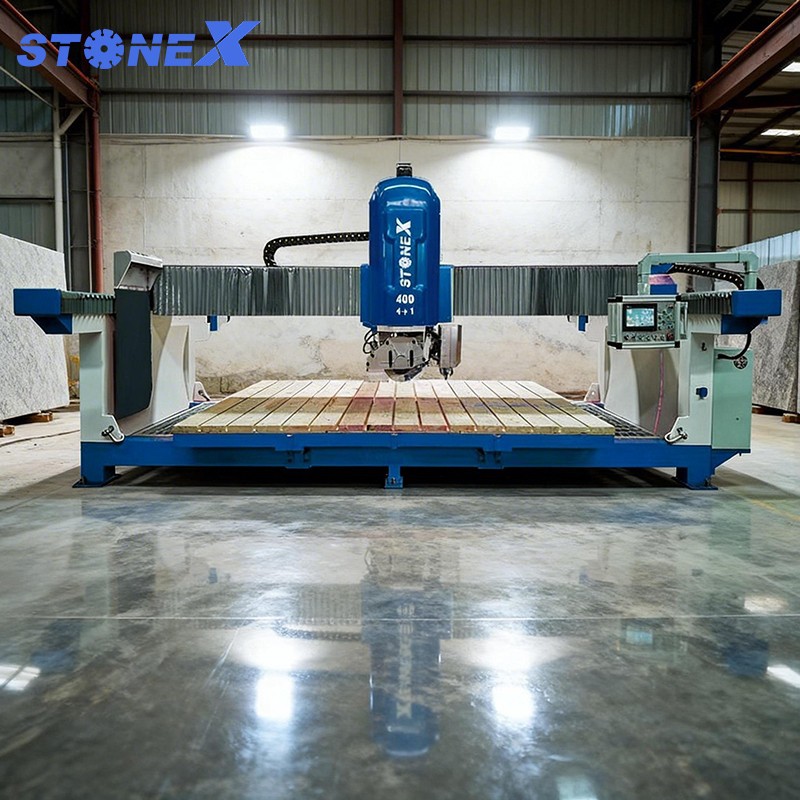

HYSQ400 4+1 Axis Bridge Saw Cutting Machine is a mainstream model for stone processing enterprises.
The machine adopts an PLC intelligent control system with a concise and intuitive interface, which is easy to learn and operate.
It features an integrated structure with a heavy-duty forged beam, ensuring stable performance and no deformation during long-term operation, thus guaranteeing high cutting precision.
The worktable can be flipped up to 85° for convenient plate loading and positioning.
This machine is capable of cutting and drilling various stones such as marble, granite and quartz stone, making it the core equipment for kitchen countertop processing.
Based on the 4-axis design, the bridge saw cutting machine is equipped with an independent milling cutter function, which can work efficiently with the saw blade to quickly complete various operations.
|
Name |
Unit |
HYSQ-400 4+1 AXIS |
|
Diameter of saw blade |
mm |
Φ350-400 |
|
Dimension of working platform |
mm |
3500* 2100 |
|
Max.cutting size |
mm |
3500* 2100* 70 |
|
Max.mitre cutting size |
mm |
2700* 1800* 60 |
|
Cutting head rolation |
° |
0-360° |
|
Blade tilt |
° |
0°/45° |
|
Working table tilt |
° |
85° |
|
Spindle rotating speed |
rmp |
0-24000 |
|
Power of main motor |
kw |
15 |
|
Power of electro-spinele |
kw |
5.5 |
|
Gross power |
kw |
28.2 |
|
Water consumption |
m³/h |
3.5 |
|
Gross weight |
kg |
4000 |
|
Dimensions (L x W x H) |
mm |
5700×3260×2765 |
HYSQ 400 4+1 Axis Bridge Saw Cutting Machine Product Features
* PLC control system, easy to operate, quick to master after training, supports multiple languages.
* 360° rotating head for cutting polygons, arcs, circles, ellipses, etc.
* Saw blade can tilt 45° for chamfering.
* Equipped with an independent milling cutter for drilling and milling processes.
* Adopts high-precision branded guide rails.
* Electrical components are imported first-line brands, ensuring stable and reliable operation.
Huayi Intelligent Equipment provides customers with first-class machinery and services.
Our technical and production teams boast decades of industry experience, ensuring every machine is manufactured to the highest quality standards.
We offer one-stop stone processing plant solutions, covering equipment for stone quarrying, cutting, polishing, and more.
If you need information about our machines, prices, or other details, please feel free to contact us.
