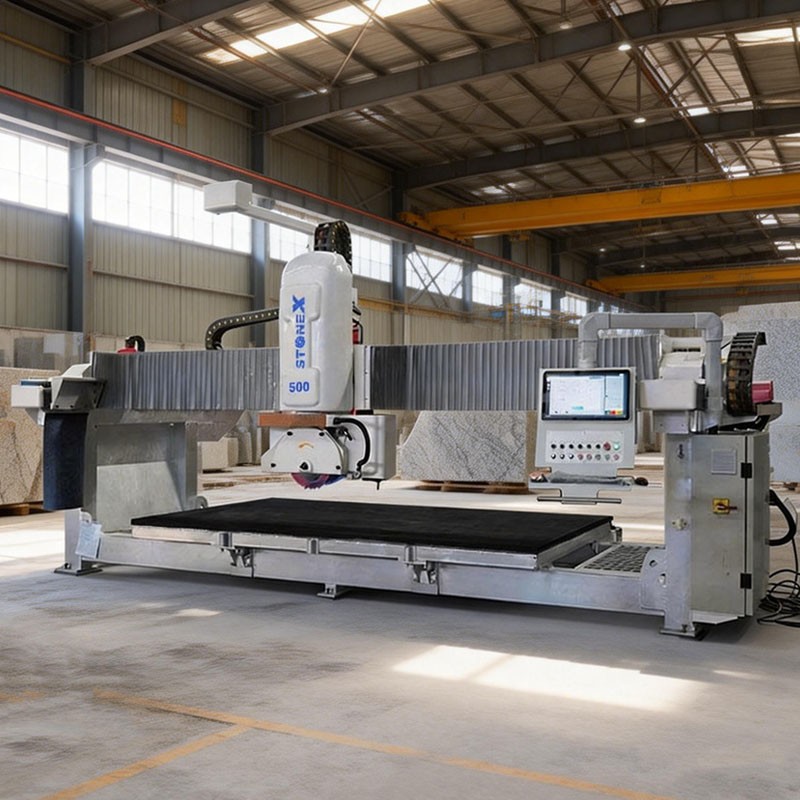

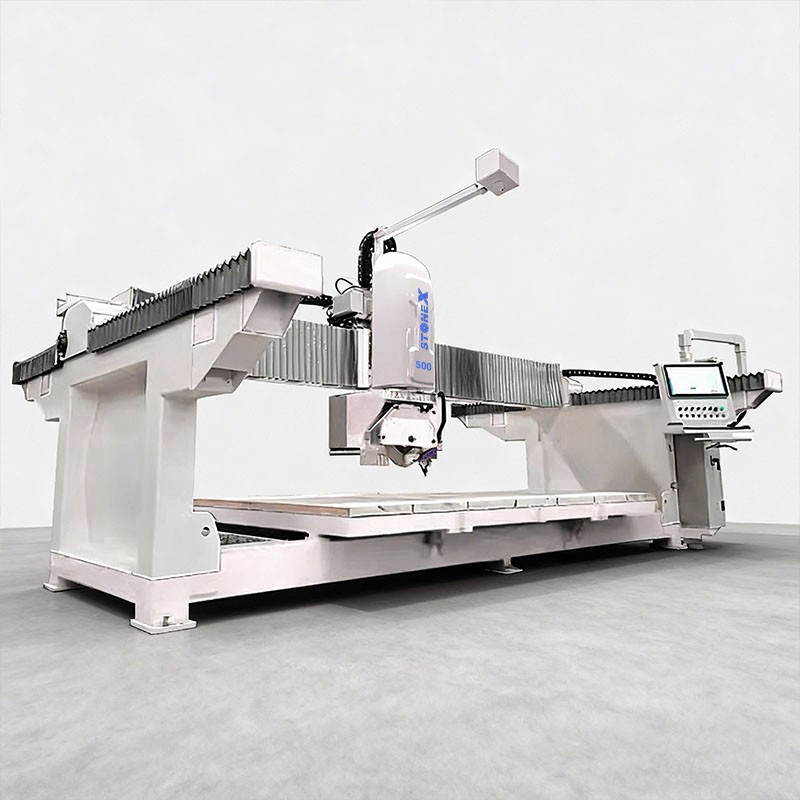

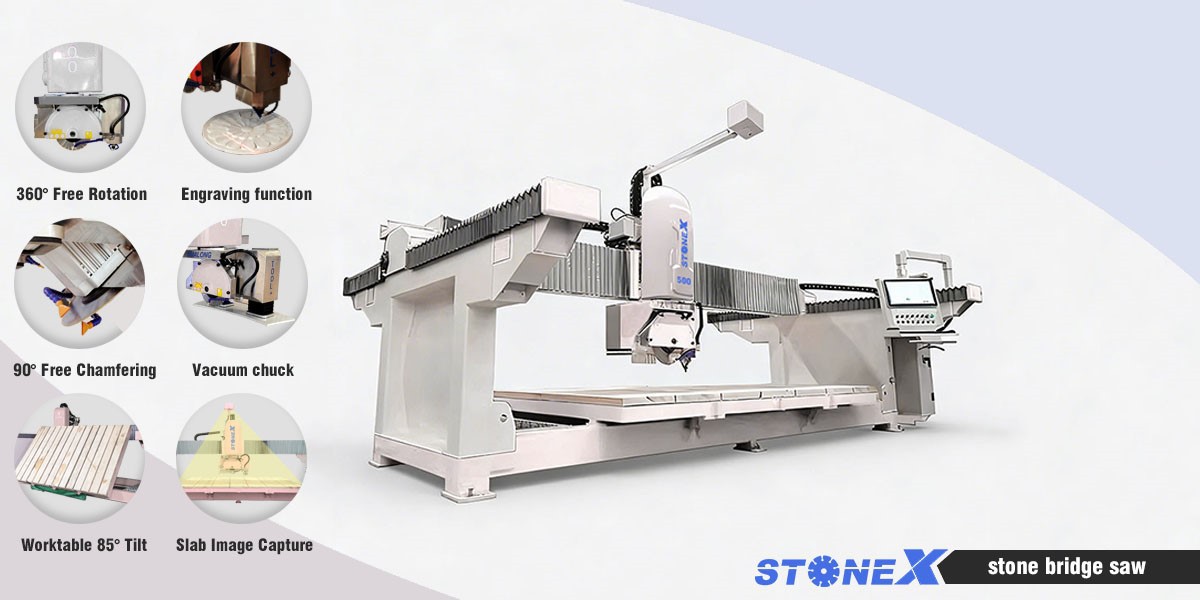

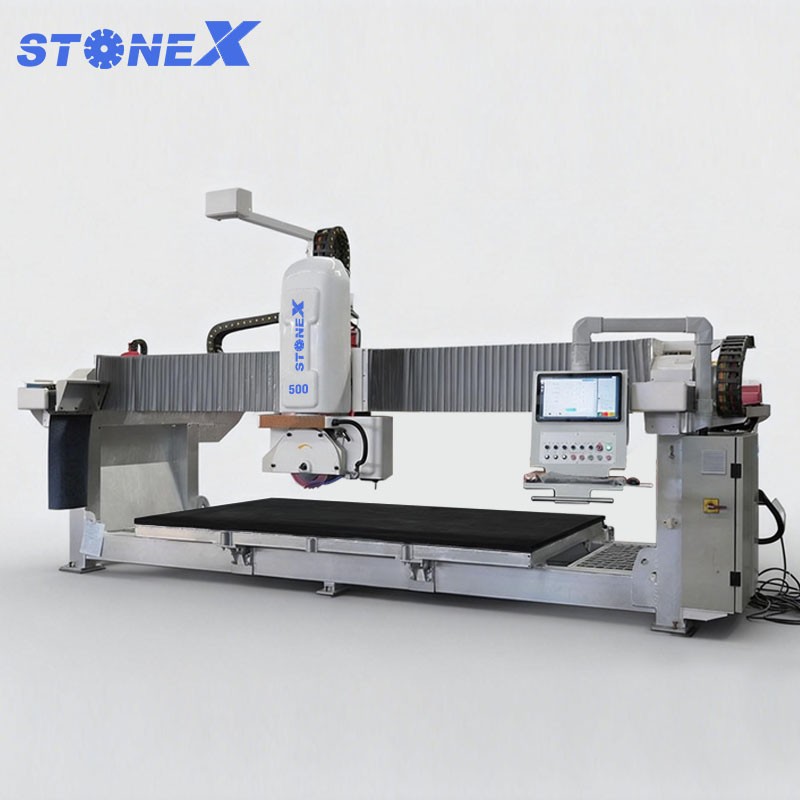

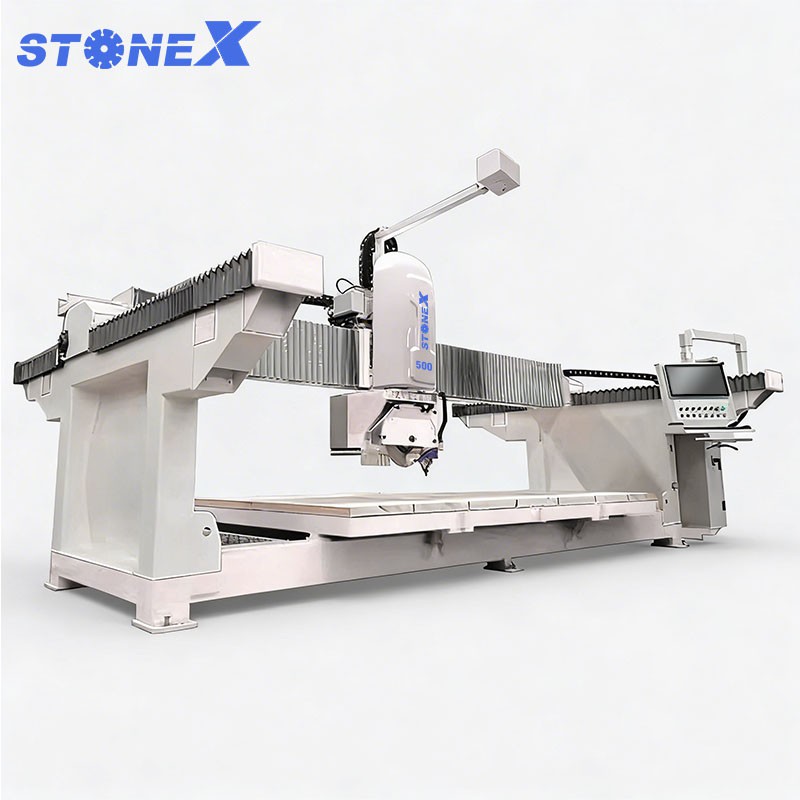

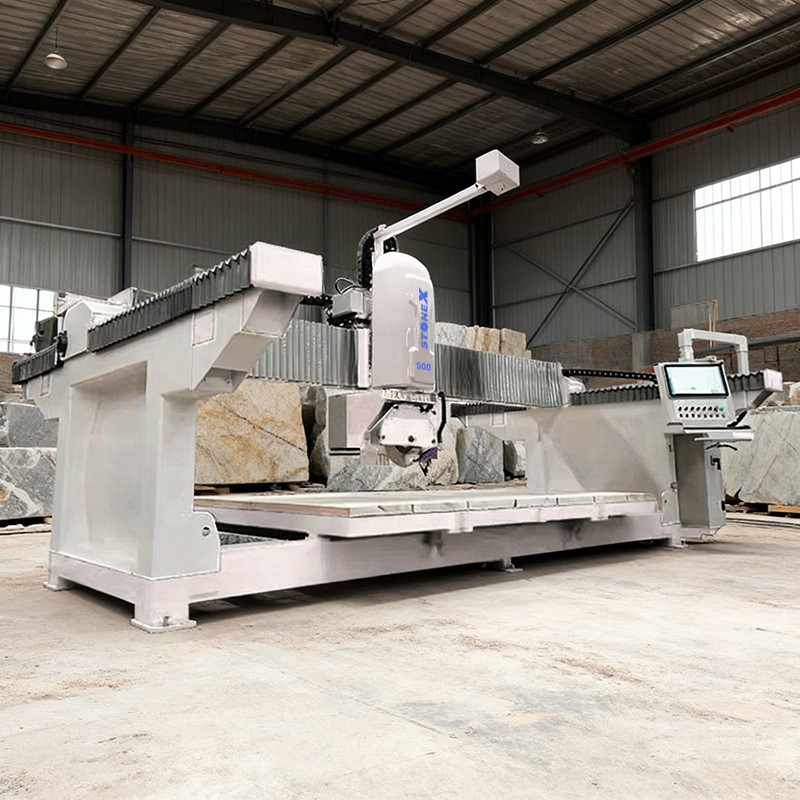

This stone bridge saw is a 5+1 axis CNC bridge saw, which has become the mainstream core equipment in stone processing factories and is widely used in fields such as high-end countertop processing, special-shaped stone processing, architectural decoration processing, and basic sheet processing. With core advantages including 5-axis linkage, 360° free rotation of the spindle head, and 0–90° arbitrary chamfering, the equipment achieves efficient and high-precision stone processing.
- High-end Countertop Processing: Completes precise cutting, slotting and drilling of stones for kitchen countertops, bathroom vanities, bars, washstands, tabletops and other applications.
- Special-shaped Stone Processing: Capable of processing various types of special-shaped stones such as arcs, polygons, curved surfaces, and custom-shaped designs.
- Architectural Decoration Processing: Suitable for processing architectural decorative stones including door casings, window casings, stair treads, shaped lines, custom furniture, bars and so on.
- Basic Sheet Processing: Covers basic processes of stone sheets such as straight cutting, bevel cutting, chamfering, slotting, and drill-milling.
- Extended Function: Equipped with a carving tool head, it can realize stone relief carving and further expand processing scenarios.
|
Model NO |
Unit |
HYCNC-500 5+1 Axis |
|
Diameter of saw blade |
mm |
500 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
140 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.5 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5400 |
|
|

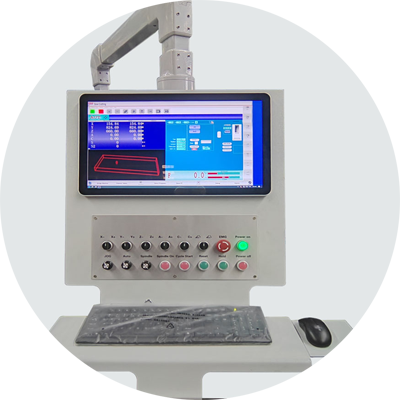

It adopts a top-level Italian control system, paired with a 21.5-inch display screen, featuring intuitive and convenient operation. |
|

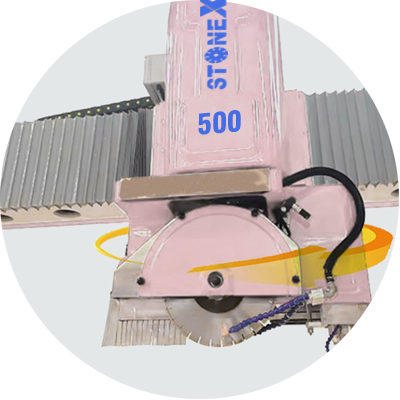

The head can rotate freely at any 360° angle. |
|
|

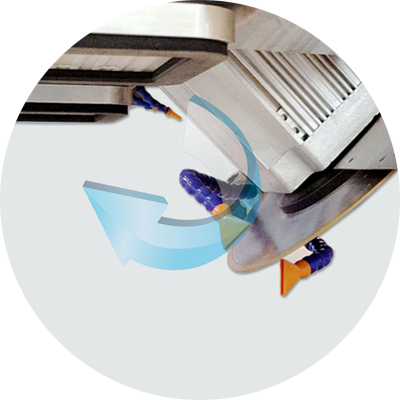

The saw blade can chamfer at any angle between 0° and 90°. |
|

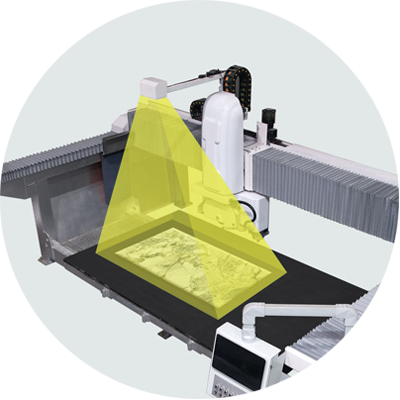

Photo function for image capture and typesetting. |
|
|

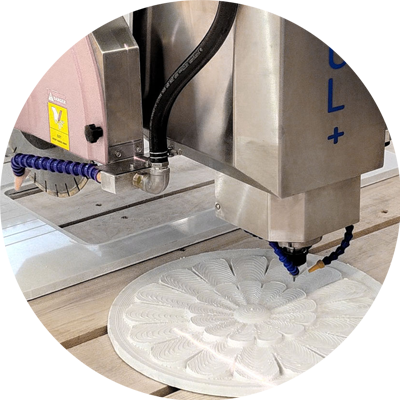

Engraving function, capable of relief engraving. |
|

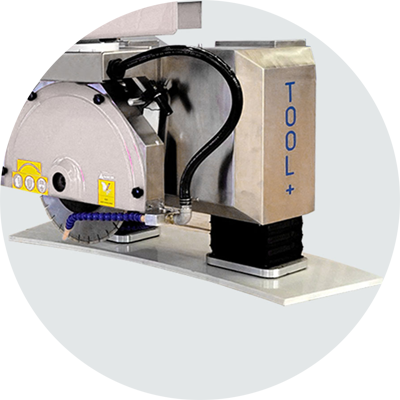

Vacuum suction cup for moving plates, making cutting faster. |

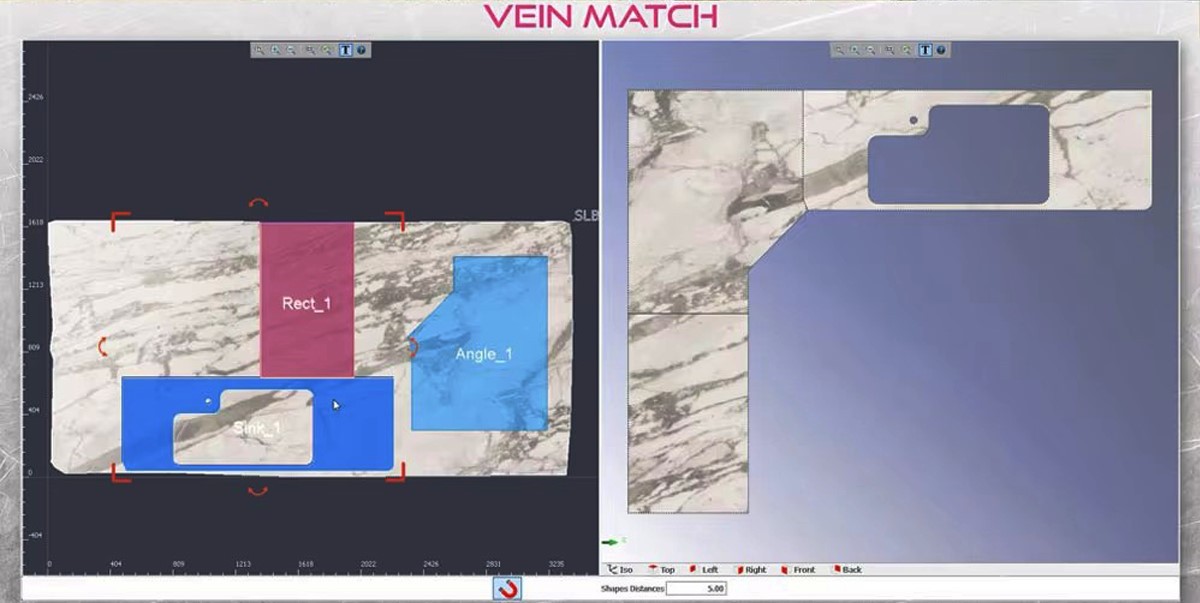

*Vein match for easily matching up perfectly each vein, color at the seam of your project*
Comparison between our HYCNC500 5+1 Axis Stone Bridge Saw and well-known Italian brands:
1. We adopt the same Italian brand control system, with comparable performance, making it an ideal alternative choice.
2. With equivalent quality, we can help you save up to 30% of cost.
3. Our configuration is selectable and customizable; partial functions can be determined according to customer requirements.
4. We have been in this industry for over 30 years, with a complete production and service system.
5. As a strong source factory, customers are welcome to visit our factory for on-site machine inspection, testing and equipment evaluation.
