Product Introduction

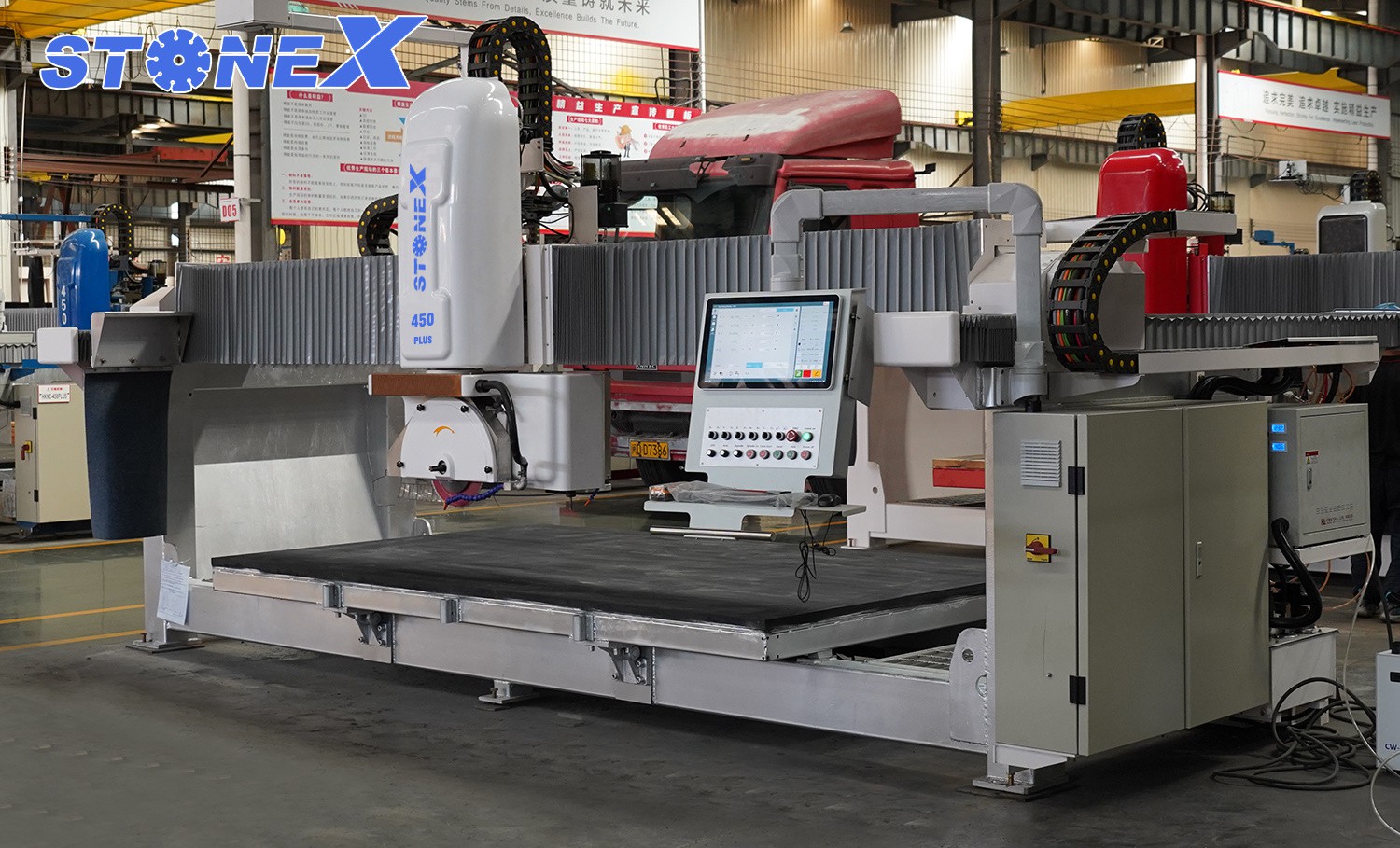

The Huayi HYNC-450PLUS 5+1 axis bridge cutting machine is equipped with a top-tier Italian ESA control system. Combining 5-axis linkage with an independent electric spindle, it is widely used for processing kitchen countertops, bathroom countertops, wash basins and other products.
Featuring camera positioning and vacuum suction cup functions, this machine can cut marble, granite, sintered stone, quartz stone, artificial stone, ceramics and more. It adapts to global market demands with multi-language switching support.One unit minimum order is accepted.
Product Parameters
|
Model No |
UNIT |
HYNC-450 PLUS |
|
Diameter of saw blade |
mm |
450 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max.cutting size |
mm |
3500×2100 |
|
Max. cutting thickness |
mm |
95 |
|
Max. lifting stroke |
mm |
250 |
|
Power of main motor |
kw |
15 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×2770 |
|
Gross weight |
kg |
4000 |
Machine Functions

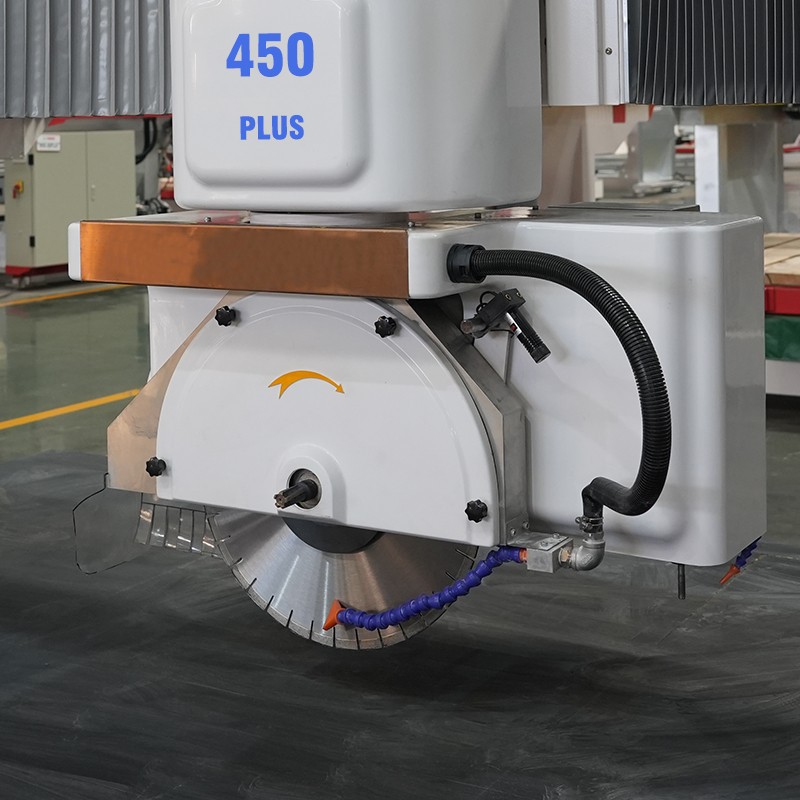

* The cutting head can rotate 360°, supporting straight cutting, bevel cutting, arc cutting and circular cutting.
* The saw blade enables 0°–90° arbitrary angle chamfer cutting.
* The worktable is tiltable up to 85°.
* The independent electric spindle realizes drilling, milling, carving and other processing operations.

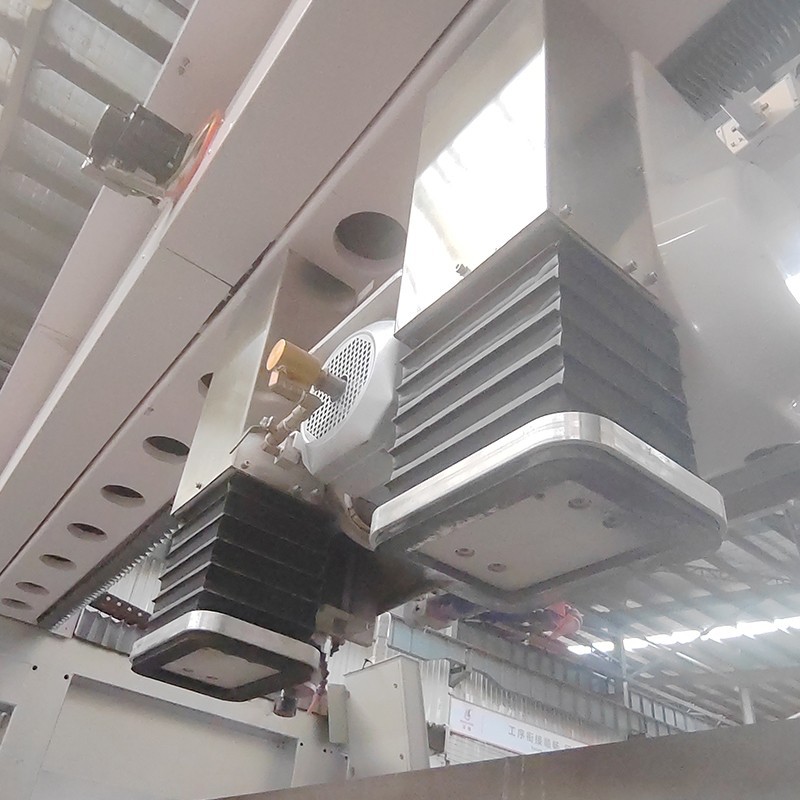

* Vacuum sucker move the slab to a safe position to avoid over-cutting.
Equipment Advantages

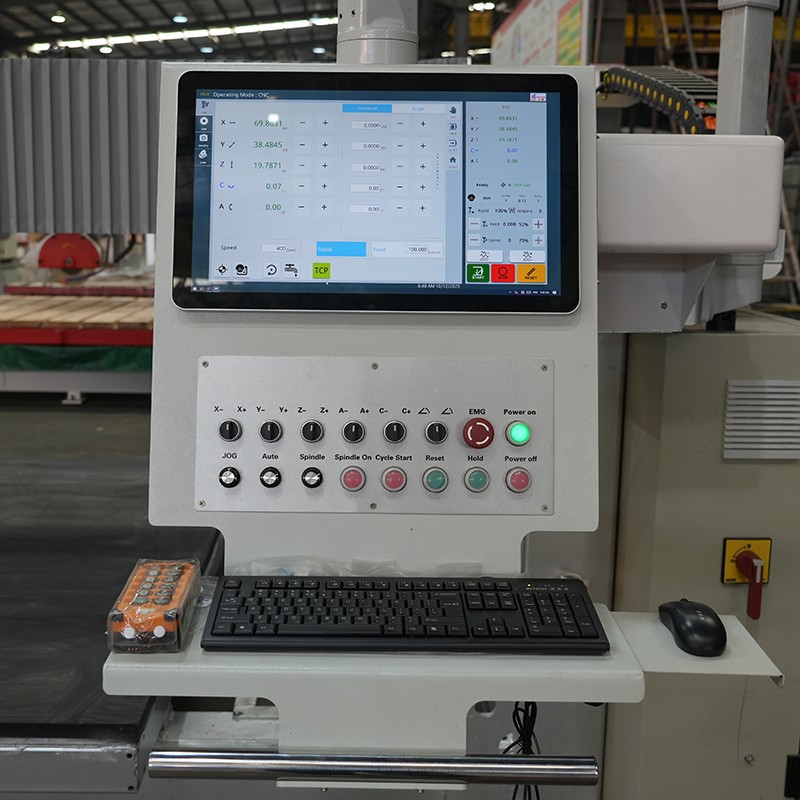

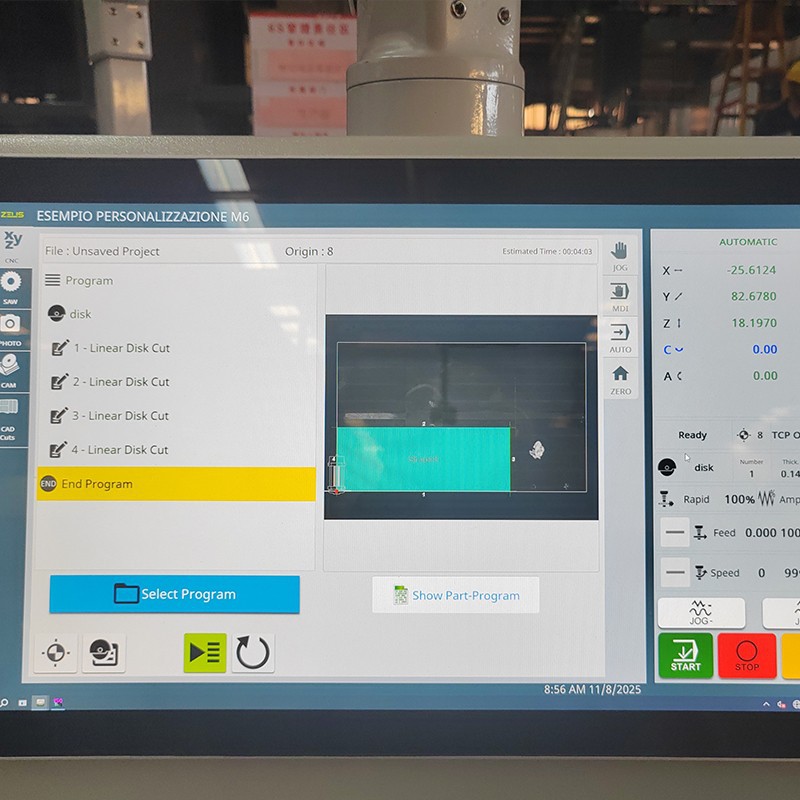

* Adopts Italian ESA control system.
* Equipped with cast iron beam.
* Core electrical components adopt world-class brands such as Siemens and Schneider.
Optional Configurations
* Saw blade diameter detector
* Slab thickness measuring device
* Stainless steel safety protection door
* Slab fixing device
* Please contact us for more customized functions
Main Application Fields
The 5-axis bridge cutting machine is mainly used for kitchen countertops, bathroom vanity tops, wash basins, door casings, window casings, tabletops, tea tables, cabinets, feature walls, floor paving, wall dry-hanging panels, stair stones, curved shaping, relief carving and more.
FAQ
Q: What trade terms are supported?
A: Common trade terms such as FOB, EXW and CIF are available.
Q: What control system does the machine adopt?
A: Italian ESA control system.
Q: Is there CE certification?
A: Yes, it has obtained CE certification.
Q: What is the warranty period of the machine?
A: 12 months warranty.
Q: Is on-site installation and training supported?
A: Yes, we provide on-site installation and technical training.
Q: How long is the production cycle?
A: Usually 30 days after receiving the advance payment.
After-sales Service
* We provide free spare parts for non-artificial damage within the warranty period.
* Lifelong technical support is available.
* We offer technician dispatch service and on-site support for overseas customers.
