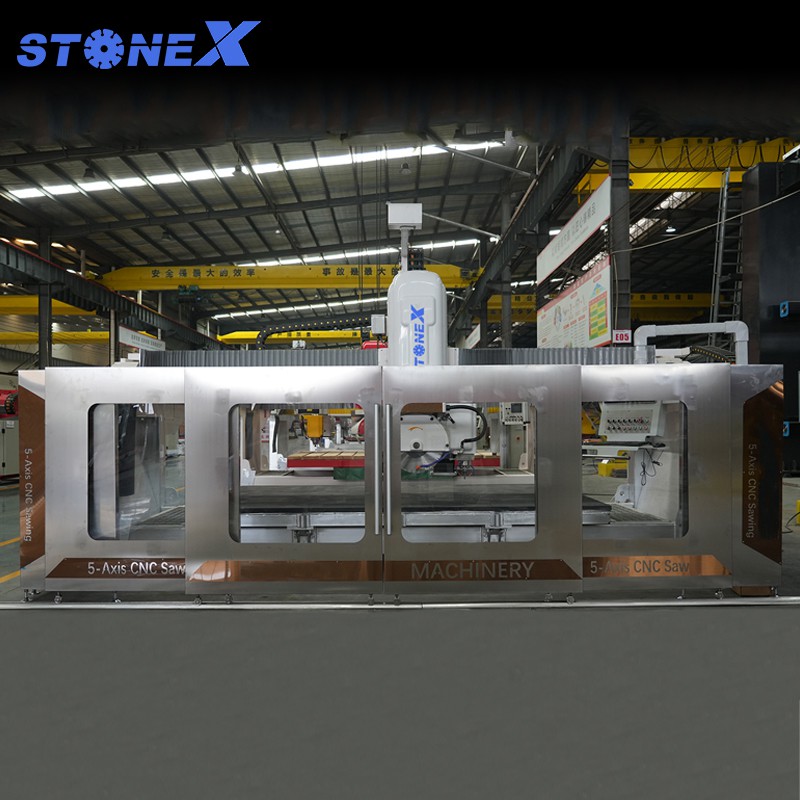

Product Introduction

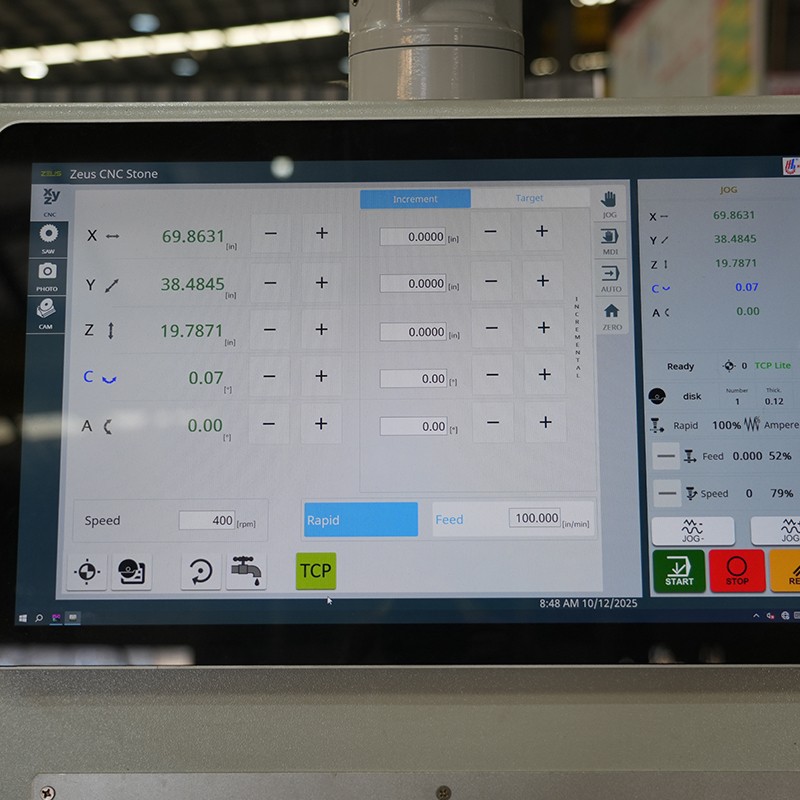

The Huayi HYNC-500 5 axis stone cnc cutting machine supports a variety of customized functions. It is equipped with an Italian ESA control system and suitable for cutting marble, granite, sintered stone, ceramics, quartz stone, artificial stone and other materials.
5 axis stone cnc cutting machine standard configurations include an industrial camera, vacuum suction cups, an independent electric spindle and a wooden workbench. The machine adopts an integral cast beam with high rigidity, stable performance and durability. It is not easy to deform after long-term continuous operation, ensuring long-term processing accuracy, and is fitted with a 21.8-inch display screen.
Product Parameters
|
Model No |
Unit |
HYNC-500 5+1 axis |
|
Diameter of saw blade |
mm |
400-500 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.8 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5800 |
Main Functions
* Camera function: Capture slab images to arrange and optimize cutting paths.

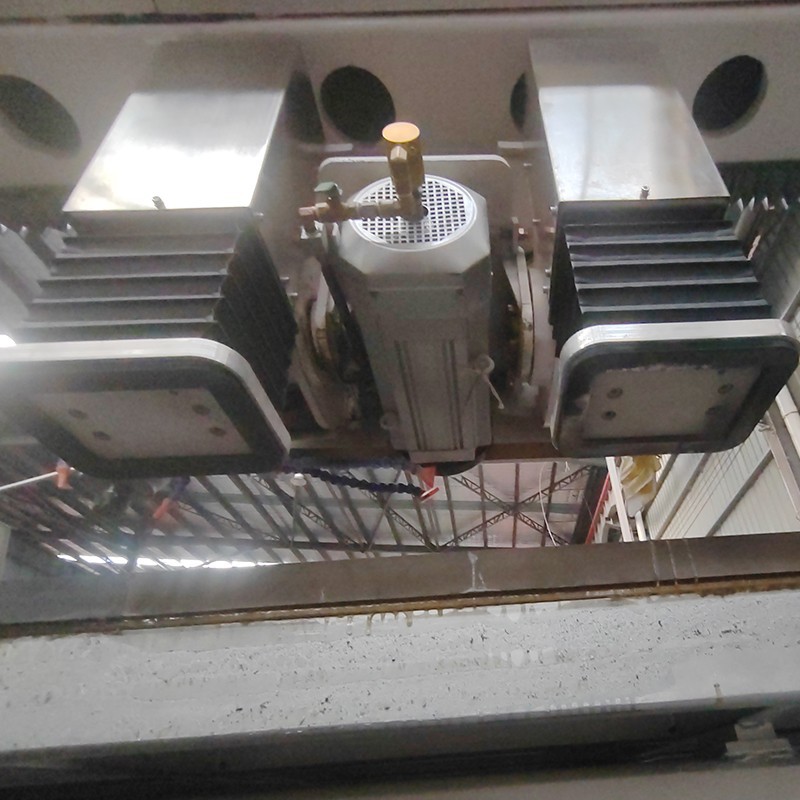

* Sucker function: Safely and stably move the slabs to the designated position during cutting.
* Independent electric spindle: Available for milling, drilling, engraving, carving and other processing operations.
* 85° tilting worktable.

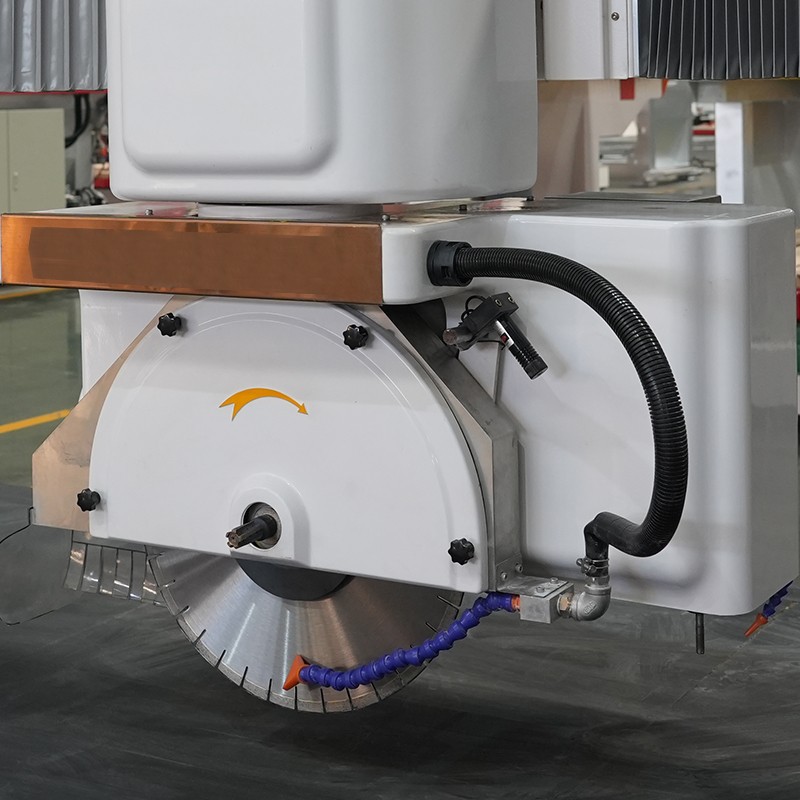

* 360° rotatable cutting head, realizing straight cutting, bevel cutting, polygonal, arc and special-shaped cutting.
* The saw blade supports 0°–90° arbitrary angle chamfer cutting.
* Vein splicing function – Optional.
* Saw blade diameter measuring function – Optional.
* Slab thickness measuring function – Optional.

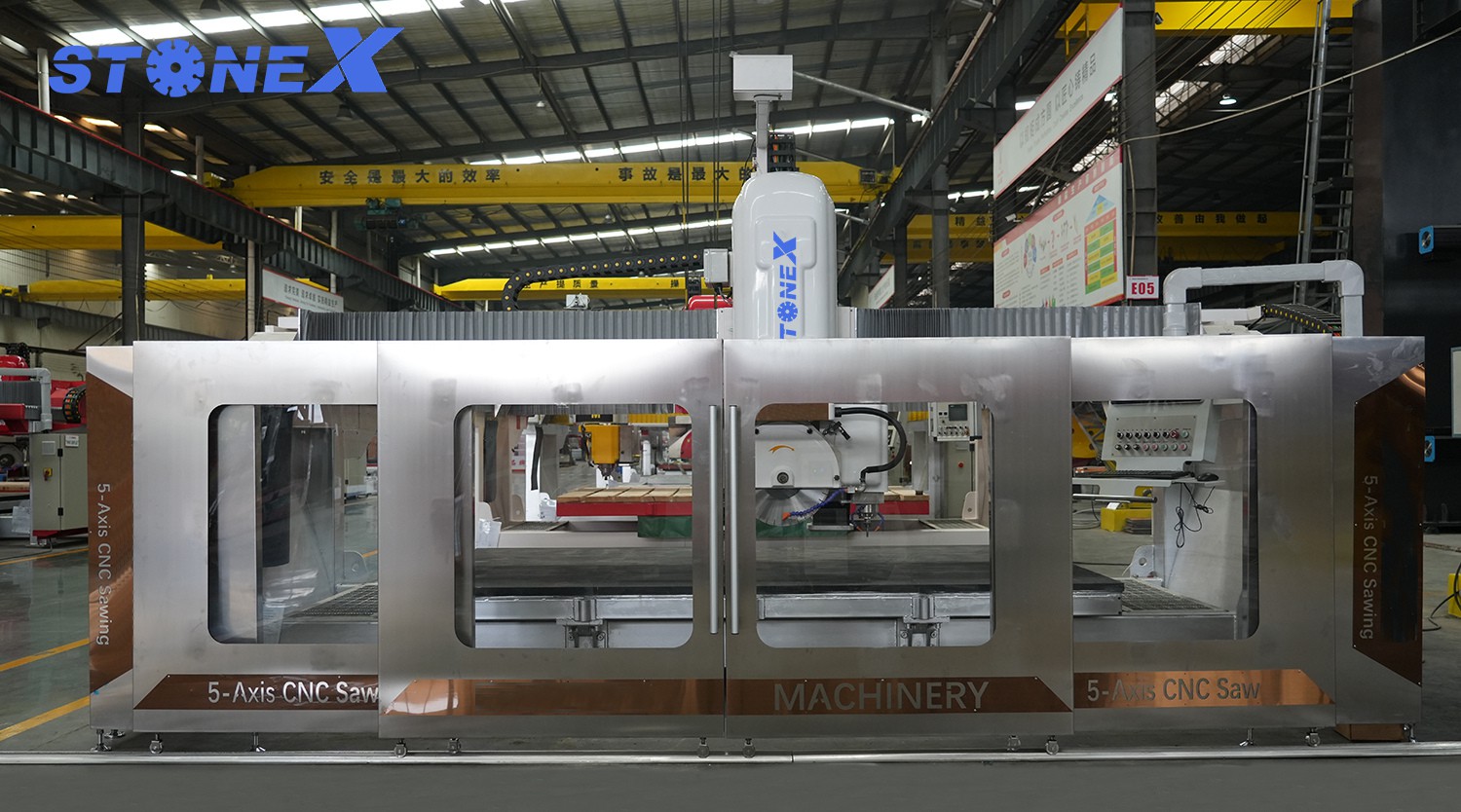

* Stainless steel safety protection door – Optional.
* Slab fixing device – Optional.
Application Fields
Kitchen and bathroom countertops, sink holes, floor paving, wall dry hanging, stair stones, door casings, window casings, tabletops, tea tables, cabinets, feature walls, curved shaping, relief carving, etc.
FAQ
Q: Is the machine customizable?
A: Yes, various functional customizations are available.
Q: What control system does the machine use?
A: It is equipped with the ESA control system.
Q: Does the machine have CE certification?
A: It has obtained CE certification and complies with international safety and quality standards.
Q: What trade terms do you accept?
A: CIF, EXW, FOB and other common terms are supported.
Q: How long is the warranty period?
A: The machine comes with a 12-month warranty.
Q: Do you provide on-site installation and training for overseas clients?
A: Yes, we offer on-site installation and operation training services.
Q: What is the production lead time?
A: Generally around 30 days after receiving the deposit, subject to different models and configurations.
After-sales Service
* All our machines are covered by a 12-month warranty. Free spare parts are provided for non-human damage within the warranty period.
* We offer lifelong technical support for customers.
