Product Introduction

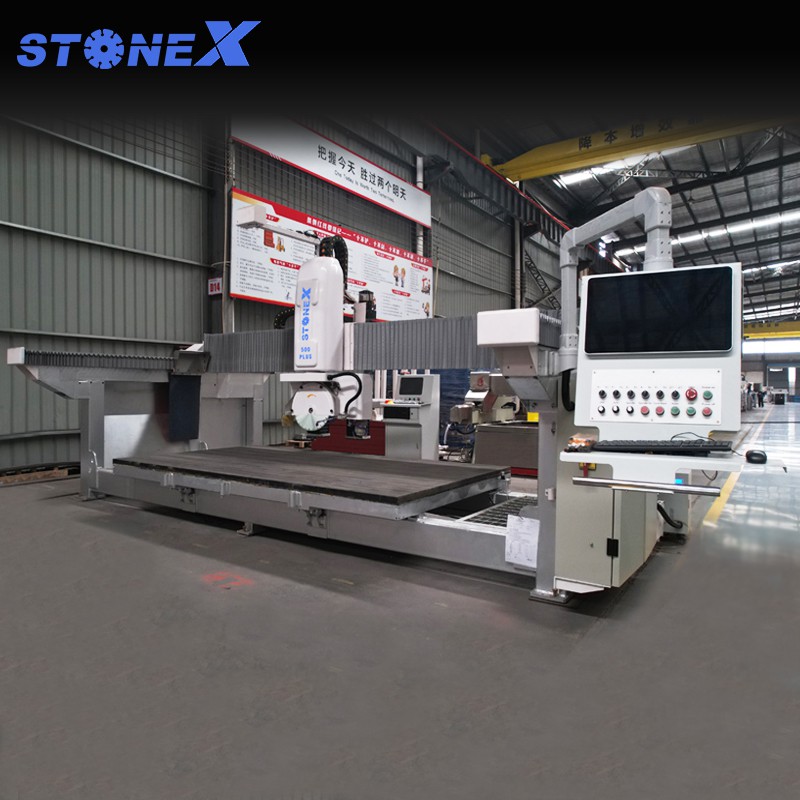

Huayi CNC 5-axis bridge saw HYNC500PLUS is suitable for processing marble, granite, sintered stone, quartz stone, ceramic and other stone materials.

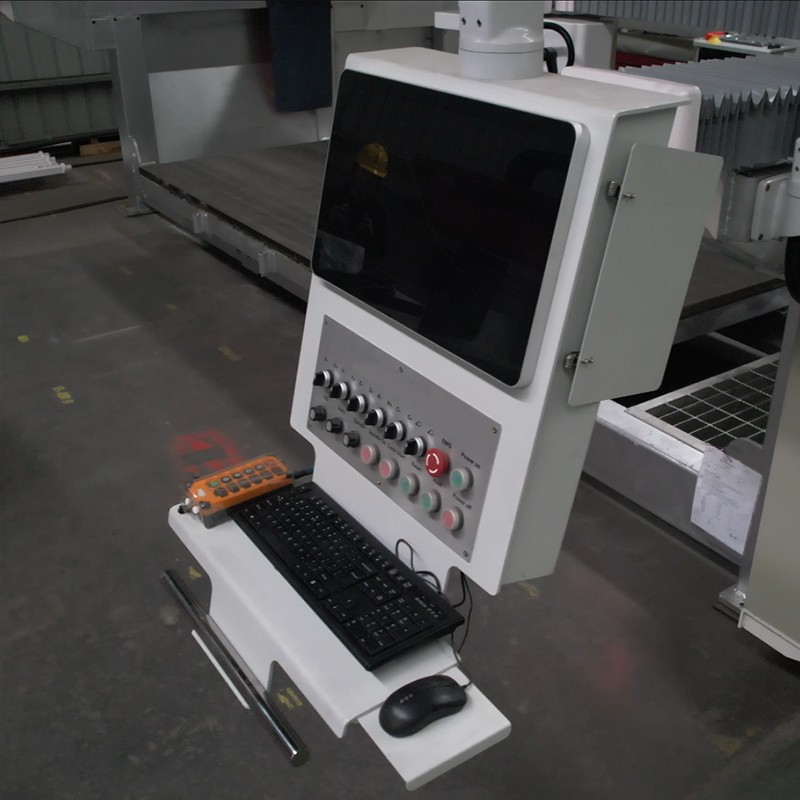

The machine is equipped with a cast iron beam, HIWIN linear guide rails from Taiwan, and core electrical components from Siemens and Schneider. It adopts the Italian ESA control system and Pegasus operating software.
Built with globally renowned brand configurations as the standard, the machine comes with a competitive price.
One-unit order is acceptable. Customers in need are welcome to contact us.
Product Functions

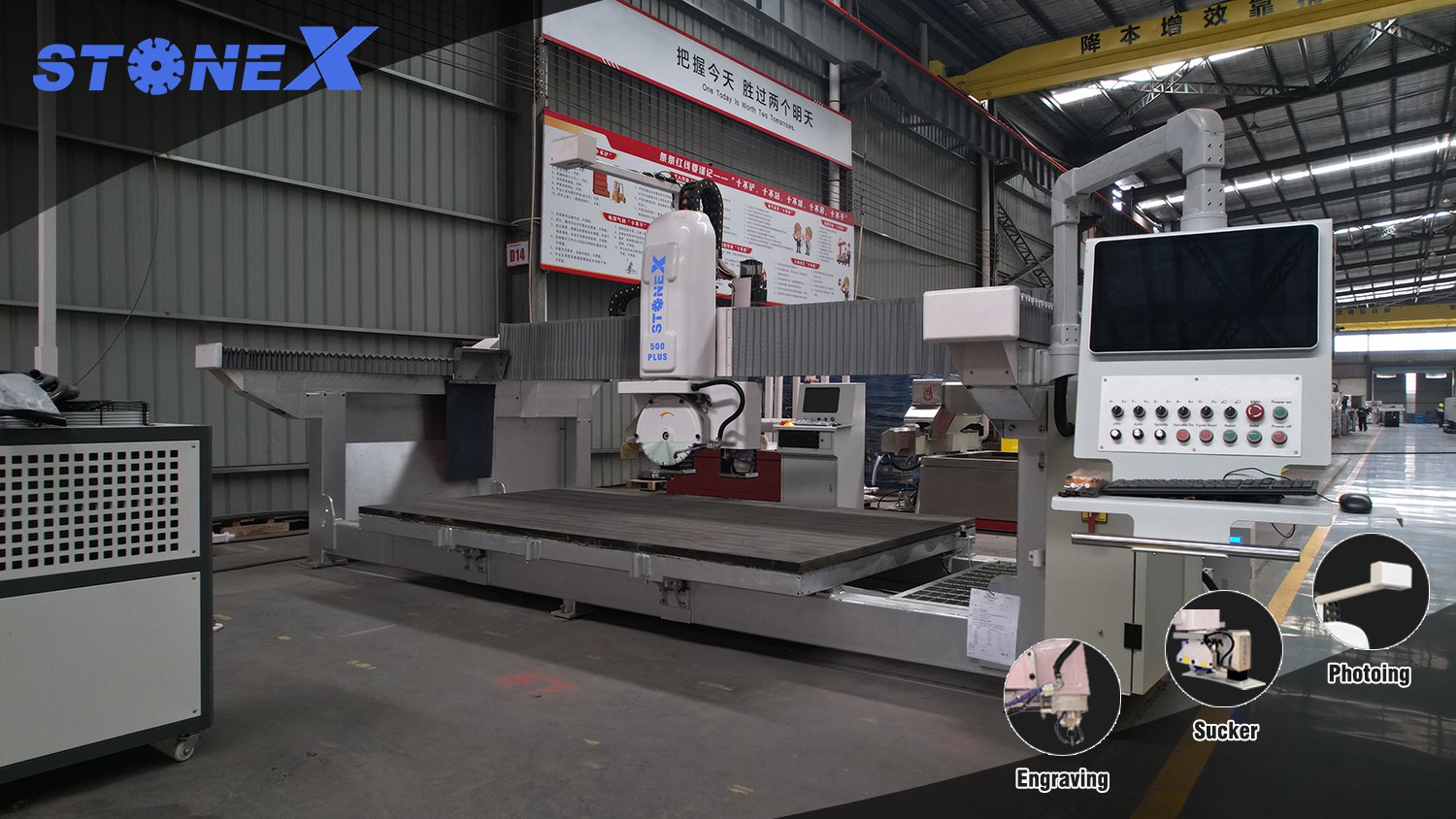

1. The worktable tilts at 85° for easy loading.
2. Camera shooting function captures slab images to optimize and arrange cutting paths.
3. Vacuum suction cups move stone slabs to designated positions safely and stably.
4. Equipped with an independent electric spindle for milling, drilling, letter engraving, relief carving and other processing procedures.

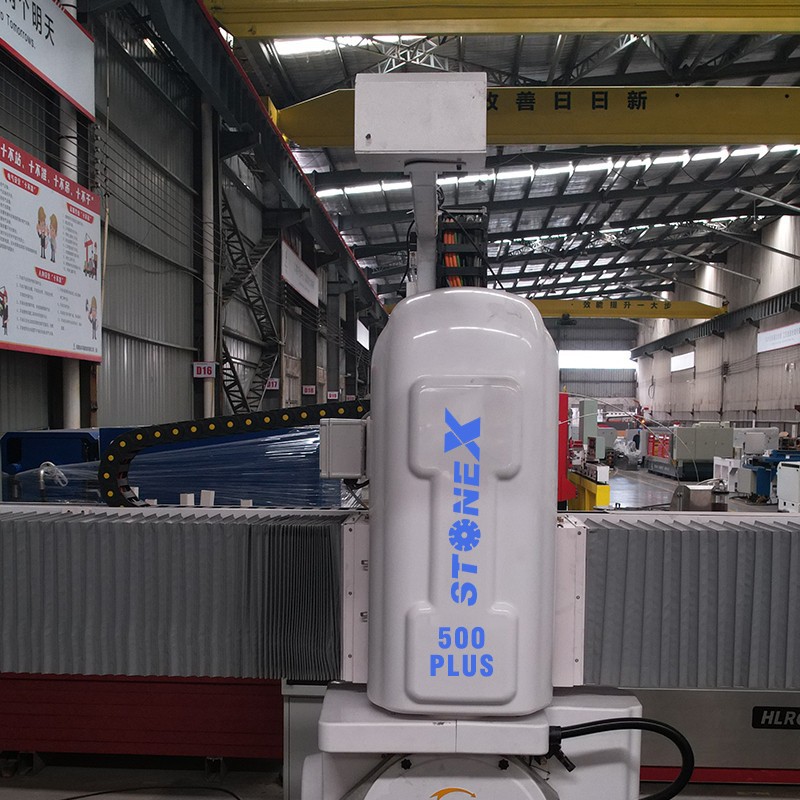

5. The cutting head features 360° rotation.
6. The saw blade enables chamfering at any angle from 0° to 90°.
Product Parameters
|
Model NO |
Unit |
HYNC-500 PLUS |
|
Diameter of saw blade |
mm |
400-500 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.8 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5800 |

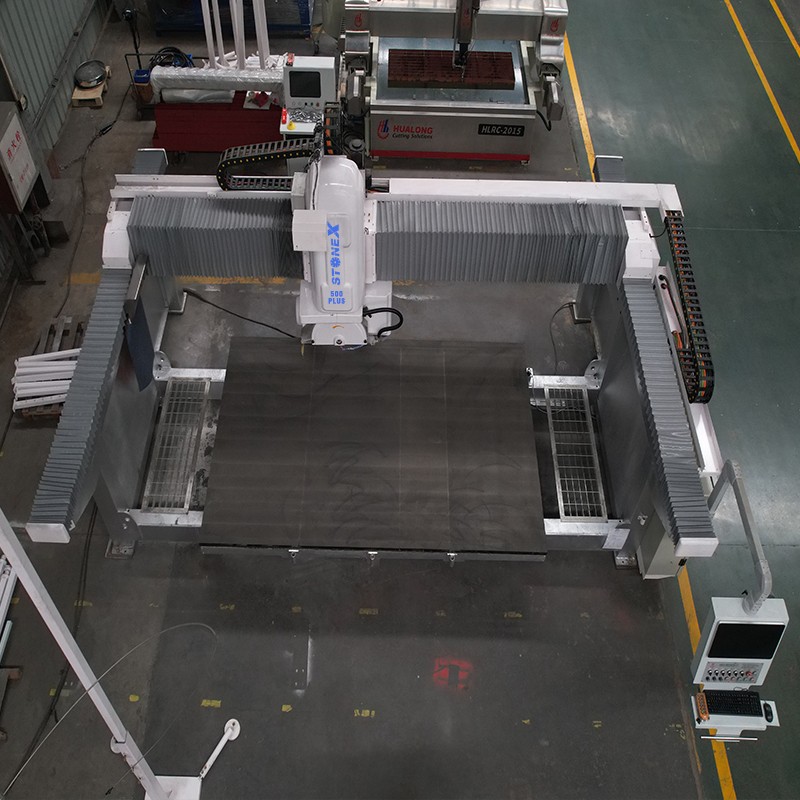

The HYNC500 PLUS is a CNC bridge saw designed for stone processing.
It is capable of straight cutting, cross cutting, bevel cutting, arc cutting, sector cutting, circular cutting, elliptical cutting, diamond cutting, curved surface processing, 3D shaping, drilling, engraving and special-shaped cutting.
This machine serves as the core model for stone cutting factories.
Optional Configurations
1. Slab measuring instrument
2. Saw blade diameter measuring device
3. Stainless steel safety protection door
4. Slab fixing device
5. Please contact us for more customized functions
FAQ
Q: What control system does the machine use?
A: Italian ESA control system.
Q: Does the machine have CE certification?
A: Yes, the machine is CE certified.
Q: Are your machines manufactured in your own factory?
A: Yes, we are an experienced stone machinery manufacturer.
Q: What is the delivery lead time?
A: Generally about 30 days after receiving the advance payment.
Q: What trade terms do you support?
A: Common terms including FOB, EXW, CIF, etc.
Q: Do you provide overseas on-site installation?
A: Yes, we do.
Q: How long is the warranty period?
A: We provide a 12-month warranty.
After-sales Service
1. On-site installation and professional technical training are provided.
2. Online remote technical assistance is available.
3. Technician dispatch service can be arranged.
4. Free spare parts will be supplied for non-human damage within the warranty period.
