Product Introduction
Stone Cutting Machine Manufacturer - Nantong Huayi Intelligent Equipment Co., Ltd.

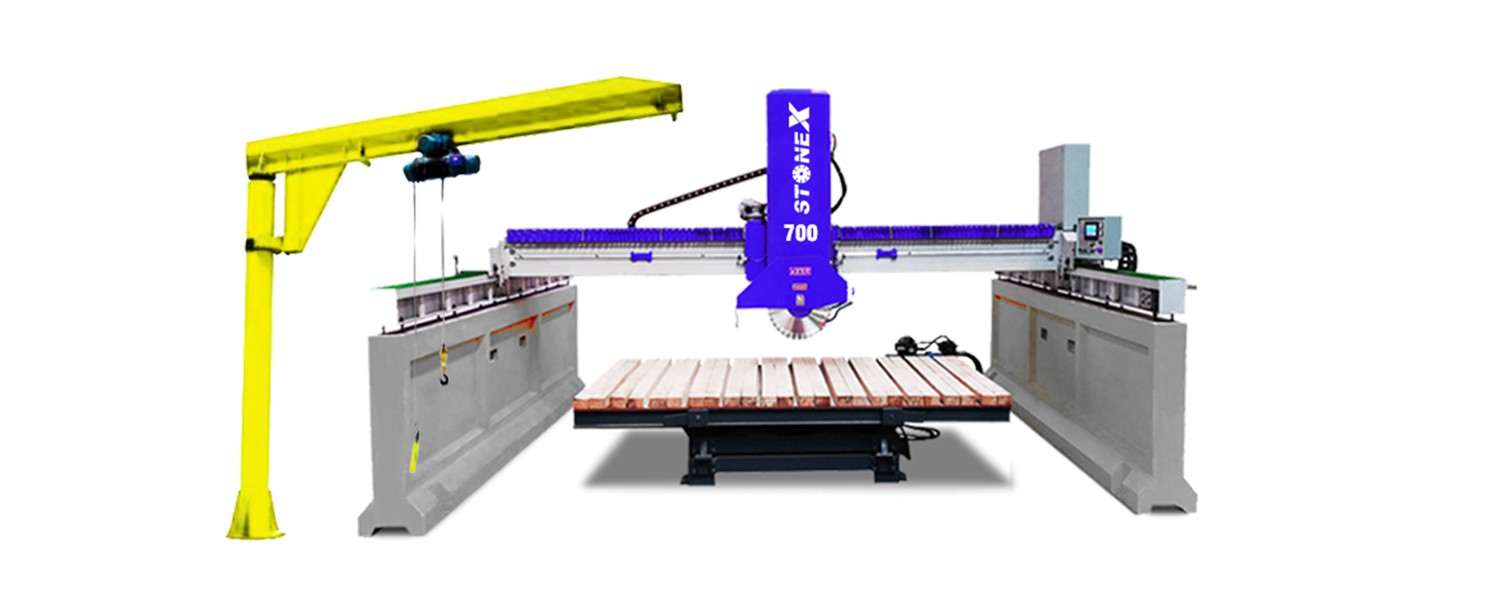

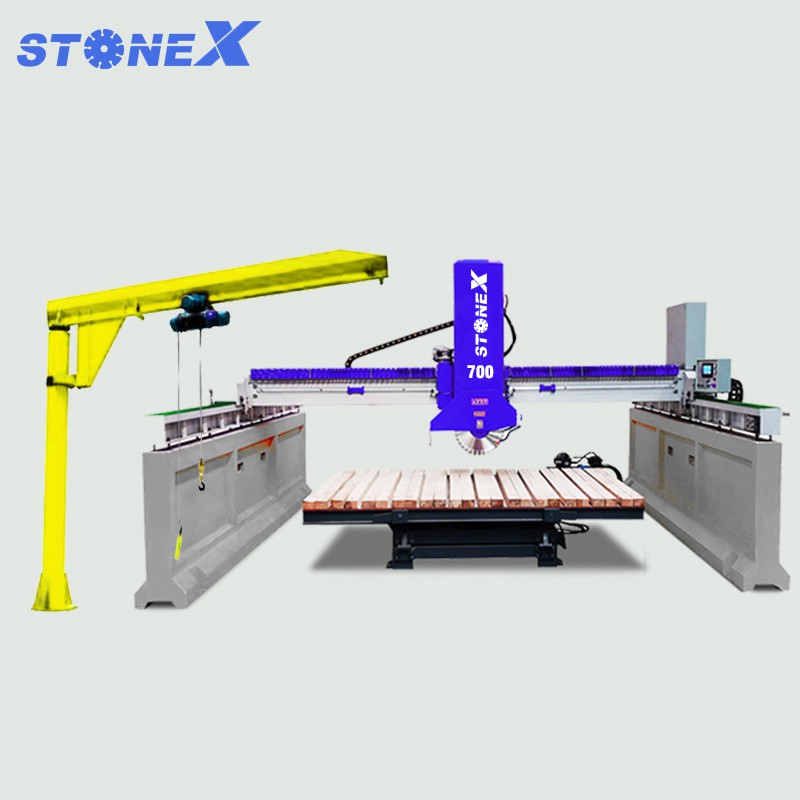

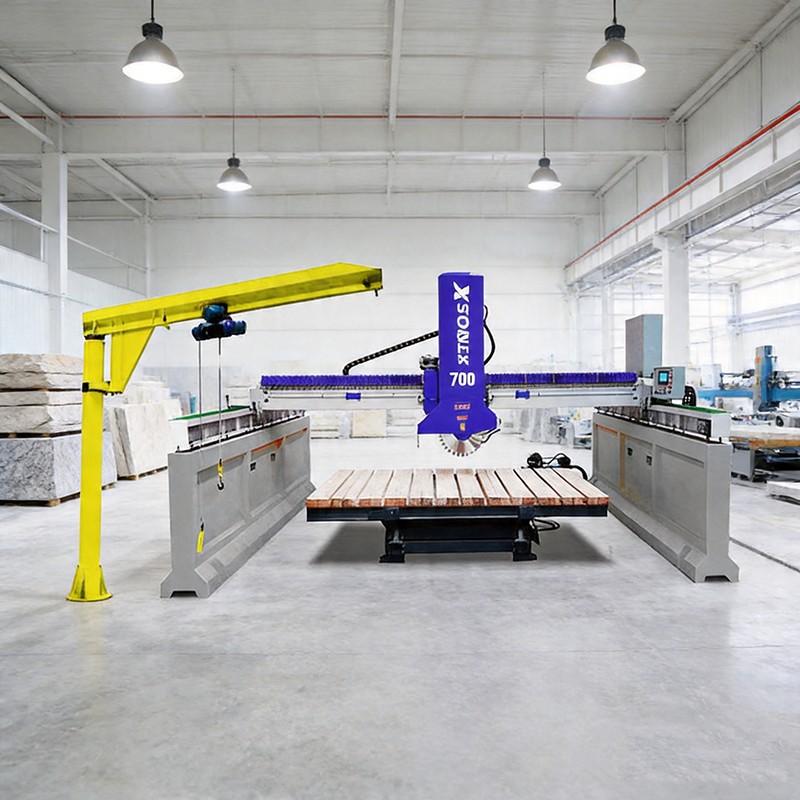

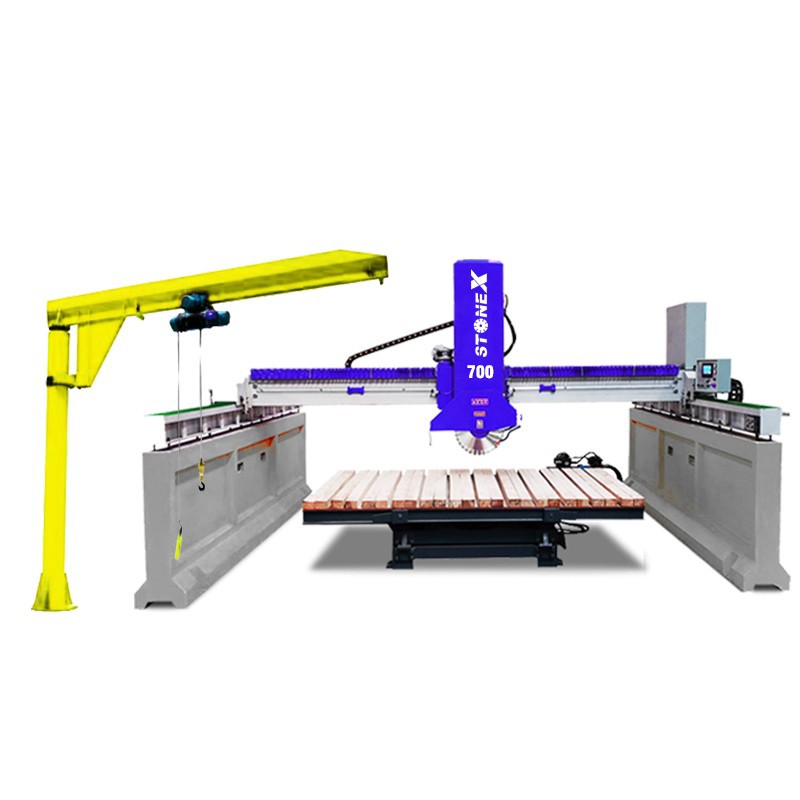

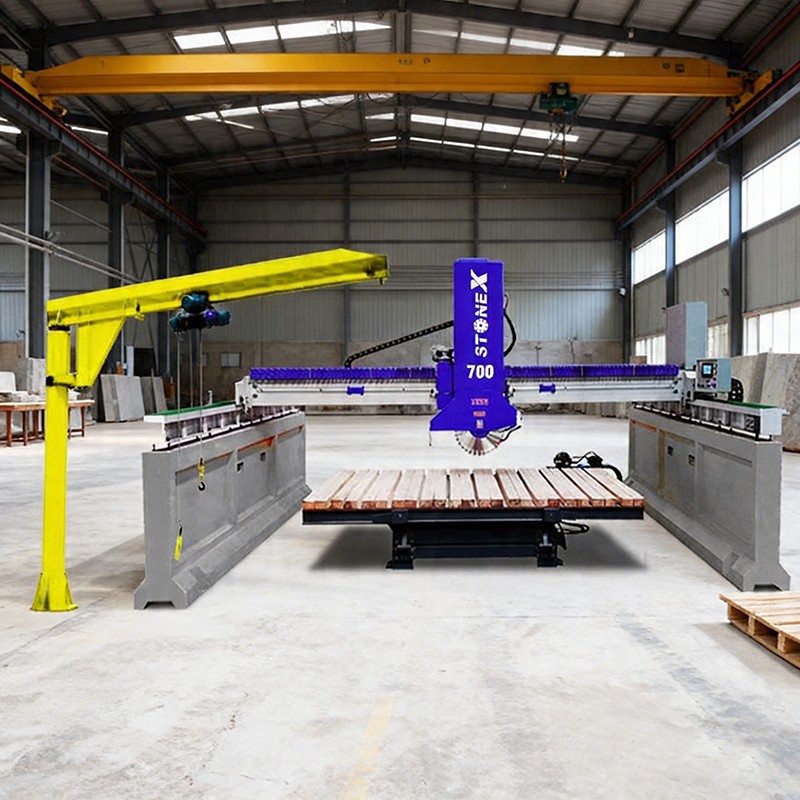

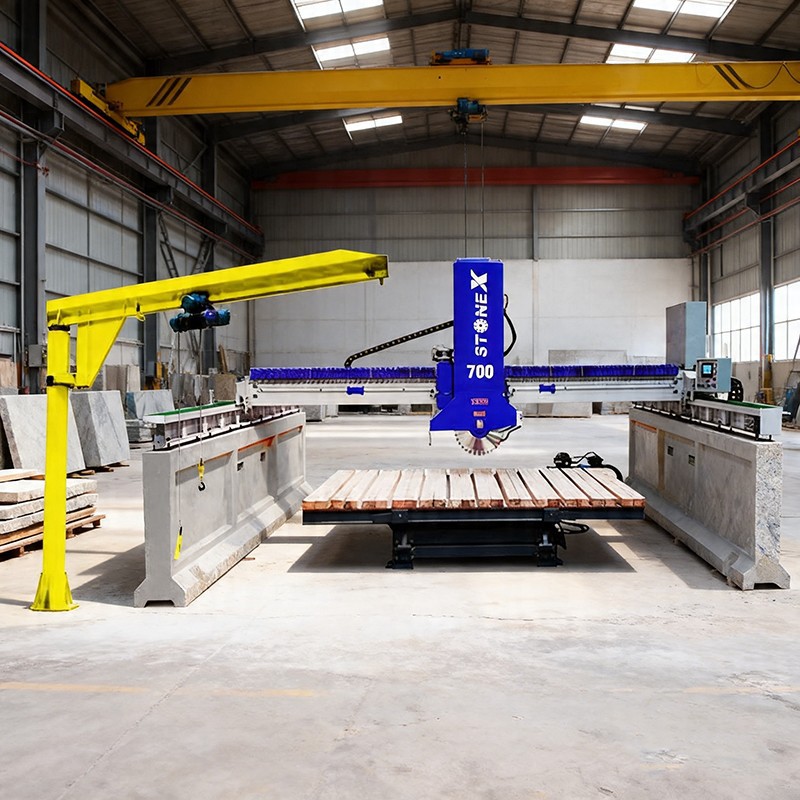

The Huayi HYSQ-700 bridge stone saw machine is a bridge saw with a maximum mounting saw blade diameter of 700mm. It adopts a PLC control system for simple and convenient operation.
The worktable size is 3200*2000mm, with optional 90° or 360° rotation configurations and an 85° tilting function.
This machine is mainly used for processing marble, granite, quartz stone, artificial stone, cement boards and other materials.
Its maximum cutting thickness reaches approximately 200mm, ideal for cutting standard slabs, paving stones, curbstones and more.
Product Parameters
|
Model |
Unit |
HYSQ-700 |
|
Max. processing dimensions |
mm |
3200×3200×220 |
|
Diameter of saw blade |
mm |
Φ700 |
|
Dimension of working platform |
mm |
3200×2000 |
|
Working table tilt |
n° |
0-85 |
|
Working table rotation |
n° |
90-360 |
|
Power of main motor |
kw |
22 |
|
Water consumption |
m³/h |
4 |
|
Dimensions (L x W x H) |
mm |
6000×5000×2800 |
|
Gross weight |
kg |
6100 |
Main Equipment Functions
1. Horizontal and vertical cutting.
2. 45° chamfer cutting.
3. The worktable is optional with 90° or 360° fixed-point rotation.
FAQ
Q: Do your machines have CE certification?
A: Yes, all equipment is CE certified.
Q: What control system does the machine adopt?
A: It is equipped with a PLC control system.
Q: What trade terms are supported?
A: We support common trade terms such as FOB, EXW and CIF.
Q: Do you provide overseas on-site installation service?
A: Yes, we offer overseas on-site installation.
Q: Is technical training provided?
A: Yes. We provide professional operation training and lifelong technical support for customers.
Q: What is the delivery time?
A: Generally about 30 days after receiving the advance payment. The exact lead time depends on customer requirements and different machine configurations.
After-sales Service
1. The equipment comes with a 12-month warranty. Free spare parts are provided for non-human damage during the warranty period.
2. Remote and video technical support is available to assist customers with operation and troubleshooting.
3. Technician dispatch service is offered for on-site equipment maintenance and problem solving.
