Product Introduction

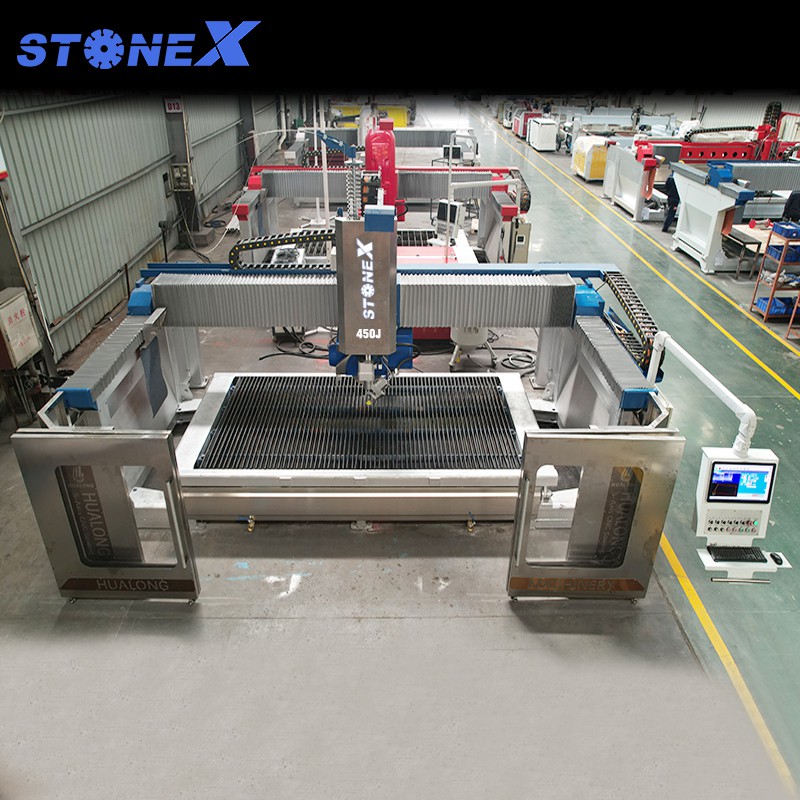

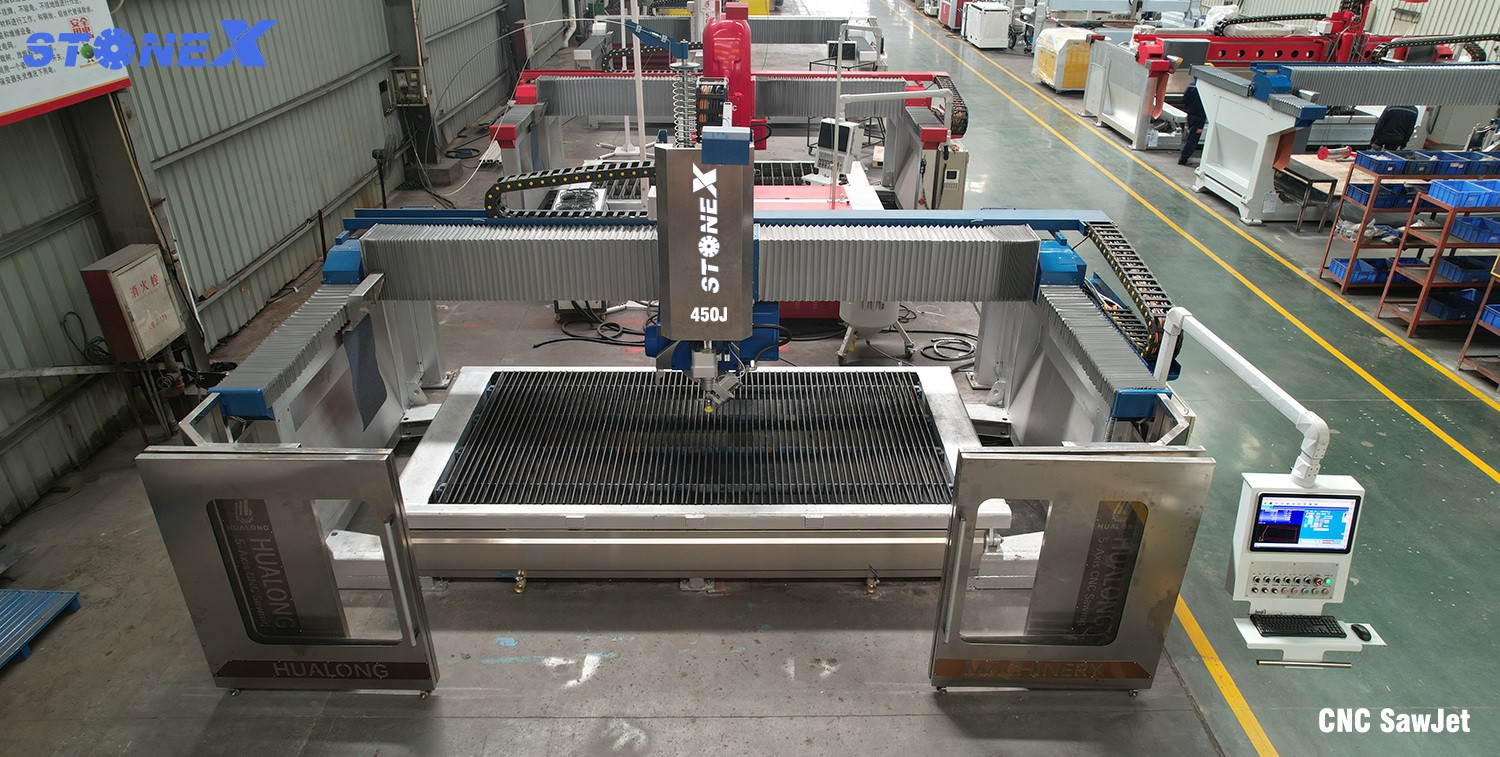

The Huayi HYNC450J 5 axis cnc sawjet is a dual-purpose integrated machine combining a 5-axis bridge saw and a 5-axis waterjet cutter.

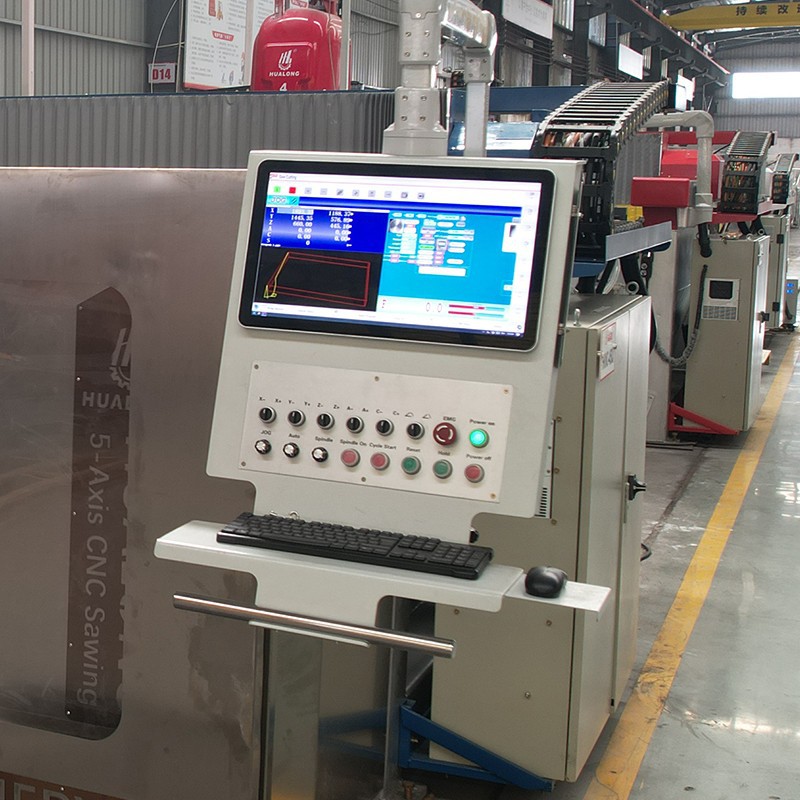

It is equipped with an Italian ESA control system and a 21.8-inch display screen.
The integration of two processing equipment greatly improves the production efficiency of stone slabs.
This machine is suitable for processing marble, granite, sintered stone, quartz stone, artificial stone, ceramics and other materials.
It can fabricate various customized countertop shapes and cut complex patterns.
Product Parameters
|
Name |
Unit |
HKNC-450J |
|
Diameter of saw blade |
mm |
ø350-ø450 |
|
Dimension of working platform |
mm |
4200x2200 |
|
Max.length of horizontal cutting |
mm |
3600 |
|
Max. cutting thickness |
mm |
100 |
|
Max. lifting stroke |
mm |
320 |
|
Power of saw blade motor |
kw |
26.4 |
|
Power for abrasive waterjet |
kw |
37 |
|
Gross power |
kw |
75.1 |
|
Max. operating water pressure |
mpa |
420 |
|
Persistent working pressure |
mpa |
330-380 |
|
Required pressure of inflow |
mpa |
0.4 |
|
Gross weight |
kg |
10000 |
|
Dimensions (L x W x H) |
mm |
6000x3820x3200 |
Main Functions
1. The saw blade supports 360° rotation for cutting polygons, arcs and special shapes.
2. The saw blade enables 0°–90° arbitrary angle chamfer cutting.
3. The waterjet head features 360° rotation.
4. The waterjet head can be tilted at 0°–60°.
5. Equipped with a camera shooting function to capture slab images and arrange cutting paths.
6. 5 axis linkage realizes complex surface processing, integrating cutting, milling and engraving functions.
Application Fields
Kitchen & bathroom countertops, seamless basins, feature walls, stone art crafts, waterjet marble inlay patterns, etc.
Equipment Advantages
5-axis bridge saw:
360° rotary cutting, 0–90° full-range chamfering, edge milling, drilling and grooving.
5-axis waterjet:
0–60° bevel cutting, precise inner right-angle cutting, complex curve and special-shaped processing, zero thermal deformation, inlay and pattern cutting.
The combination of two functions perfectly meets the demands of complex stone processing.
All processes can be completed in one clamping without workpiece transfer, greatly improving production efficiency.
FAQ
Q: What control system does the machine adopt?
A: It adopts the Italian ESA control system.
Q: Does the machine have CE certification?
A: Yes, the machine has obtained CE certification.
Q: What is the warranty period?
A: We provide a 12-month warranty for the equipment.
Q: Do you support overseas on-site installation and training?
A: Yes, we offer on-site installation and professional operation training.
Q: How long is the delivery time?
A: About 30 days after receiving the advance payment.
After-sales Service
1. The whole machine comes with a 1-year warranty. Free spare parts are provided for non-artificial damage within the warranty period.
2. Lifetime technical support is available all the time.
3. We provide on-site installation and operator training services.
4. Professional remote assistance to solve equipment problems quickly.
5. Technician dispatch service is available for on-site troubleshooting and maintenance.
