Product Introduction

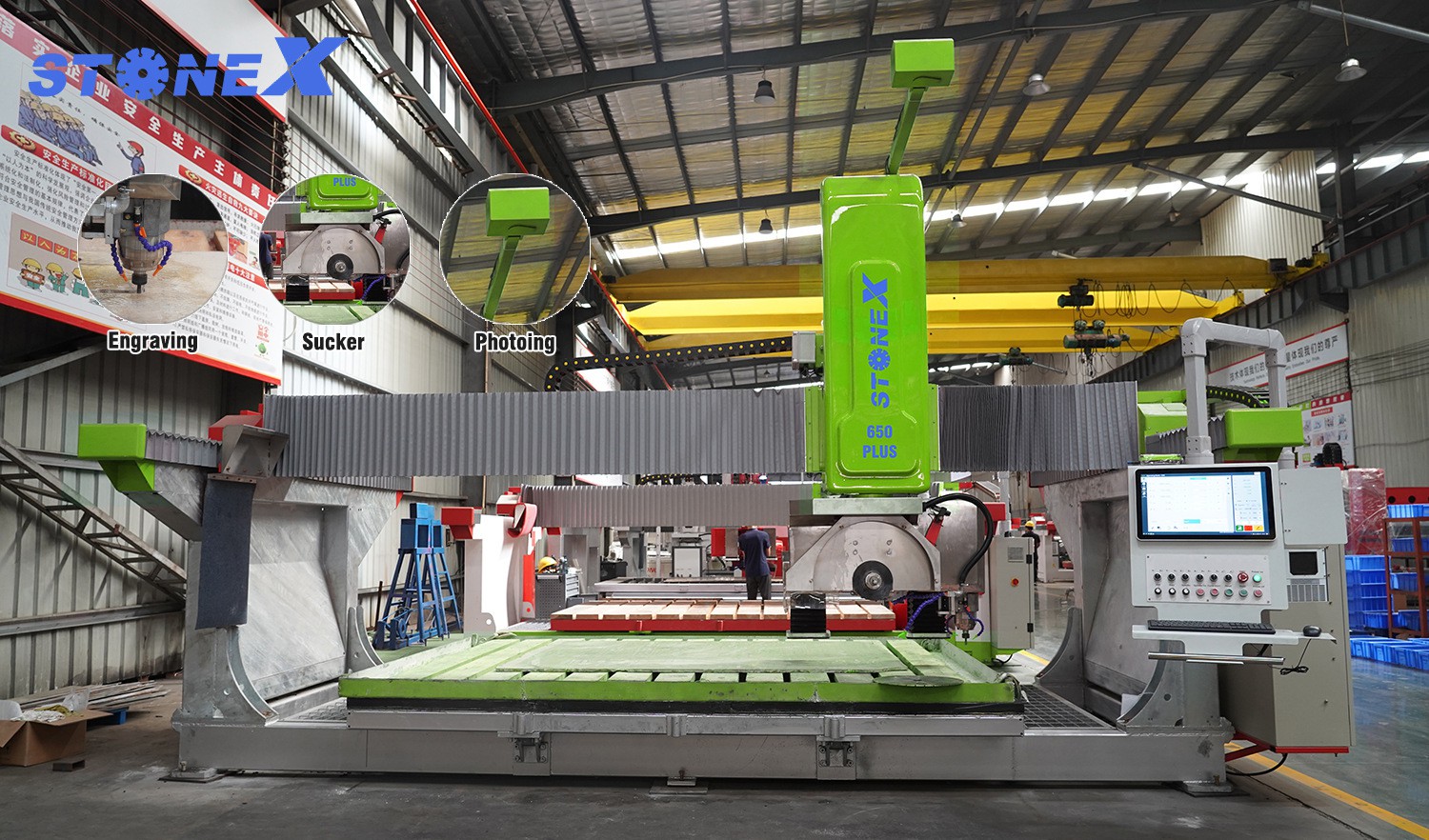

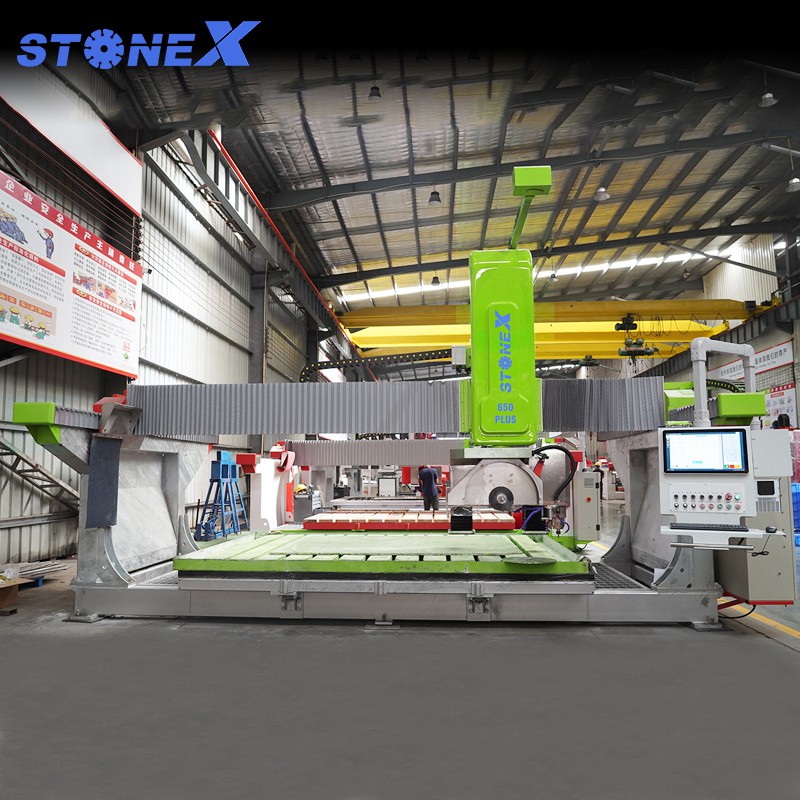

Huayi Machinery HYNC650+ stone bridge cutting machine is a 5-axis bridge saw that can be fitted with a 650mm diameter saw blade.
It is equipped with an independent electric spindle to complete drilling, milling, engraving and other processing works.
With 5-axis linkage and Italian ESA control system, the machine features high precision and rich functions.
It is widely used for cutting kitchen and bathroom countertops, basin cutouts and other stone products.
Multiple configurations can be customized according to customer requirements, and one-unit order is acceptable.
Product Parameters
|
Name |
Unit |
HYNC-650+ |
|
Diameter of saw balde |
mm |
Φ350-650 |
|
Dimensions of working platform |
mm |
3500×2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
200 |
|
Max. lifting stroke |
mm |
500 |
|
Max. lifting weight by vacuum |
kg |
200 |
|
Max. lifting weight by vacuum |
kw |
18.8 |
|
Power of cutter frame reciprocating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.15 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Gross power |
kw |
32.5 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (LxWxH) |
mm |
6250×3400×3700 |
|
Gross weight |
kg |
6200 |
Product Functions: 650mm Blade 5-Axis Bridge Saw

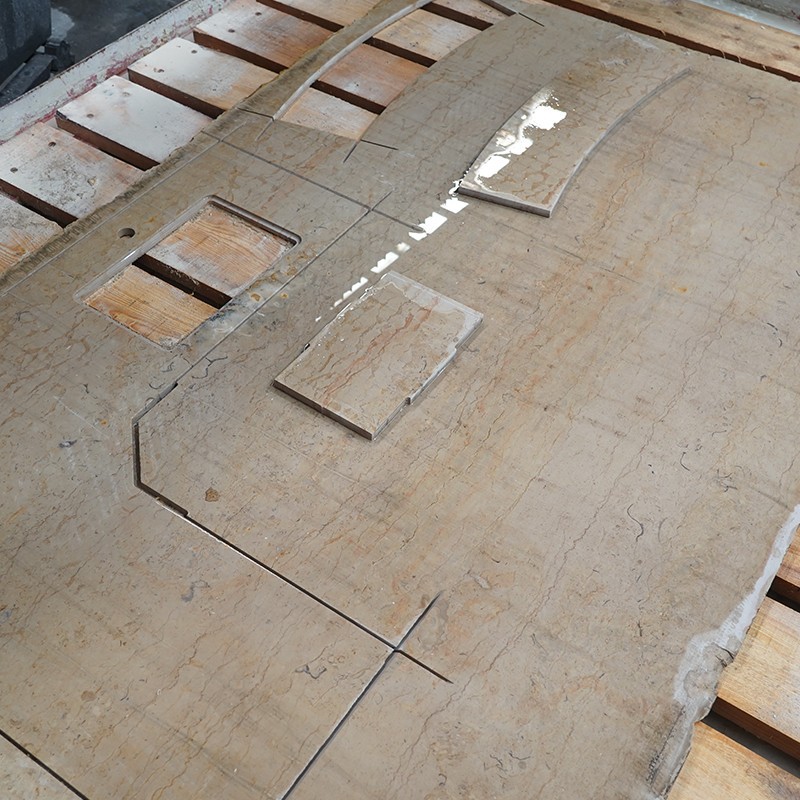

1. The cutting head can rotate 360° to complete cutting of polygons, arcs, circles, sectors, bullnose edges and other special shapes.

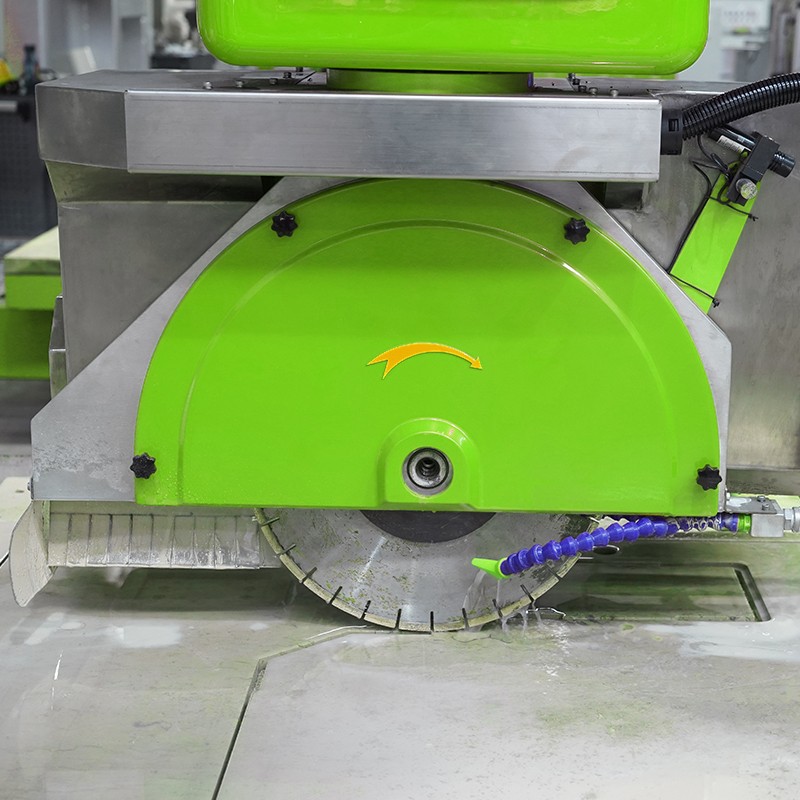

2. The saw blade supports chamfer cutting at 0° to 90°.

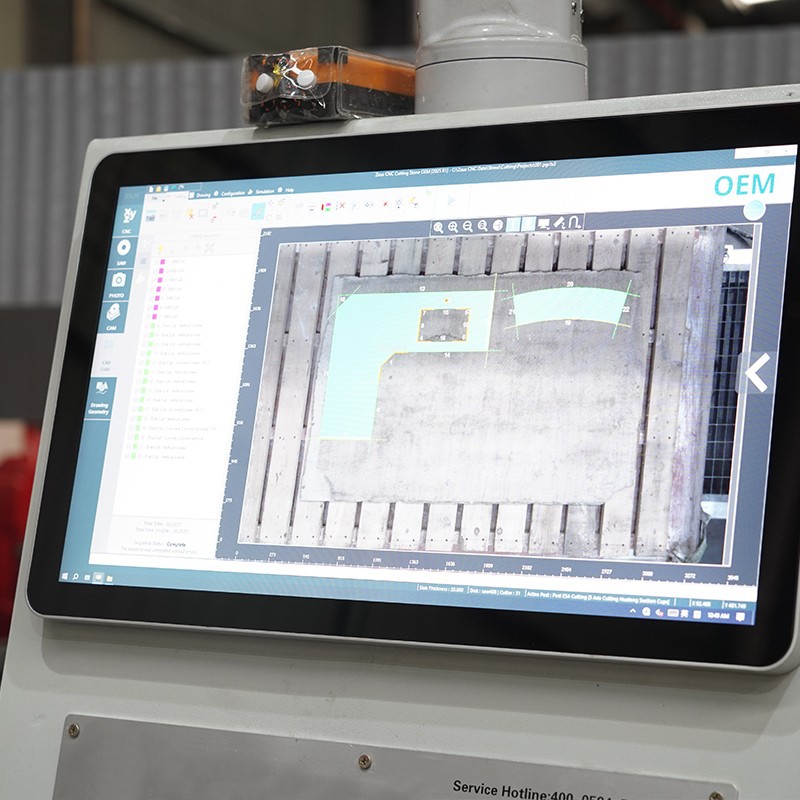

3. Camera function captures slab graphics to arrange and optimize cutting paths, effectively reducing material waste.
4. Equipped with vacuum suction cups to move slabs to safe positions during cutting and avoid over-cutting losses.

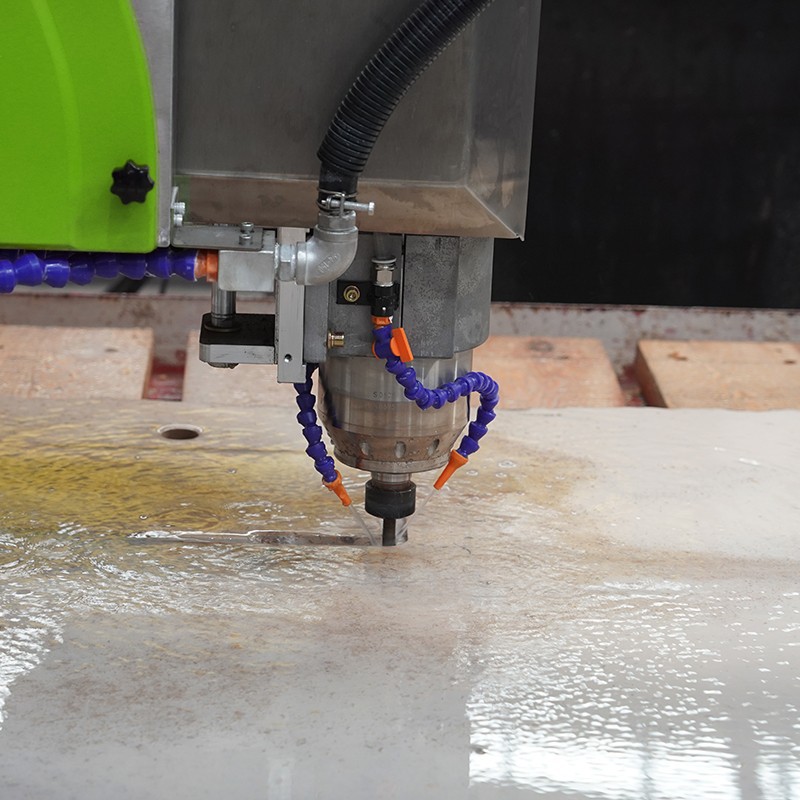

5. The independent electric spindle enables milling, drilling and engraving, and works with the saw blade for fast basin hole processing.
6. The worktable can tilt up to 85° for easy loading.
7. Optional function: Saw blade size measurement
8. Optional function: Slab thickness detection
9. Optional function: Grain splicing
10. Slab fixing device
11. Stainless steel safety protection door
12. Please contact us for more customized functions
FAQ
Q: What control system does this machine adopt?
A: It is equipped with Italian ESA control system.
Q: Is the machine CE certified?
A: Yes, all our machines have obtained CE certification.
Q: Is customization available?
A: Yes, please contact us for details if you have customization needs.
Q: What is the warranty period of the machine?
A: We provide a 1-year warranty for all equipment.
Q: Do you provide on-site installation for overseas customers?
A: Yes, we offer global on-site installation service.
Q: What trade terms are supported?
A: We support common terms such as EXW, FOB and CIF. Specific terms can be negotiated.
After-sales Service
* All our machines are covered by a 12-month warranty. Free spare parts will be provided for non-human damage within the warranty period.
* We provide online remote services for overseas customers and establish dedicated after-sales communication groups.
* Overseas technician dispatch is available. Please contact us in advance if on-site service is required.
* Lifetime technical support is provided for all customers.
