Product Introduction

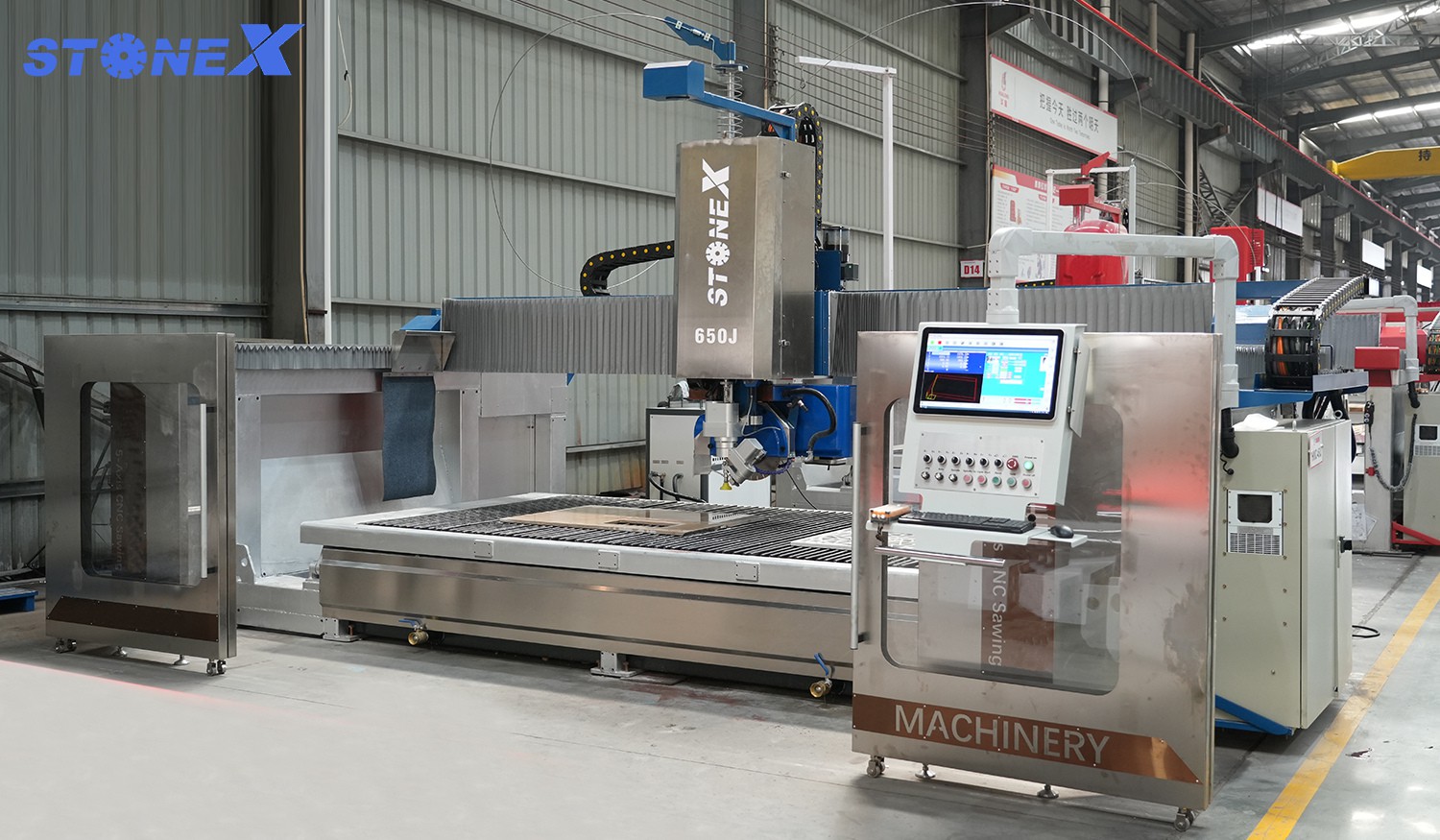

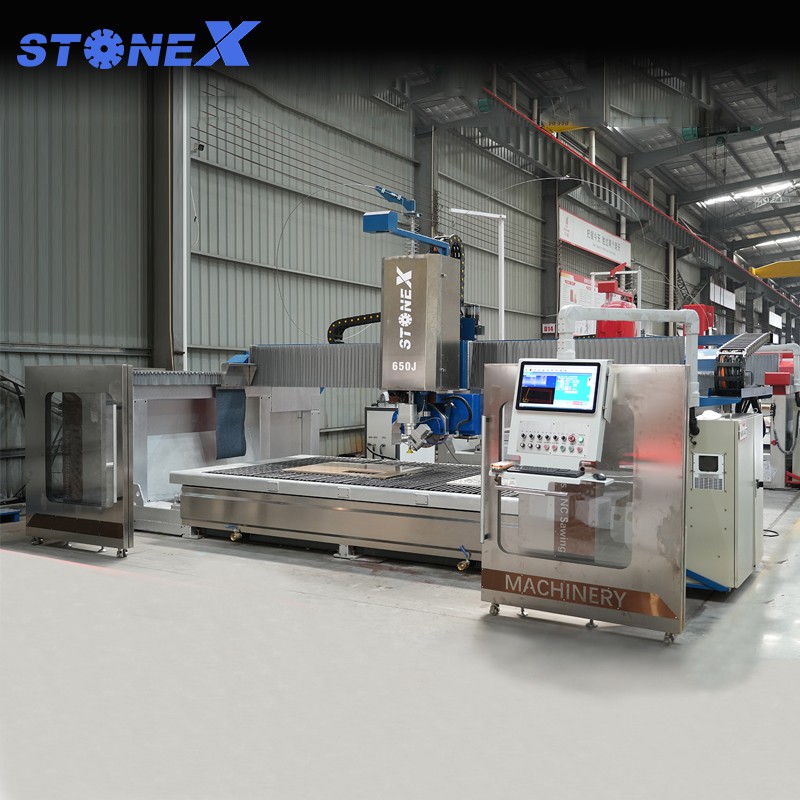

The Huayi HYNC650J is an integrated machine combining a 5-axis CNC bridge cutting machine and a 5-axis CNC waterjet cutting machine.
It adopts an Italian ESA control system, with core electrical components sourced from top-tier brands including Siemens and Schneider.
The machine features a rigid body structure and an integrated cast iron beam, ensuring long-term operation without deformation.

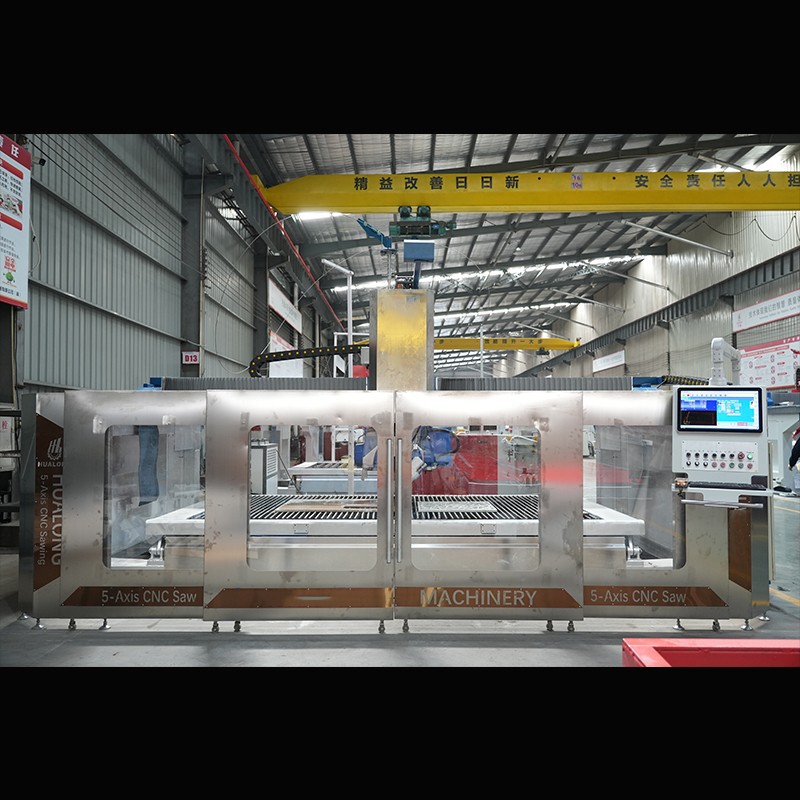

Equipped with a stainless steel safety protection door, it is suitable for processing marble, granite, sintered stone, ceramics, artificial stone and more.
Main Applications

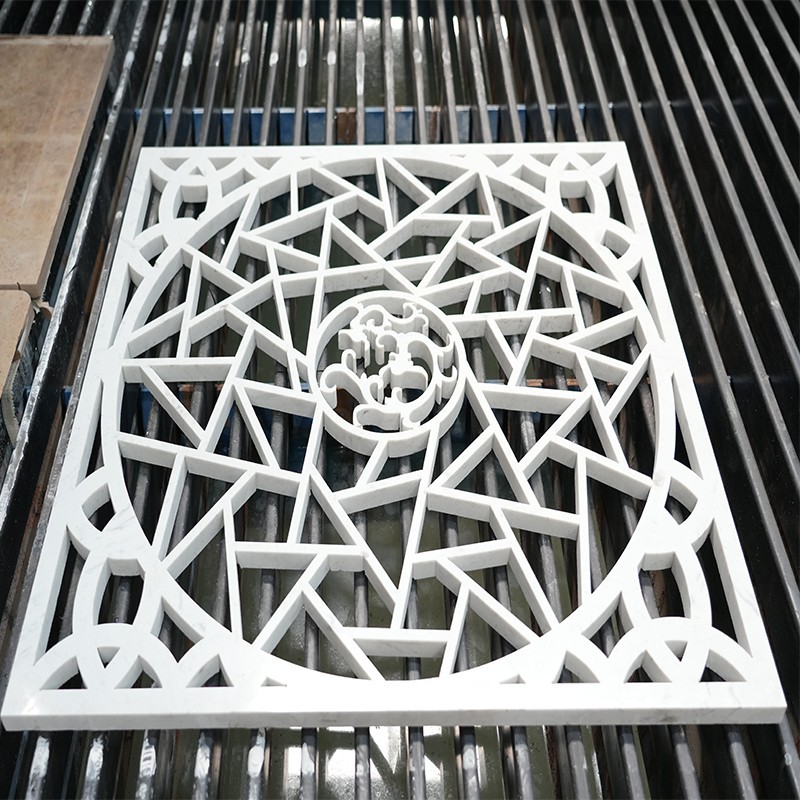

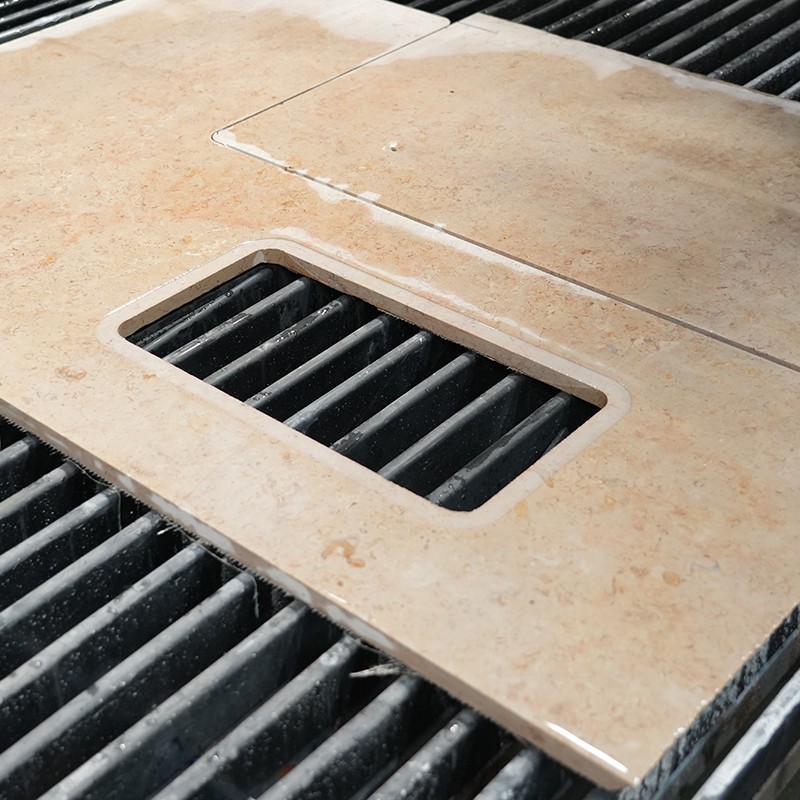

It is widely used for processing kitchen and bathroom countertops, feature walls, stair treads, door casings, window frames, chamfering, grooving, curved shaping, floor paving, exterior wall dry-hanging, waterjet inlay patterns and other stone processing works.
Main Functions
1. 360° rotating saw blade.
2. Saw blade chamfering from 0° to 90°.

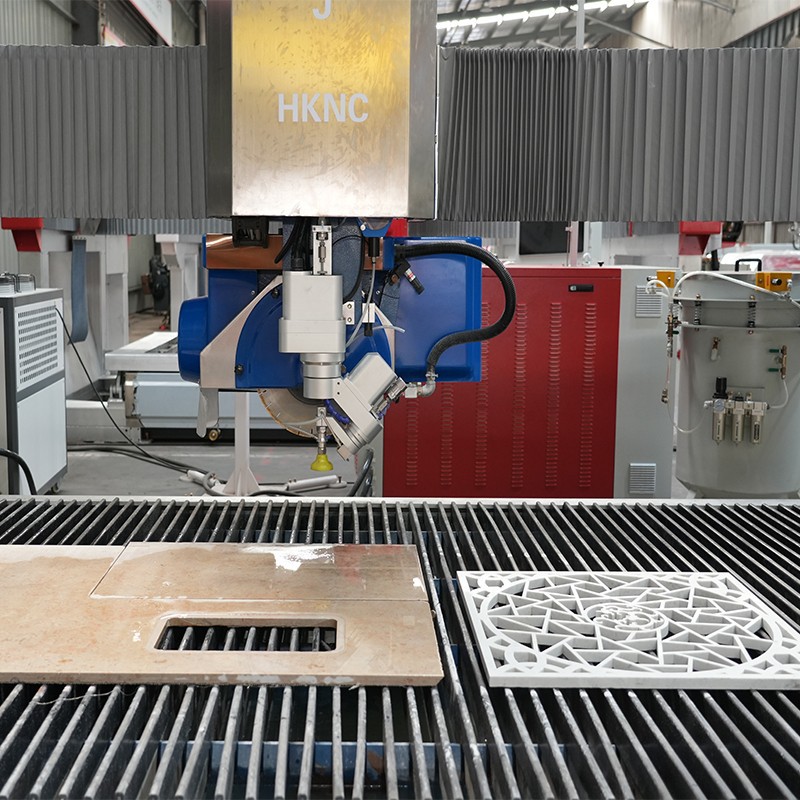

3. 360° rotating waterjet head.
4. Waterjet head chamfering from 0° to 60°.
5. 85° tilting worktable.
6. Camera function to capture slab images and arrange cutting paths.
Product Parameters
|
Name |
Unit |
HYNC650J |
|
Diameter of saw blade |
mm |
Φ350-650 |
|
Dimensions of working platform |
mm |
4100×2200 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness of saw |
mm |
200 |
|
Max. lifting stroke |
mm |
550 |
|
Power of sawing motor |
kw |
15 |
|
Power for abrasive waterjet |
kw |
37 |
|
Gross power |
kw |
60.6 |
|
Required pressure of inflow |
Mpa |
0.4 |
|
Max. operating water pressure |
Mpa |
450 |
|
Persistent working pressure |
Mpa |
330-380 |
|
Cutting precision |
mm |
±0.1 |
|
Dimensions(L×W×H) |
mm |
6200×3900×3930 |
|
Gross weight |
kg |
10000 |
FAQ
Q: What control system does the machine adopt?
A: Italian ESA control system.
Q: Is the machine CE certified?
A: Yes, the machine has obtained CE certification and complies with relevant safety and quality standards.
Q: Can the waterjet cutting system be changed to 3-axis?
A: Yes. It can be customized as 5-axis CNC bridge cutting machine plus 3-axis waterjet cutting machine.
Q: What is the delivery lead time?
A: The delivery time is generally about 30 days after receiving the advance payment.
Q: How long is the warranty period?
A: The machine comes with a 12-month warranty.
Q: Do you provide overseas on-site installation and training?
A: Yes, we offer overseas on-site installation and operation training services.
After-sales Service
1. Within the warranty period, our company provides free spare parts for equipment damage caused by non-human factors.
2. Lifetime technical support is available.
3. Online remote technical assistance is provided.
4. We support technician dispatch and offer on-site services according to customers' requirements.
