Product Introduction

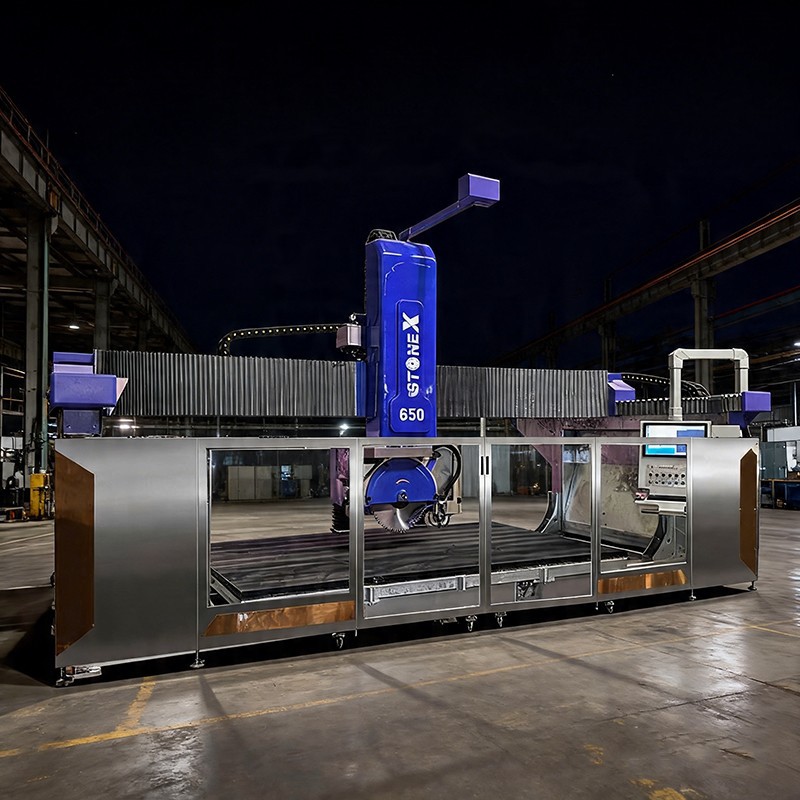

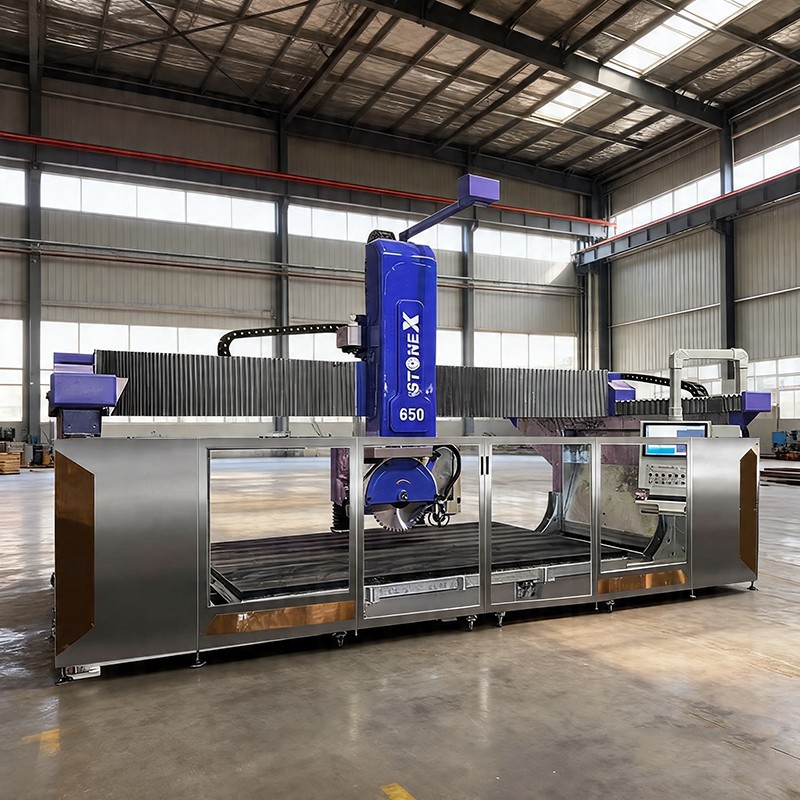

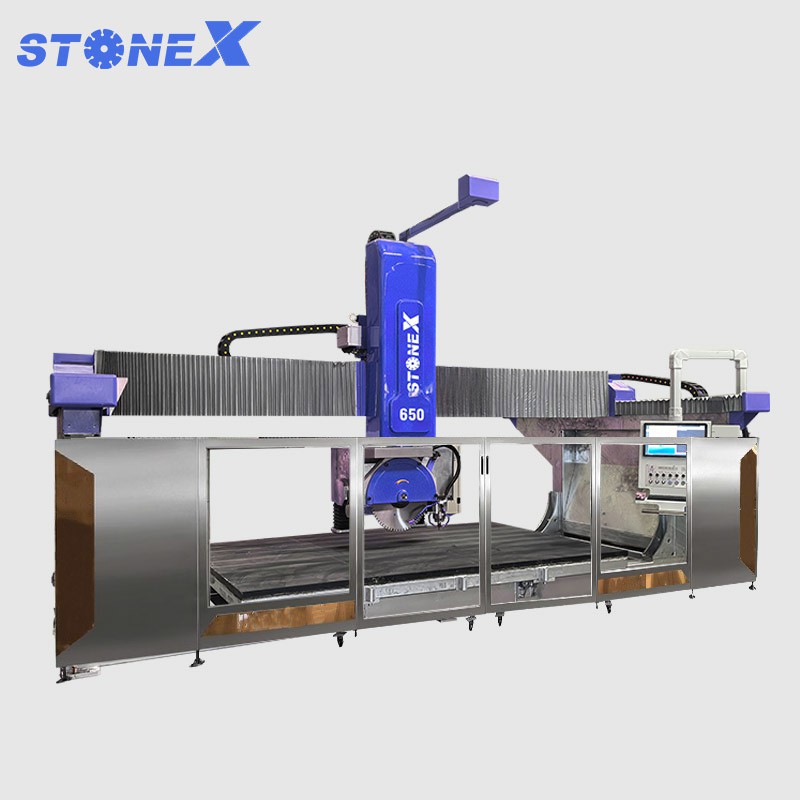

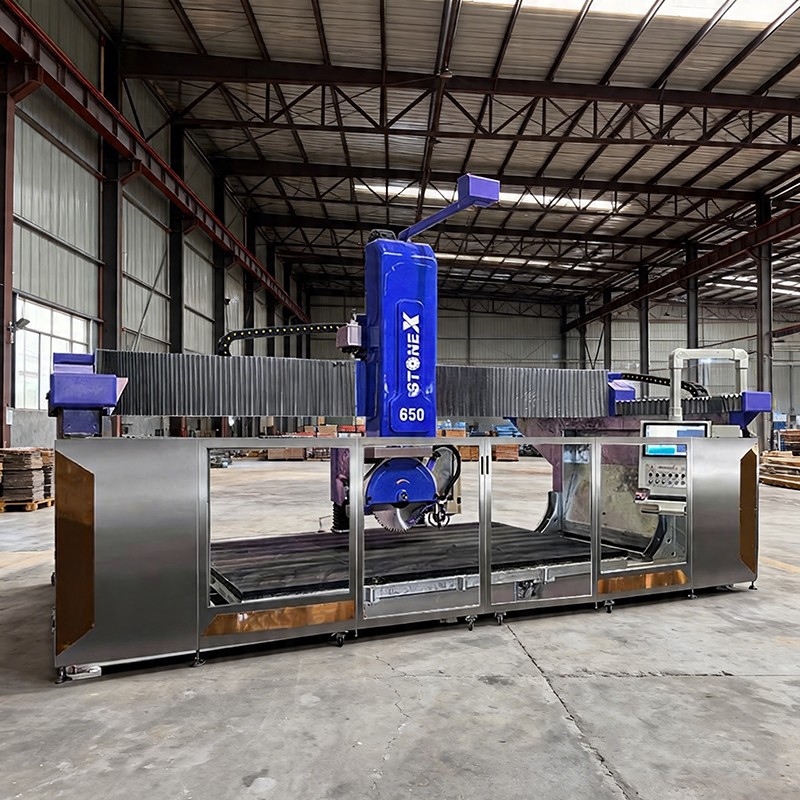

The Huayi HYNC650 PLUS 5 axis cnc bridge saw machine is a heavy-duty 5-axis CNC bridge saw equipped with an Italian ESA control system and a 21.8-inch touchscreen display. Featuring 5-axis linkage plus an independent electric spindle, it can process marble, granite, sintered stone, quartz stone, artificial stone, ceramics, tiles, cement boards and more. The machine is also fitted with sliding stainless steel safety protective doors.
Technical Parameters
|
Name |
Unit |
HYNC-650 PLUS |
|
Diameter of saw balde |
mm |
Φ350-650 |
|
Dimensions of working platform |
mm |
3500×2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
200 |
|
Max. lifting stroke |
mm |
500 |
|
Max. lifting weight by vacuum |
kg |
200 |
|
Max. lifting weight by vacuum |
kw |
18.8 |
|
Power of cutter frame reciprocating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.15 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Gross power |
kw |
32.5 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (LxWxH) |
mm |
6250×3400×3700 |
|
Gross weight |
kg |
6200 |

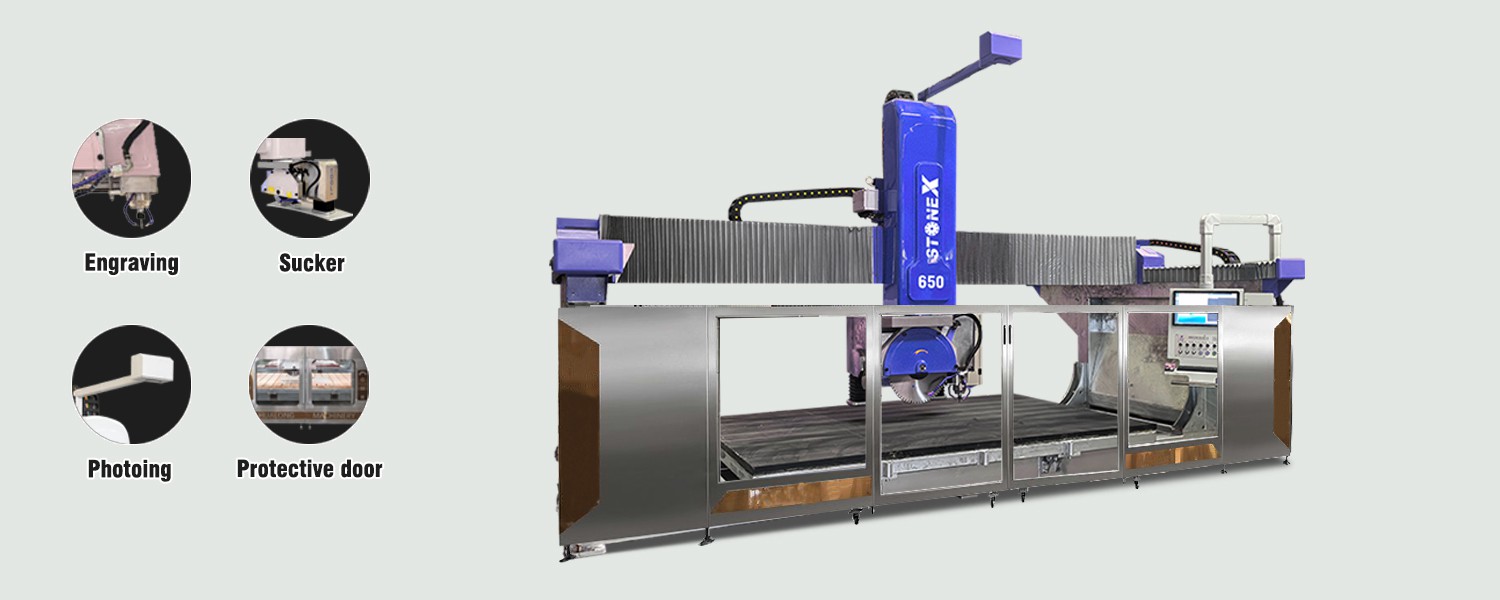

Main Functions
1. The saw blade can rotate 360°, realizing vertical cutting, horizontal cutting, diagonal cutting, polygonal cutting, arc cutting, curved surface cutting and 3D shaping.
2. The saw blade can tilt at any angle from 0° to 90° for bevel cutting.
3. Camera shooting function: capture slab images to optimize cutting paths and nesting layout.
4. Sucker: move slabs to a safe processing position.
Optional Functional Configurations
1. Stainless steel safety protective door
2. Saw blade dimension measuring instrument
3. Slab thickness detector
4. Rubber worktable
5. Slab fixing device
FAQ

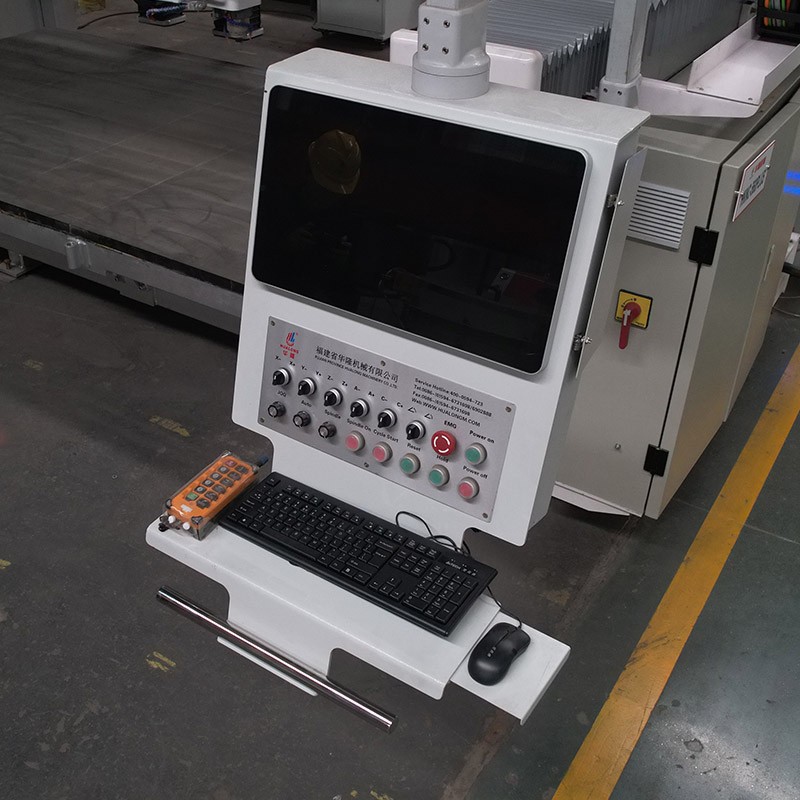

Q: What control system does the HYNC650 PLUS adopt?
A: Italian ESA control system.
Q: Does the HYNC650 PLUS have CE certification?
A: Yes, this machine is CE certified.
Q: Are the equipment self-produced?
A: Yes, we own our factory, and all machines are independently manufactured by ourselves.
Q: What trade terms are supported?
A: We support common trade terms such as FOB and EXW.
Q: What is the warranty period of the machine?
A: 12-month warranty.
After-sales Service & Technical Support
1. Free machine parts are provided for non-artificial damage within the warranty period.
2. Remote technical assistance is available for simple malfunctions.
3. For serious failures, we can arrange professional technicians for on-site maintenance.
4. Lifelong technical support is provided all the time.
