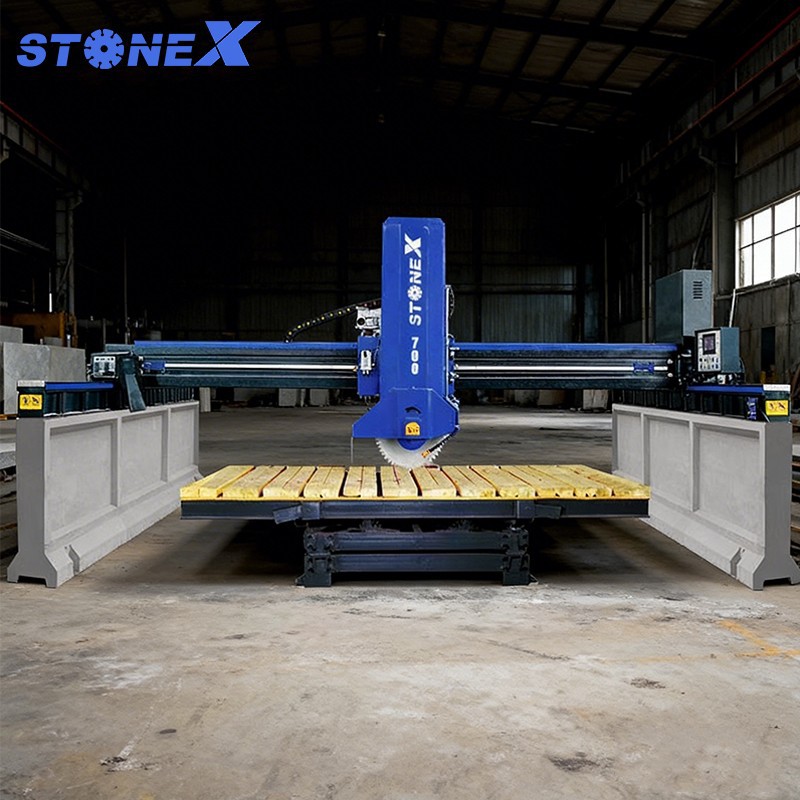

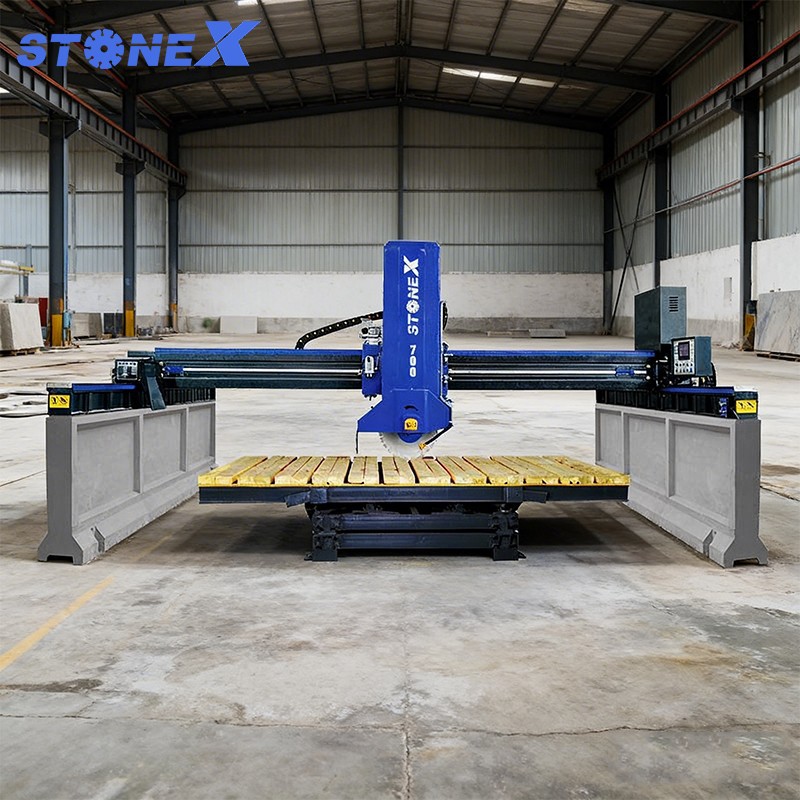

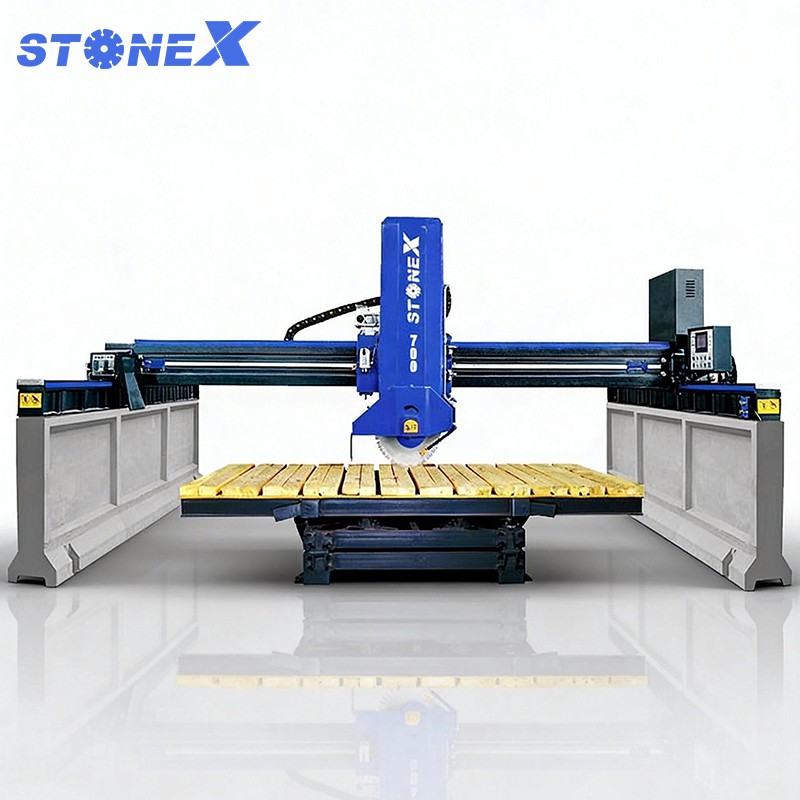

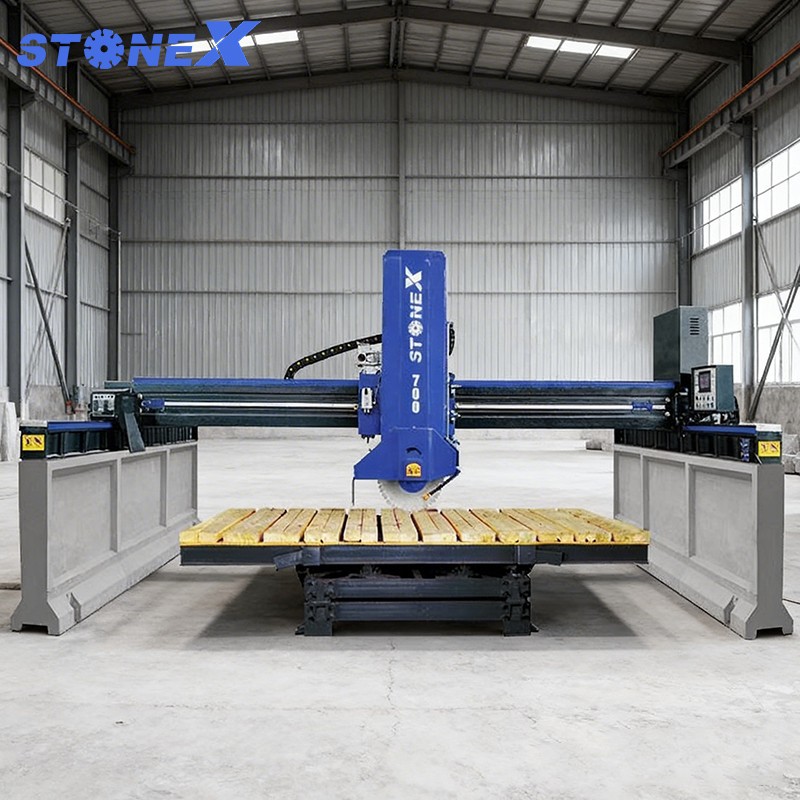

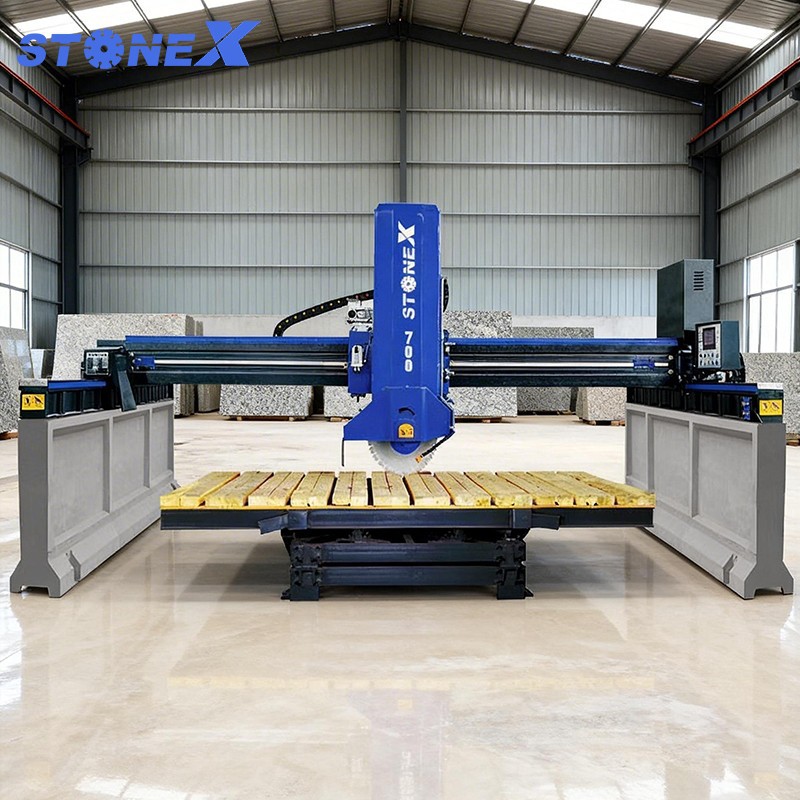

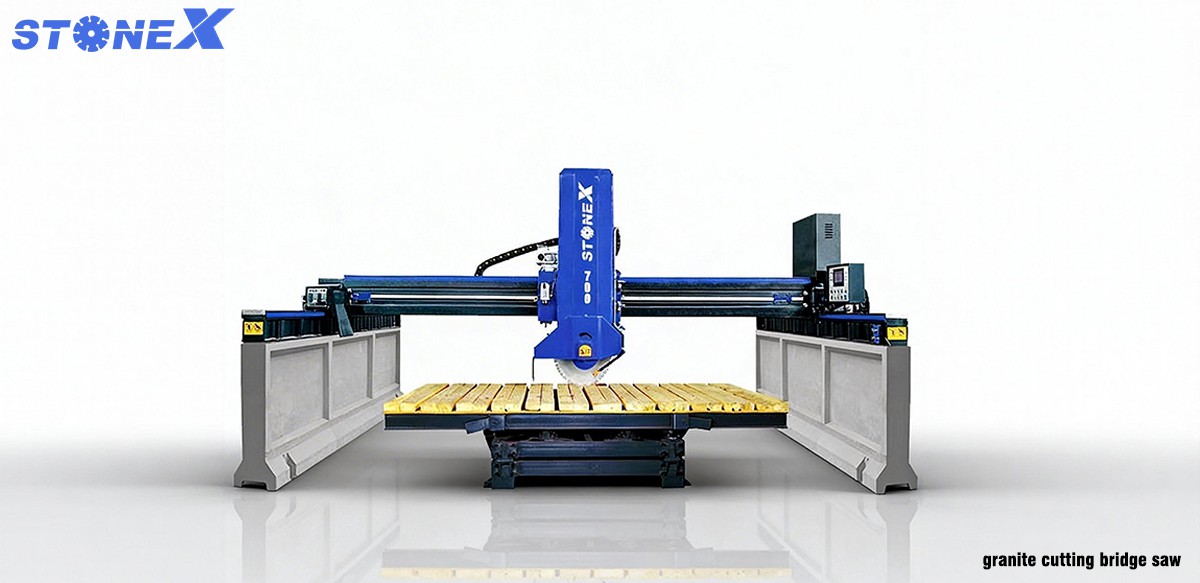

The HYSQ700 granite cutting bridge saw is a mainstream equipment for stone processing plants. It is a medium-sized machine in the bridge saw series, featuring a split structure and an independent worktable that can rotate 90° or 360°.
During operation, cutting is coordinated with the rotation of the worktable. It is equipped with a 700mm-diameter saw blade, enabling the cutting of larger-sized slabs.
Equipment Features
- Saw blade can be mounted up to 700mm in diameter (larger sizes available upon request).
- Adopts PLC control system.
- Excellent cutting performance.
- Low cost and high efficiency.
- Customizable chamfering function available.
- Optional 90° or 360° rotating worktable.
- Worktable can tilt up to 85° for easy loading.
- Stable performance, low failure rate and easy maintenance.
- The machine is fitted with infrared laser alignment to ensure high cutting precision.
Application of HKSQ700 Granite Cutting Bridge Saw
Main cutting materials: Marble, granite, quartz stone, engineered stone, cement products, foamed ceramic, etc.
Application Scenarios:
- Cutting and slitting of granite and marble.
- Cutting of paving stones and standardized slabs.
- Cutting of kitchen and bathroom countertops.
|
Parameter Specification |
||
|
Max.processing dimensions |
mm |
3200×3200×220 |
|
Diameter of saw blade |
mm |
Φ700 |
|
Dimension of working platform |
mm |
3200×2000 |
|
Working table tilt |
n° |
0-85 |
|
Working table rotation |
n° |
90-360 |
|
Power of main motor |
kw |
18.5 |
|
Water consumption |
m³/h |
4 |
|
Dimensions(L x W x H) |
mm |
6000×5000×2800 |
|
Gross weight |
kg |
6100 |
Huayi Intelligent Equipment safeguards its customers with integrity and strength. When choosing a granite cutting bridge saw manufacturer with quality equipment and excellent service, it is essential to evaluate the manufacturer's comprehensive strength.
With over 30 years of stone machinery technology and team experience, Huayi provides customers with first-class products and services. Our core equipment includes stone CNC bridge saws, stone polishing machines, stone processing centers, and more.
Our Services
Pre-sales: We recommend suitable equipment solutions based on customers' requirements.
During sales: We conduct strict equipment production and commissioning to ensure the quality of every machine before delivery.
After-sales: We offer rapid response, remote assistance, and on-site service by dispatched engineers to provide comprehensive support for customers.
