Product Introduction

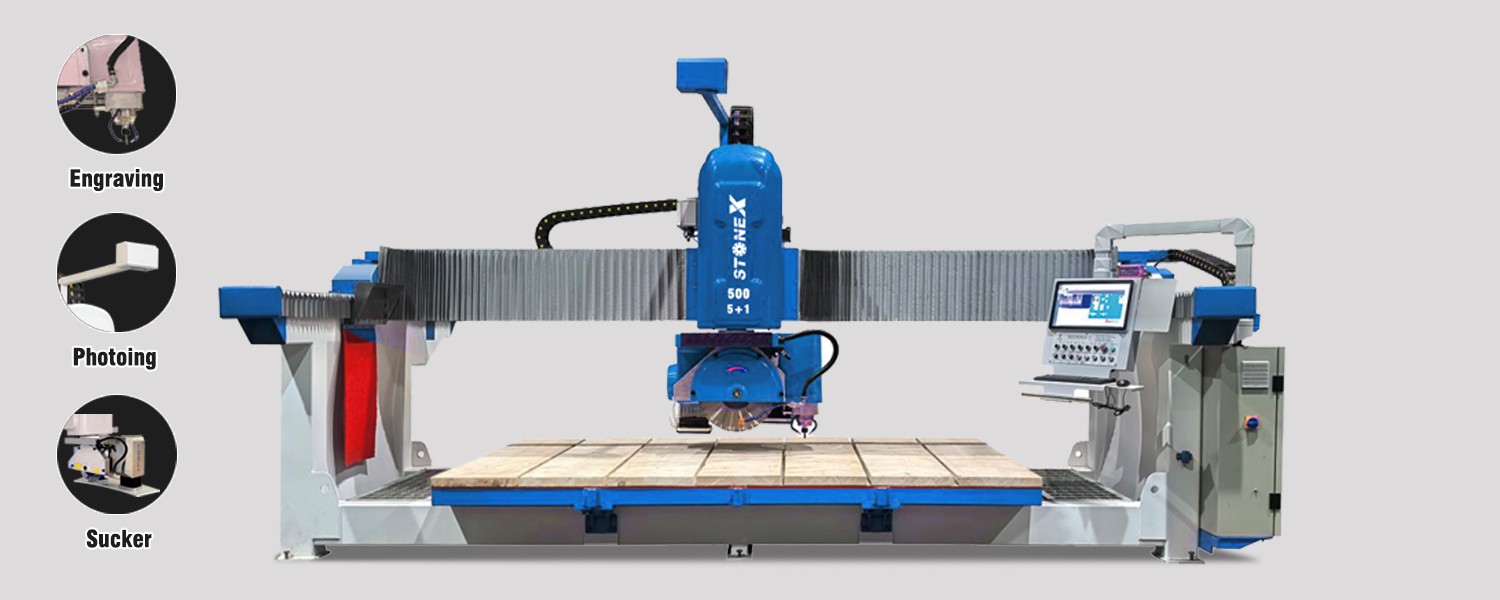

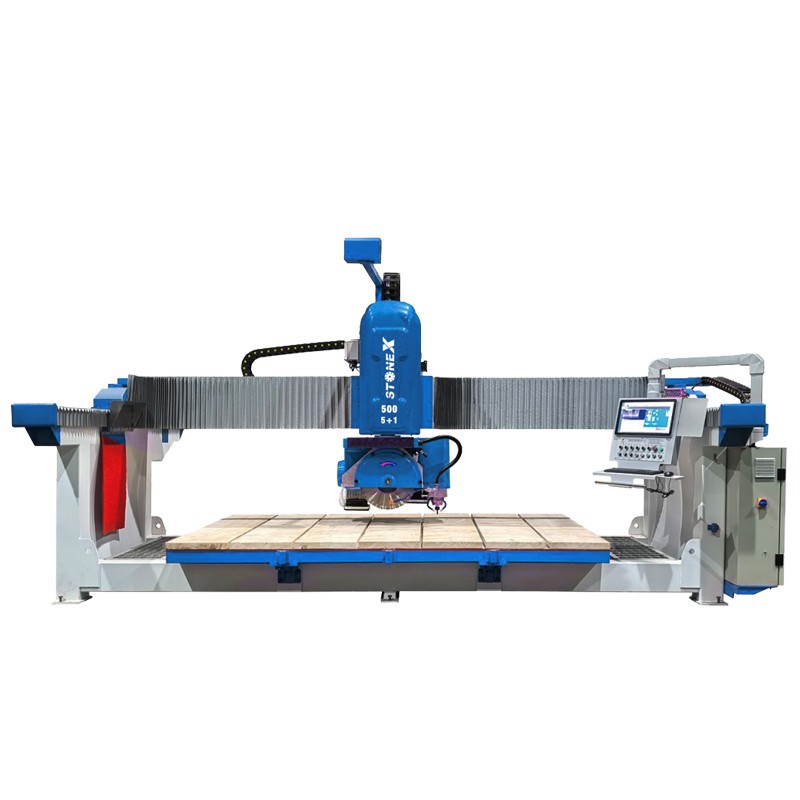

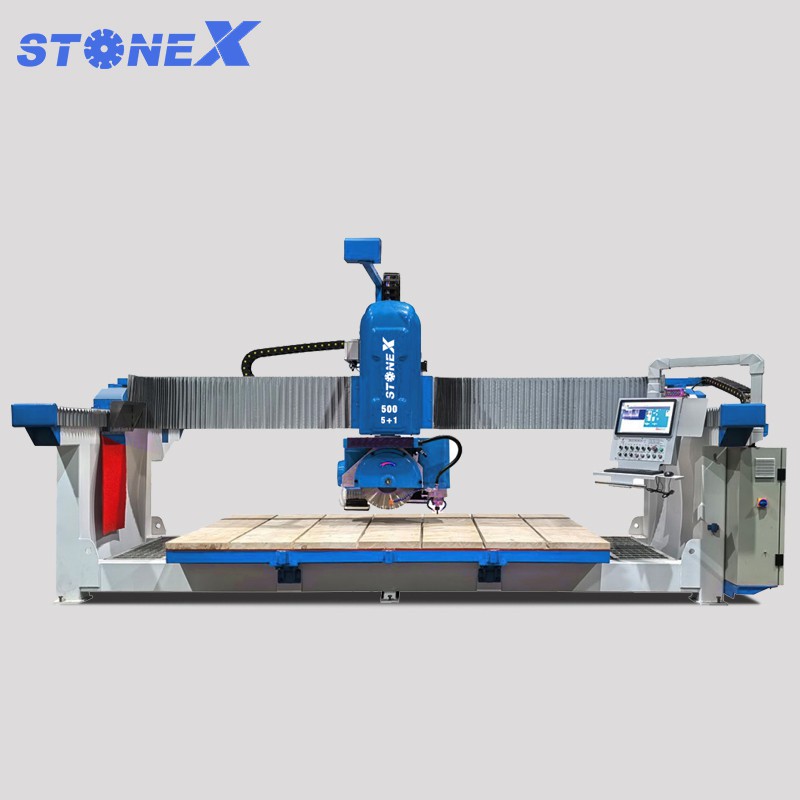

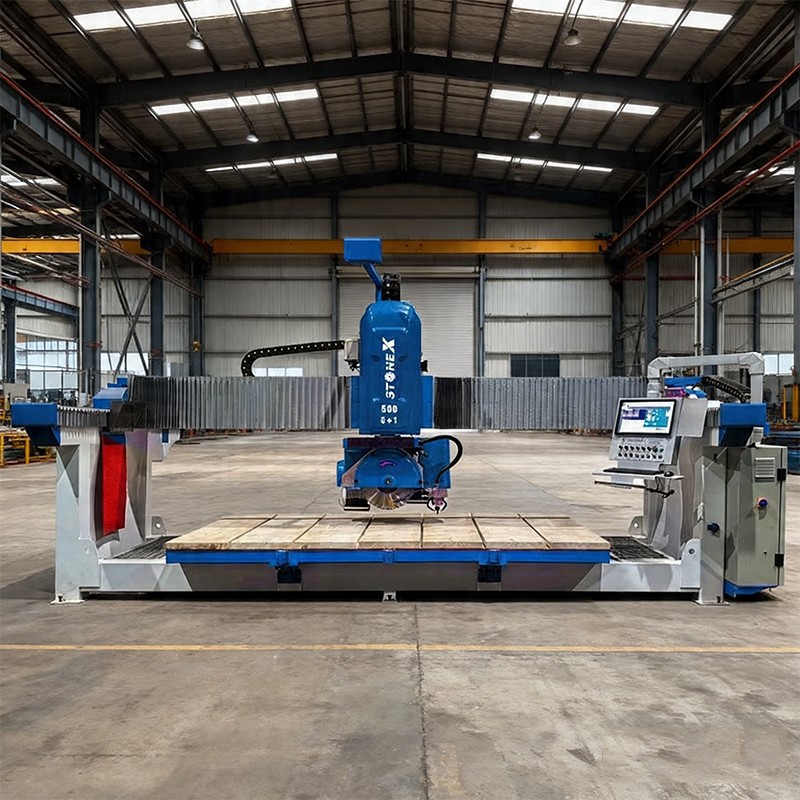

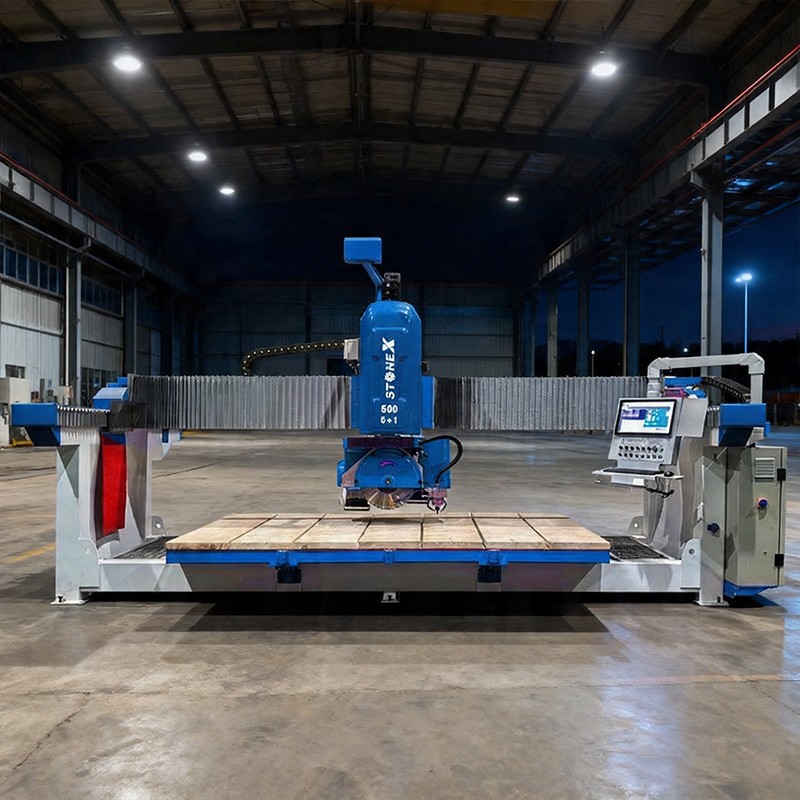

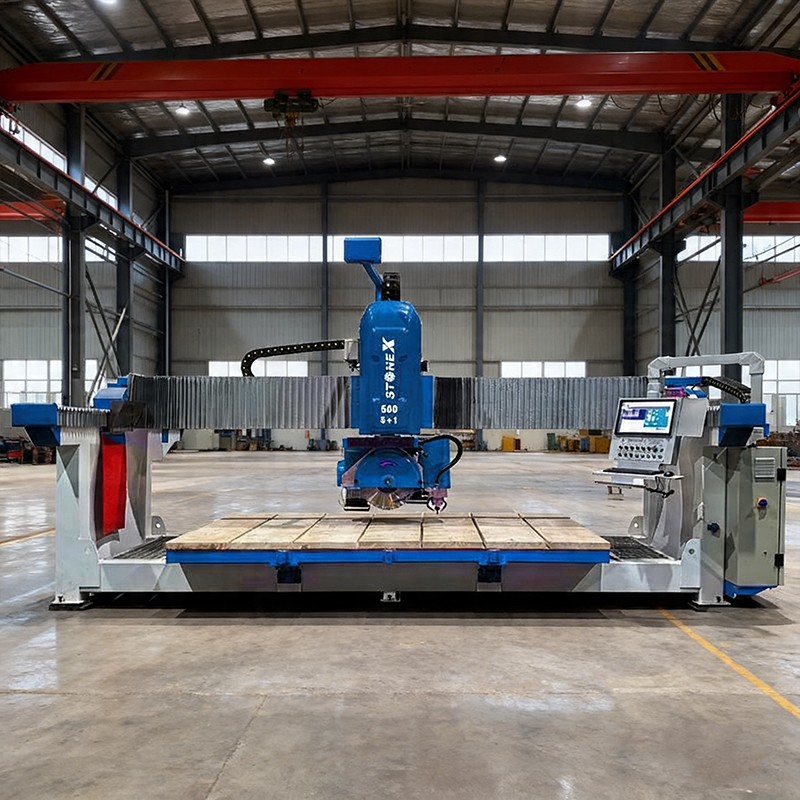

The Huayi HYNC500 5+1-axis bridge saw features an integrated all-in-one structure and adopts a cast iron beam.
Core electrical components are supplied by world-class brands such as Siemens and Schneider.
Equipped with an Italian ESA control system and a 21.8-inch display screen, it integrates core functions including camera positioning, vacuum suction cups and an independent electric spindle.
This machine is suitable for cutting marble, granite, quartz stone, sintered stone, ceramics and other stone slabs.
It supports a minimum order of one unit, with a regular delivery lead time of 30 days.
Product Parameters
|
Model NO |
Unit |
HYNC-500 5+1 |
|
Diameter of saw blade |
mm |
400-500 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.8 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5800 |
Main Functions and Configurations
1. Independent electric spindle, capable of milling, drilling, engraving and other processing operations.
2. Camera system to capture slab images and optimize the layout of cutting paths.
3. Vacuum sucker to safely move stone slabs during cutting.
4. The worktable can be tilted up to 85°.
5. 360° rotatable cutting head.
6. The saw blade supports chamfering at any angle from 0° to 90°.
Optional Functions & Configurations
1. Safety protection door
2. Slab thickness measuring instrument
3. Saw blade size measuring device
4. Slab fixing device
5. Grain splicing function
6. 3D processing function
7. More functions upon consultation
FAQ
Q: What control system does the machine adopt?
A: This machine is equipped with an Italian ESA control system.
Q: What are the standard features?
A: Camera positioning, vacuum suction cups and independent electric spindle are standard configurations of this model.
Q: Does the machine have CE certification?
A: Yes, this equipment has obtained CE certification.
Q: What trade terms do you accept?
A: We support common trade terms such as FOB, EXW and CIF.
Q: Is there a minimum order quantity?
A: One unit is acceptable.
Q: How long is the delivery time?
A: The delivery time is generally about 30 days after receiving the advance payment.
Q: What is the warranty period?
A: We offer a 12-month warranty.
Q: Do you provide on-site installation and training?
A: Yes, we provide on-site installation and operation training services.
After-sales Service
1. All our machines come with a 1-year warranty. Free spare parts will be provided for non-artificial damage within the warranty period.
2. Exclusive after-sales groups are created for overseas customers to solve problems online in a timely manner.
3. Technician dispatch service is available for on-site troubleshooting and maintenance.
4. We provide lifelong technical support all the time.
