Product Introduction

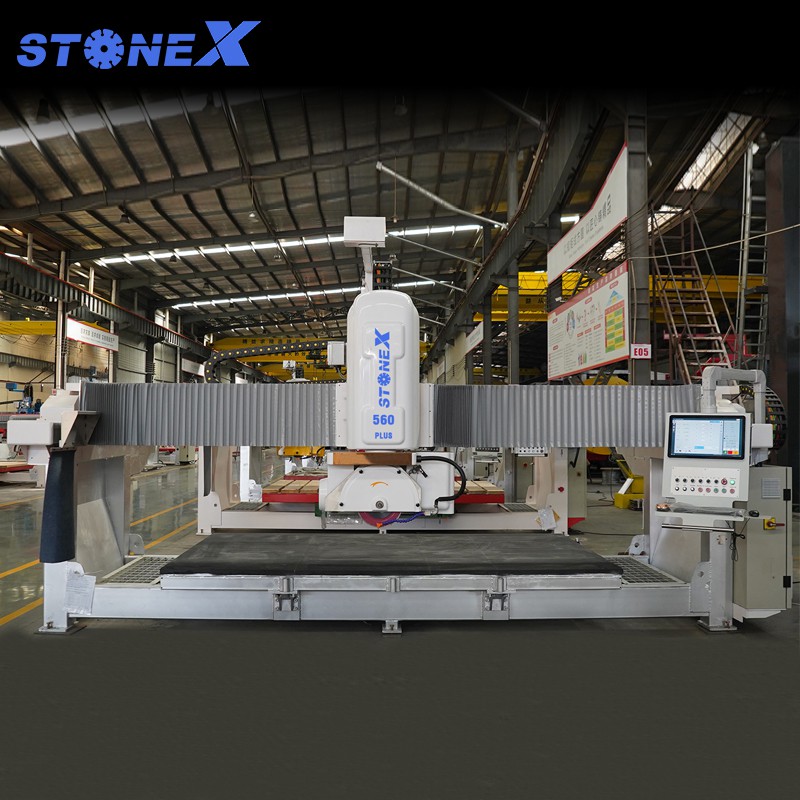

The Huayi HYNC560 PLUS is equipped with a 3500×2100mm worktable to process larger-size stone slabs. It adopts 5-axis linkage and an independent motor spindle, ideal for fast cutting of sink holes on kitchen and bathroom countertops, curved shaping and other complex processing.

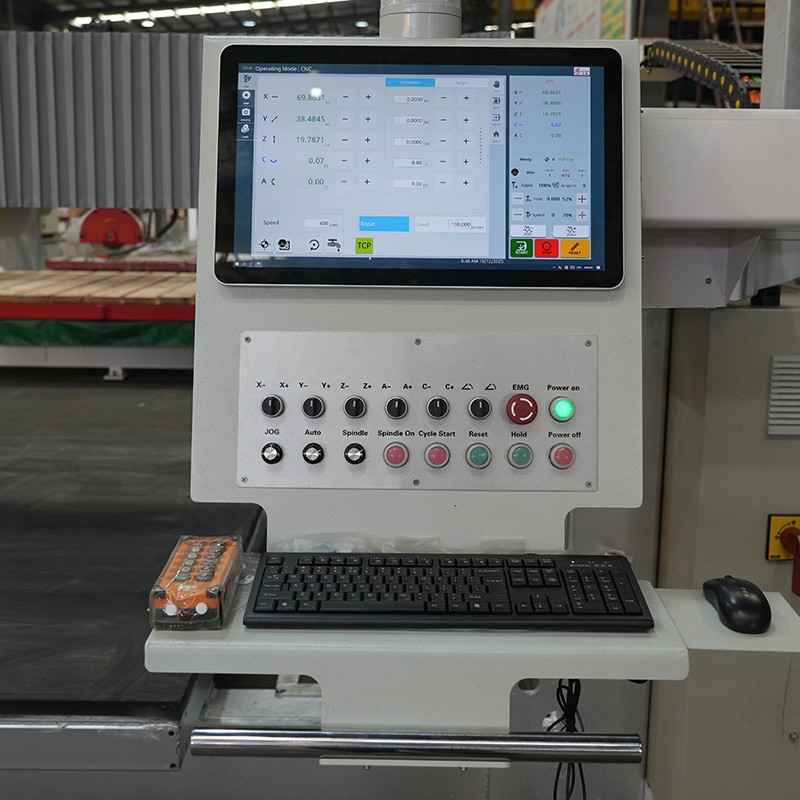

This machine is fitted with an Italian ESA control system and supports CAD/CAM file import and editing.It is widely suitable for processing marble, granite, sintered stone, quartz stone, artificial stone, ceramics and more. One-unit order is acceptable.
Product Parameters
|
Model NO |
Unit |
HYNC560 PLUS |
|
Diameter of saw blade |
mm |
ø400-ø560 |
|
Dimension of working platform |
mm |
3500x2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
150 |
|
Max. lifting stroke |
kg |
300 |
|
Max. lifting weight by sunction cups |
kw |
200 |
|
Power of main motor |
kw |
18.8 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Power of electric spindle |
kw |
5.5 |
|
Gross power |
kw |
32.5 |
|
Water consumption |
m³/h |
2 |
|
Gross weight |
kg |
5900 |
|
Dimensions (L x W x H) |
mm |
5900x3380x3000 |

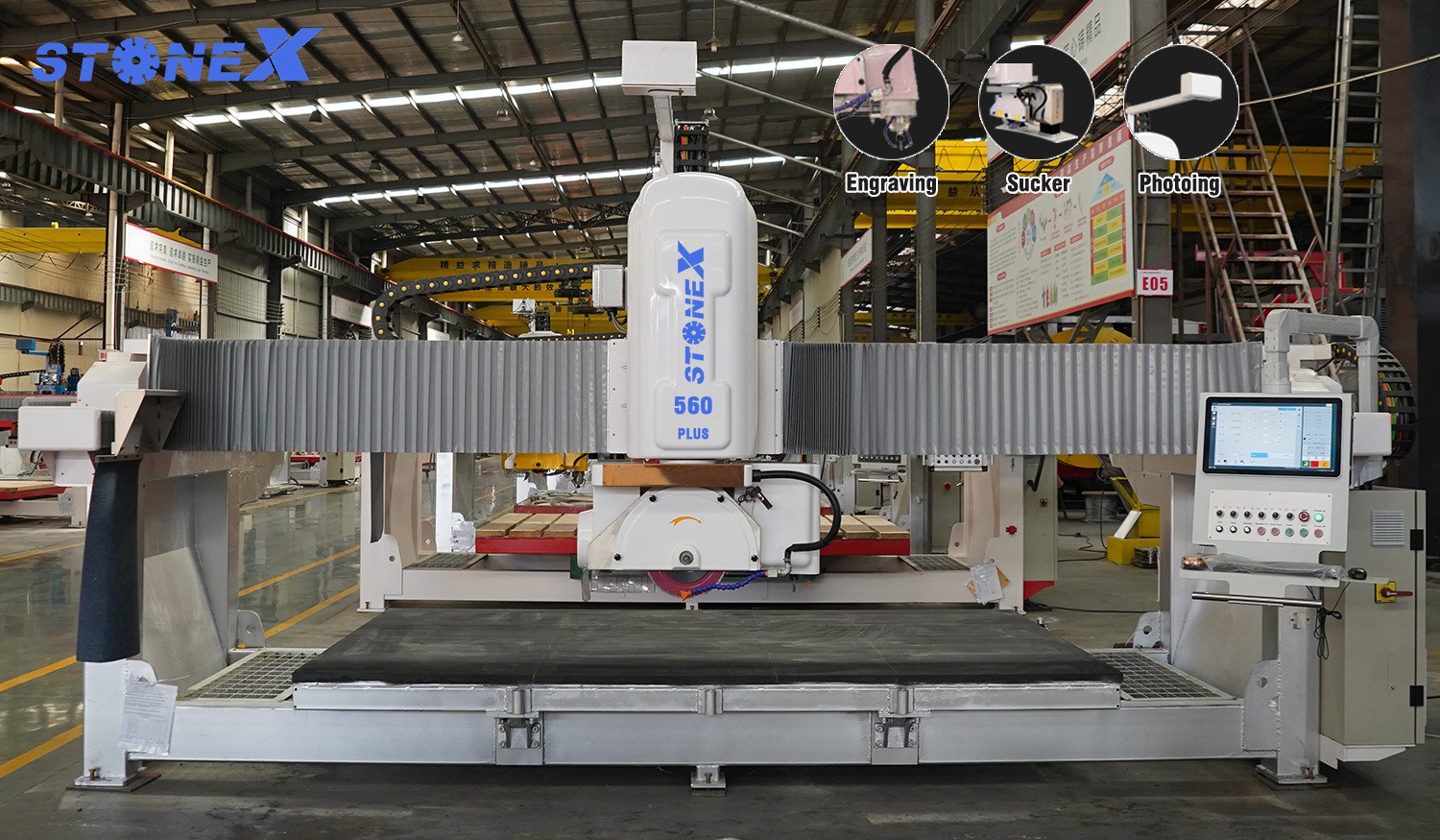

Main Functions & Configurations

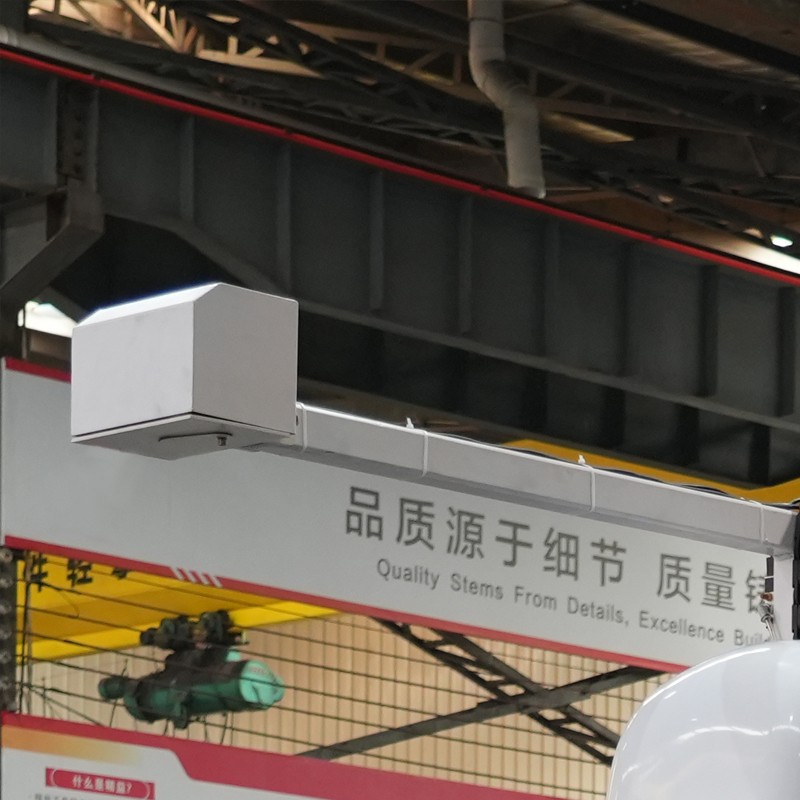

* Camera function: Captures slab images to arrange and optimize cutting paths.
* Vacuum suction cups: Secure and stably fix slabs during moving and cutting.
* Independent electric spindle: Supports drilling, milling, carving and other processing procedures.

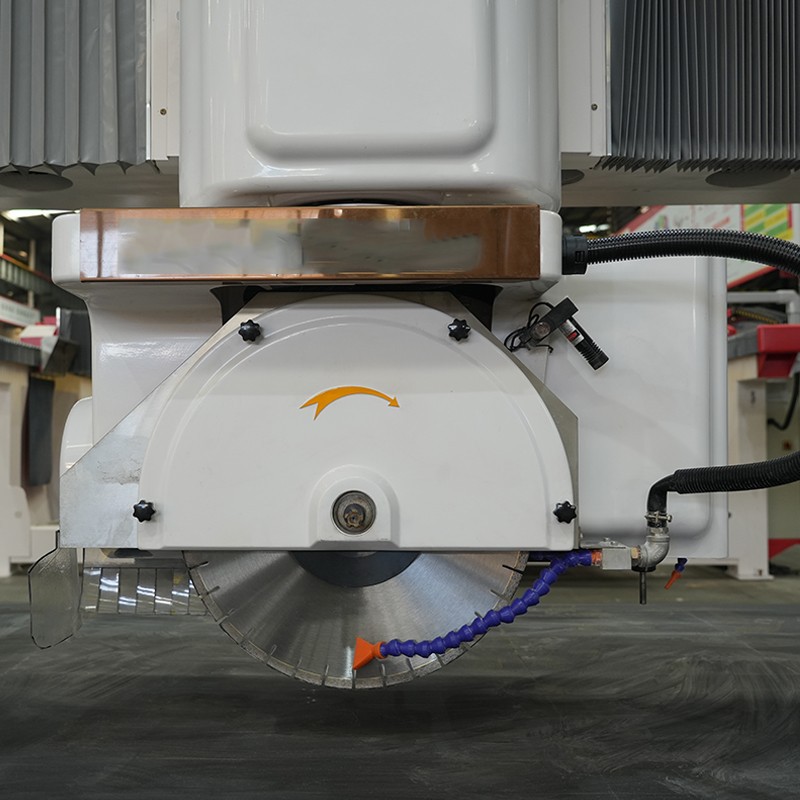

* 360° rotating cutting head: Enables straight cutting, bevel cutting, polygonal cutting, arc cutting and special shaping.
* The saw blade realizes 0°–90° arbitrary angle chamfer cutting.
* Permanent magnet main motor: Energy saving and low consumption.
* Cast iron beam structure: High stability and long service life.
* Core electrical components adopt first-tier brands such as Siemens and Schneider.
Optional Functions
* Saw blade diameter measuring device
* Slab thickness measuring device
* Vein splicing function
* Safety protection door
* Please contact us for more customized functions
FAQ
Q: What control system does the machine adopt?
A: It is equipped with an Italian ESA control system.
Q: Is the machine CE certified?
A: Yes, all of our machines have obtained CE certification.
Q: What is the production lead time?
A: It is generally about 30 days after receiving the advance payment.
Q: What trade terms are supported?
A: We support common trade terms such as FOB, EXW and CIF.
Q: How long is the warranty period?
A: The warranty period is 12 months.
Q: Do you provide on-site installation and training?
A: Yes, we provide on-site installation and operation training.
After-sales Service
* The machine comes with a 12-month warranty. Free spare parts are provided for non-artificial damage within the warranty period.
* Lifetime technical support is available.
* Online technical service is provided to solve simple problems via remote assistance.
* Technician dispatch and on-site maintenance services are offered to resolve complex issues.
