Product Introduction

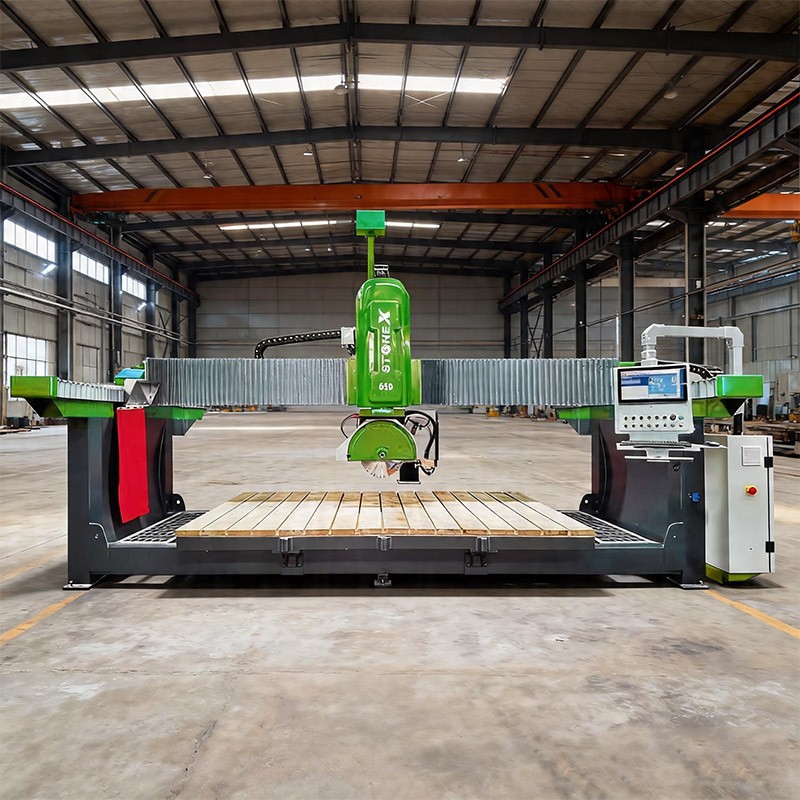

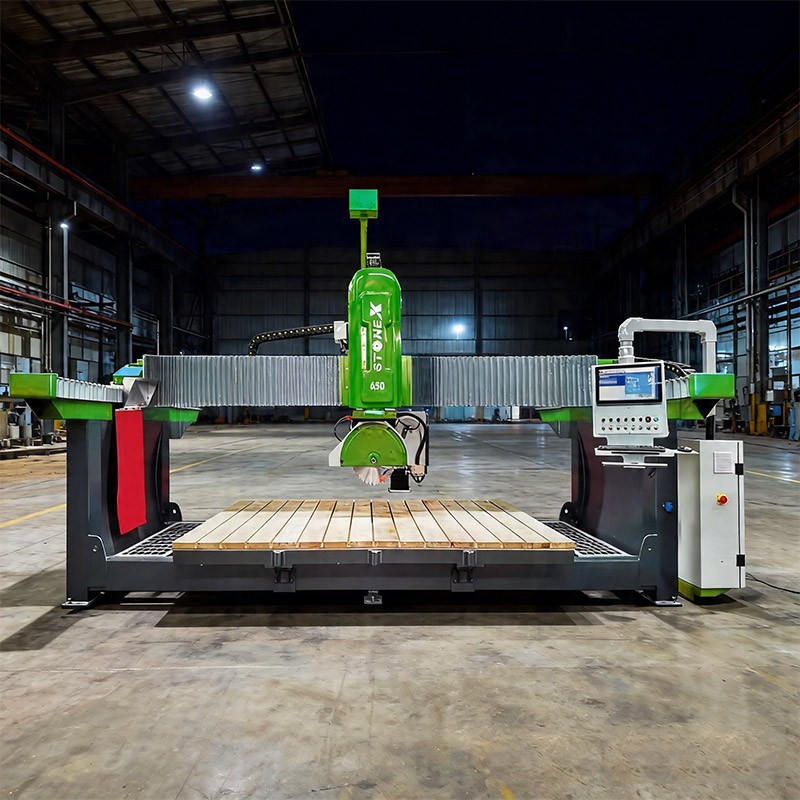

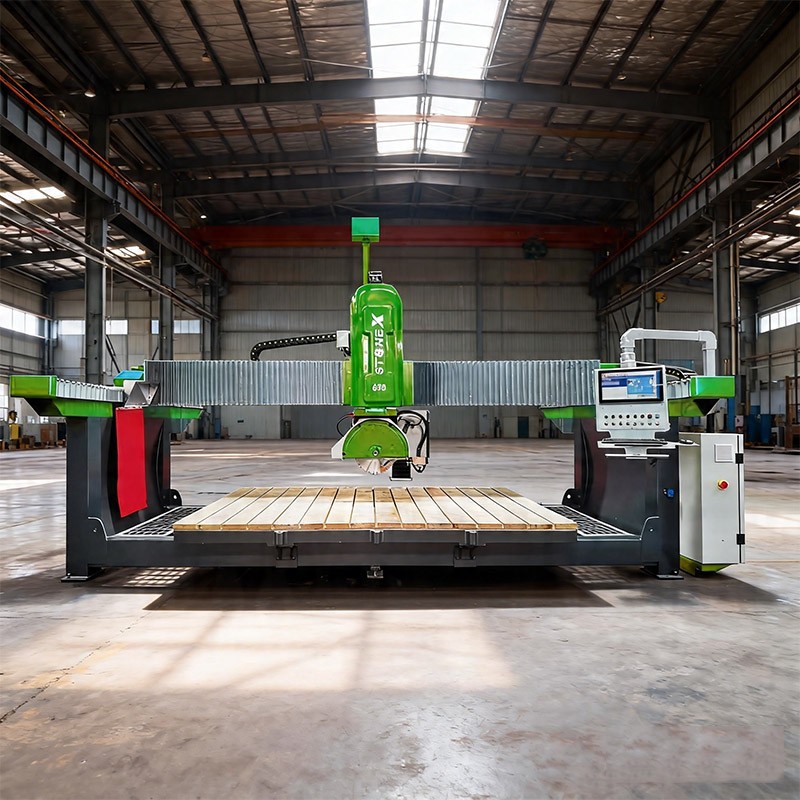

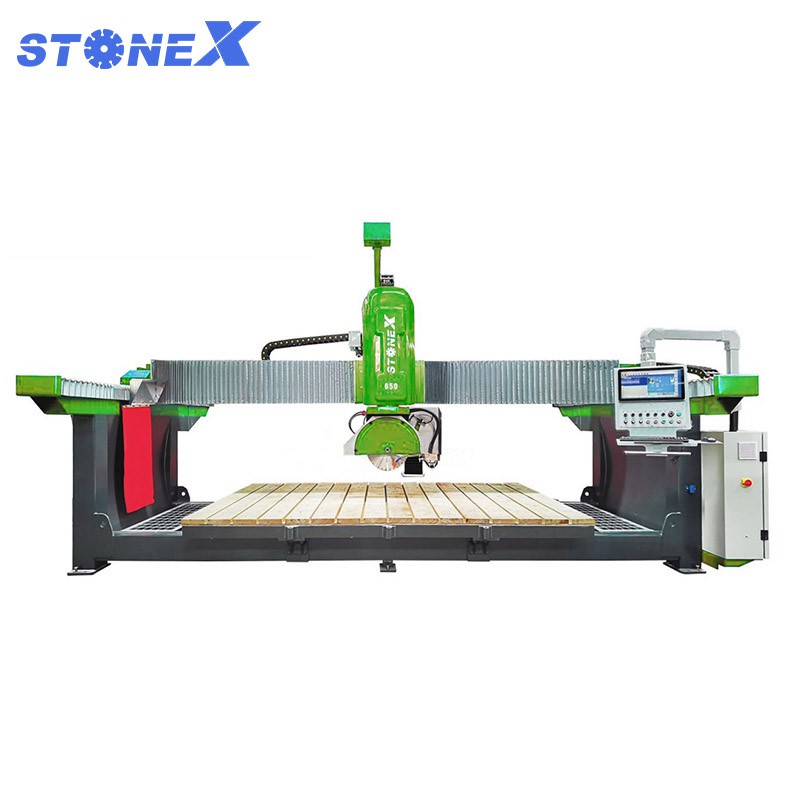

The Huayi HYNC650 4+1-axis CNC bridge saw is equipped with an Italian ESA control system, an independent electric spindle and a permanent magnet motor.
The worktable size is 3500*2100 mm. It is suitable for cutting marble, granite, sintered stone, quartz stone, artificial stone, ceramics and other stone materials.
It is widely used for processing kitchen and bathroom countertops, background walls, floor paving, tabletops and other products.
This machine supports one-unit minimum order, with an estimated production cycle of about 30 days.
Main Equipment Functions
1. The cutting head supports 360° rotation, enabling straight cutting, cross cutting, angle cutting, as well as polygonal, arc, circular and sector cutting.
2. The saw blade allows 45° chamfer cutting.
3. The worktable can tilt up to 85 degrees.

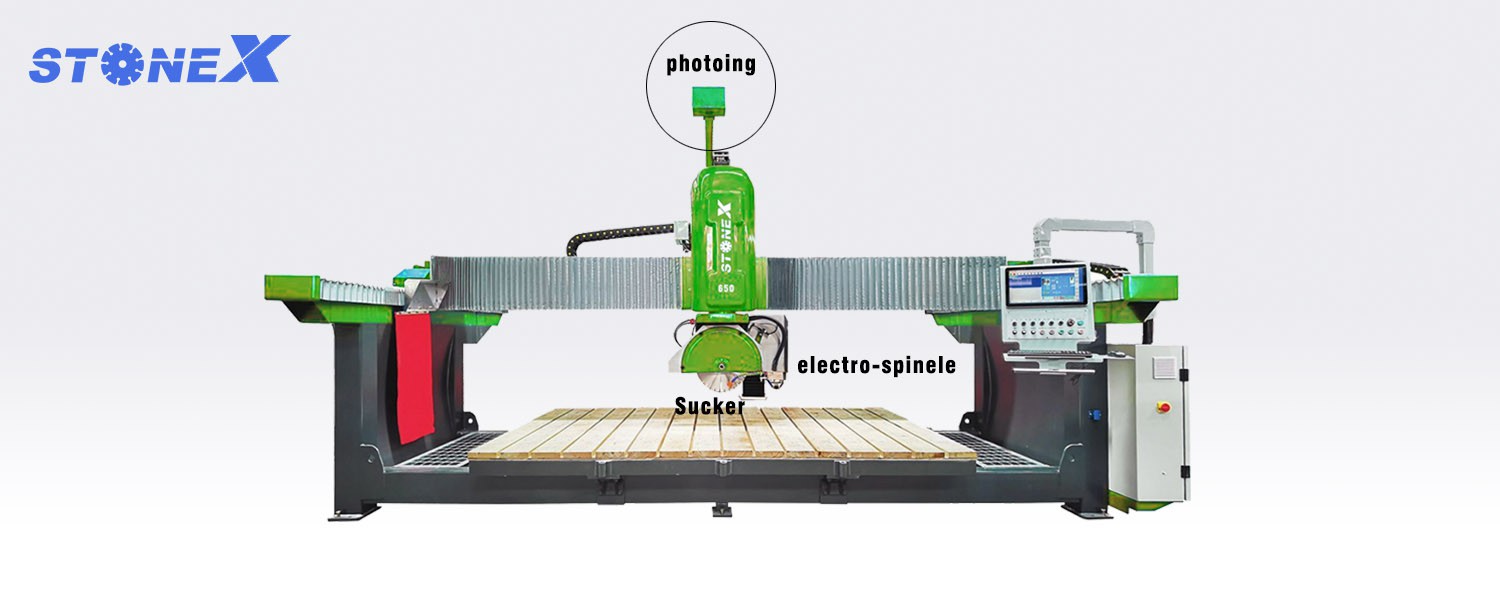

4. Equipped with vacuum suction cups to safely move stone slabs into position.

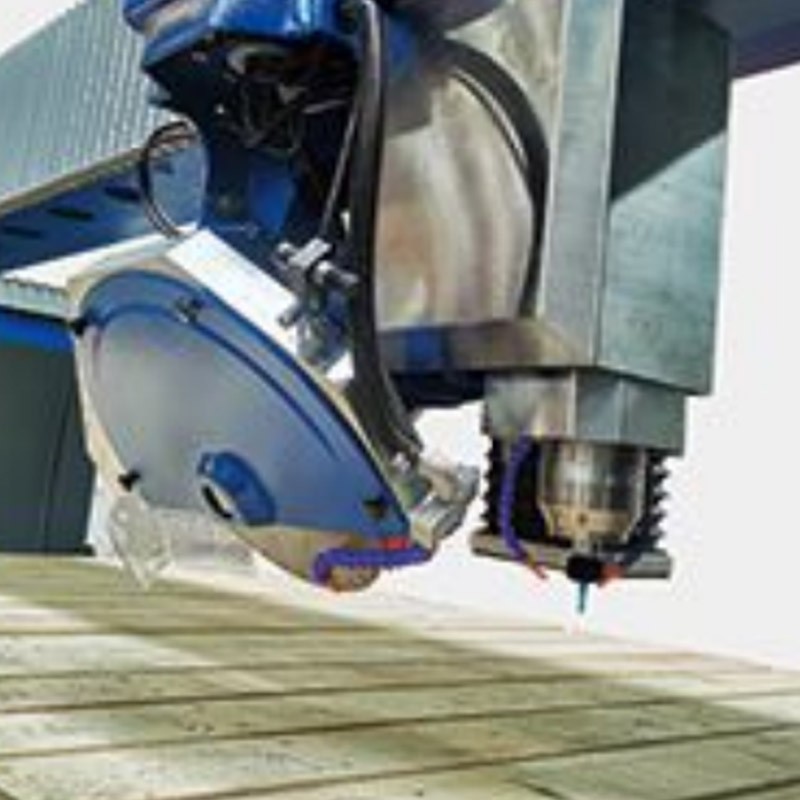

5. The independent electric spindle performs milling and drilling operations.
Product Parameters
|
Name |
Unit |
HYNC650 4+1 |
|
Diameter of saw blade |
mm |
Φ400-650 |
|
Dimensions of working platform |
mm |
3500×2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
200 |
|
Max. lifting stroke |
mm |
300 |
|
Max. vacuum lifting weight |
kg |
100 |
|
Power of main motor |
kW |
18.8 |
|
Power of cutter frame reciprocating motor |
kW |
2 |
|
Power of crossbeam shifting motor |
kW |
1.1 |
|
Motor of hydraulic station |
kW |
2.2 |
|
Power of lifting motor |
kW |
0.85 |
|
Gross power |
kW |
32.5 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L×W×H) |
mm |
6200×3380×3150 |
|
Gross weight |
kg |
6000 |
Optional Configurations
1. Safety protection door
2. Saw blade size measuring device
3. Slab thickness measuring instrument
4. Slab fixing function
FAQ
Q: What control system does the machine adopt?
A: This model is equipped with an ESA control system.
Q: Is it a 4-axis or 5-axis machine?
A: This equipment is a 4-axis model.
Q: Does it have CE certification?
A: The machine has obtained the CE certificate.
Q: Can it cut basin holes for countertops?
A: Yes. With 4-axis linkage and an independent electric spindle, it can complete arc cutting, chamfering and drilling, enabling fast and efficient processing of kitchen and bathroom countertops.
Q: What trade terms are available?
A: We support common trade terms including FOB, EXW and CIF.
Q: Is on-site installation provided?
A: On-site installation service is available.
Q: How long is the production lead time?
A: It is generally about 30 days after receiving the advance payment.
After-sales Service
1. We provide a 12-month warranty. Free spare parts are offered for non-human damage within the warranty period.
2. On-site installation and training services are available.
3. Online remote technical support is provided.
4. On-site troubleshooting service for equipment faults.
5. Lifetime technical support is provided permanently.
