Product Introduction

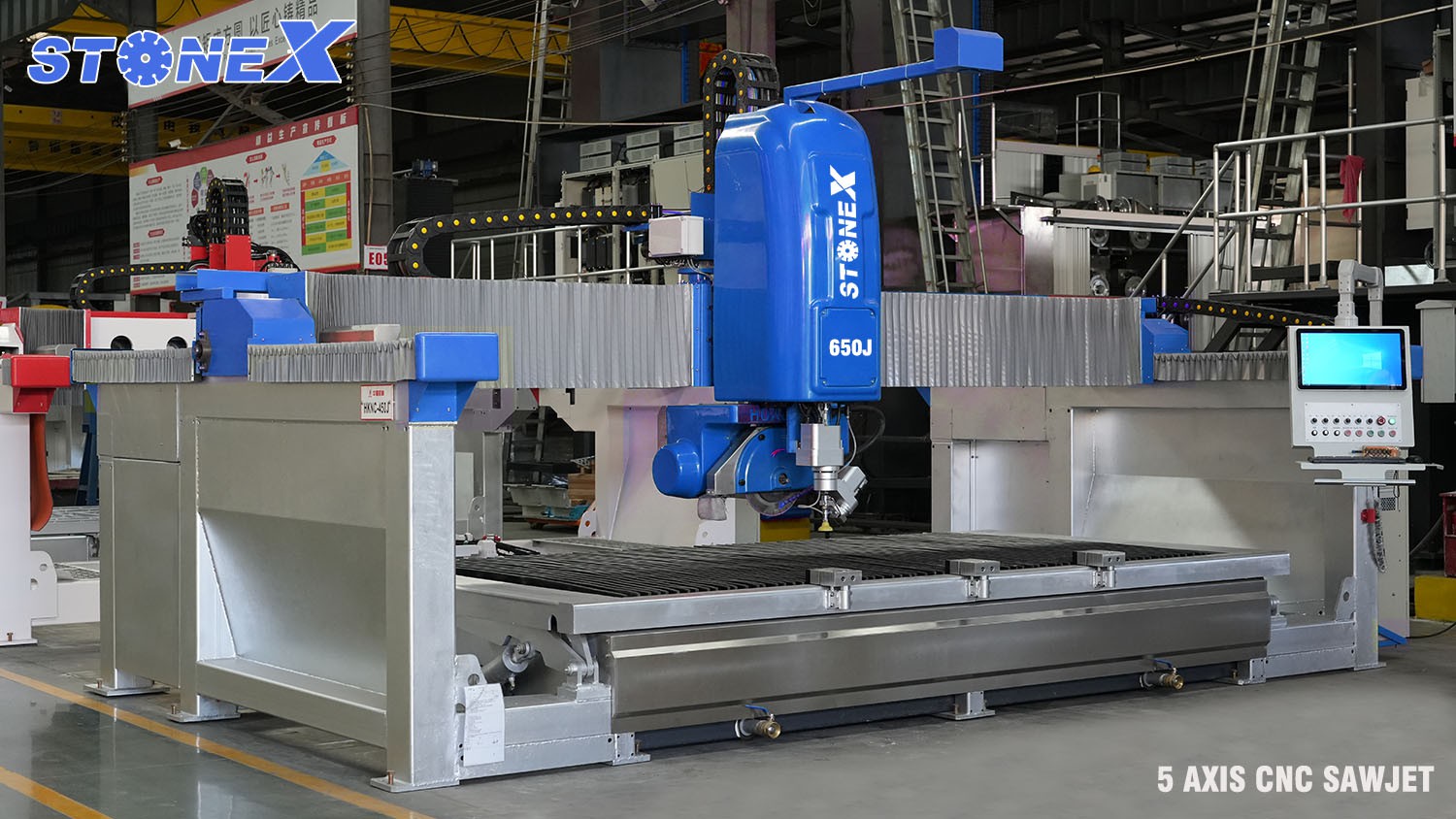

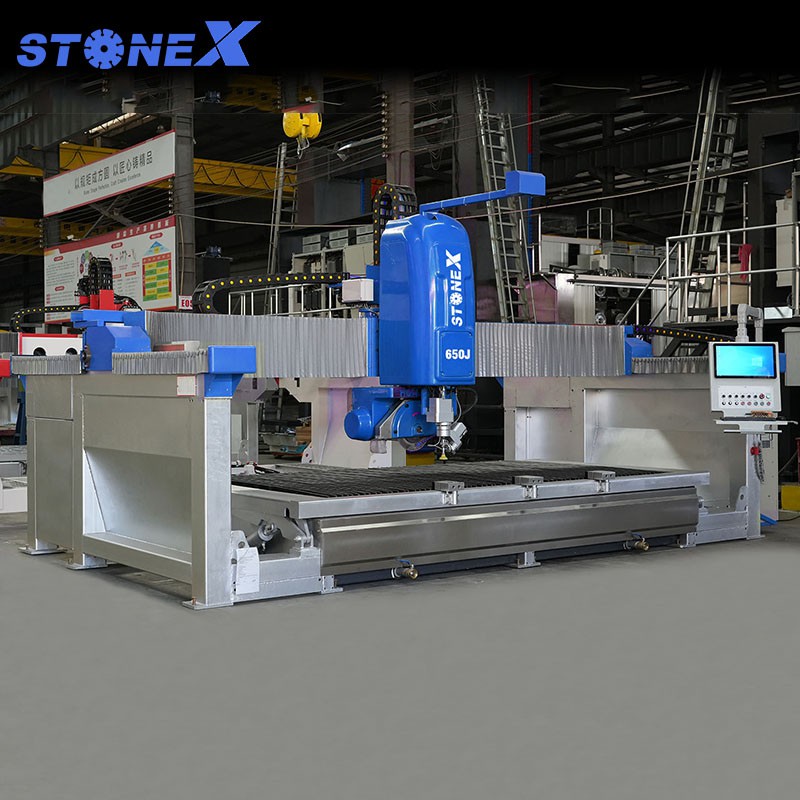

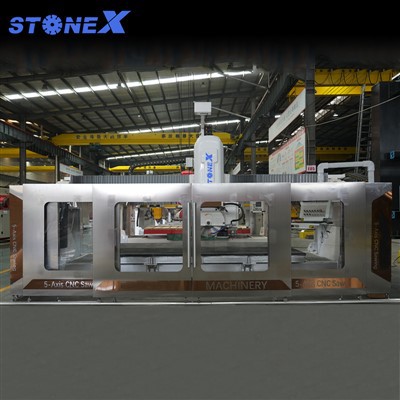

The Huayi HYNC650J is a 5 axis sawjet combined with a 5-axis CNC waterjet cutting machine.
It is mainly used for cutting marble, granite, sintered stone, ceramic and other stone materials.

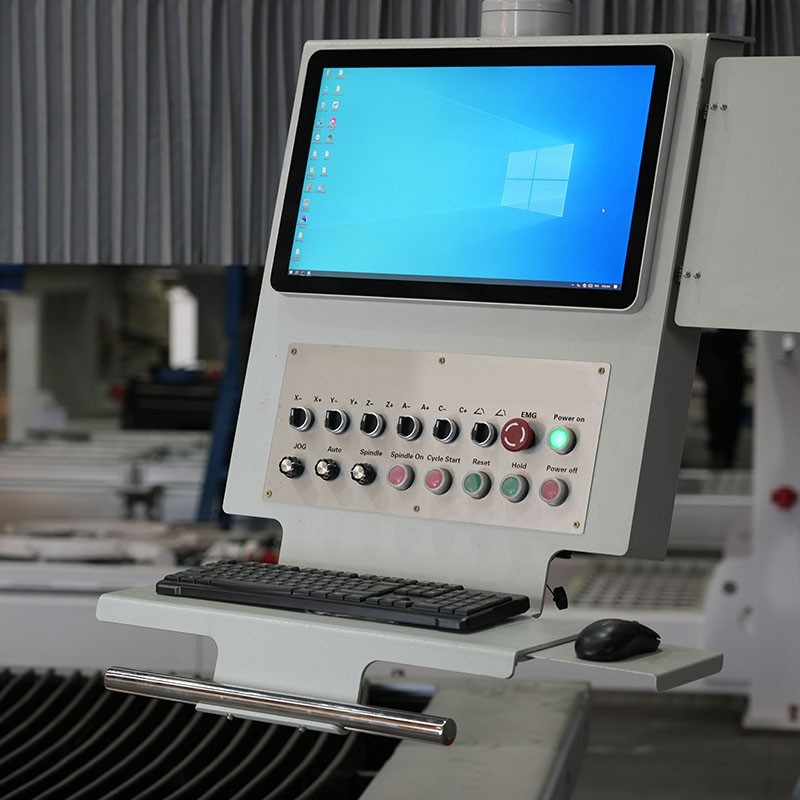

The machine adopts an Italian ESA control system, equipped with a 21.8-inch large display, and supports CAD/CAM file import and editing.
It features a stable body structure with a cast beam for high rigidity and resistance to deformation.

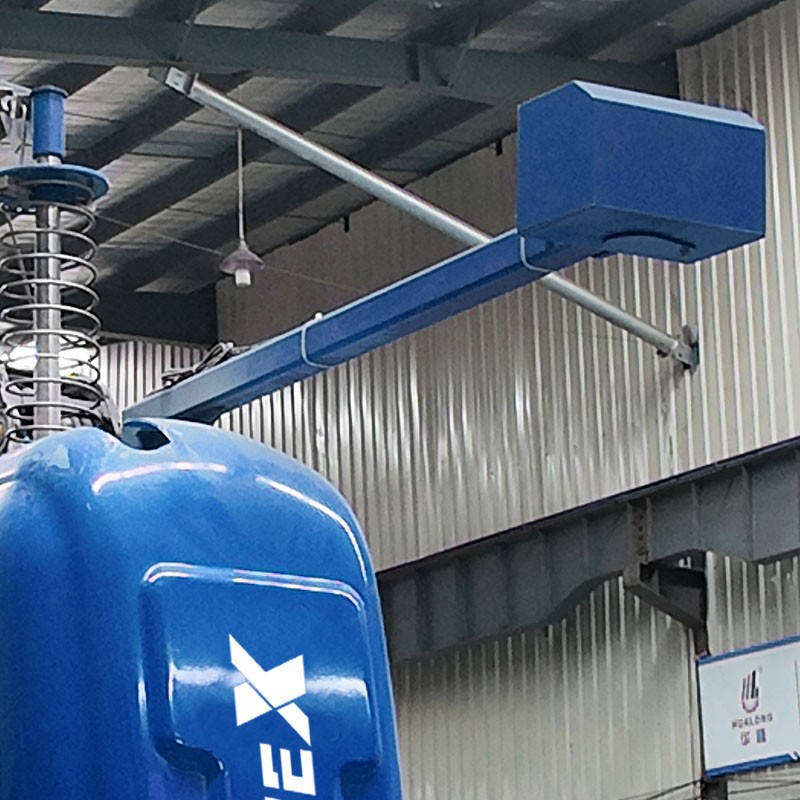

The camera function can capture slab profiles to realize and optimize cutting path layout.
This machine is mainly designed for kitchen and bathroom countertop processing.
Product Parameters
|
Name |
Unit |
HYNC650J |
|
Diameter of saw blade |
mm |
Φ350-650 |
|
Dimensions of working platform |
mm |
4100×2200 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness of saw |
mm |
200 |
|
Max. lifting stroke |
mm |
550 |
|
Power of sawing motor |
kw |
15 |
|
Power for abrasive waterjet |
kw |
37 |
|
Gross power |
kw |
60.6 |
|
Required pressure of inflow |
Mpa |
0.4 |
|
Max. operating water pressure |
Mpa |
450 |
|
Persistent working pressure |
Mpa |
330-380 |
|
Cutting precision |
mm |
±0.1 |
|
Dimensions(L×W×H) |
mm |
6200×3900×3930 |
|
Gross weight |
kg |
10000 |
Machine Functions

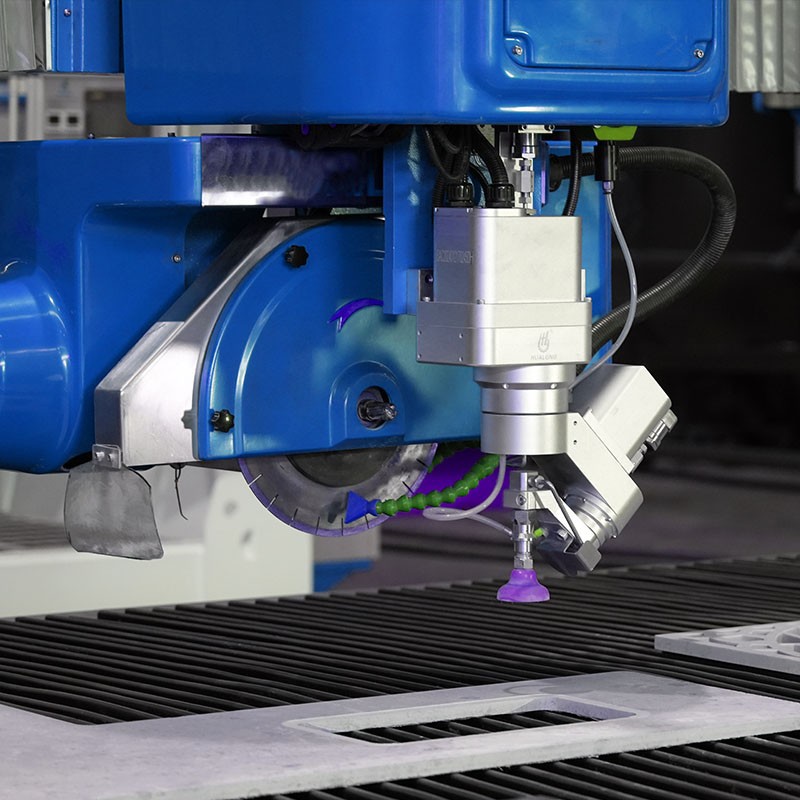

CNC Bridge Saw:
5-axis linkage, capable of straight cutting, bevel cutting, polygon cutting, circular cutting, arc cutting, 0-90° chamfering, curved shaping, etc.
CNC Waterjet:
0-60° chamfering, special-shaped cutting, and hollowing out.
Application Fields
The 5 axis sawjet used for Kitchen and bathroom countertops, feature walls, stair steps, floor paving stones, exterior wall dry-hanging, stone crafts, door casings, window casings, dining tables, coffee tables, bar counters, cabinets, etc.
FAQ
Q: How many axes does the machine have?
A: 5-axis CNC bridge saw + 5-axis CNC waterjet.
Q: What control system is adopted?
A: Italian ESA control system.
Q: Does the machine have CE certification?
A: The machine has obtained CE certification.
Q: What is the maximum diameter of the saw blade that can be installed?
A: It can be fitted with a saw blade up to 600mm in diameter.
Q: How long is the warranty period?
A: 12 months warranty.
Q: Do you provide on-site installation and training for overseas customers?
A: Yes, we provide overseas on-site installation and operation training.
Q: How long is the production lead time?
A: Normally about 30 days after receiving the deposit, depending on the machine model and configuration.
After-sales Service
* We provide a 12-month warranty for our machines. Free spare parts will be supplied for non-artificial damage within the warranty period.
* We offer lifelong technical support to customers.
* Online remote assistance and on-site technician dispatch services are available.
