Product Introduction

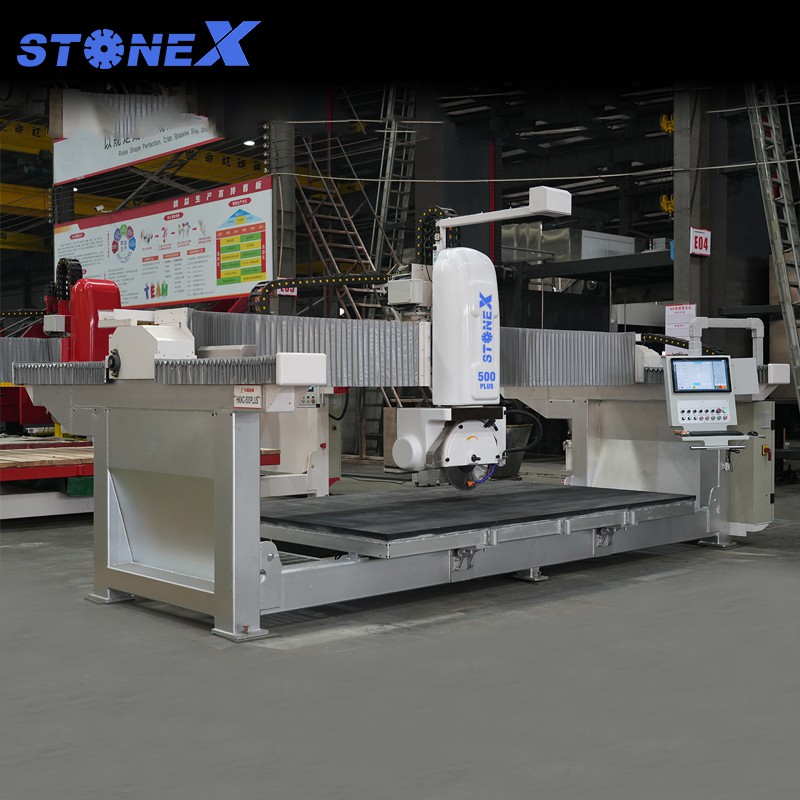

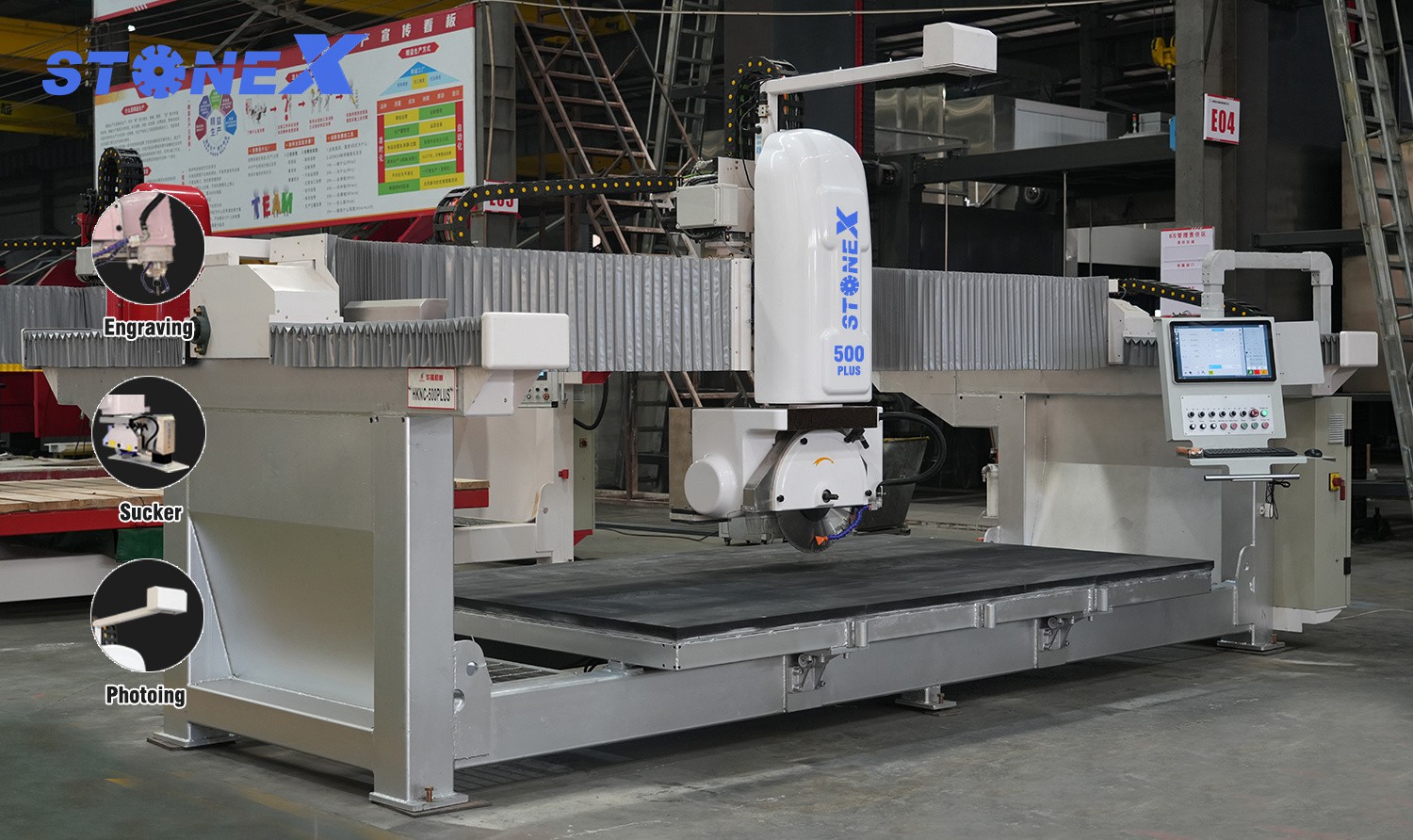

Huayi automatic 5-axis CNC bridge saw is equipped with an Italian ESA control system, as well as camera positioning and vacuum suction functions.
It is widely suitable for processing kitchen and bathroom countertops, basin cutouts, feature walls, standard slabs, floor tiles, wall dry-hanging materials and more.

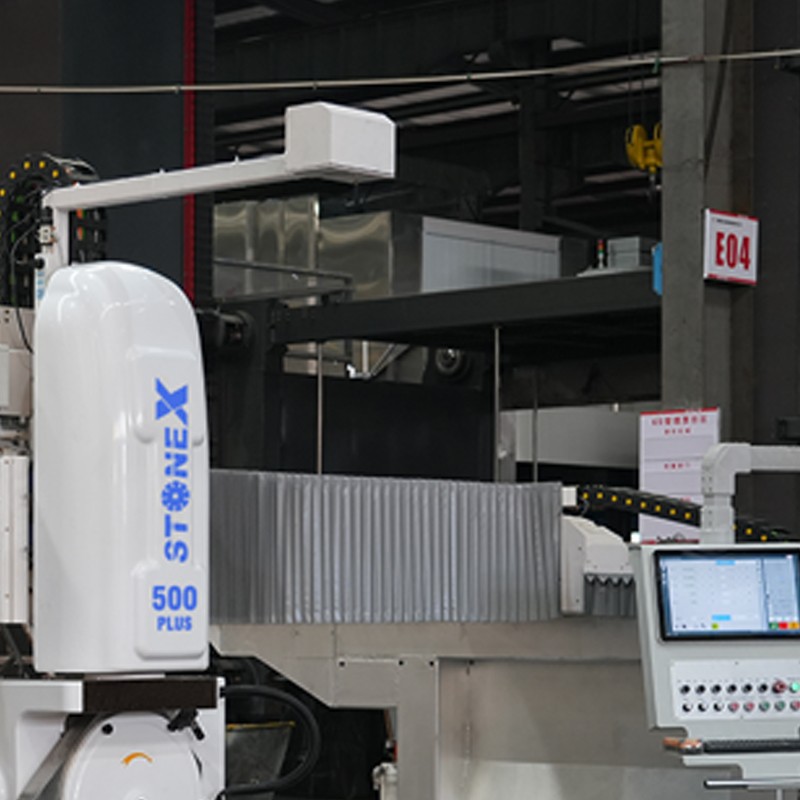

The machine adopts an integral cast iron beam with stable structure, high rigidity and low vibration, ensuring non-deformation after long-term operation.

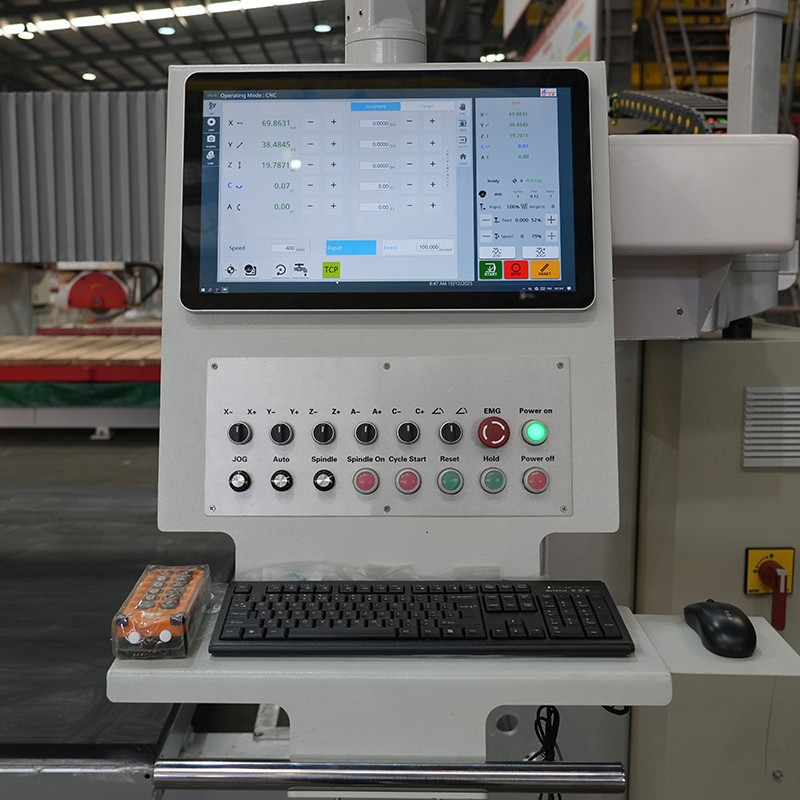

Fitted with a 21.8-inch display screen, it supports CAD/CAM editing.
This equipment is available with one unit minimum order and can be exported to global markets.
Main Functions

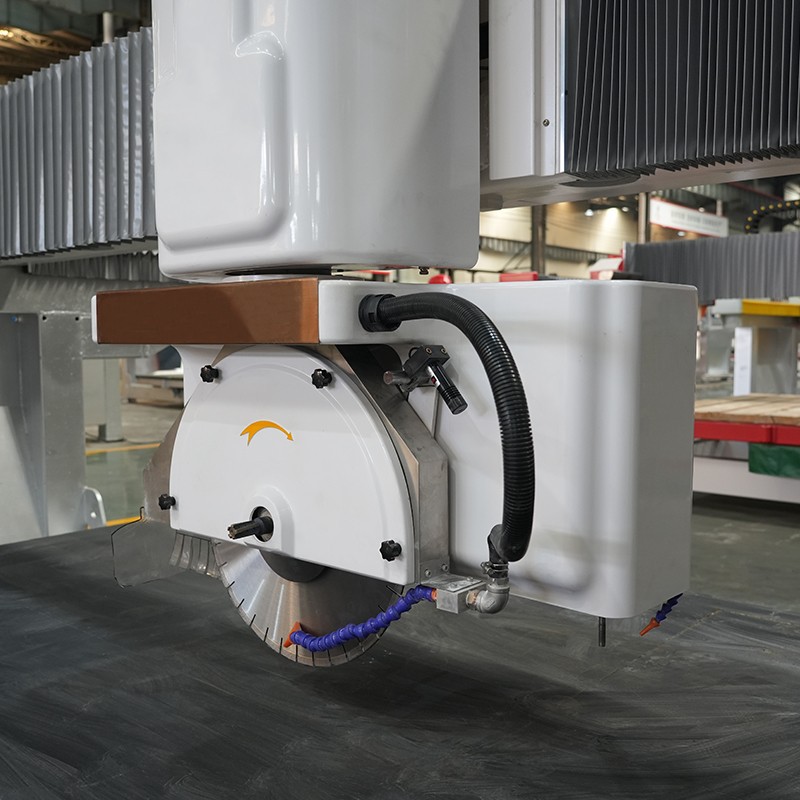

* The cutting head can rotate 360°, realizing straight cutting, bevel cutting, polygonal cutting, arc cutting and other processing.
* The saw blade enables chamfer cutting at any angle from 0° to 90°.
* Camera shooting function captures slab graphics to arrange cutting paths and reduce material loss.
* The worktable tilts up to 85°.
* Equipped with an independent electric spindle for milling, drilling, engraving and other working processes.
Product Parameters
|
Model NO |
Unit |
HYNC-500 PLUS |
|
Diameter of saw blade |
mm |
400-500 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.8 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5800 |
Optional Configurations for Automatic 5-Axis CNC Bridge Saw
1. Saw blade size measurement function
2. Slab thickness detection function
3. Stainless steel safety protection door
4. Slab fixing device
5. Vein matching function
6. Please contact us for more customized options
FAQ
Q: What trade terms do you support?
A: Our company supports common trade terms such as FOB, EXW and CIF.
Q: What is the production lead time for the machines?
A: It is generally about 30 days after receiving the deposit, depending on different models and configurations.
Q: Are the machines CE certified?
A: Yes, all machines are certified with CE approval.
Q: What control system is equipped on the machine?
A: It adopts the Italian ESA control system.
Q: Are the camera, vacuum suction cup and electric spindle standard configurations?
A: Yes, they come as standard for this model.
Q: What is the warranty period?
A: The machine is covered by a 12-month warranty.
Q: Do you provide on-site installation and training?
A: Yes, we offer on-site installation and professional training services.
Q: Is factory inspection available?
A: Yes, we warmly welcome customers to visit our factory for on-site inspection.
After-sales Service
* 1-year warranty is provided for all equipment.
* Free spare parts are offered for non-artificial damage within the warranty period.
* Lifetime technical support is available.
* Online and on-site after-sales services are provided.
