Product Introduction

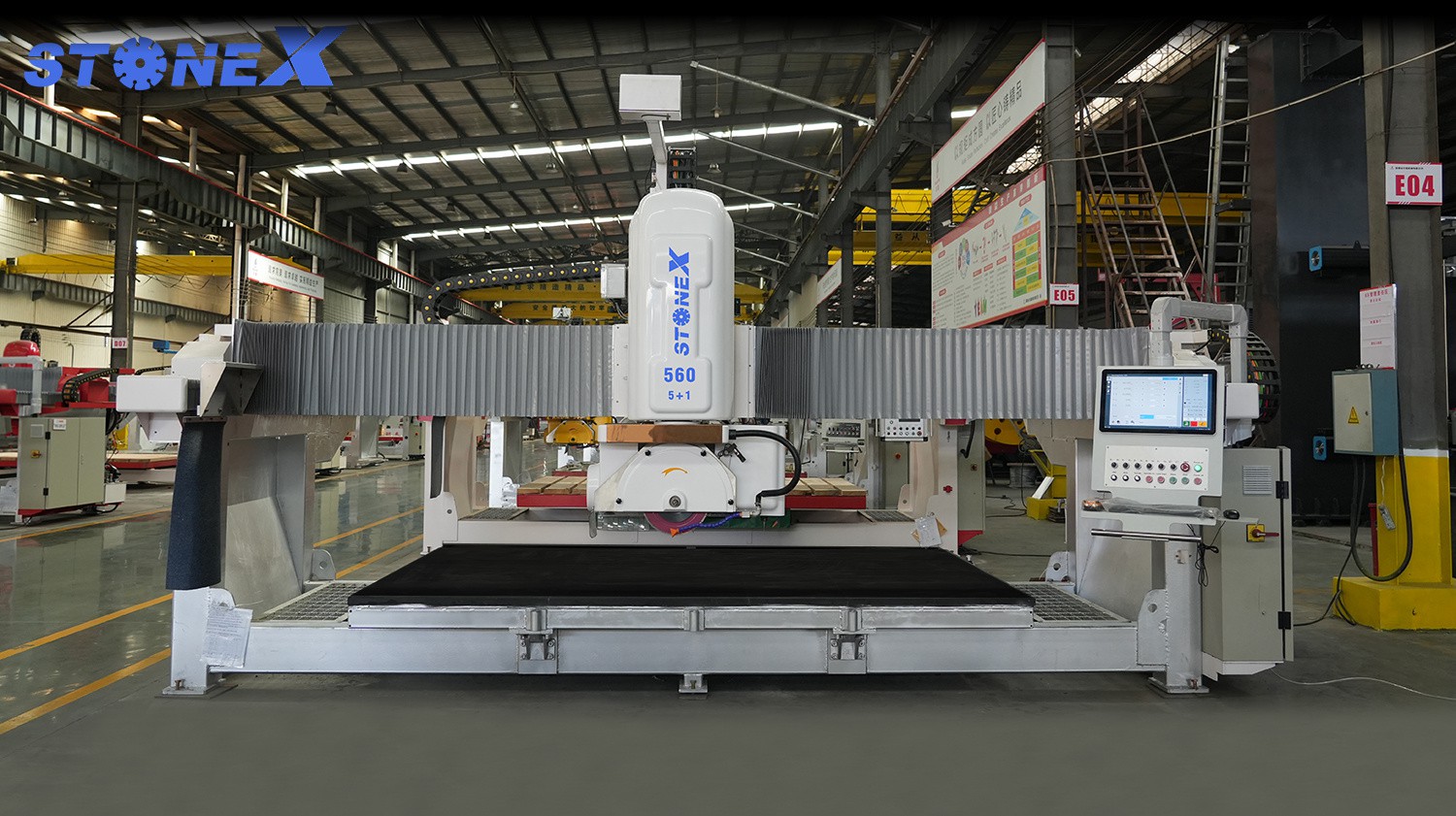

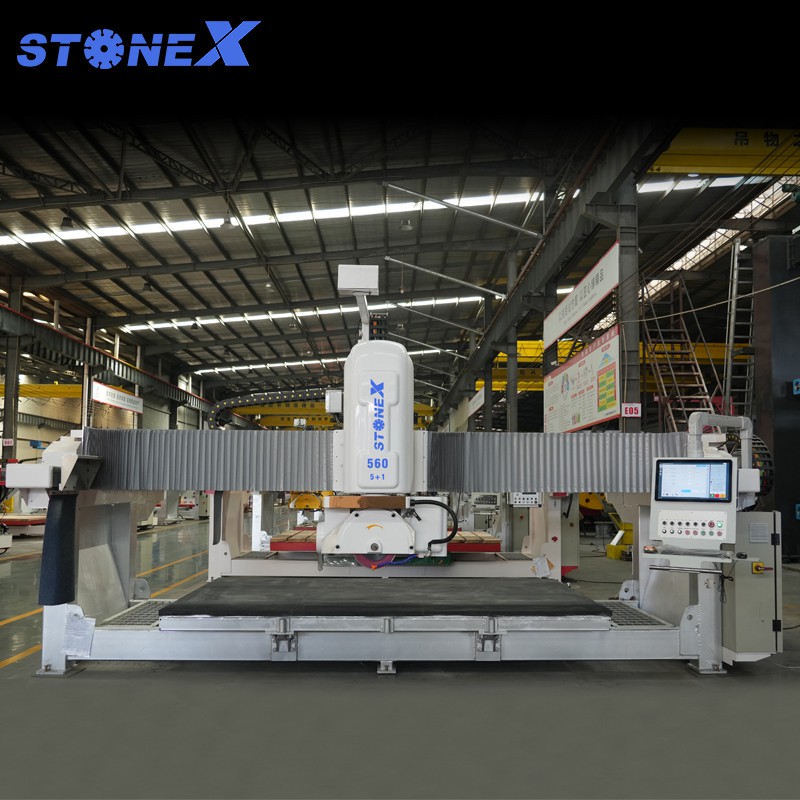

The Huayi HYNC560 5+1 axis CNC bridge saw is a professional stone processing equipment mainly designed for kitchen and bathroom countertop fabrication.
It adopts the Italian ESA control system to deliver high-precision and high-efficiency cutting performance.

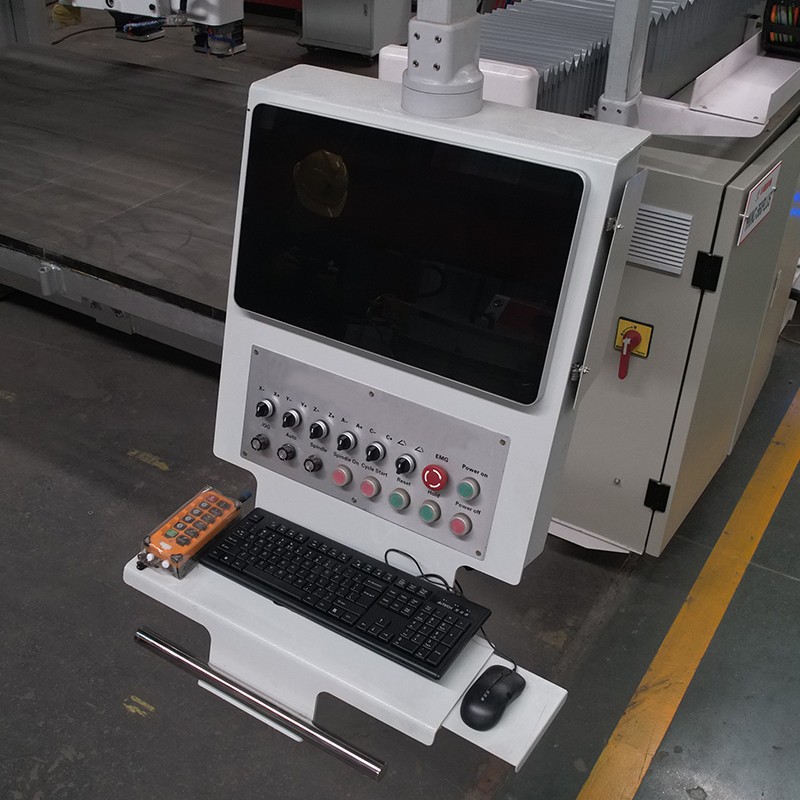

Equipped with a 21.8-inch large screen, it provides a better visual experience and simpler operation.
The machine features a cast iron beam for outstanding stability and durability.
The whole body adopts galvanized treatment to effectively prevent rust and extend service life.
This equipment is export-approved, with the minimum order quantity of one unit.
Product Parameters
|
Model No |
Unit |
HYNC560 5+1 AXIS |
|
Diameter of saw blade |
mm |
ø400-ø560 |
|
Dimension of working platform |
mm |
3500x2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
150 |
|
Max. lifting stroke |
kg |
300 |
|
Max. lifting weight by sunction cups |
kw |
200 |
|
Power of main motor |
kw |
18.8 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Power of electric spindle |
kw |
5.5 |
|
Gross power |
kw |
32.5 |
|
Water consumption |
m³/h |
2 |
|
Gross weight |
kg |
5900 |
|
Dimensions (L x W x H) |
mm |
5900x3380x3000 |
Main Functions & Configurations
Independent electric spindle, capable of drilling, milling, engraving and other processing on stone slabs.

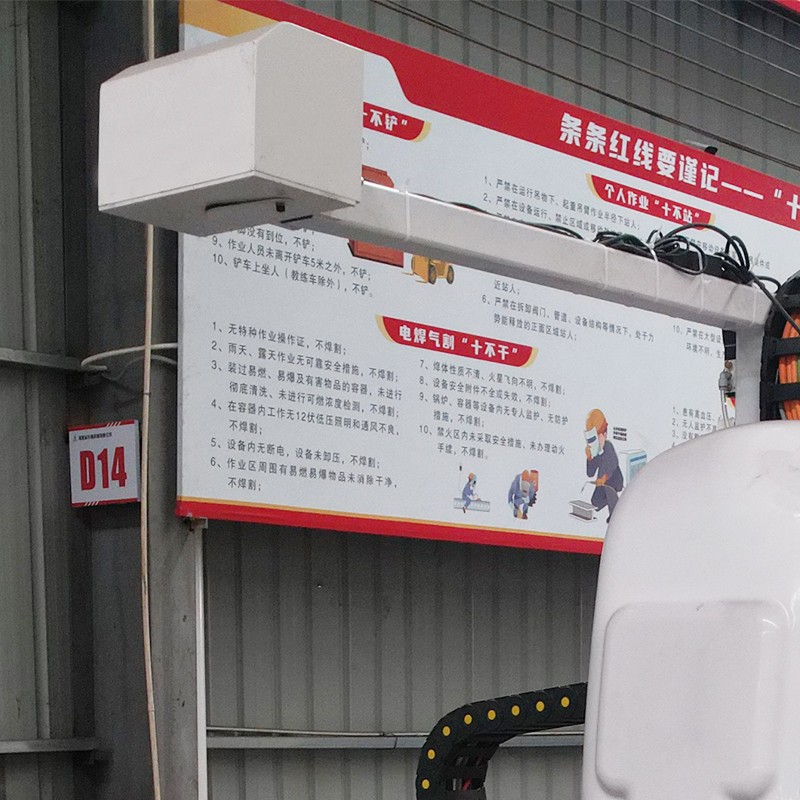

Camera function to capture slab images for cutting path layout and optimization.

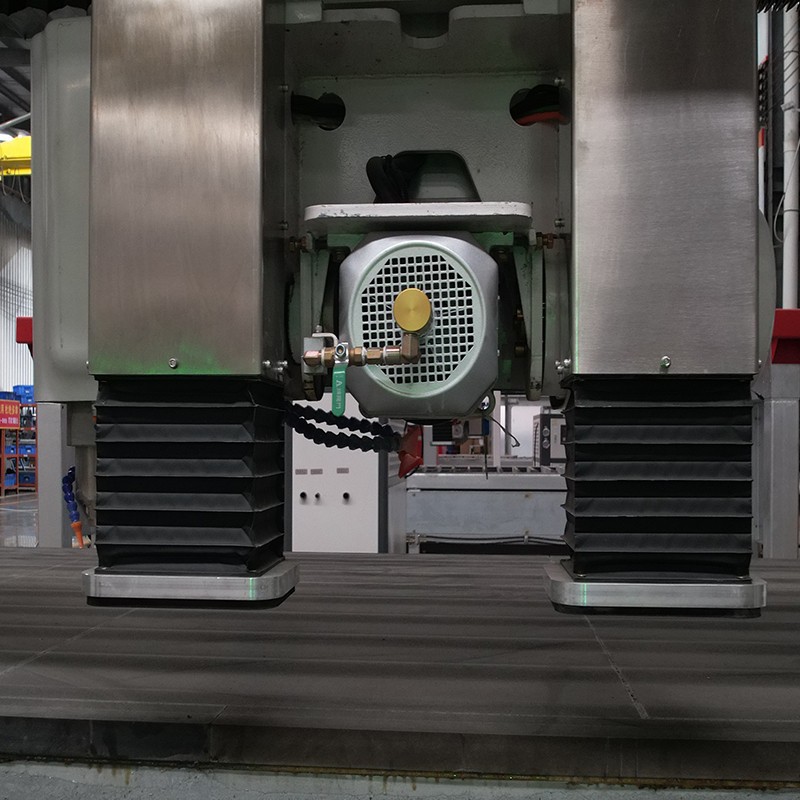

Vacuum sucker to stably move stone slabs to safe positions.
The worktable can be tilted by 85 degrees.
Equipped with a permanent magnet main motor.
Core electrical components adopt world-class brands such as Siemens and Schneider.
Optional Functional Configurations
1. Saw blade dimension measuring device
2. Slab thickness measuring instrument
3. Stone slab fixing device
4. Rubber worktable
5. Stainless steel safety protection door
6. Power failure induction device
FAQ
Q: Are camera positioning, vacuum sucker and independent electric spindle standard configurations?
A: Yes, the above functions come as standard for this model.
Q: Is it equipped with a permanent magnet motor?
A: Yes, the machine adopts a permanent magnet main motor for energy saving and consumption reduction.
Q: What control system is used?
A: Italian ESA control system.
Q: Does the machine have CE certification?
A: Yes, the equipment has obtained CE certification.
Q: Is on-site installation available?
A: Yes, on-site installation service is provided.
Q: Do you offer on-site training for overseas customers?
A: Yes, we provide global engineer dispatch service, including on-site installation and professional operation training.
After-sales Service
1. All machines are covered by a 12-month warranty. Free spare parts will be provided for non-artificial damage within the warranty period.
2. Remote assistance is available to quickly resolve common and simple technical issues.
3. We offer technician dispatch service. On-site service will be arranged for customers in need.
4. Lifetime technical support is provided for all users.
