Product Introduction

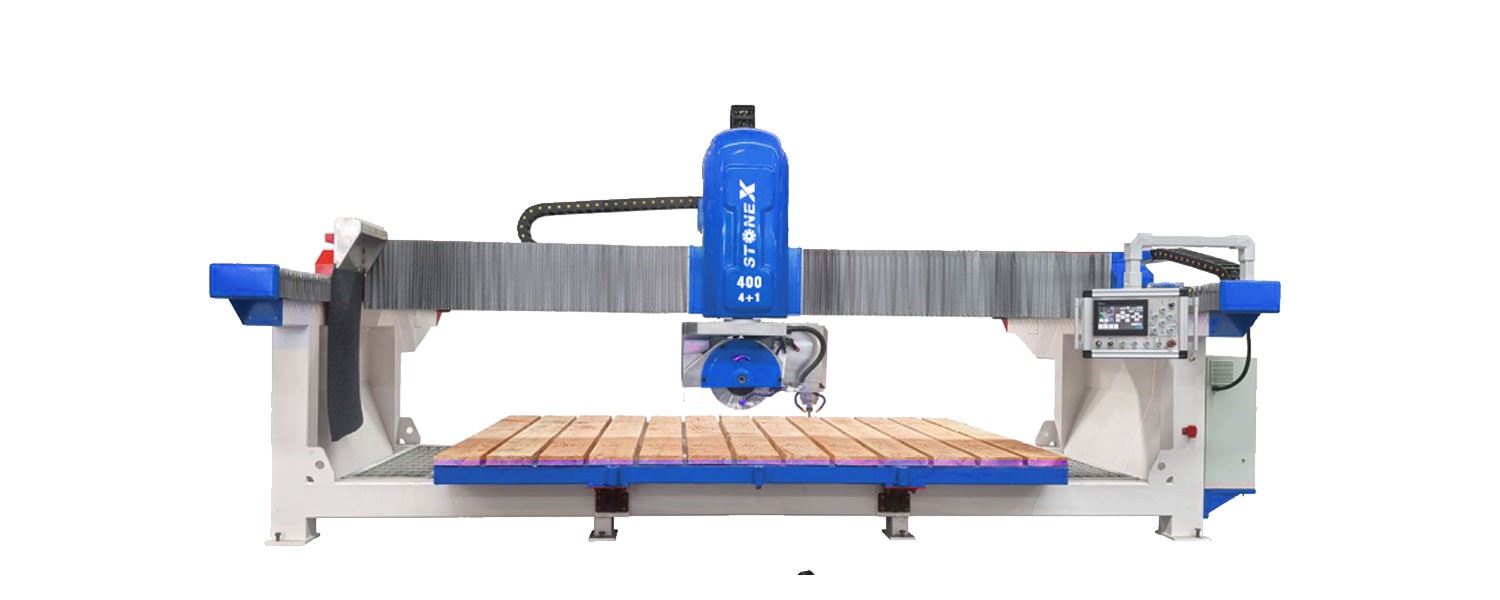

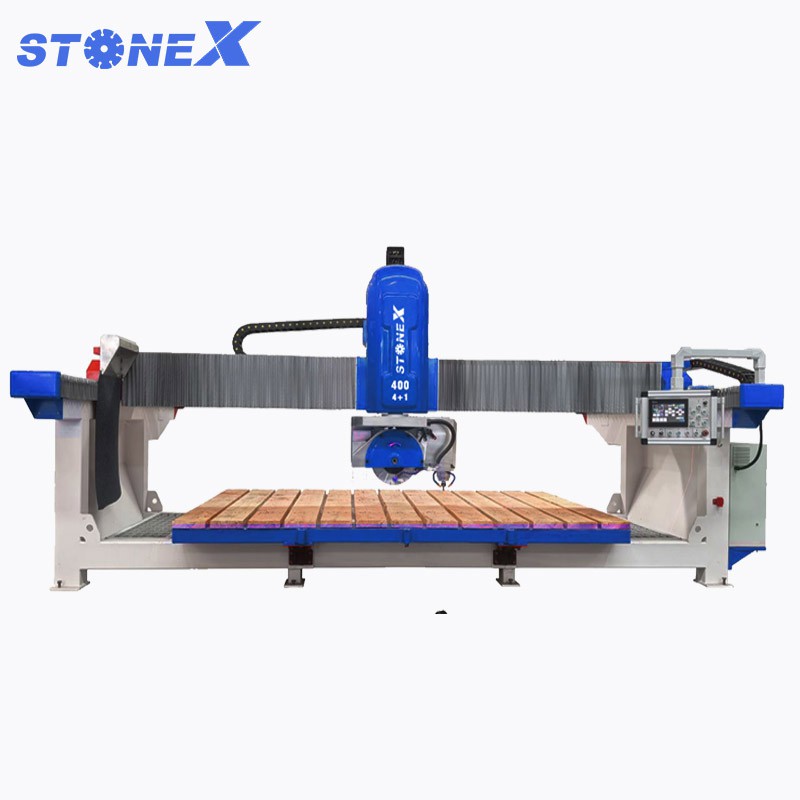

The Huayi HYSQ400 4+1-axis bridge saw is a bridge-type stone cutting machine equipped with a PLC control system. It is mainly used for processing kitchen and bathroom countertops, tabletops, tea tables, bar counters, floor paving and other stone materials.
Fitted with an independent electric spindle, it supports milling and drilling operations. The integrated cast iron beam ensures stable overall structure. This model is available for purchase with a minimum order of one unit.
Product Parameters
|
Name |
Unit |
HYSQ-400 4+1 |
|
Diameter of saw blade |
mm |
350-400 |
|
Dimension of working platform |
mm |
3500*2100 |
|
Max.cutting size |
mm |
3500*2100*70 |
|
Max.mitre cutting size |
mm |
2700*1800*60 |
|
Cutting head rolation |
° |
0-360° |
|
Blade tilt |
° |
0°/45° |
|
Beveled cutting direction |
° |
0-90-180-270° |
|
Working table tilt |
° |
0°/85° |
|
Spindle rotating speed |
rmp |
0-24000 |
|
Power of main motor |
kw |
15 |
|
Power of electro-spinele |
kw |
5.5 |
|
Water consumption |
m³/h |
3.5 |
|
Gross weight |
KG |
4000 |
|
Dimensions (L x W x H) |
mm |
5700×3260×2765 |
Main Functions

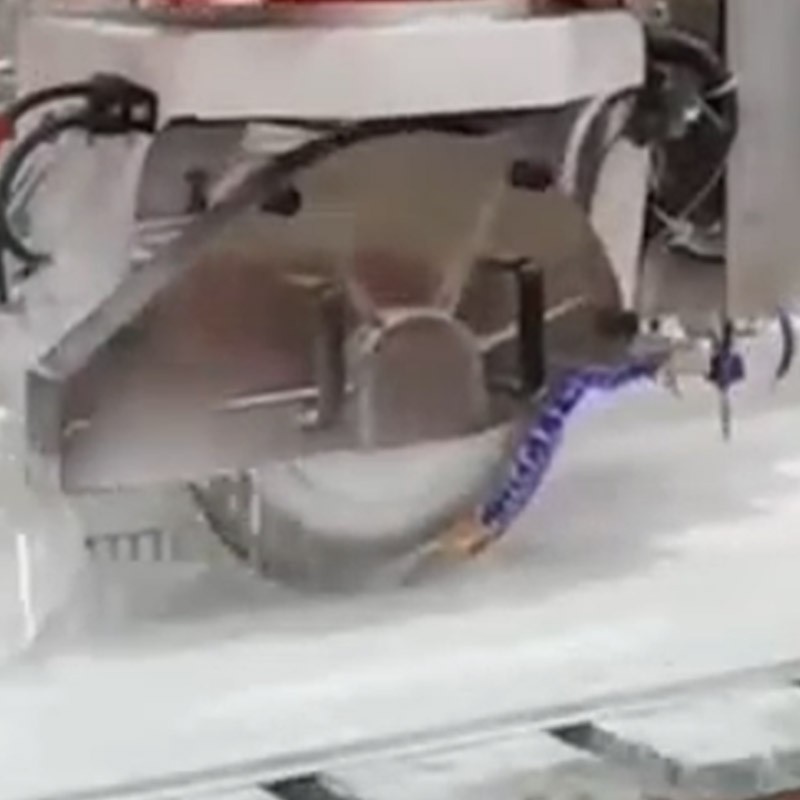

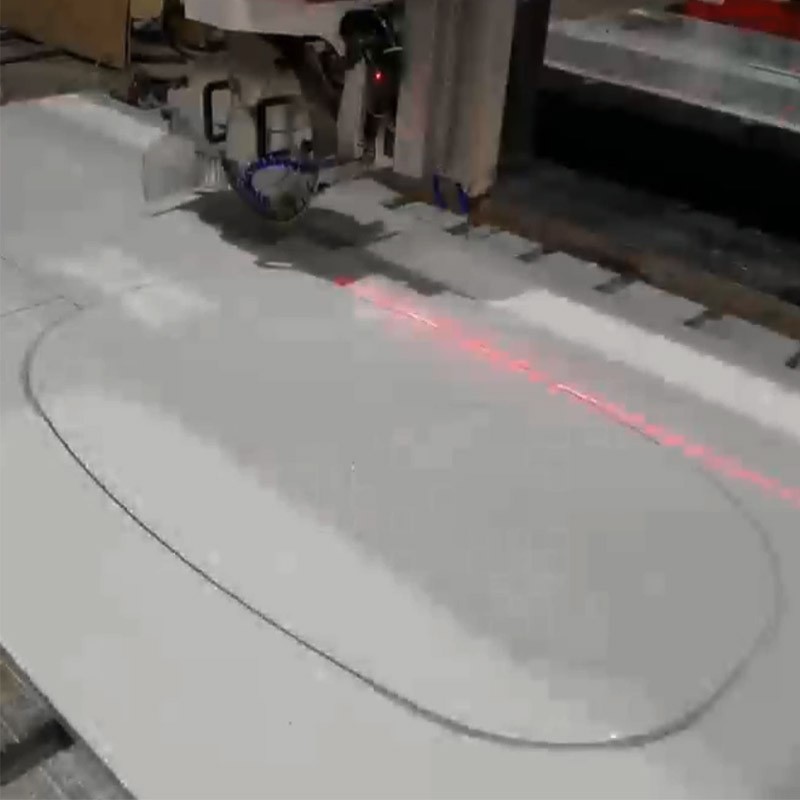

1. The cutting head supports 360° rotation, enabling vertical cutting, horizontal cutting, bevel cutting, as well as polygonal, arc, circular and sector cutting.
2. The saw blade realizes 45° chamfer cutting.

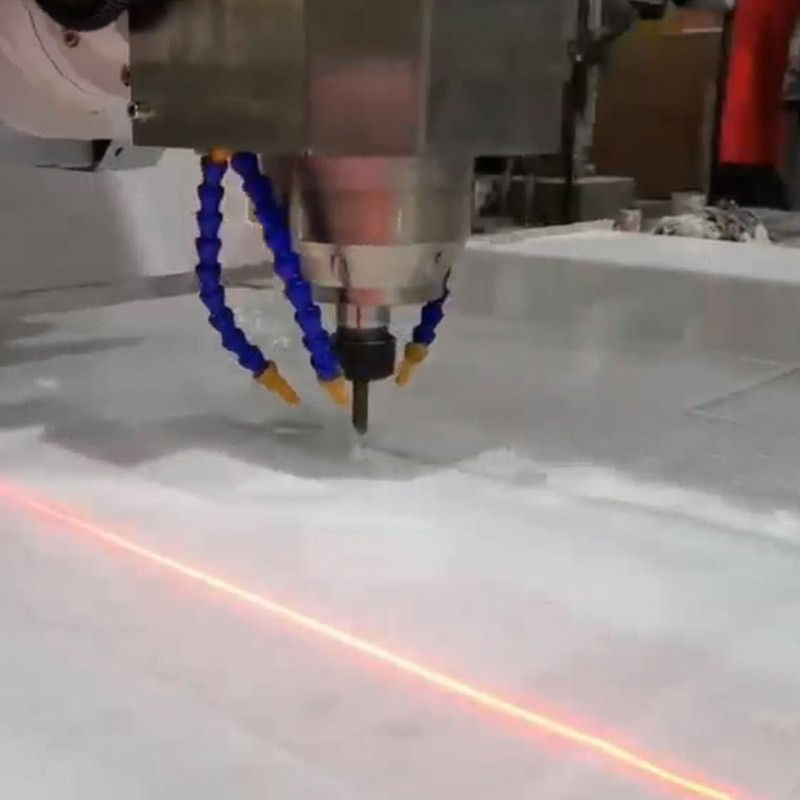

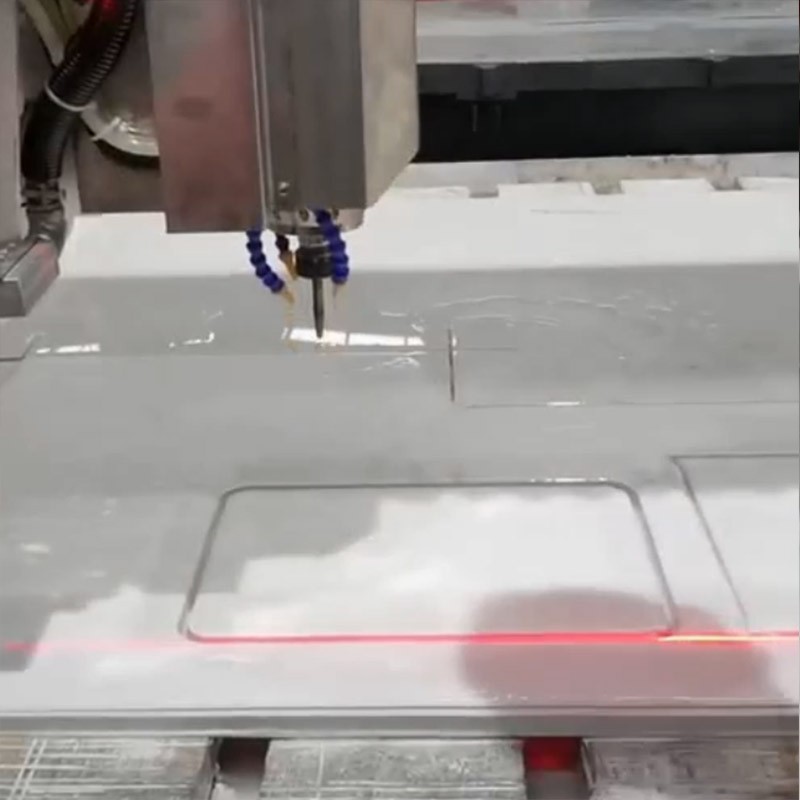

3. Equipped with an independent electric spindle to complete milling, drilling and rapid processing such as basin hole opening.
4. The worktable can be tilted at 85 degrees.
Equipment Advantages
1. Adopts cast iron beam for higher stability and longer service life.
2. Core electrical components adopt world-renowned brands such as Siemens and Schneider.
3. Multiple preset cutting modes are available, ensuring simple and easy operation.
FAQ
Q: What control system does the machine use?
A: It adopts a PLC control system.
Q: Does the machine have CE certification?
A: Yes, the machine is CE certified.
Q: What trade terms are accepted?
A: We support common trade terms such as FOB, EXW and CIF.
Q: How long is the warranty period?
A: The complete machine comes with a 12-month warranty.
Q: Do you provide overseas on-site installation?
A: Overseas installation is available, together with professional operation training.
Q: What is the production lead time?
A: It is generally about 30 working days after receiving the advance payment, depending on the specific model and configuration.
After-sales Service
1. All equipment is covered by a 1-year warranty. Free spare parts will be provided for non-human damage within the warranty period.
2. On-site installation and operation training are available.
3. We provide online remote technical support.
4. Lifetime technical support is offered for all customers.
