Product Introduction

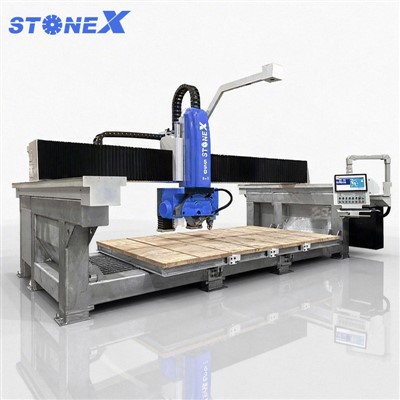

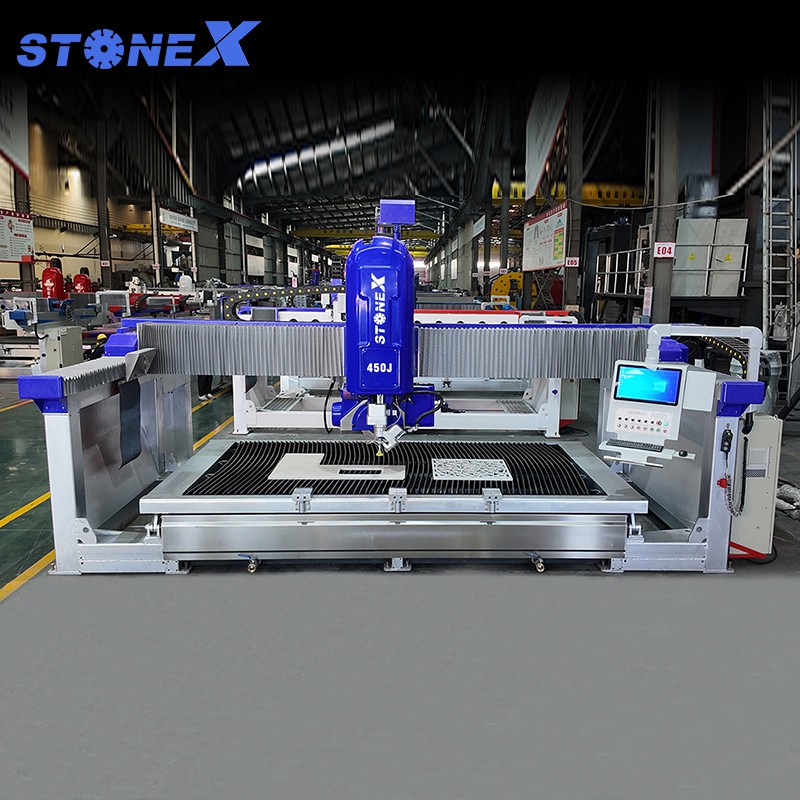

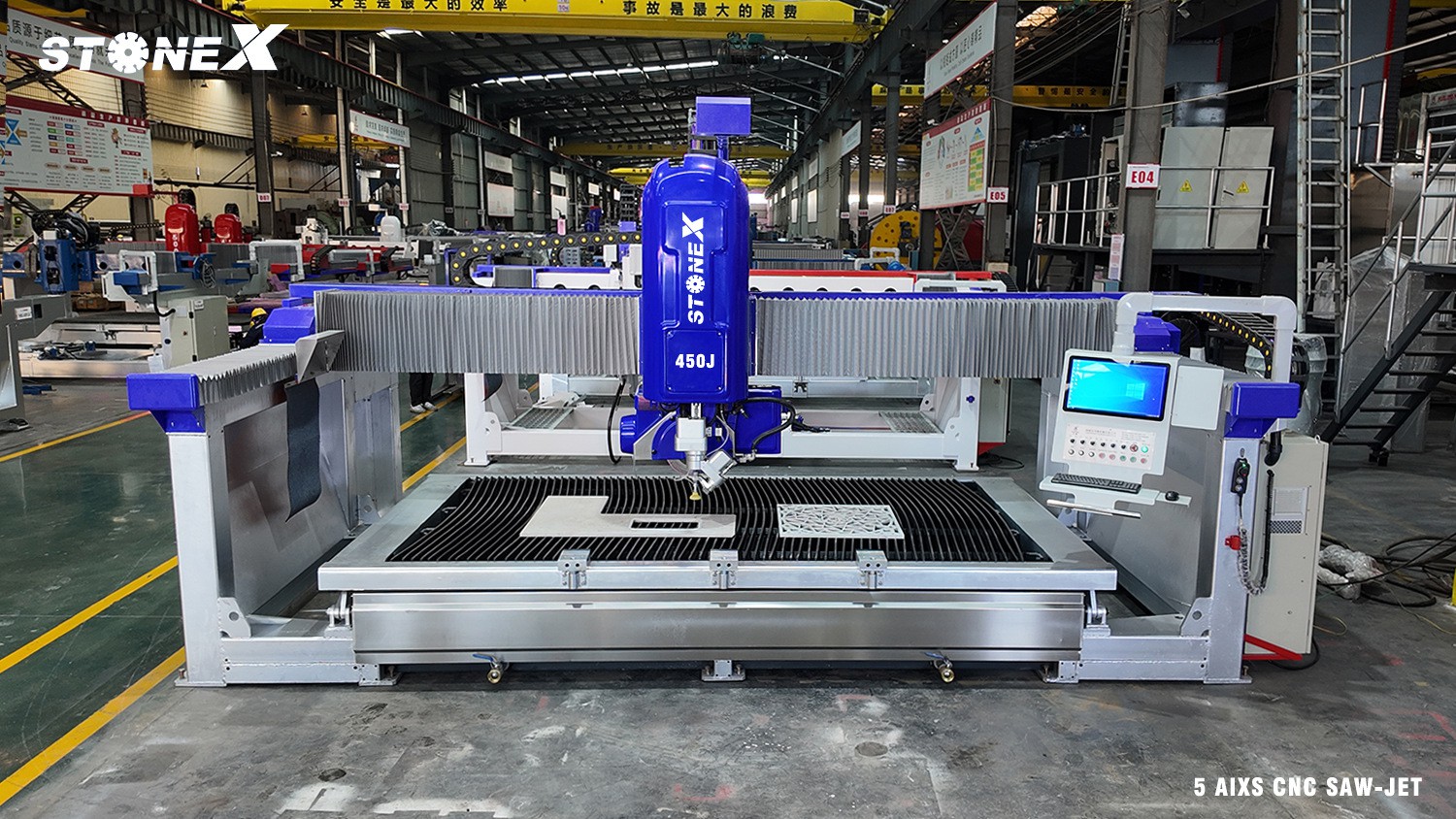

The Huayi HYNC450J stone cnc bridge saw machine is equipped with an Italian ESA control system, integrating two core functions: 5-axis bridge saw cutting and 5-axis waterjet cutting.
It is mainly used for cutting kitchen and bathroom countertops, waterjet inlay patterns, stone artworks and more. The equipment delivers higher processing efficiency and features a wider range of applications.

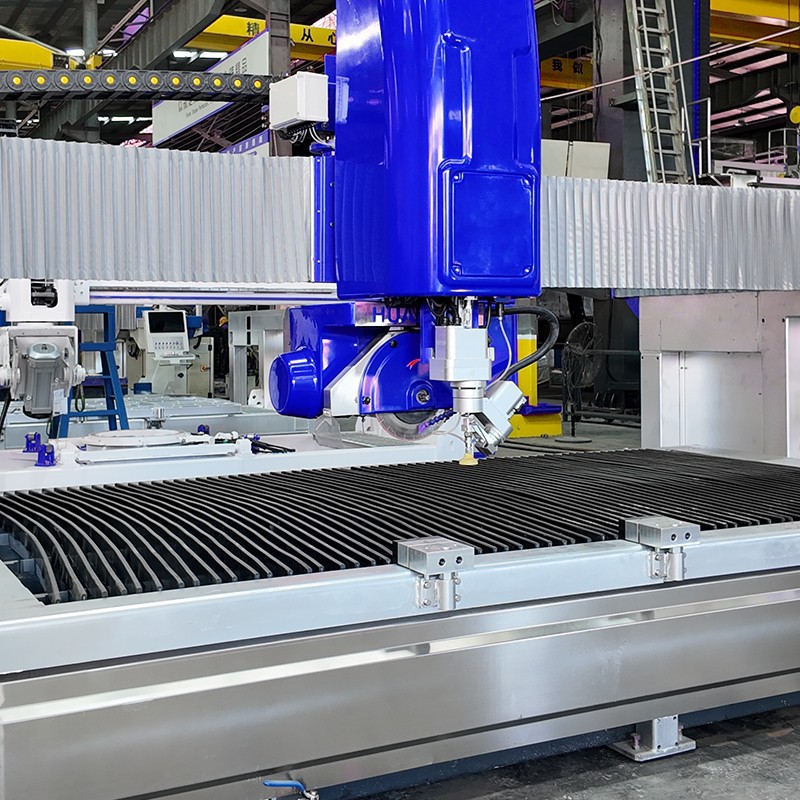

The 5-axis saw unit can cut polygons, arcs, curved surfaces and special-shaped materials. The 5-axis waterjet enables high-precision cutting of complex patterns, suitable for processing seamless bathroom basins, mosaics and other customized stone products.
Product Parameters
|
Name |
Unit |
HYNC-450J |
|
Diameter of saw blade |
mm |
ø350-ø450 |
|
Dimension of working platform |
mm |
4200x2200 |
|
Max.length of horizontal cutting |
mm |
3600 |
|
Max. cutting thickness |
mm |
100 |
|
Max. lifting stroke |
mm |
320 |
|
Power of saw blade motor |
kw |
26.4 |
|
Power for abrasive waterjet |
kw |
37 |
|
Gross power |
kw |
75.1 |
|
Max. operating water pressure |
mpa |
420 |
|
Persistent working pressure |
mpa |
330-380 |
|
Required pressure of inflow |
mpa |
0.4 |
|
Gross weight |
kg |
10000 |
|
Dimensions (L x W x H) |
mm |
6000x3820x3200 |
Main Functions
1. The saw blade features 360° rotation, supporting vertical cutting, horizontal cutting, bevel cutting, as well as processing of polygons, arcs, sectors, circles and curved surfaces.
2. The saw blade enables chamfer cutting at any angle from 0° to 90°.

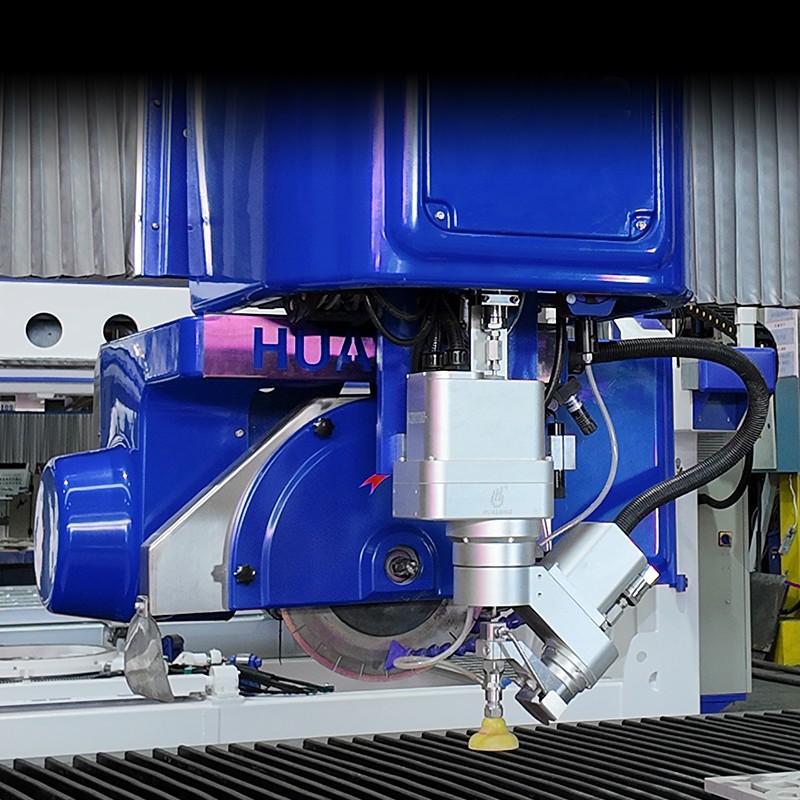

3. The waterjet cutting head can rotate 360°, ensuring higher precision for inner corner cutting and other intricate processing.
4. The waterjet head achieves 0°–60° chamfering to complete bevel cutting within this angle range.
5. The worktable can tilt up to 85°, facilitating slab loading.
6. Equipped with a camera function to capture slab patterns and optimize cutting path layout.
FAQ
Q: What control system does the machine adopt?

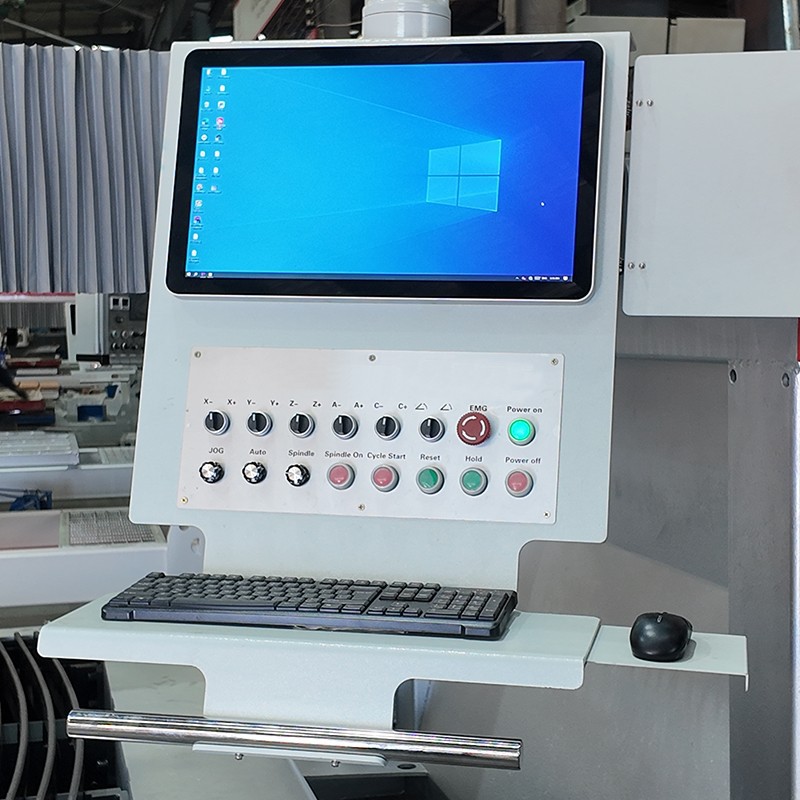

A: It is equipped with the Italian ESA control system and a 21.8-inch display screen.
Q: Can customized larger sizes be provided?
A: Yes, multiple machine models are available for selection.
Q: Does the machine have CE certification?
A: Yes, the machine has obtained CE certification.
Q: How long is the warranty period?
A: The machine comes with a 12-month warranty.
Q: Do you provide overseas on-site installation and training?
A: Yes, we offer on-site installation and professional technical training services.
Q: What trade terms are supported?
A: We support common international trade terms such as FOB, EXW and CIF.
After-sales Service
1. All equipment of our company enjoys a 1-year warranty period. Free spare parts will be provided for non-human damage within the warranty term.
2. We establish a dedicated after-sales service group for every customer to deliver prompt online support.
3. Lifetime technical support is available for all clients.
4. Technician dispatch service can be provided upon request.
