5-Axis Bridge Saw Factory - Huayi Intelligent Equipment

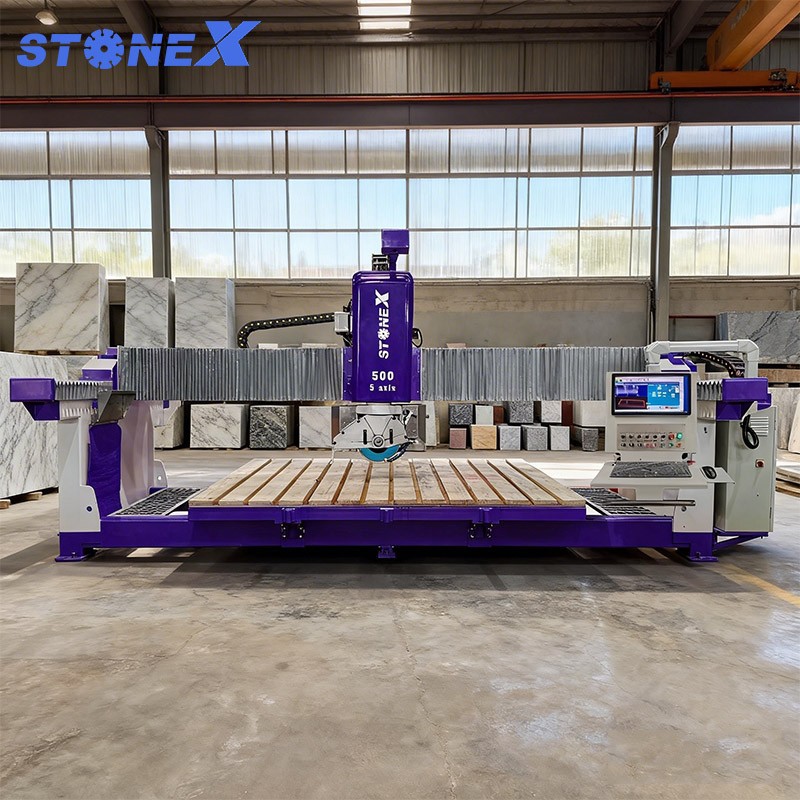

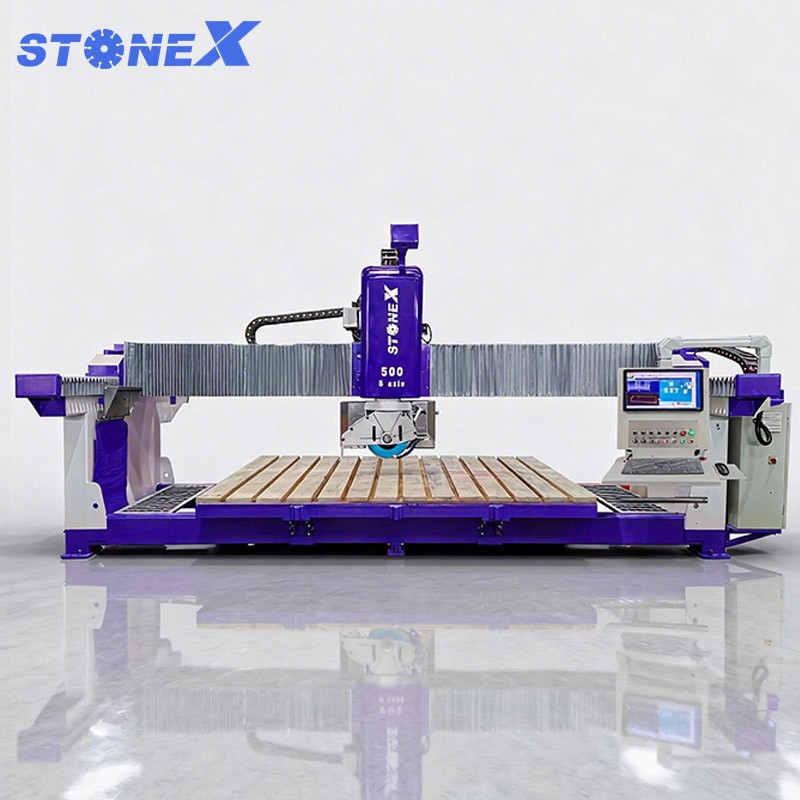

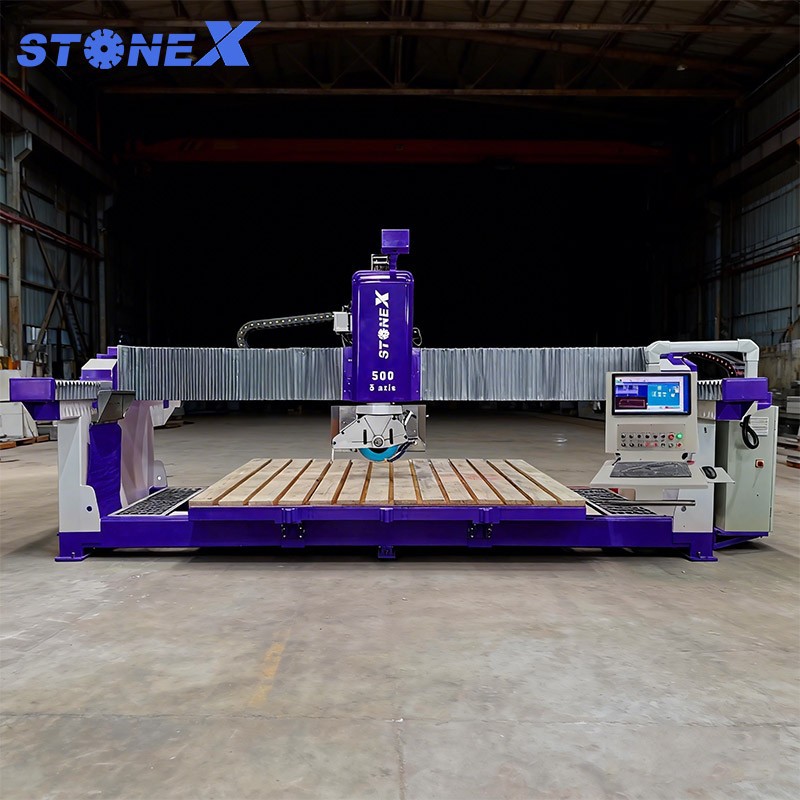

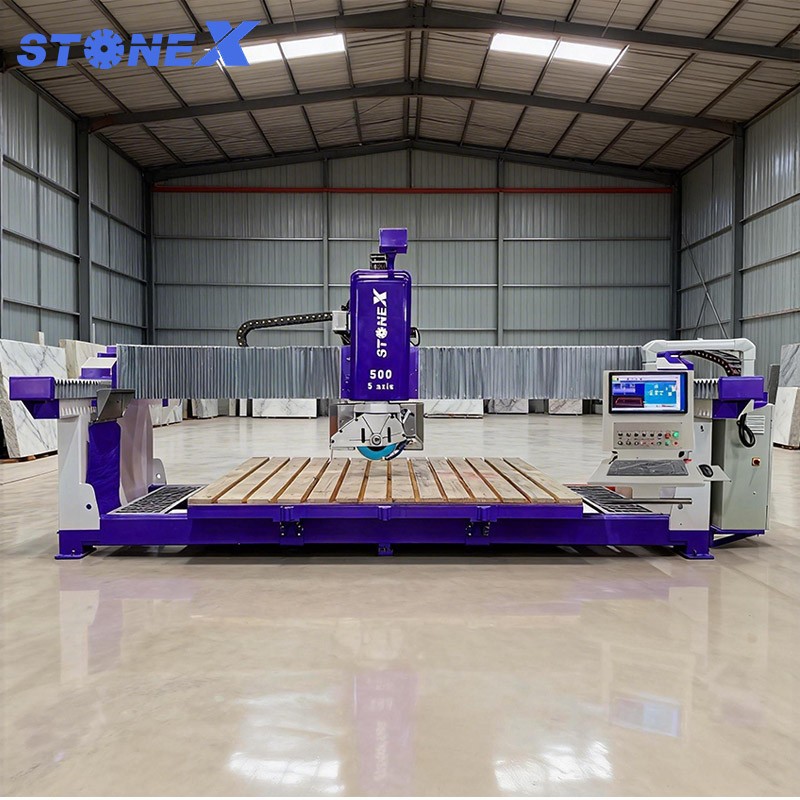

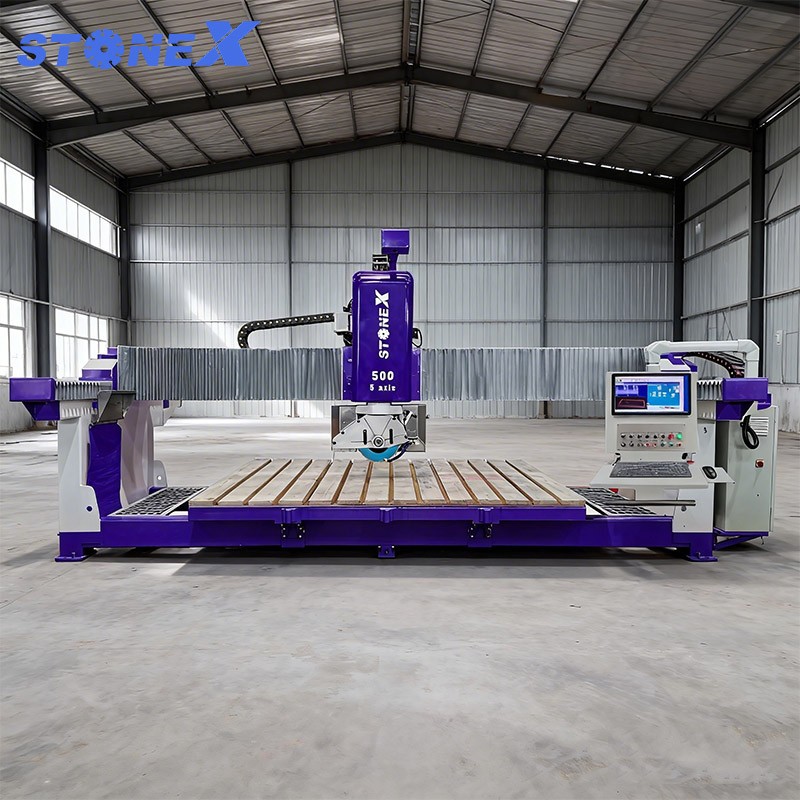

The HYNC-500 CNC 5 axis bridge saw from Huayi Intelligent Equipment is equipped with an Italian ESA control system and permanent magnet motor. It features easy operation, high efficiency and energy saving.
With CE certification, the machine supports one-unit minimum order with a 25-day production cycle.
It is widely applied in processing kitchen & bathroom countertops, feature walls, door frames, window casings, stair treads and other stone projects.
Equipment Functions

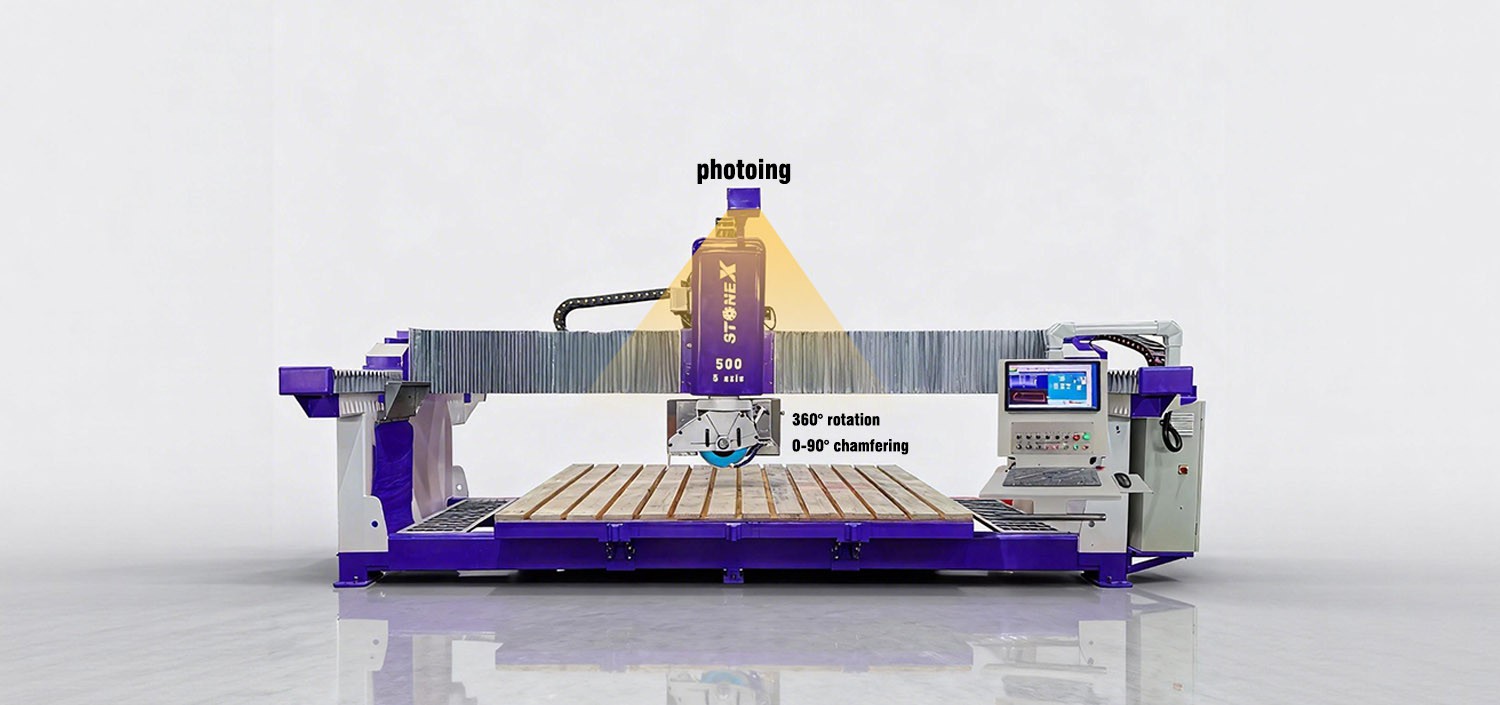

1. Camera System: Captures slab graphics, realizes automatic typesetting and cutting path optimization.
2. Vacuum Suction Cups: Moves stone slabs to avoid material loss caused by over-cutting.
3. The worktable can tilt up to 85°, making slab loading easier and more convenient.
4. The cutting head supports 360° rotation for cutting straight edges, bevel edges and arcs.
5. The saw blade enables 0-90° adjustable arbitrary angle chamfering & bevel cutting.
6. Milling cutters can be installed to complete milling and drilling processes.
Technical Parameters
|
Name |
Unit |
HKNC-500 |
|
Diameter of saw blade |
mm |
ø400-ø500 |
|
Dimension of working platform |
mm |
3500x2100 |
|
Max. cutting length |
mm |
3200 |
|
Max. cutting thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Max. lifting weight by sunction cups |
kg |
200 |
|
Power of main motor |
kw |
18.8 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m3/h |
2 |
|
Gross weight |
kg |
5400 |
|
Dimensions (L x W x H) |
mm |
5700x3260x2765 |
FAQ
Q: What control system does the machine adopt?
A: Equipped with Italian ESA control system.
Q: Is the machine customizable?
A: Customization is available. Optional configurations include electric spindle, rubber worktable, safety protection door and other customized functions.
Q: Can it cut special-shaped stones?
A: It supports processing of various special-shaped stones, such as polygons, arcs, circles, sectors and curved surfaces.
Q: What structure is the beam designed with?
A: The integral cast iron beam structure ensures low vibration, anti-deformation performance and longer service life.
Service & Technical Support
1. The machine comes with a 12-month warranty. Free spare parts are provided for non-artificial damage within the warranty period, along with lifetime technical support.
2. 24/7 remote technical support is available all year round.
3. Professional operation and technical training services are provided.
4. Engineer on-site dispatch service is available upon request.
