Product Introduction

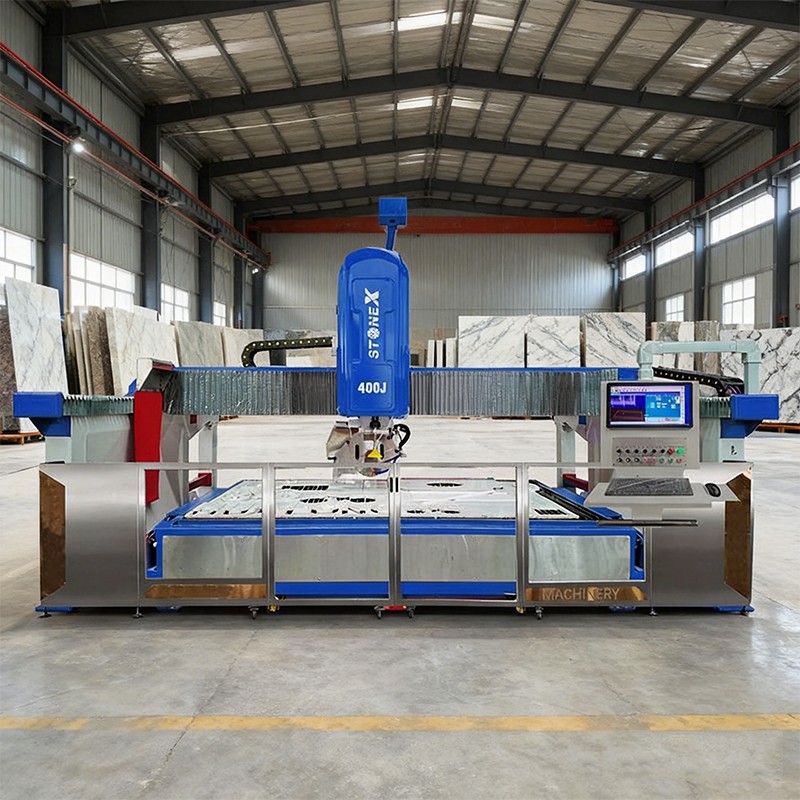

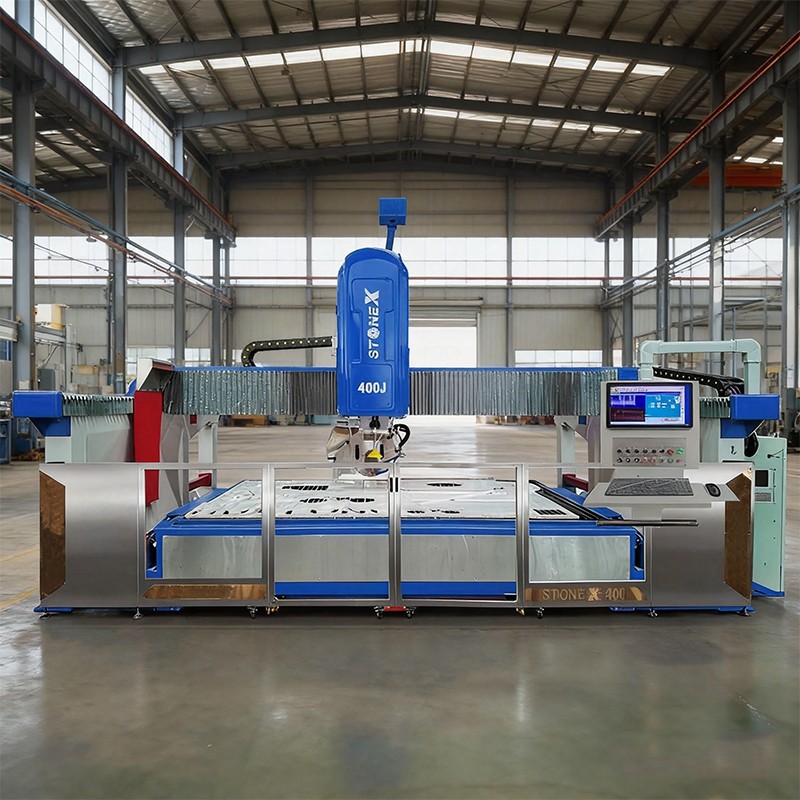

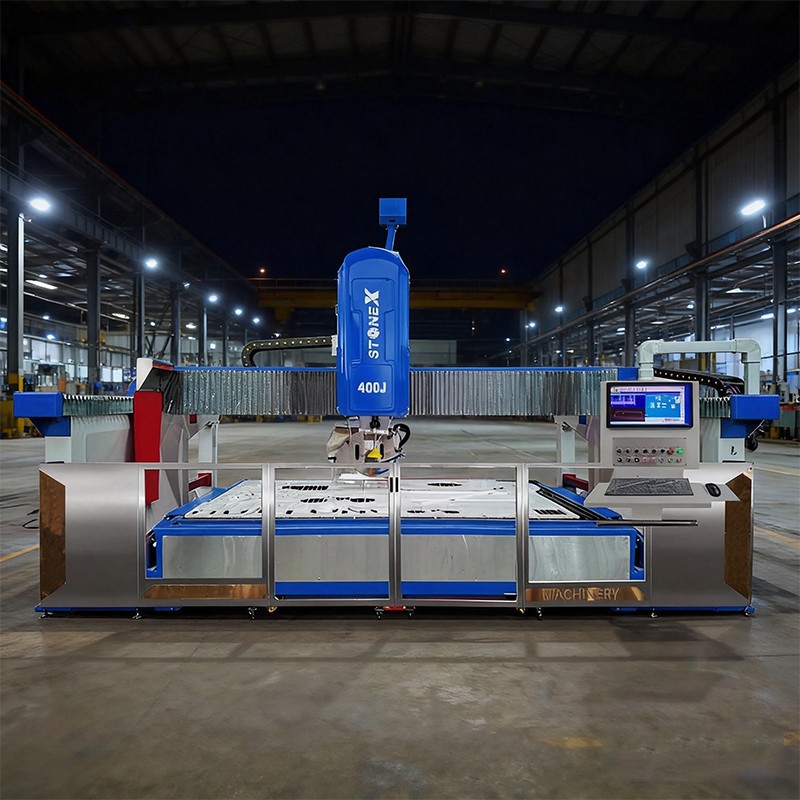

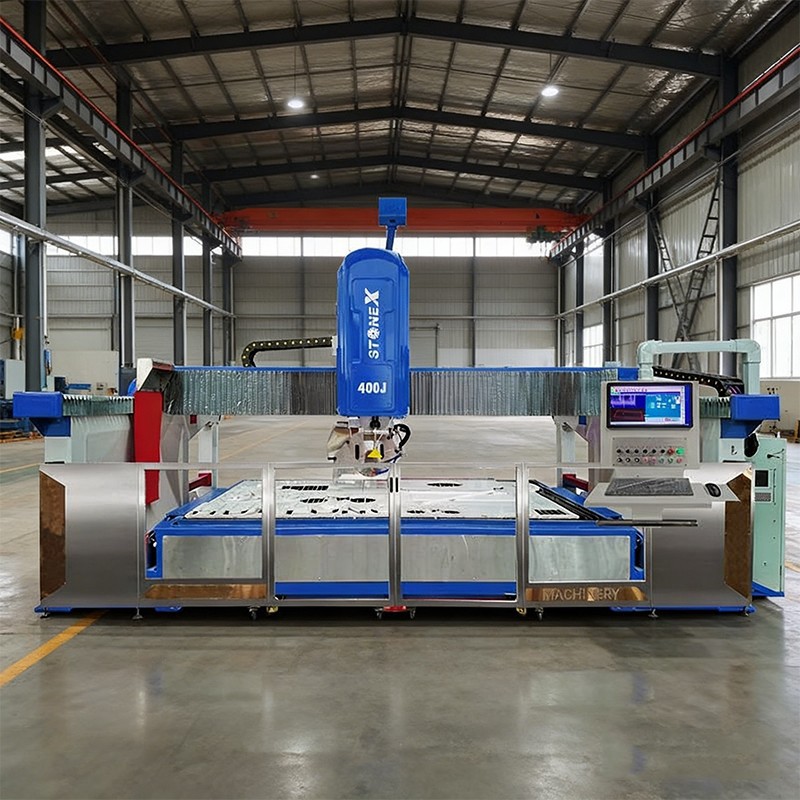

The Huayi HYNC400J stone CNC bridge saw is a combined machine integrating 5-axis CNC saw and 3-axis waterjet cutting system. It is equipped with an Italian ESA control system, suitable for processing marble, granite, sintered stone, quartz stone, artificial stone, ceramics, metals and composite materials.
Fitted with a 21.8-inch display screen, the machine adopts an integral cast iron beam with high structural rigidity. The cutting head runs stably and is resistant to deformation after long-term operation, effectively extending the overall service life of the equipment.
Main Functions
* Camera shooting function: Capture slab graphics and optimize the layout of cutting paths.

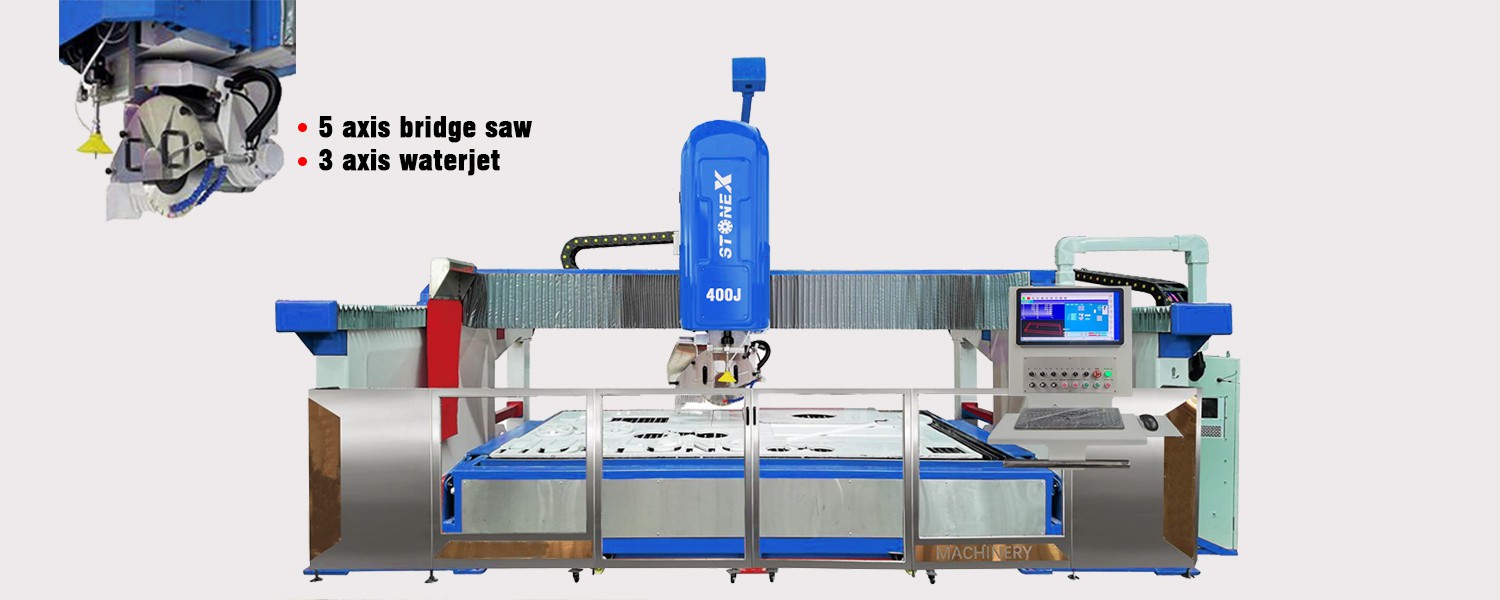

* 5-axis bridge saw:
The cutting head can rotate 360° to cut polygons, arcs, circles, sectors and special shapes.
The saw blade supports 0°–90° chamfer cutting.
* 3-axis waterjet: Realize rapid hollowing cutting and edge trimming.
Product Parameters
|
Name |
Unit |
HYNC-400J |
|
Diameter of saw blade |
mm |
Φ350–450 |
|
Dimensions of working platform |
mm |
4100×2200 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness of saw |
mm |
100 |
|
Max. lifting stroke |
mm |
320 |
|
Power of sawing motor |
kw |
15 |
|
Power for abrasive waterjet |
kw |
37 |
|
Gross power |
kw |
60.6 |
|
Required pressure of inflow |
Mpa |
0.4 |
|
Max. operating water pressure |
Mpa |
450 |
|
Persistent working pressure |
Mpa |
330–380 |
|
Cutting precision |
mm |
±0.1 |
|
Dimensions (L×W×H) |
mm |
6000×3820×3200 |
|
Gross weight |
kg |
10000 |
Application Fields
The HYNC400J is widely applied to kitchen and bathroom countertops, feature walls, stair treads, door casings, window casings, waterjet inlay patterns, curved shaping, floor paving, exterior wall dry hanging, customized furniture and stone art decorations.
FAQ
Q: How many axes does the machine have?
A: 5-axis CNC bridge saw plus 3-axis waterjet.
Q: What control system does the machine adopt?
A: Italian ESA control system.
Q: Is the machine CE certified?
A: Yes, all our machines are CE certified and comply with safety and quality standards.
Q: Is the safety door a standard configuration?
A: The safety door is an optional accessory.
Q: What trade terms do you accept?
A: We support common trade terms such as FOB, EXW and CIF.
Q: What is the warranty period?
A: 12 months warranty.
Q: Do you provide on-site installation and training?
A: Yes, we provide on-site installation and operation training.
Q: What is the production lead time?
A: Normally about 30 days after receiving the deposit, subject to different models and configurations.
After-sales Service
* The equipment is covered by a 1-year warranty. Free spare parts are provided for non-human damage within the warranty period.
* Lifetime technical support is available.
* We provide both online and on-site technical services. Simple issues can be solved via remote online assistance, while for complex problems, technician dispatch and on-site service are available.
