Product Introduction

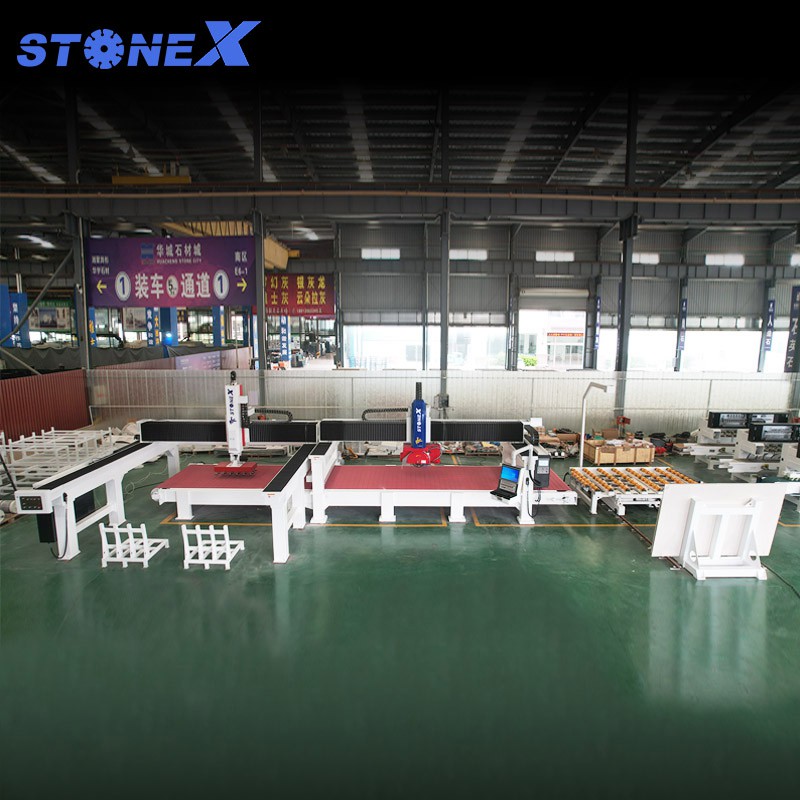

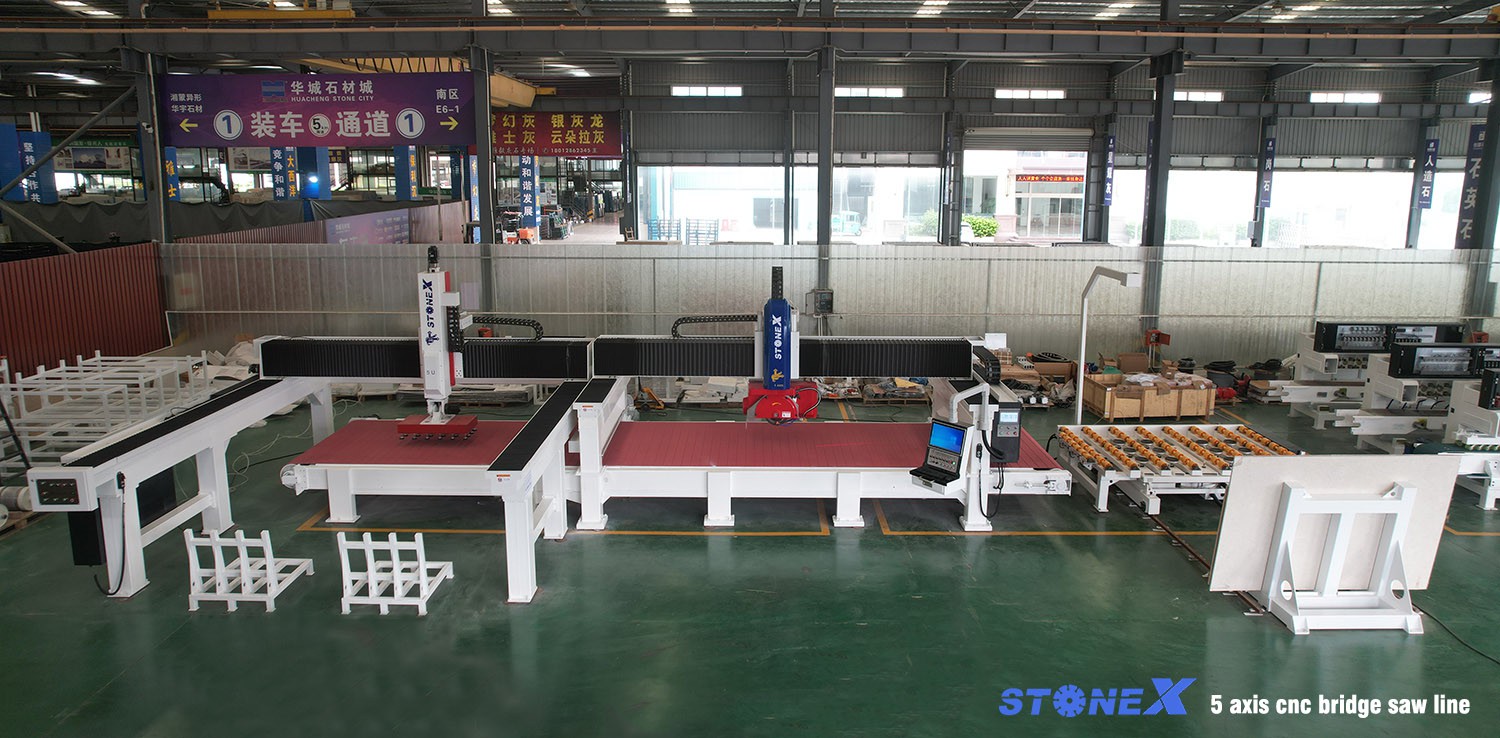

The HYCN-500L 5 axis cnc stone machine is an automatic stone cutting line equipped with an Italian ESA control system.
It realizes full automation and intelligent operation from automatic slab loading, automatic cutting to automatic unloading.
Once one slab is cut and delivered to the unloading area, the next slab will immediately enter processing, greatly improving production efficiency.
With 5-axis linkage, it supports various cutting modes, including straight cutting, bevel cutting, polygonal cutting, arc cutting, circular cutting and special-shaped cutting.
Application Fields
It can process marble, granite, sintered stone, quartz stone, artificial stone and other materials.
Main finished products include kitchen and bathroom countertops, standard size slabs, paving stones, feature walls and more.
Main Functions

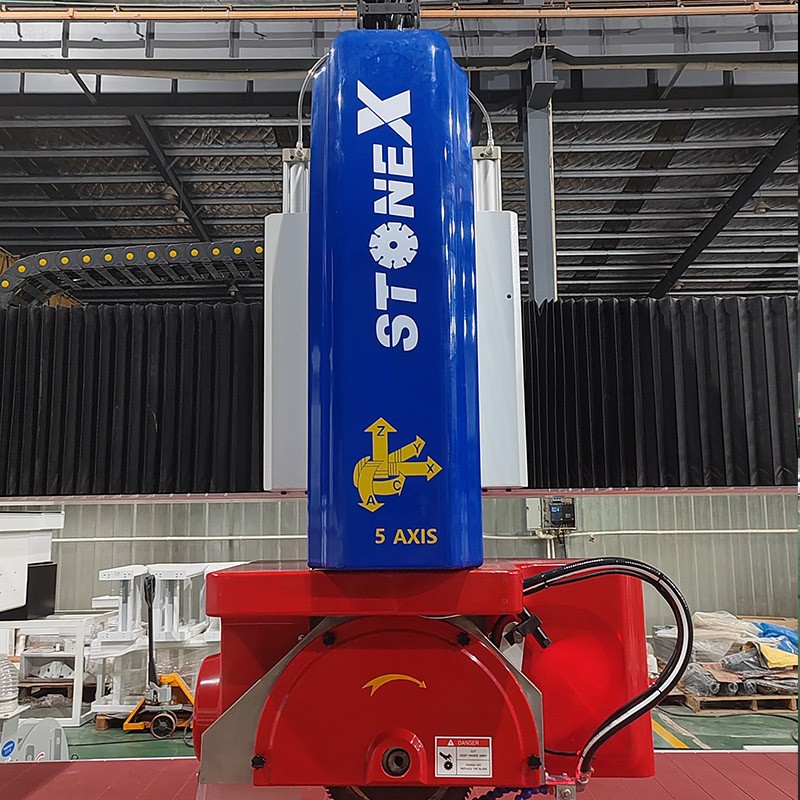

* The cutting head can rotate ±185° to complete various special-shaped cutting.
* The saw blade supports 0-90° arbitrary bevel cutting for stone chamfer processing.

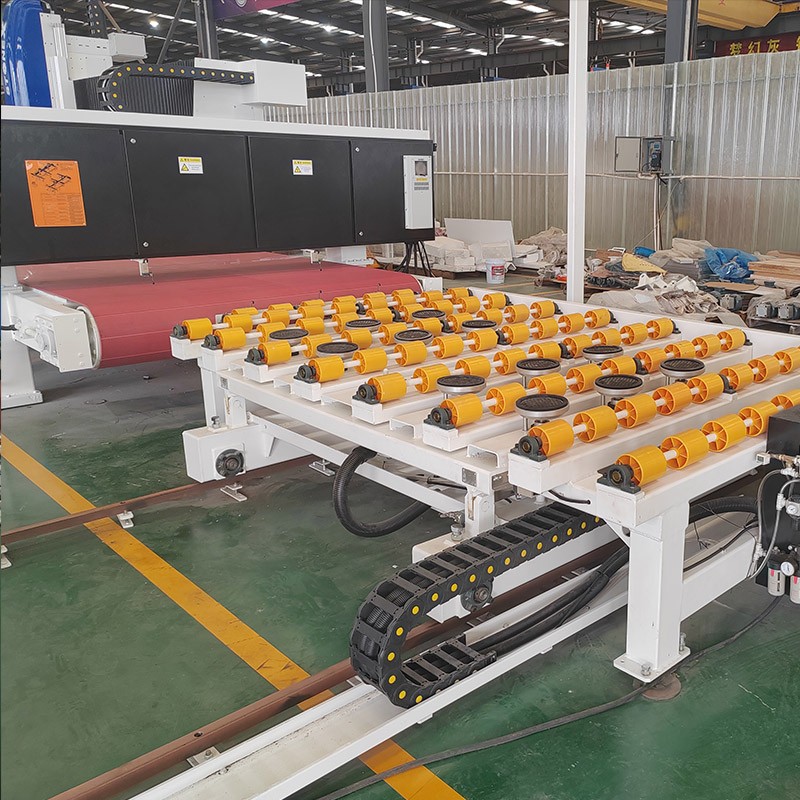

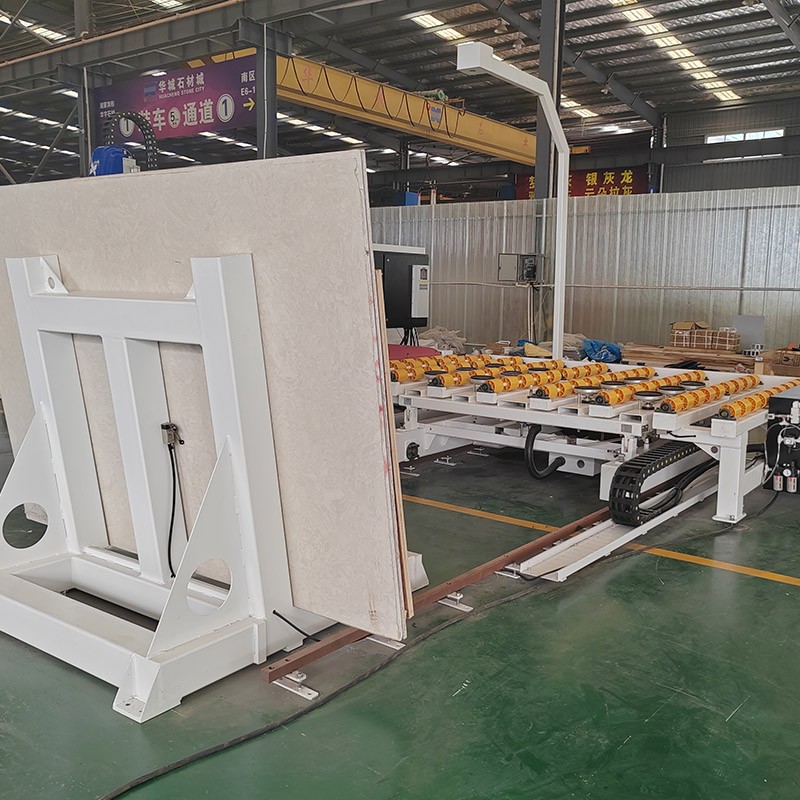

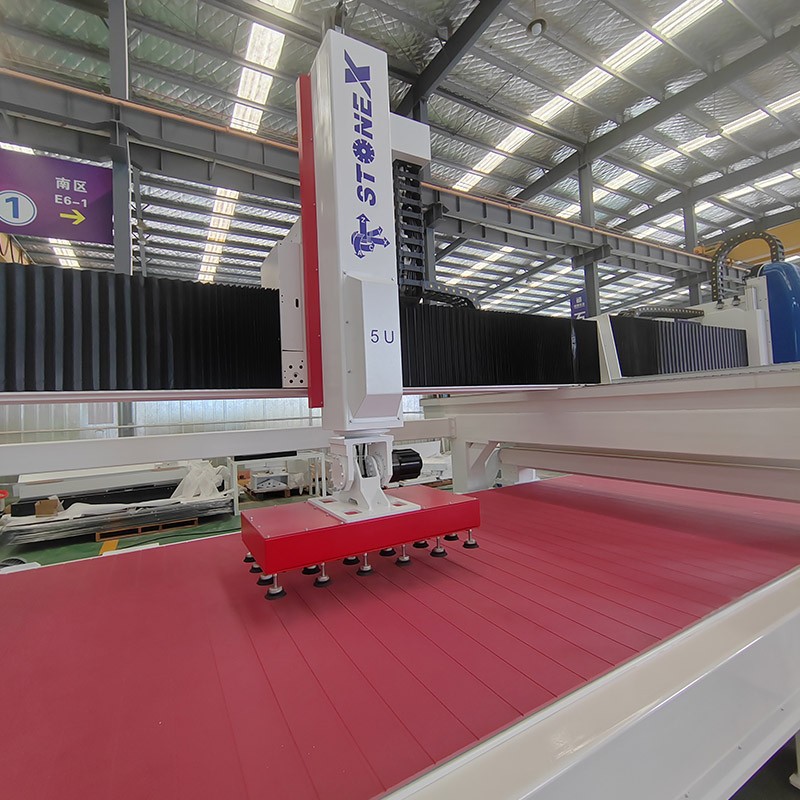

* Equipped with automatic slab loading function, no manual intervention is required for higher efficiency.
* The worktable is equipped with a belt conveying function, which automatically transports slabs to the unloading area after cutting.
* With the camera shooting function, it captures slab images to optimize and arrange cutting paths.
Technical Parameters
|
Name |
Unit |
HYNC-500L |
|
Dimensions (L x W x H) |
mm |
14500* 5810* 3600 |
|
X-axis travel |
mm |
3500 |
|
Y-axis travel |
mm |
2500 |
|
Z-axis travel |
mm |
300 |
|
Main motor power |
kw |
18.8 |
|
Rotate speed |
rpm |
0-6000 |
|
Max.speed of X-Y-Z |
m/min |
16-16-7 |
|
Rotation of axis C |
deg |
±185° |
|
Blade diameter |
mm |
300-500 |
|
Belt width |
mm |
2200 |
|
Air pressure |
bar |
7 |
|
Water consumption |
m³/h |
4 |
|
Gross power |
kw |
33.8+10.22+3.8 |
|
Gross weight |
kg |
14500 |
FAQ
Q: What system does the HYNC-500L CNC bridge saw production line adopt?
A: It is equipped with the Italian ESA control system.
Q: Are loading and unloading fully automatic?
A: Yes. The HYNC-500L features automatic slab loading and automatic unloading. The whole production line operates without manual intervention.
Q: Does the machine have CE certification?
A: Yes, the machine has obtained CE certification to ensure product safety and quality.
Q: What trade terms are supported?
A: We support common terms such as EXW and FOB. Please contact us for customized solutions.
After-sales Service & Technical Support
* The complete machine comes with a 1-year warranty and lifetime technical support.
* We offer remote assistance for overseas customers with fast response and efficient problem solving.
* On-site installation and operation training are available for international clients.
