Product Introduction

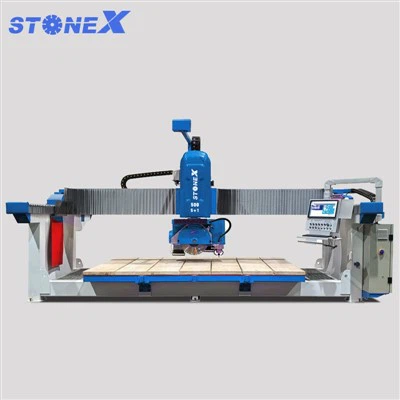

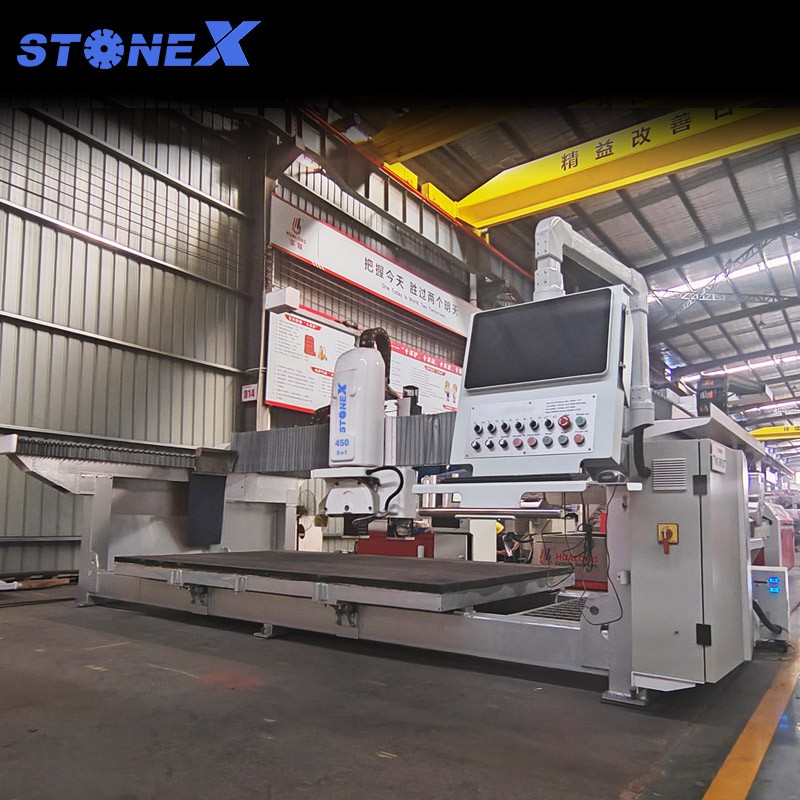

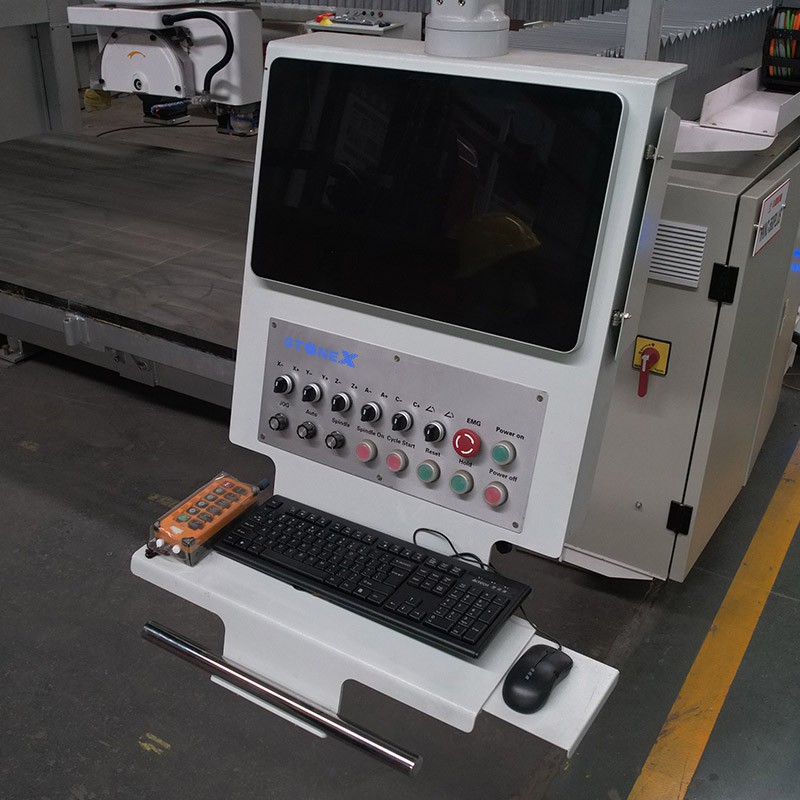

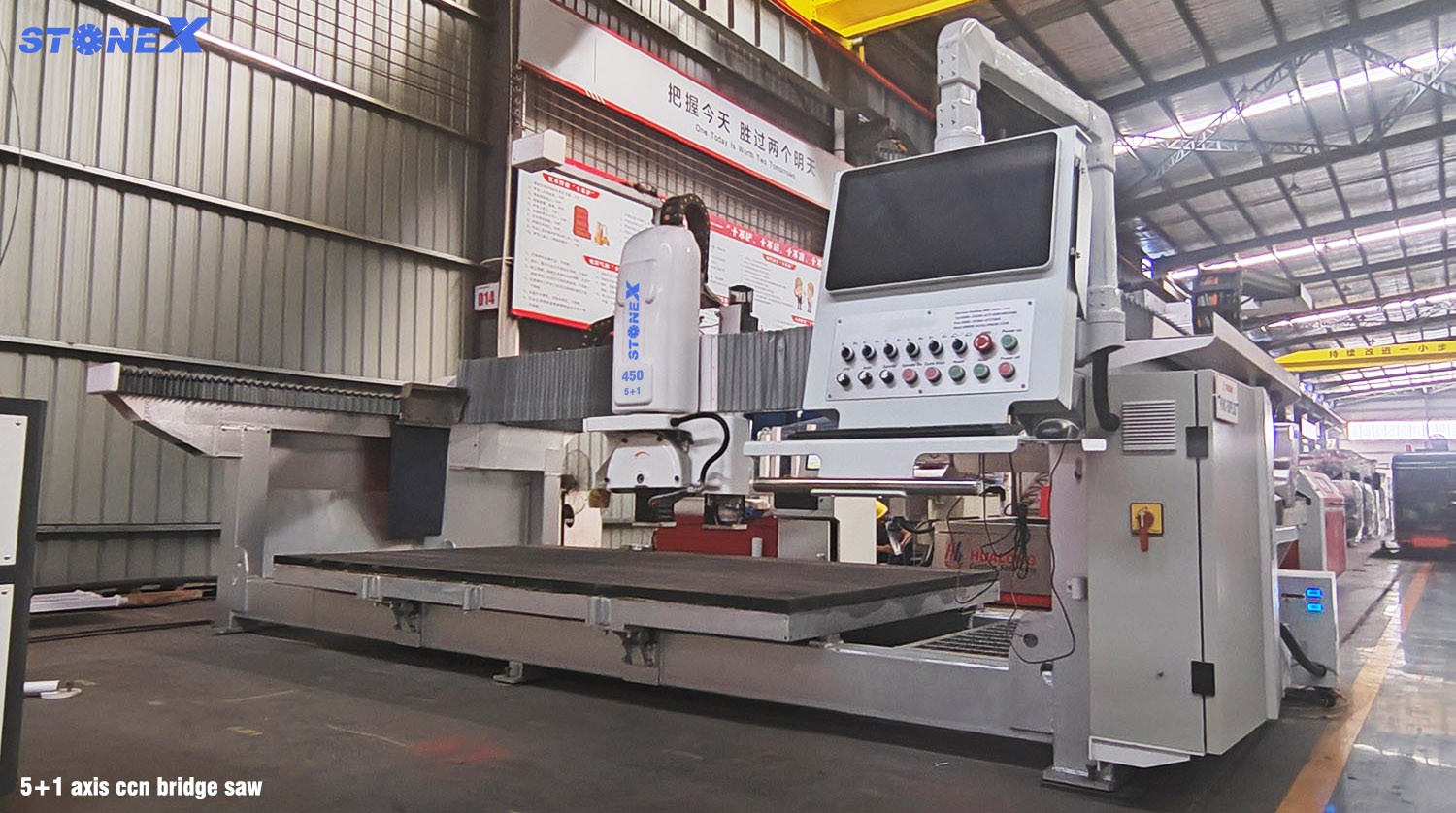

The Huayi HYNC450 is a 5+1 axis marble cnc bridge cutting machine. It adopts a high-end Italian ESA control system and is equipped with a 21.8-inch display screen.

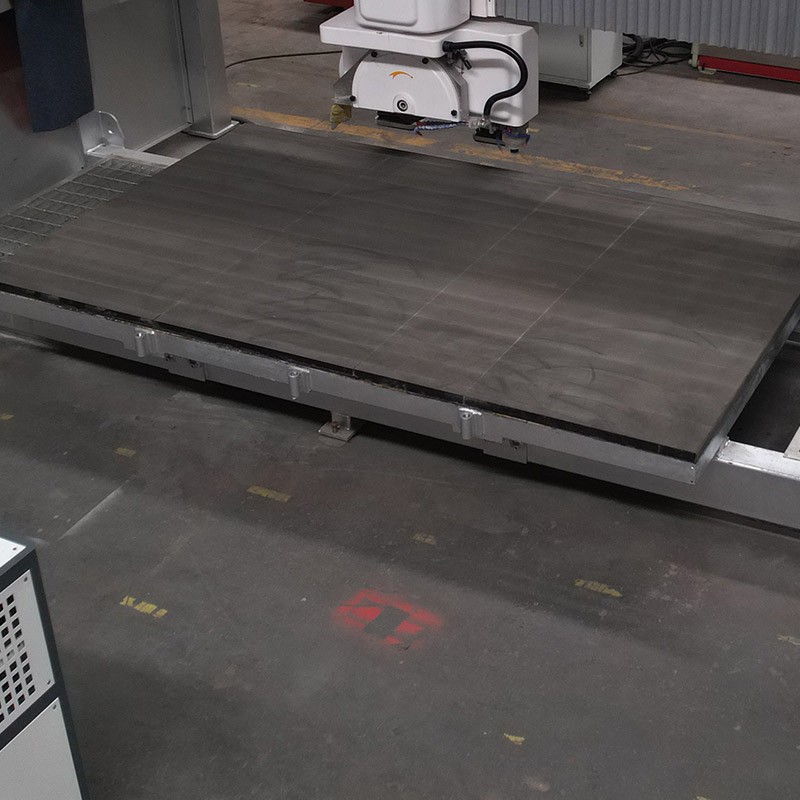

The machine features an integral cast beam, which delivers stable structure, high durability and anti-deformation performance. The rubber worktable further extends service life.
This machine has obtained CE certification. All core components adopt world-class brands to ensure long-term stable operation of the equipment.
Technical Specifications
|
Model No |
Unit |
HKNC-450 5+1 |
|
Diameter of saw blade |
mm |
450 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max.cutting size |
mm |
3500×2100 |
|
Max. cutting thickness |
mm |
95 |
|
Max. lifting stroke |
mm |
250 |
|
Power of main motor |
kw |
18.8 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5800×3380×2770 |
|
Gross weight |
kg |
4000 |
Core Functions
1. Camera shooting function: It captures slab images in real time for automatic optimized nesting, selects the optimal
2. Cutting path, and reduces material loss.

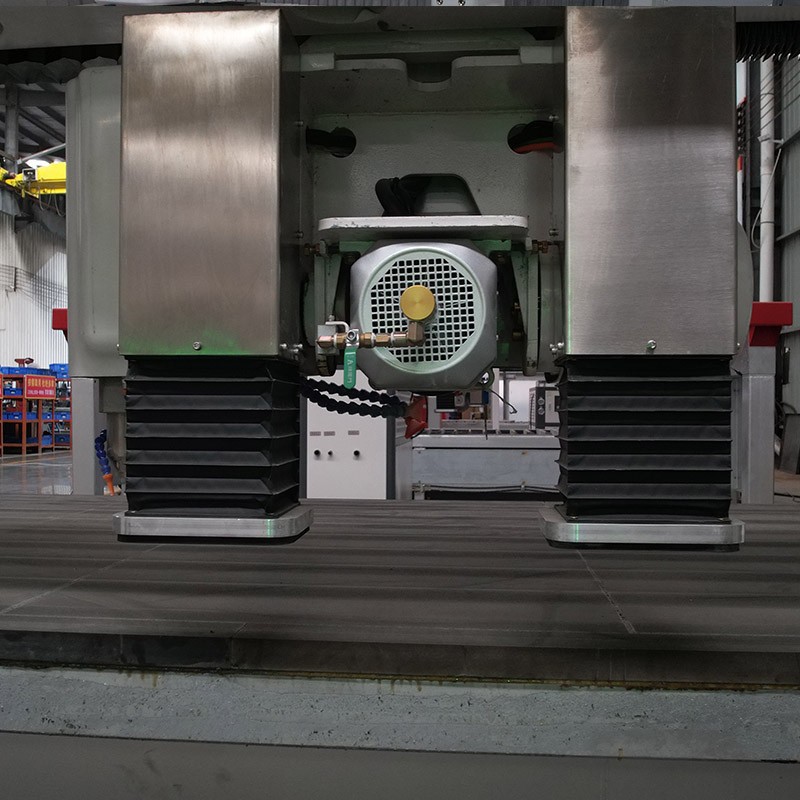

3. Suction cup device: It firmly and stably fixes slabs during cutting to avoid over-cutting.

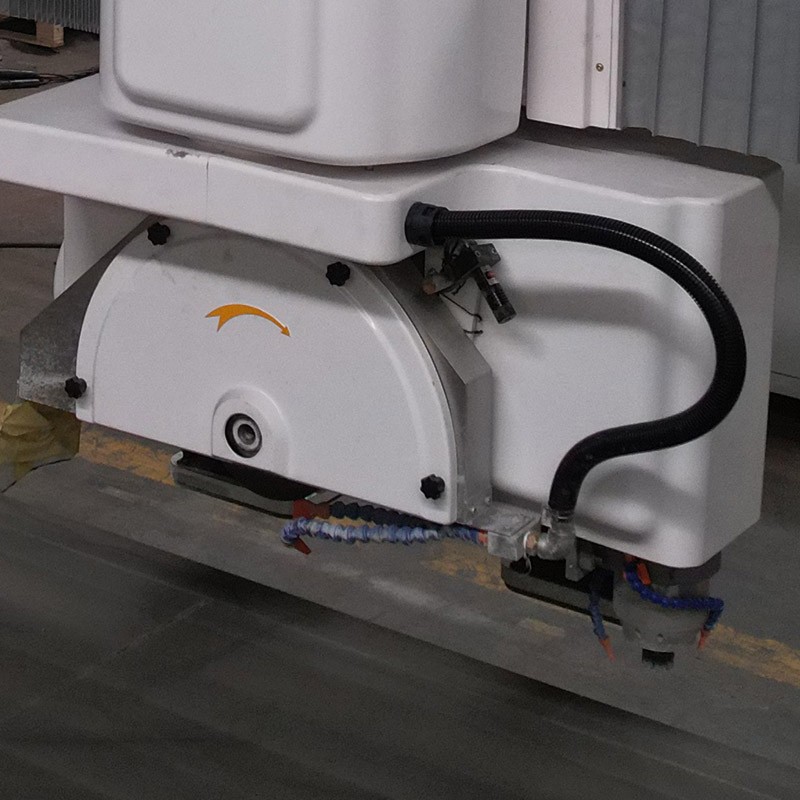

4. Independent electric spindle: It supports milling, drilling and engraving processes.
5. 360° rotatable cutting head: It enables cutting of polygons, arcs, special shapes and more.
6. The saw blade achieves 0-90° free bevel cutting.
7. The worktable is capable of 85° tilting.
Optional Functions
1. Saw blade measuring instrument
2. Slab thickness gauge
3. Press plate fixing function
4. Wooden worktable or rubber worktable
5. Stainless steel protective door
FAQ
Q: What control system does the HYNC450 5+1 axis machine adopt?
A: Italian ESA control system.
Q: Is it CE certified?
A: Yes, the machine has obtained CE certification.
Q: Is it produced in your own factory?
A: Yes. Huayi Intelligent Equipment is a professional manufacturer specializing in stone machinery.
Q: What trade terms are available?
A: We support common terms including FOB, EXW, CIF and so on.
Q: Is overseas installation available?
A: Yes, we provide on-site overseas installation, operational training and related services.
After-sales Service and Technical Support
Our machines come with a 12-month standard warranty.
We provide lifelong technical support.
For overseas customers, regular after-sales support includes fast remote assistance to solve problems efficiently.
We can also arrange on-site service by professional technicians overseas.
