Product Introduction

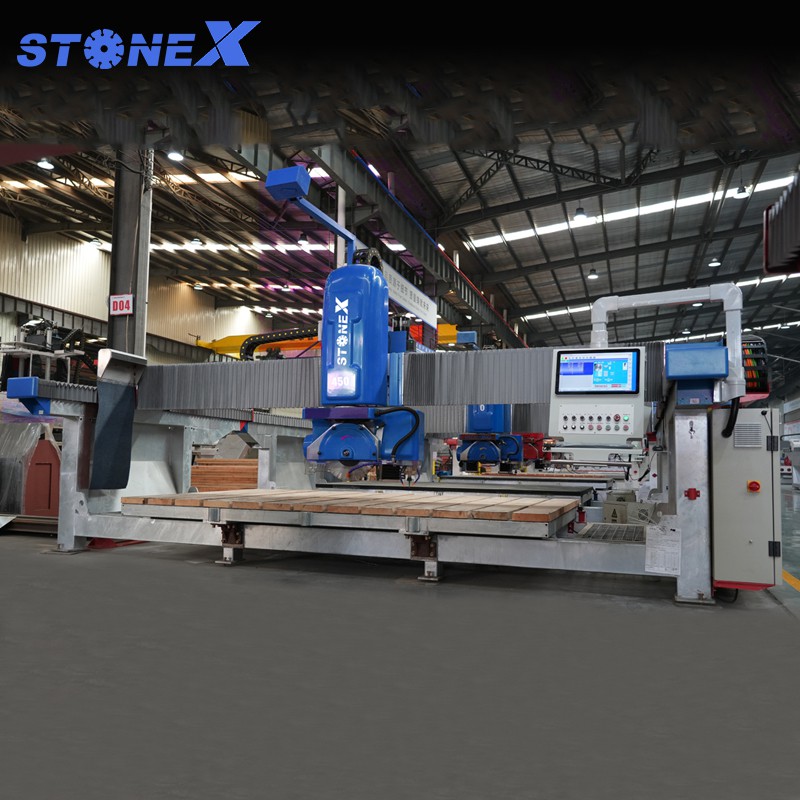

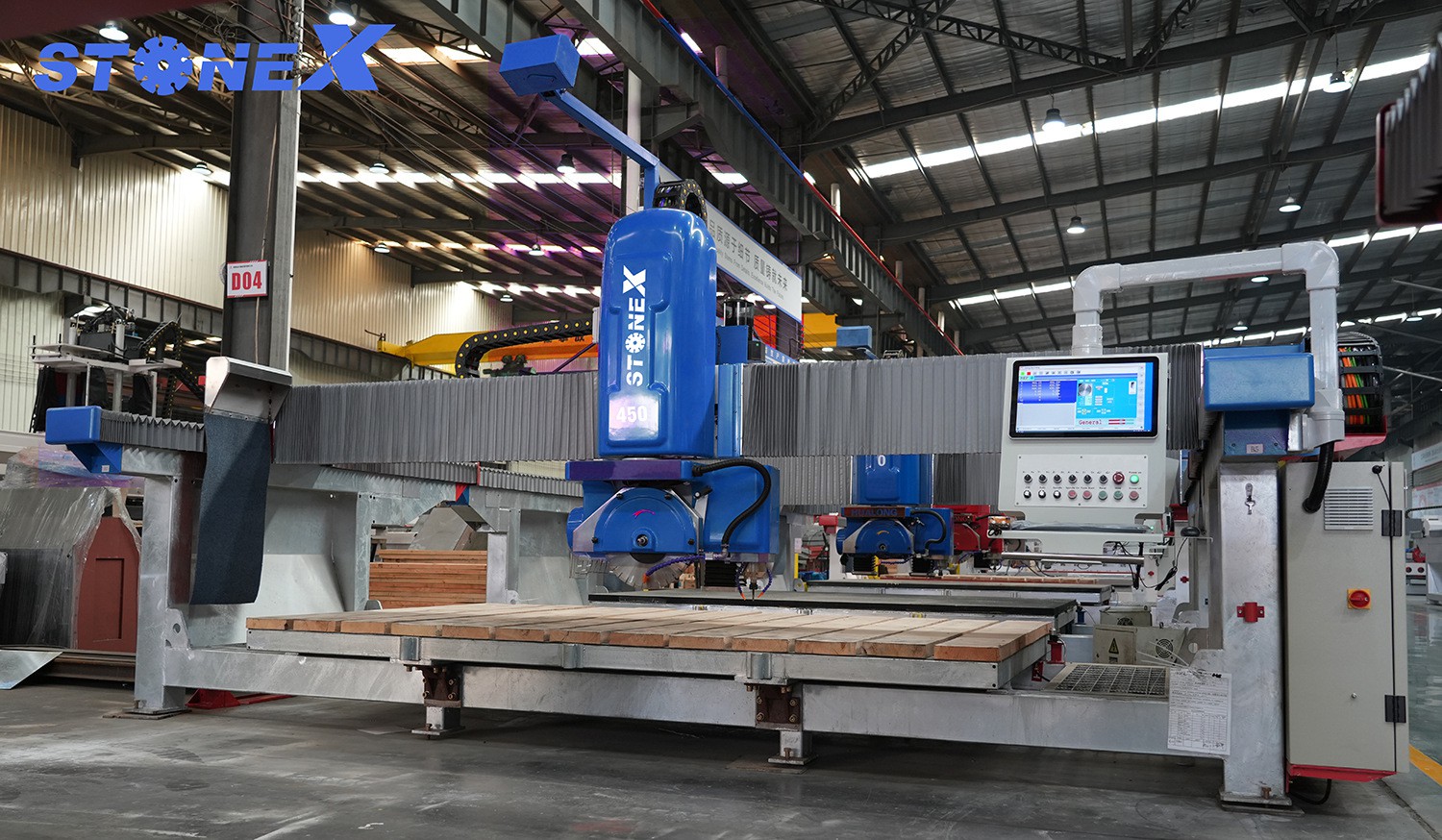

The Huayi HYNC450+ is a 5-axis bridge saw compatible with a 450mm saw blade.
Its standard configurations include a positioning camera, vacuum suction cups, an independent electric spindle and a wooden worktable.

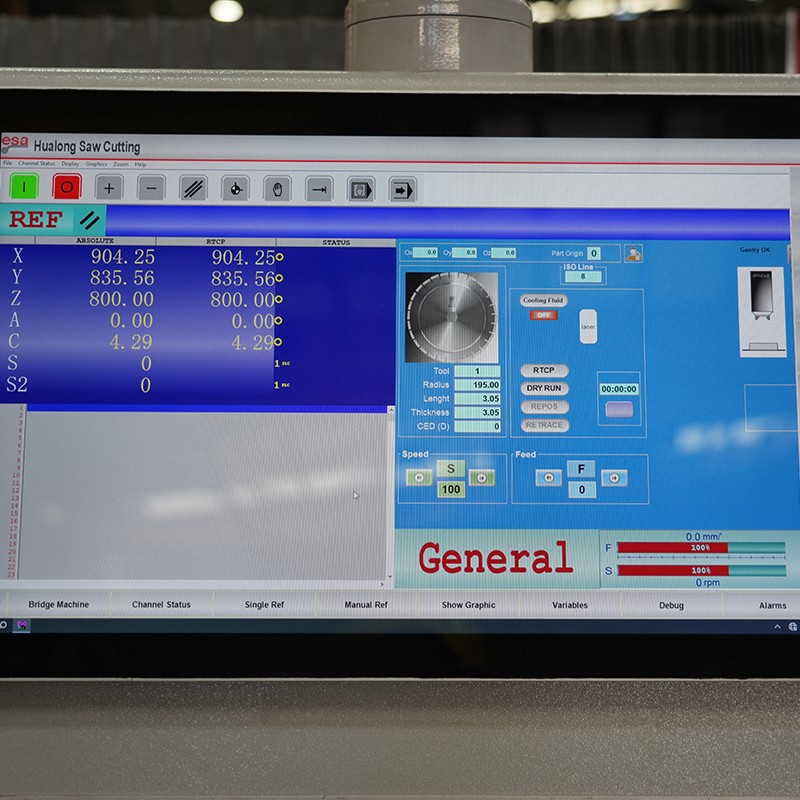

Equipped with the Italian ESA control system, the machine features high operating precision and stable program operation.

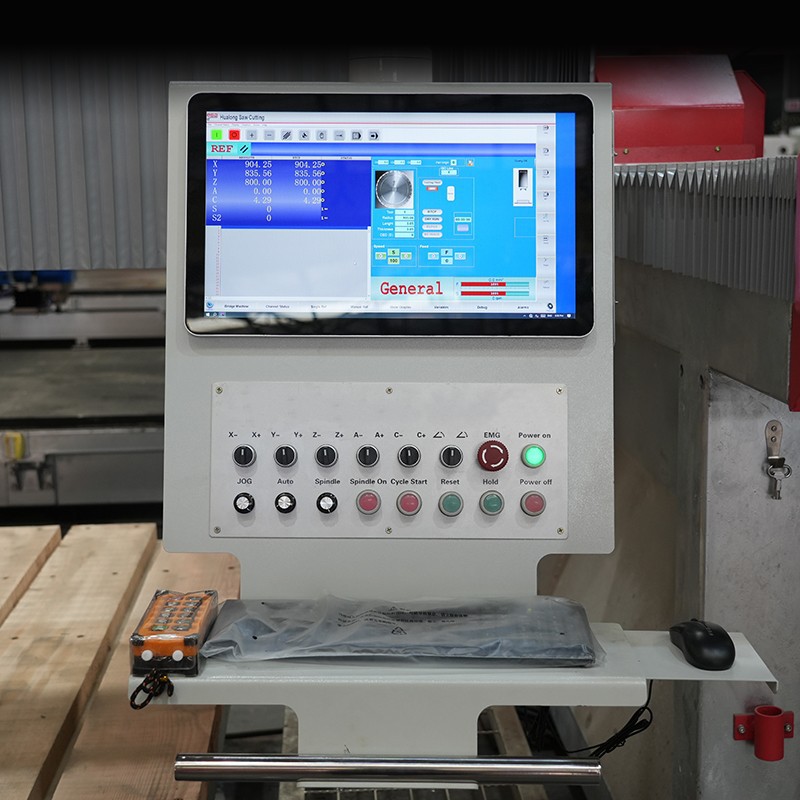

It comes with a 21.8-inch display screen and a robust machine frame built with an integral cast iron beam, ensuring stable cutting head movement and anti-deformation performance.
This machine is suitable for processing marble, granite, sintered stone, quartz stone, ceramics and other materials.
It supports orders starting from one unit, with a production cycle of approximately 30 days.
Product Parameters
|
Model No |
Unit |
HYNC-450+ |
|
Diameter of saw blade |
mm |
450 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max.cutting size |
mm |
3500×2100 |
|
Max. cutting thickness |
mm |
95 |
|
Max. lifting stroke |
mm |
250 |
|
Power of main motor |
kw |
15 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×2770 |
|
Gross weight |
kg |
4000 |
Application Fields: 450mm blade 5 axis bridge saw
Feature walls, floor paving, kitchen and bathroom countertops, basin cutouts, door casings, window surrounds, custom furniture, stair treads, curved shaping, relief carving, etc.
Main Functions
1. Saw blade chamfering from 0° to 90°.
2. 360° rotation of the saw blade.
3. 85° tilting worktable.
4. Camera function for slab image capture and cutting path optimization.

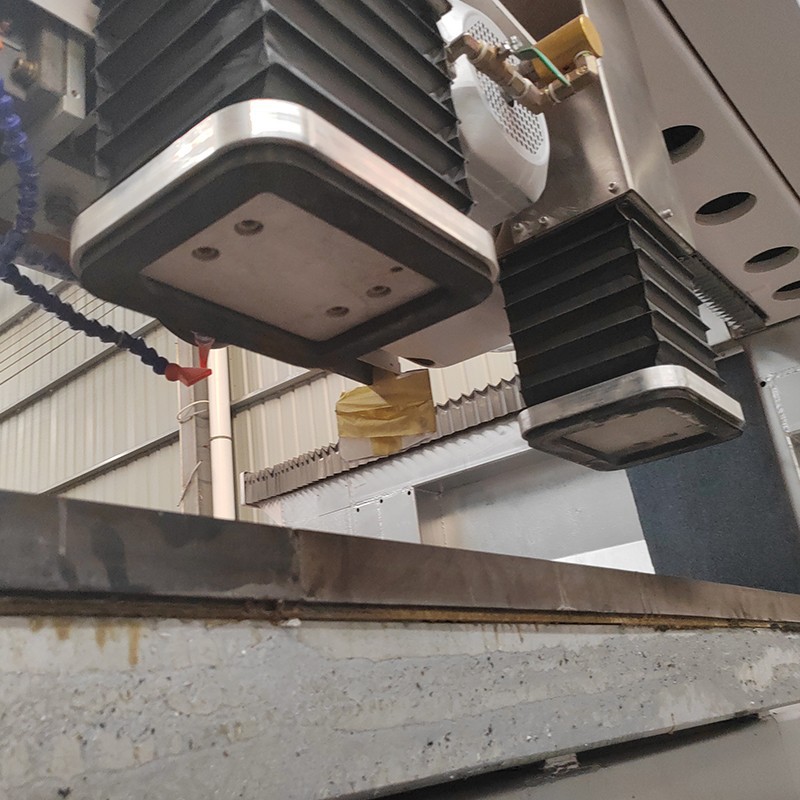

5. Vacuum suction cups to move stone slabs safely and stably.

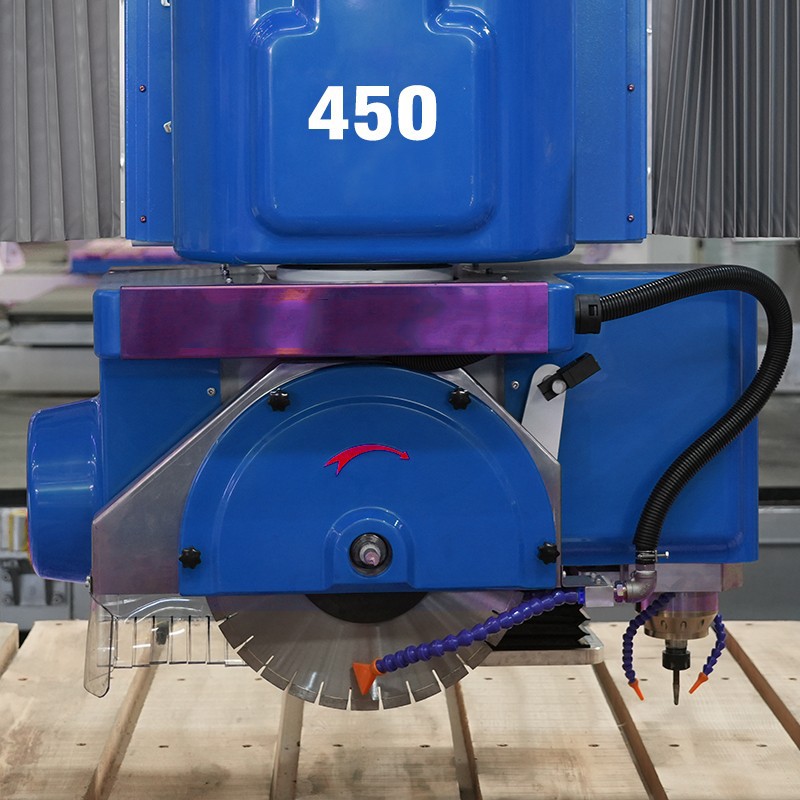

6. Independent electric spindle for drilling, milling, engraving and other processes.
Optional Functions
1. Saw blade diameter measurement
2. Slab thickness detection
3. Slab fixing device
4. Safety protection door
5. Seamless grain splicing
6. Please contact us for more customized functions
FAQ
Q: What control system does the machine adopt?
A: It is equipped with Italian ESA control system.
Q: Does the machine have CE certification?
A: Yes, the machine has obtained CE certification.
Q: Is customization available?
A: Yes, we support customized requirements.
Q: What is the delivery time?
A: Generally about 30 days after receiving the advance payment.
Q: What trade terms do you accept?
A: We support common trade terms such as FOB, EXW and CIF.
Q: How long is the warranty period?
A: The machine comes with a 12-month warranty.
Q: Do you provide on-site installation and training?
A: Yes, we provide on-site installation and operation training.
After-sales Service
* Our machines come with a 1-year full machine warranty. Free spare parts will be provided for non-human damage within the warranty period.
* We offer online remote assistance for overseas customers to resolve simple issues quickly.
* Overseas technician dispatch service is available, subject to prior communication and arrangement.
* Lifetime technical service is provided for all customers.
