Product Introduction

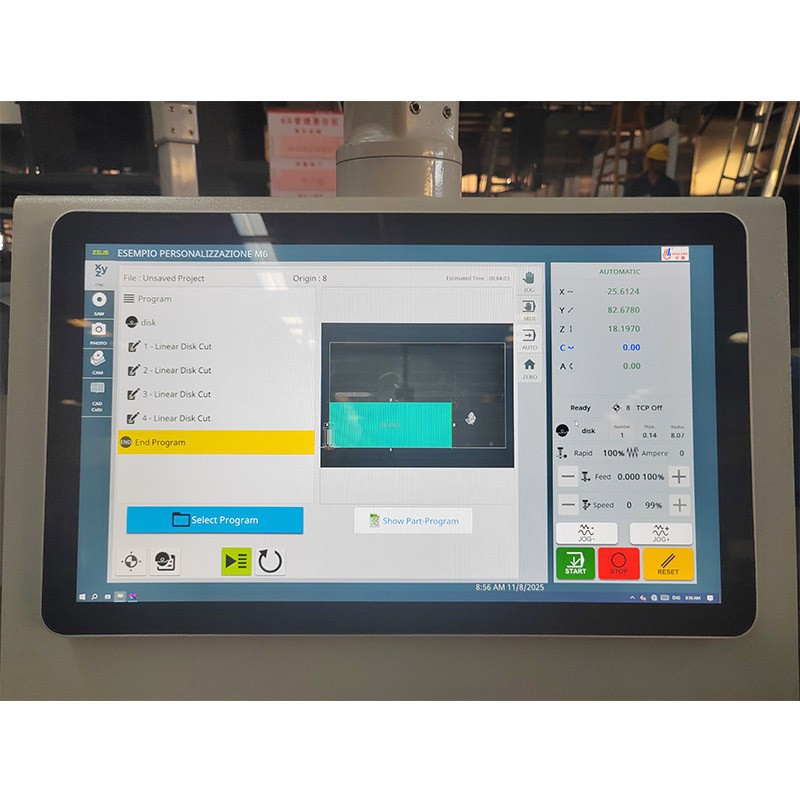

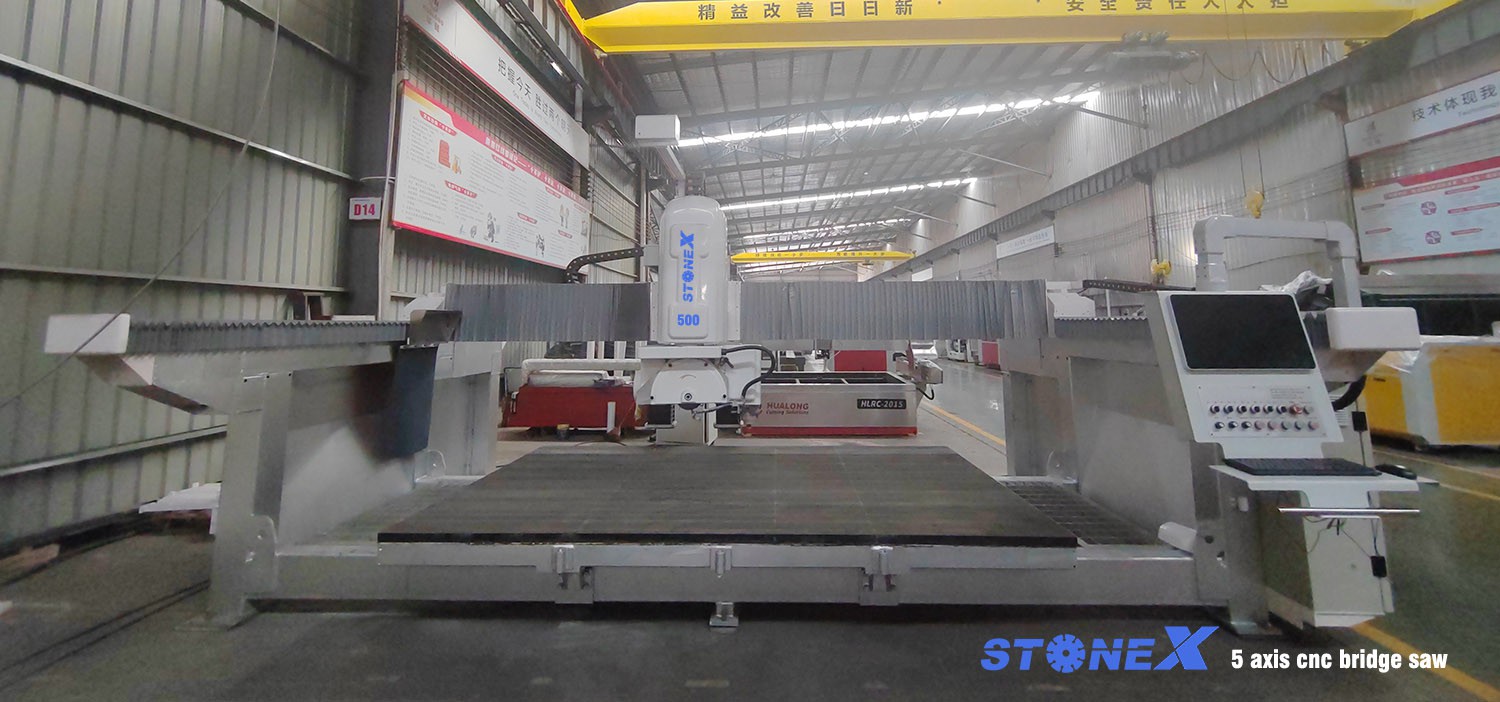

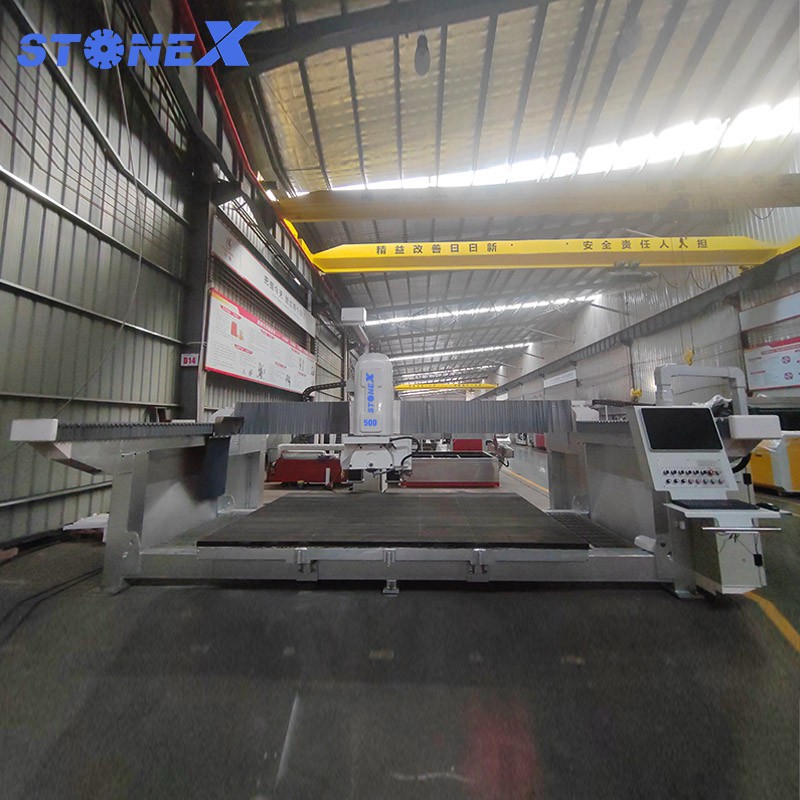

This Huayi stone 5 axis cnc saw is equipped with an Italian ESA control system, delivering high precision and high performance.

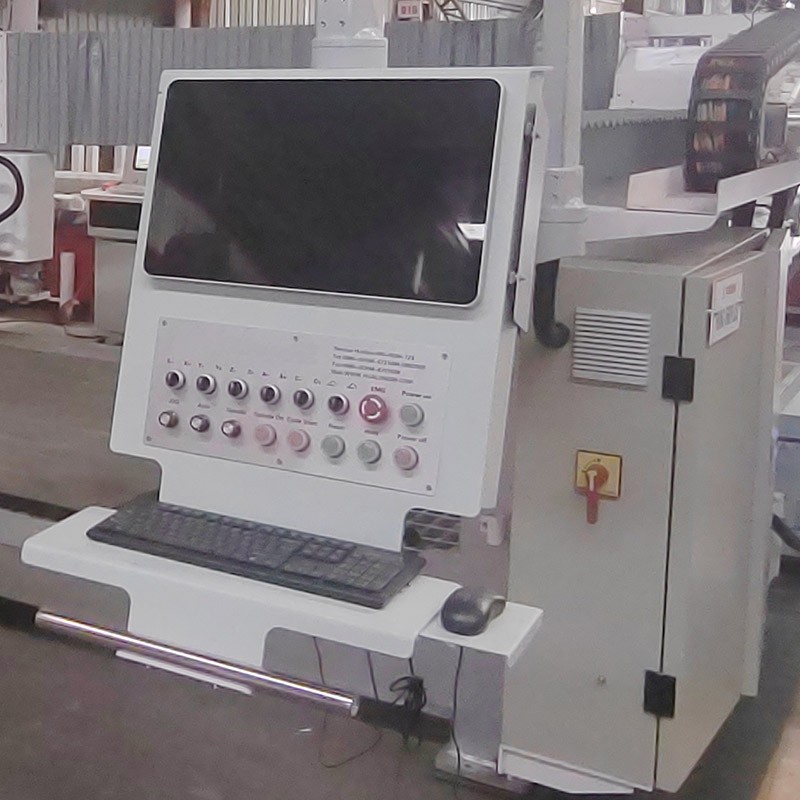

Combined with a large-size display screen, the machine is easy to operate.
It has passed CE certification to ensure operational safety and stable quality.
Equipped with an enlarged worktable of 3500* 2100mm, the whole machine body adopts galvanizing technology to prevent rusting and ensure long-term service life.
The main machine is fitted with a 18.8KW permanent magnet main motor, featuring high efficiency and energy saving.
Main Applications
It is suitable for cutting marble, granite, quartz stone, sintered stone, artificial stone and other materials.
It supports straight cutting, bevel cutting, polygon, arc, circle, special-shaped, curved surface and 3D shaping processing.
Product Application
Widely used for kitchen and bathroom countertops, wall decoration, feature walls, paving stones, stone tabletops, tea tables, bar counters, door casings, window casings, etc.
Technical Specifications
|
Model No |
Unit |
HYNC-500 PLUS |
|
Diameter of saw blade |
mm |
400-500 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.8 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5800 |
Machine Functions
* Camera function: Capture slab images and complete cutting path layout automatically.

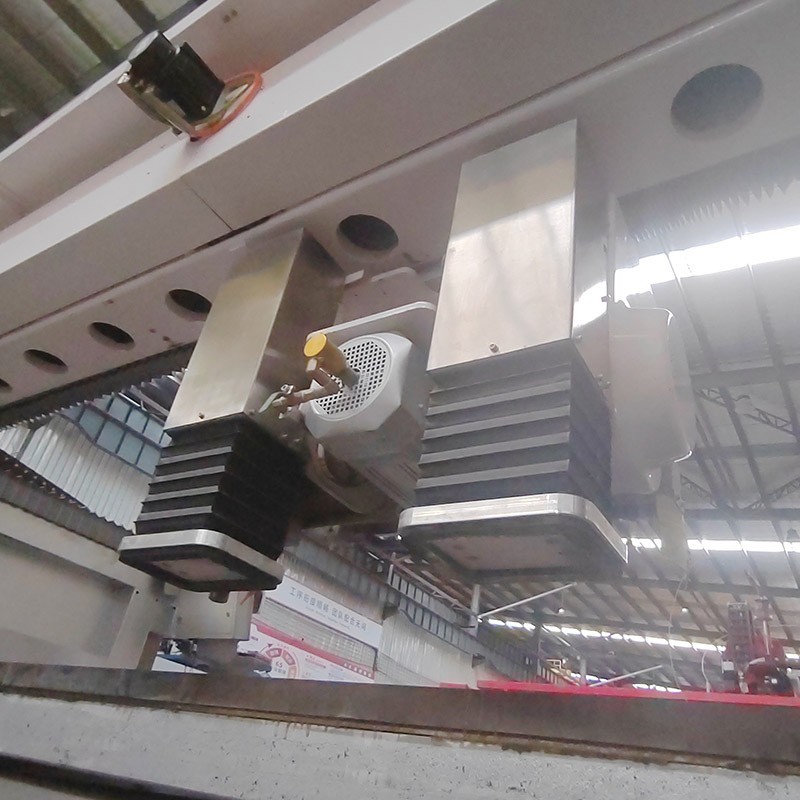

* Vacuum suction cups: Move cut stone slabs efficiently.

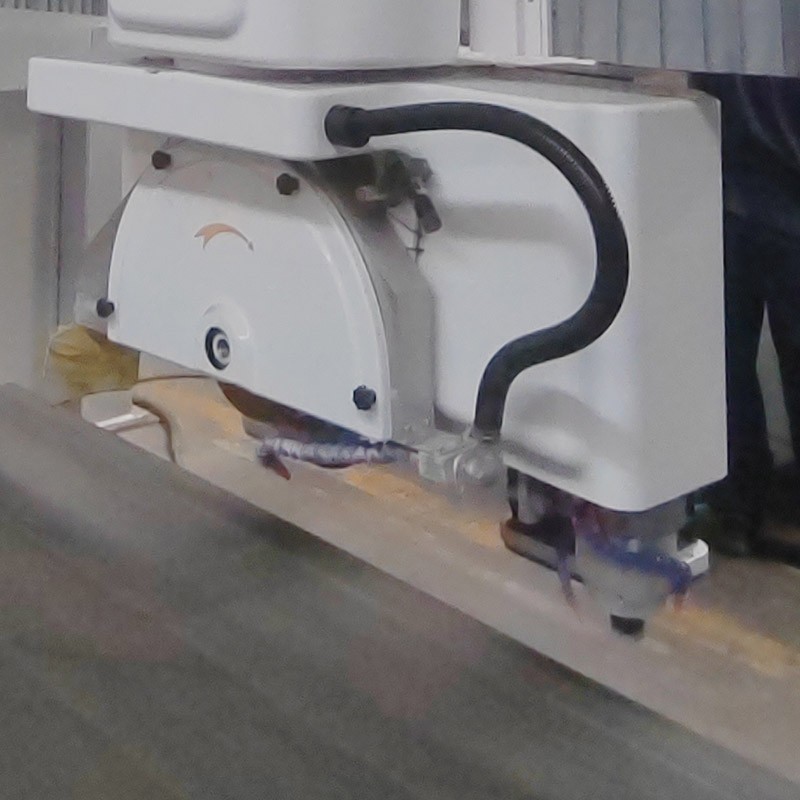

* Electric spindle: Complete milling, drilling and engraving tasks for stone slabs.
* Worktable: Tiltable up to 85°, facilitating slab loading.
Optional Functions & Configurations
* Saw blade measuring function
* Slab thickness detection function
* Automatic pressing plate function
* Stainless steel safety protection door
After-sales Service
* The machine is covered by a 12-month warranty period.
* Lifetime technical service is provided.
* 24/7 remote technical support is available.
* On-site technician dispatch service is optional.
