Product Introduction

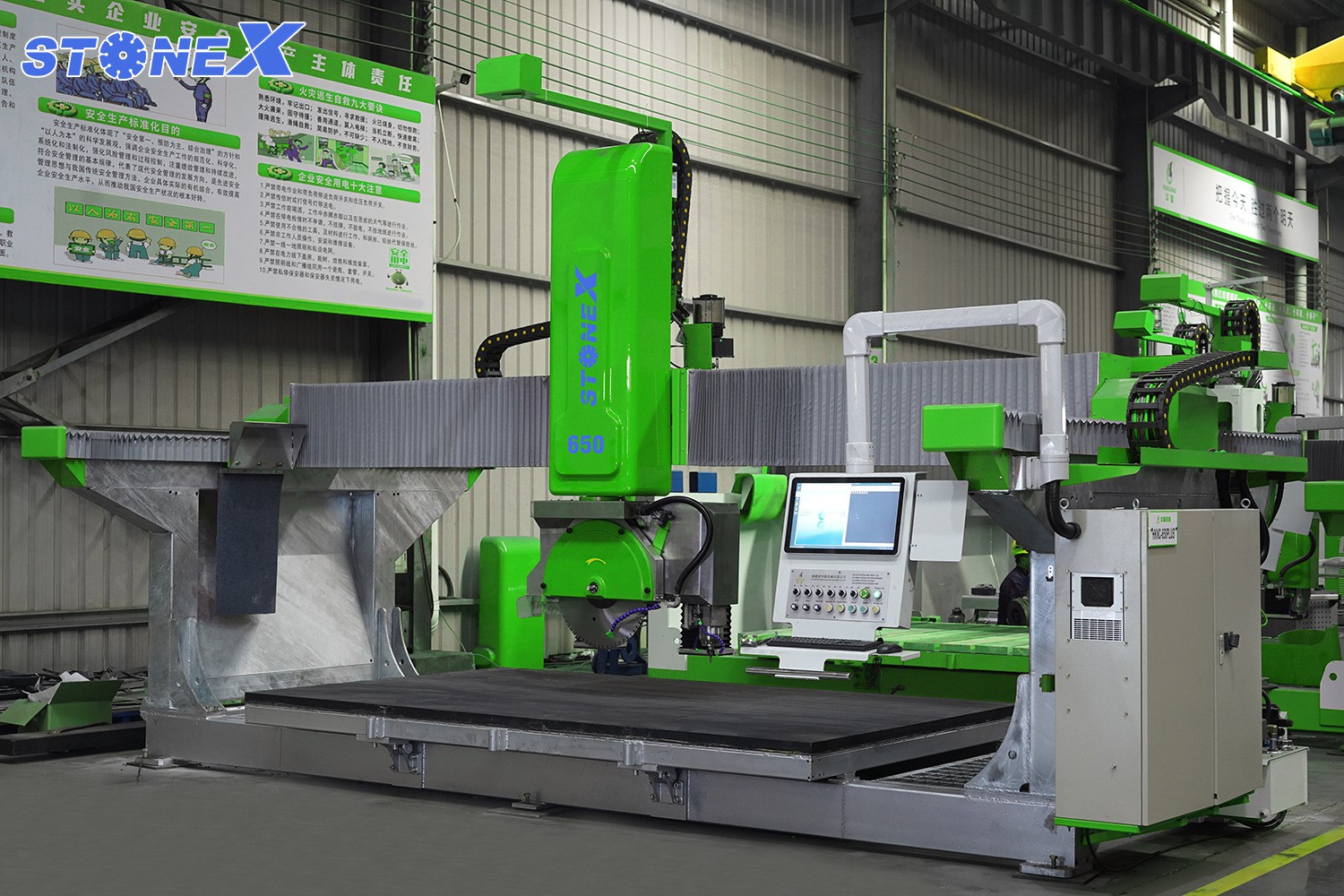

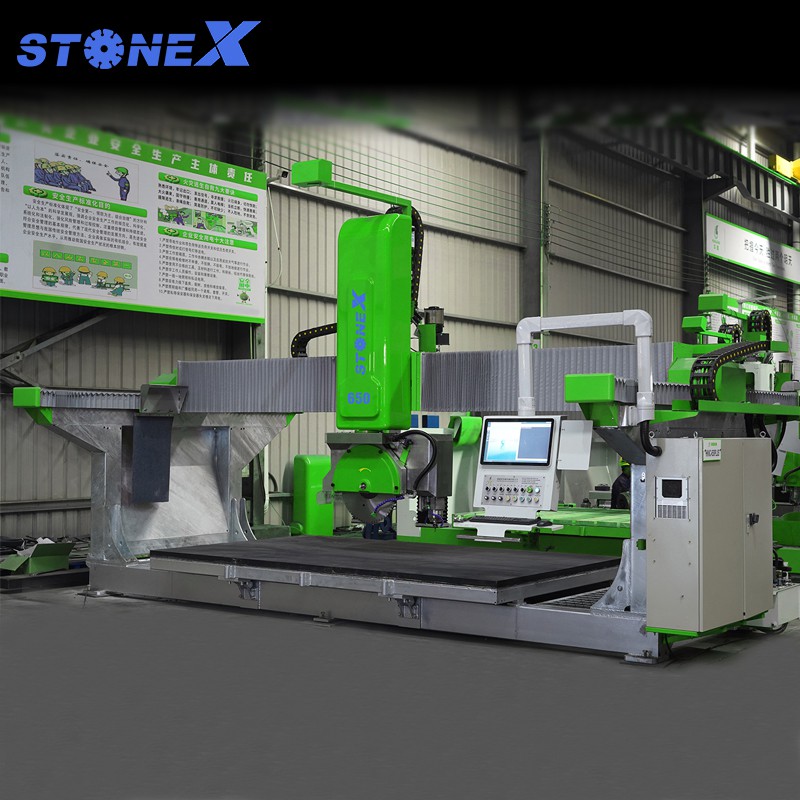

The Huayi HYNC650 is a stone 5 axis cnc cutting machine. Equipped with 5-axis linkage and an independent motorized spindle, it delivers high-efficiency processing for stone slabs.
It can efficiently complete complex machining such as sink cutouts for kitchen countertops, combining milling via the motorized spindle and saw blade cutting.

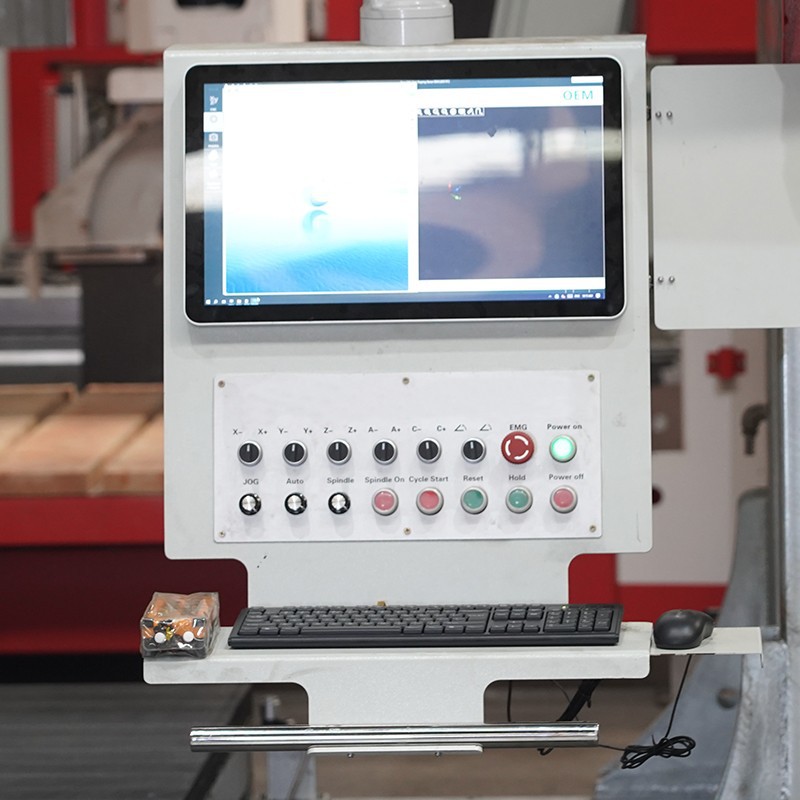

Adopting an Italian ESA control system, this machine is widely used for cutting marble, granite, sintered stone, quartz stone, artificial stone and other stone materials.
Main Functions
1. Camera: Used for slab image capture, it automatically optimizes and arranges cutting paths to reduce material loss.
2. Sucker: Moves slabs during cutting and transfers them to a safe position to prevent over-cutting.

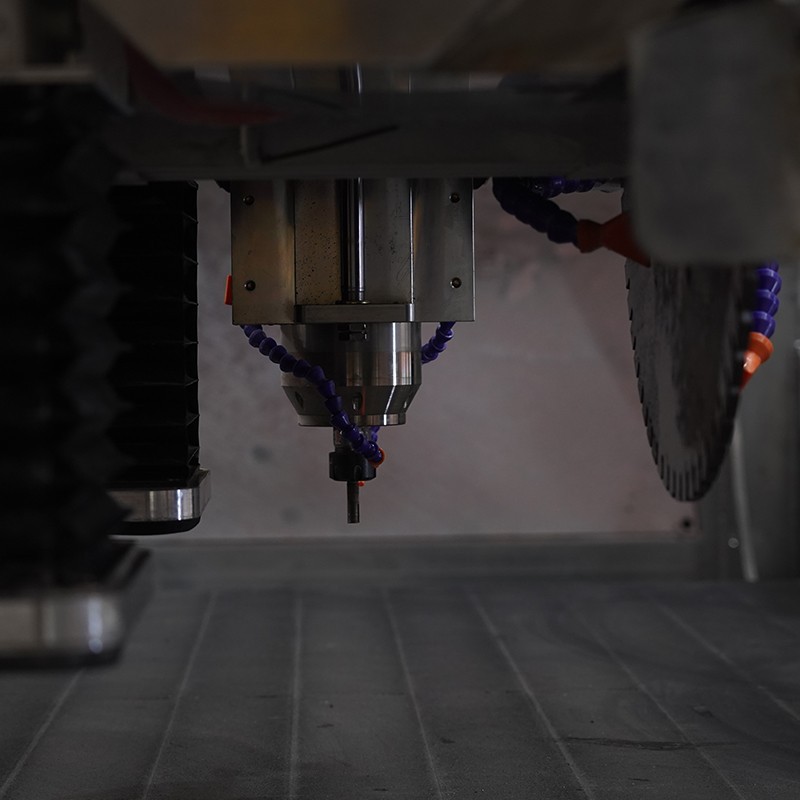

3. Independent electric spindle: Supports drilling, milling and engraving functions with upgraded performance and higher working efficiency.
4. Worktable tilts up to 85°.

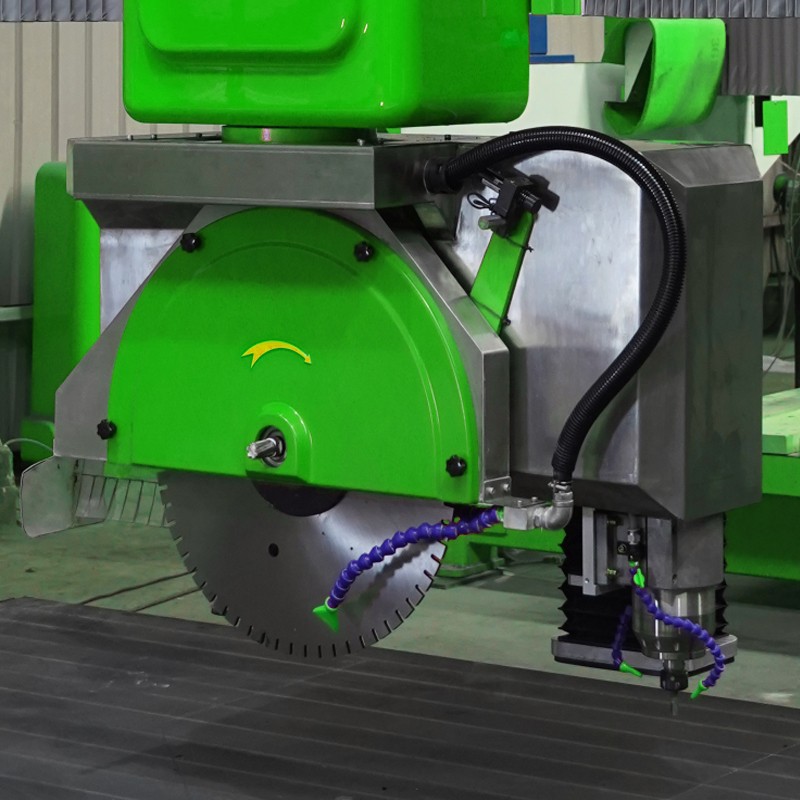

5. The cutting head features 360° rotation, enabling vertical cutting, horizontal cutting, bevel cutting, polygonal cutting, arc cutting and more.
6. The saw blade allows chamfer cutting at any angle from 0° to 90°.
7. 5-axis linkage realizes drilling, milling, curved surface processing, relief carving, 3D shaping and other complex machining.
Product Parameters
|
Name |
Unit |
HYNC-650 5+1 AXIS |
|
Diameter of saw balde |
mm |
Φ350-650 |
|
Dimensions of working platform |
mm |
3500×2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
200 |
|
Max. lifting stroke |
mm |
500 |
|
Max. lifting weight by vacuum |
kg |
200 |
|
Max. lifting weight by vacuum |
kw |
18.8 |
|
Power of cutter frame reciprocating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.15 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Gross power |
kw |
32.5 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (LxWxH) |
mm |
6250×3400×3700 |
|
Gross weight |
kg |
6200 |
Optional Configurations
1. Stainless steel safety protection door
2. Rubber worktable
3. Saw blade linear measuring instrument
4. Slab thickness measuring instrument
FAQ
Q: Do you have other models?
A: Yes. Our 5-axis bridge saw models include 450, 500, 560, 650, 825 and more.
Q: Is the overall structure stable?
A: Adopting cast iron beam and hot-dip galvanized body technology, it ensures high equipment stability and long service life.
Q: Does the machine have CE certification?
A: Yes, the equipment has obtained CE certification.
Q: What is the warranty period?
A: We provide a 1-year warranty for the machine.
Q: Do you offer on-site installation for overseas customers?
A: Yes, we provide overseas on-site installation service.
Q: Is technical training available?
A: Yes, we offer lifelong technical support.
Afer-sales Service
1. All machines are covered by a 12-month warranty. Free spare parts will be provided for non-artificial damage within the warranty period.
2. On-site installation and technical training services are available.
3. Online remote support and assistance are provided.
4. Professional technicians can be dispatched to provide door-to-door on-site services.
