Product Introduction

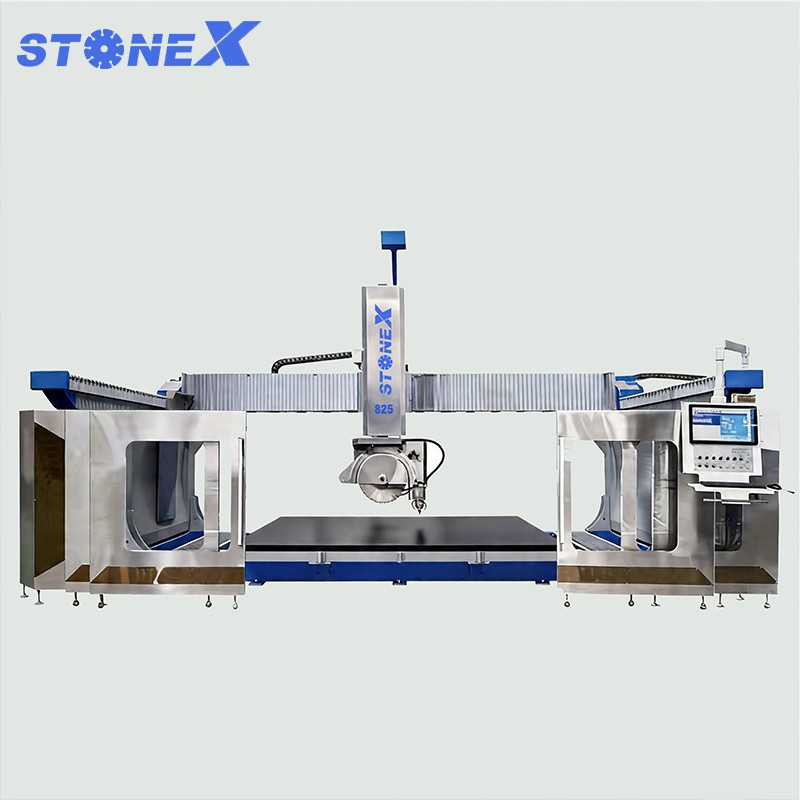

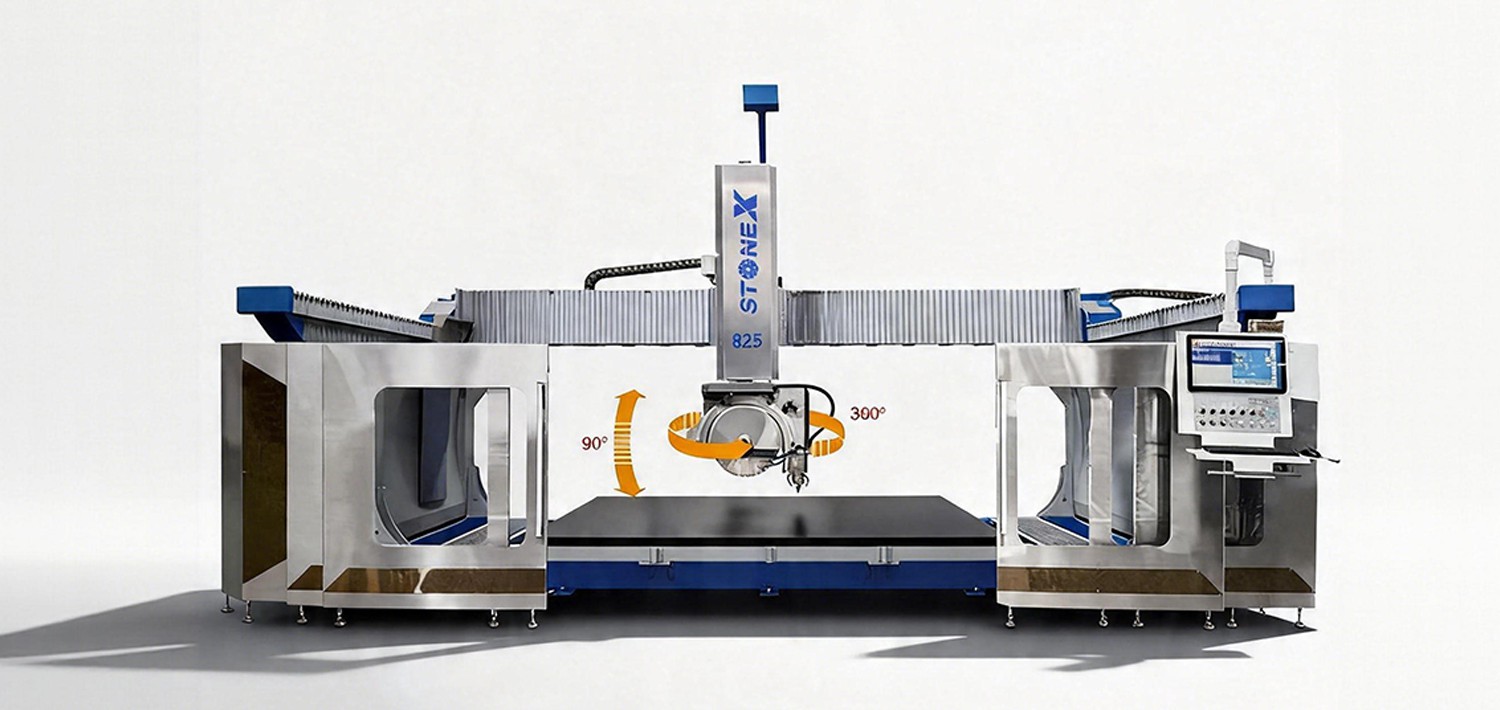

The Huayi HYNC825 cnc 5 axis bridge saw machine is equipped with an Italian ESA control system, featuring high precision and stable operation. It adopts a permanent magnet main motor to reduce energy consumption and improve efficiency.
This machine is widely applicable for processing background walls, kitchen and bathroom countertops, paving stones, exterior wall dry-hanging stones, as well as special-shaped cutting, 3D shaping and stone engraving.
With EU CE certification, it comes with a 3500×2100mm worktable, enabling the processing of extra-large stone slabs. It is an ideal equipment for stone processing factories.
Product Parameters
|
Name |
Unit |
HYNC-825 5+1 |
|
Diameter of saw blade |
mm |
Φ500-825 |
|
Dimensions of working platform |
mm |
3500 × 2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
280 |
|
Max. lifting stroke |
mm |
550 |
|
Power of main motor |
kw |
26.4 |
|
Power of retractable electro spindle |
kw |
5.5 |
|
Power of cutter frame reciprocating motor |
kw |
1.6 |
|
Power of crossbeam shifting motor |
kw |
1.3 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
1.3 |
|
Gross power |
kw |
40.3 |
|
Water consumption |
m³/h |
2 |
|
Dimensions |
mm |
6800 × 3400 × 3900 |
|
Gross weight |
kg |
7200 |
Main Functions

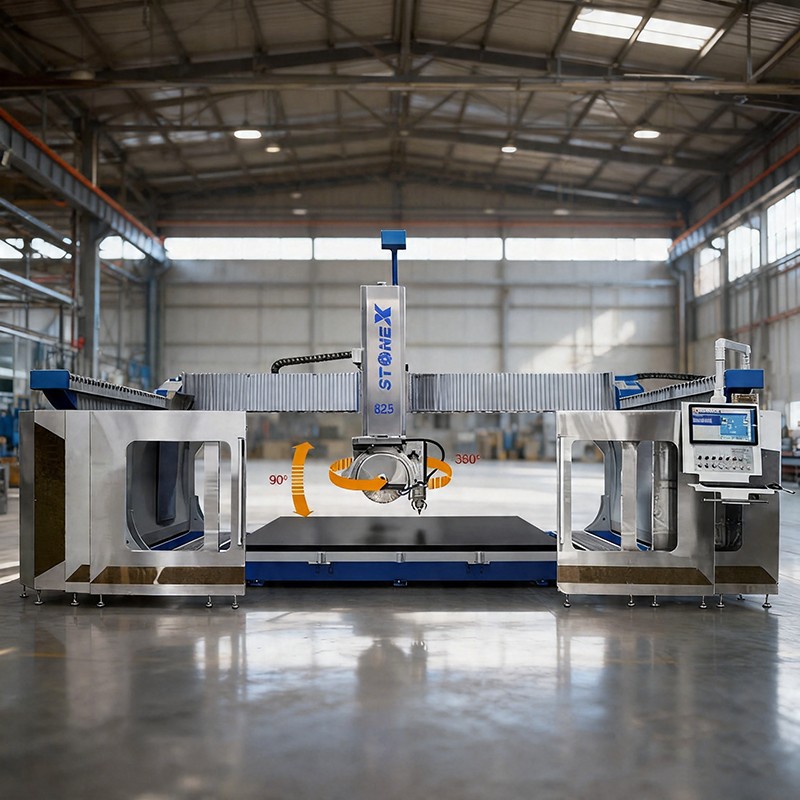

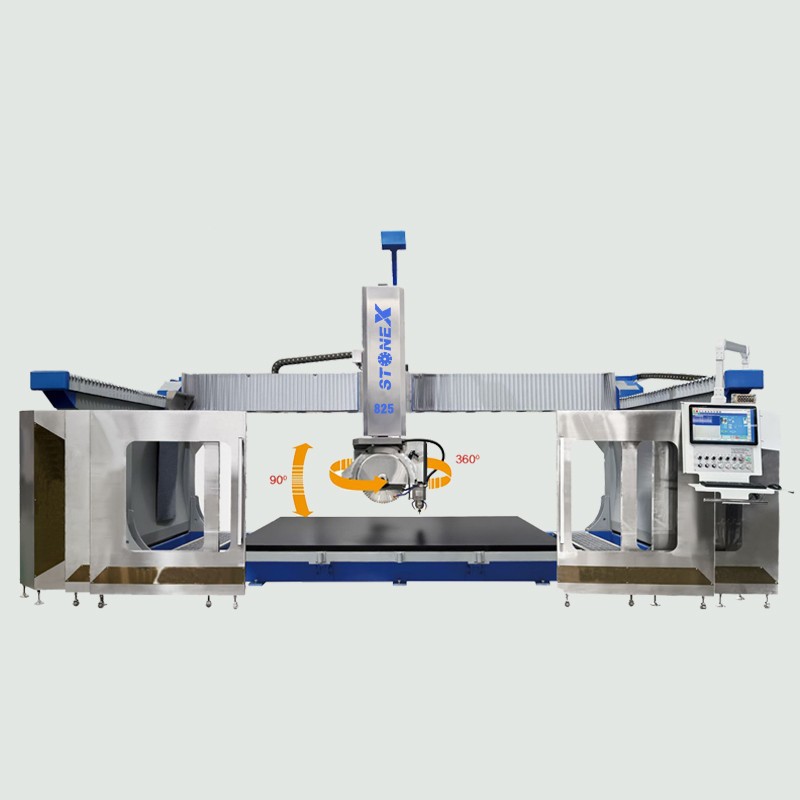

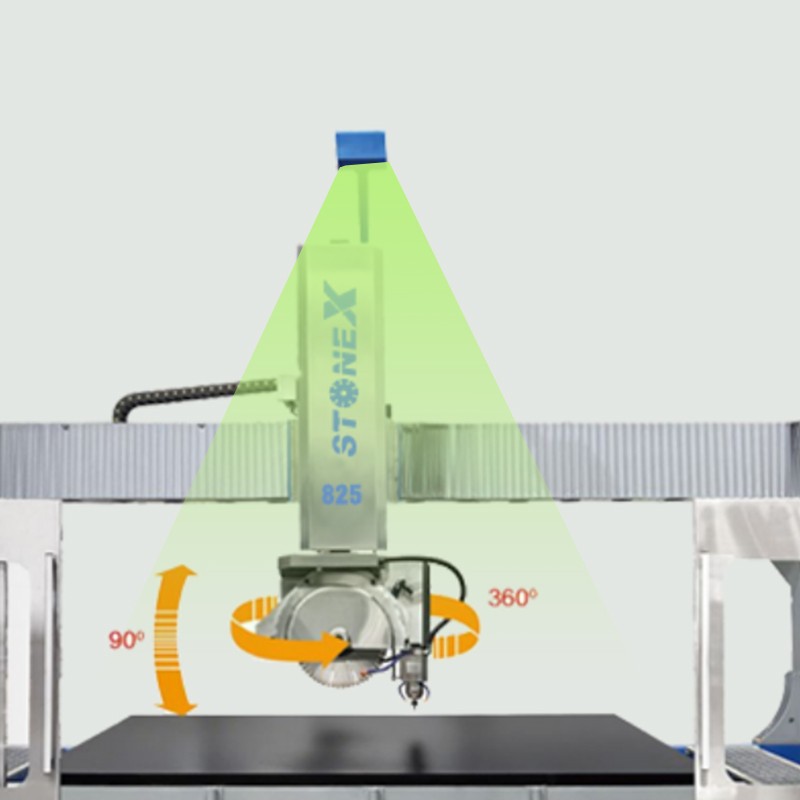

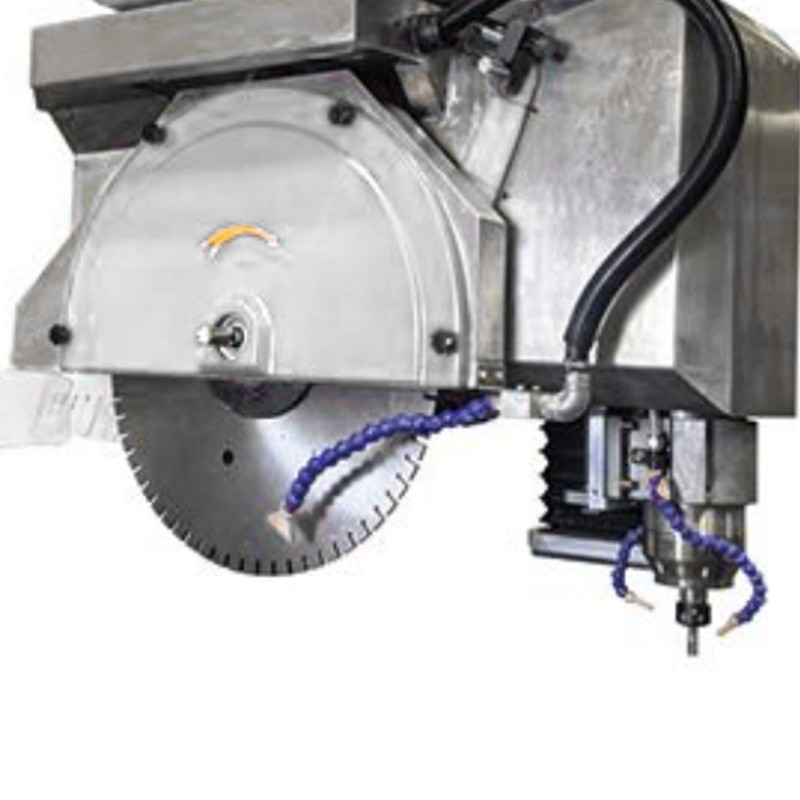

1. The cutting head supports 360° rotation, enabling vertical cutting, horizontal cutting, bevel cutting, arc cutting, fan-shaped cutting and circular cutting.
2. The saw blade can perform chamfering at any angle from 0° to 90°.
3. Equipped with a camera shooting function to capture stone slab images and optimize the layout of cutting paths.
4. Vacuum sucker device for safe and stable moving of stone slabs.
5. The worktable is capable of tilting up to 85°.
Equipment Advantages
1. Cast iron beam structure, high stability and long service life.
2. Hot-dip galvanized treatment for superior surface protection and extended service life.
3. Equipped with ESA control system and digital servo motors.
4. Core electrical components adopt first-tier brands such as Siemens and Schneider.
Optional Configuration
1. Saw blade diameter measuring instrument
2. Slab thickness measuring instrument
3. Stainless steel protective door
4. Rubber worktable
FAQ
Q: Does the machine have CE certification?
A: Yes, the machine has obtained CE certification and complies with EU safety and quality standards.
Q: What control system does the machine adopt?
A: It is equipped with the Italian ESA control system.
Q: What brands are used for the core electrical components?
A: The core electrical components are all sourced from world-renowned first-tier brands, including Siemens and Schneider.
Q: Is OEM labeling available?
A: Yes, we support OEM private labeling service.
Q: What is the delivery lead time?
A: The production cycle is about 30 working days after receiving the advance payment, subject to different models and configurations.
Q: How long is the equipment warranty period?
A: We provide a 12-month warranty for all machines.
Q: Do you provide overseas on-site installation and operation training?
A: Yes, we offer overseas on-site installation and professional operation training services.
After-sales Service
1. All machines come with a 1-year warranty. Free replacement parts are provided for non-artificial damage within the warranty period.
2. Lifetime technical support is available.
3. We offer online technical consultation and remote technical services.
4. On-site technician dispatch service is provided.
