CNC Stone Saw

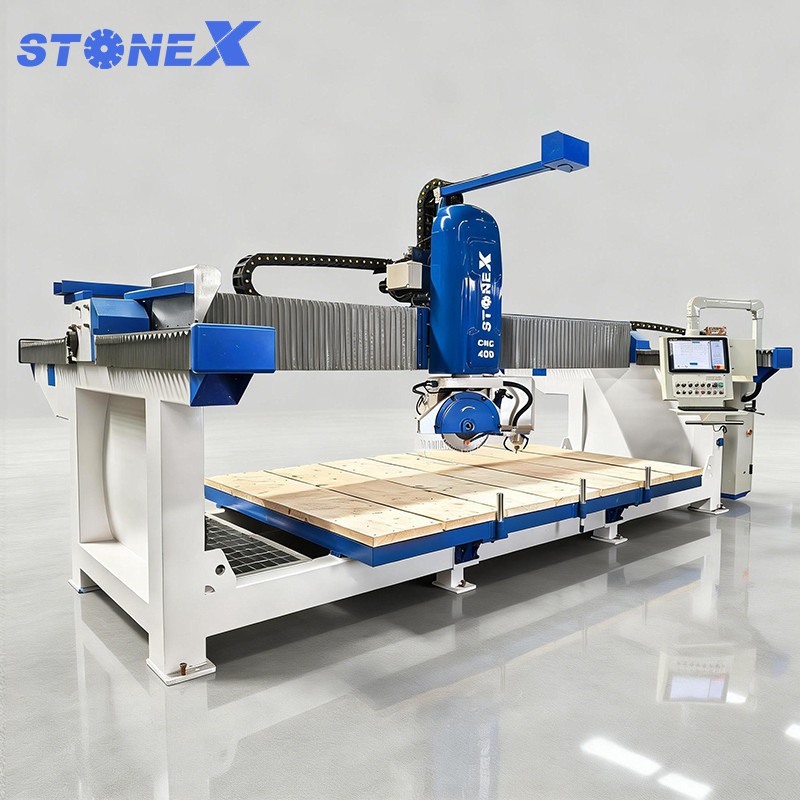

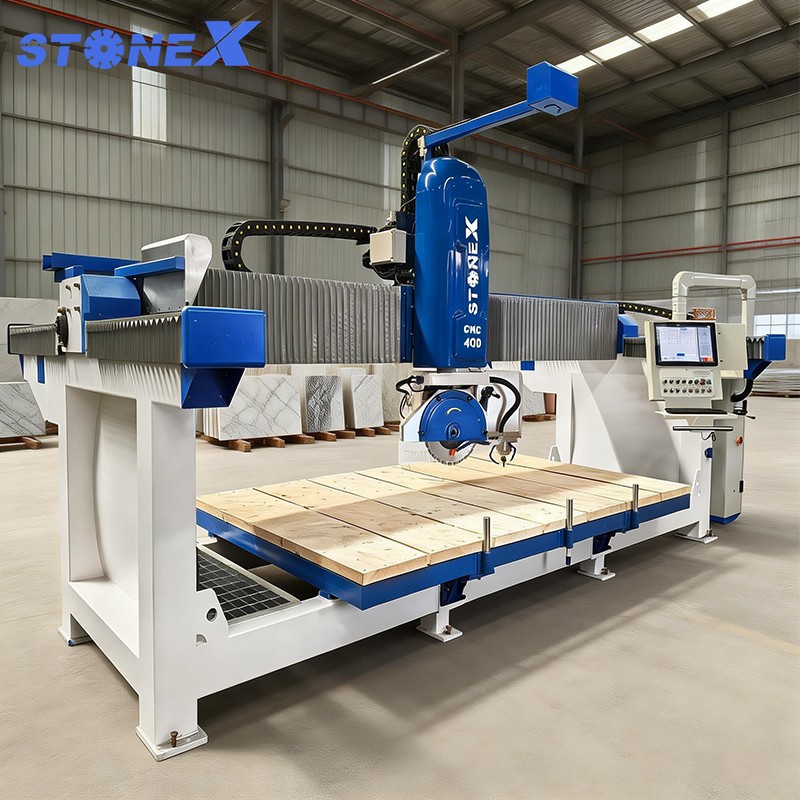

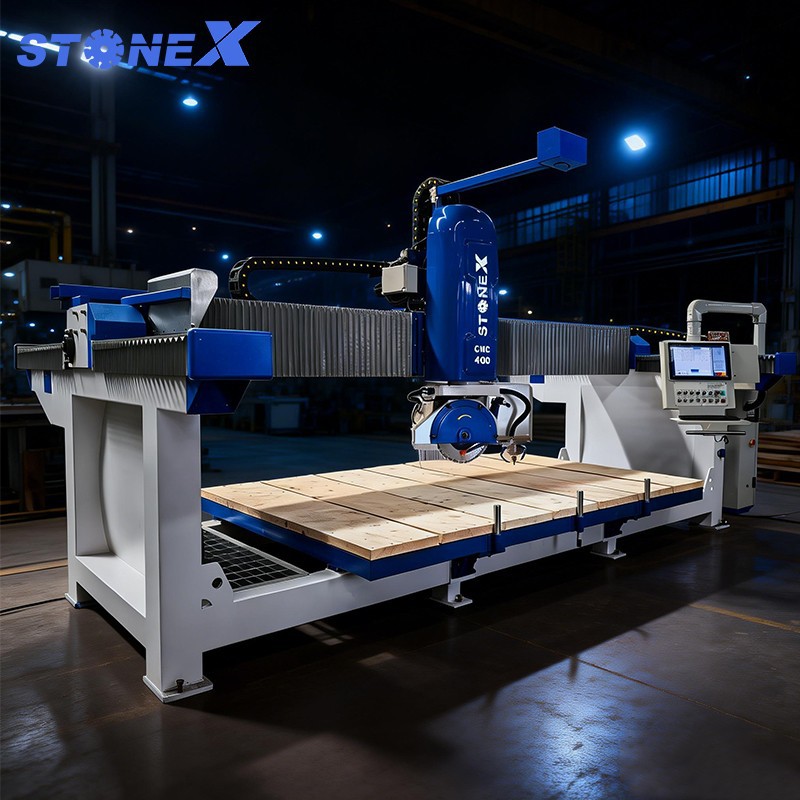

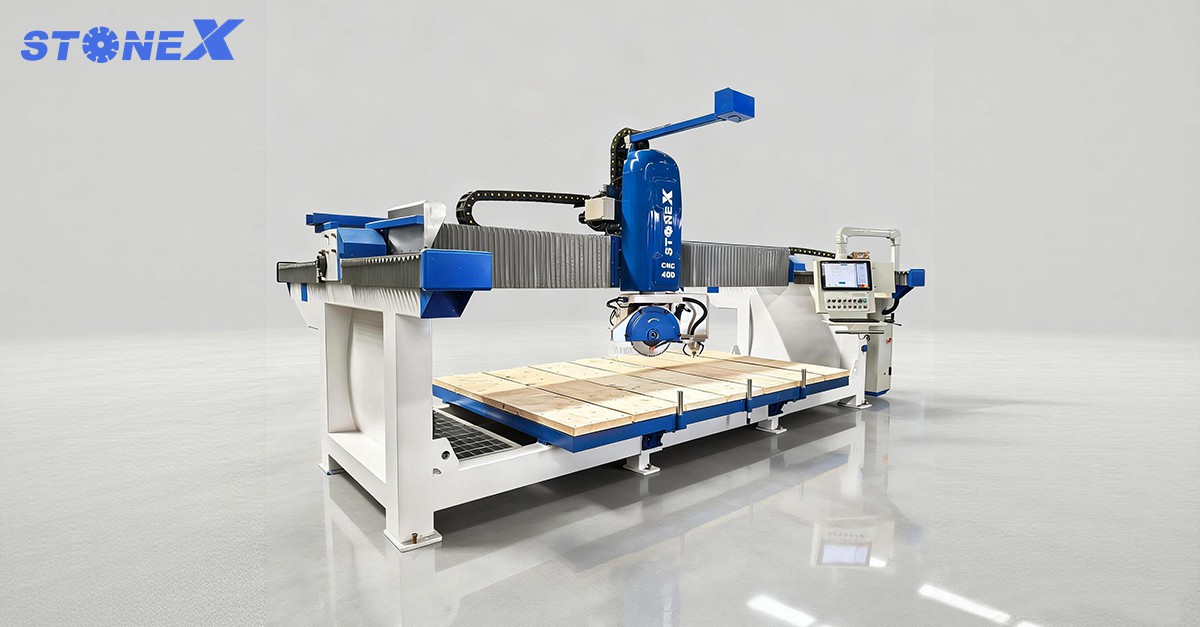

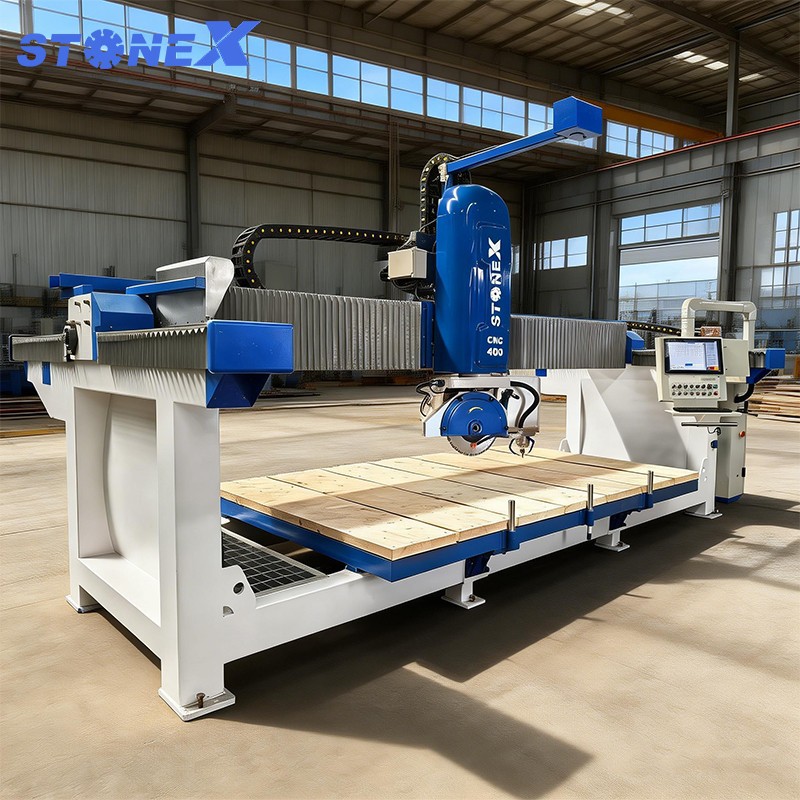

CNC-400 Model 4+1 Axis Fully Automatic CNC Stone Saw. This stone CNC bridge saw is mainly used for processing marble, granite, slabs, quartz, and other materials. Its basic cutting functions include: horizontal cutting, vertical cutting, inclined cutting, 45-degree chamfer cutting, polygon, rhombus, circle, arc, etc., featuring strong cutting capabilities. It is also equipped with an independent electric spindle for milling, hole processing, and other operations.
The CNC stone saw uses the Italian ESA brand CNC system, with a touch screen display, supporting the import of CAD drawings to generate tool paths.
|
Name |
Unit |
CNC-400 4+1 |
|
Diameter of saw blade |
mm |
Φ350-400 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
70 |
|
Max. lifting stroke |
mm |
300 |
|
Power of main motor |
kw |
18.5 |
|
Power of electro-spinele |
kw |
5.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×3000 |
|
Gross weight |
kg |
5400 |
