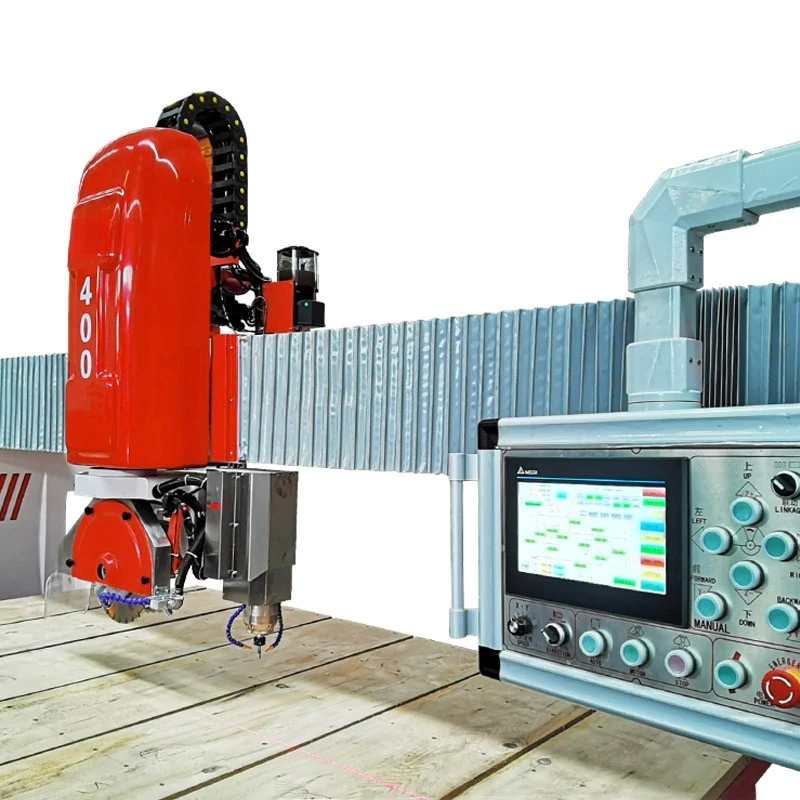

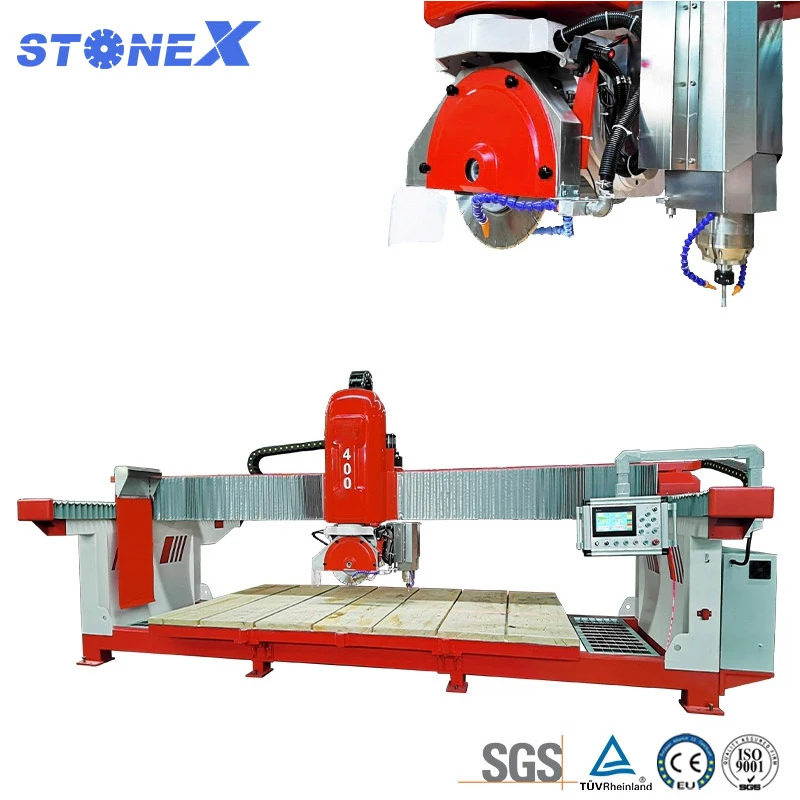

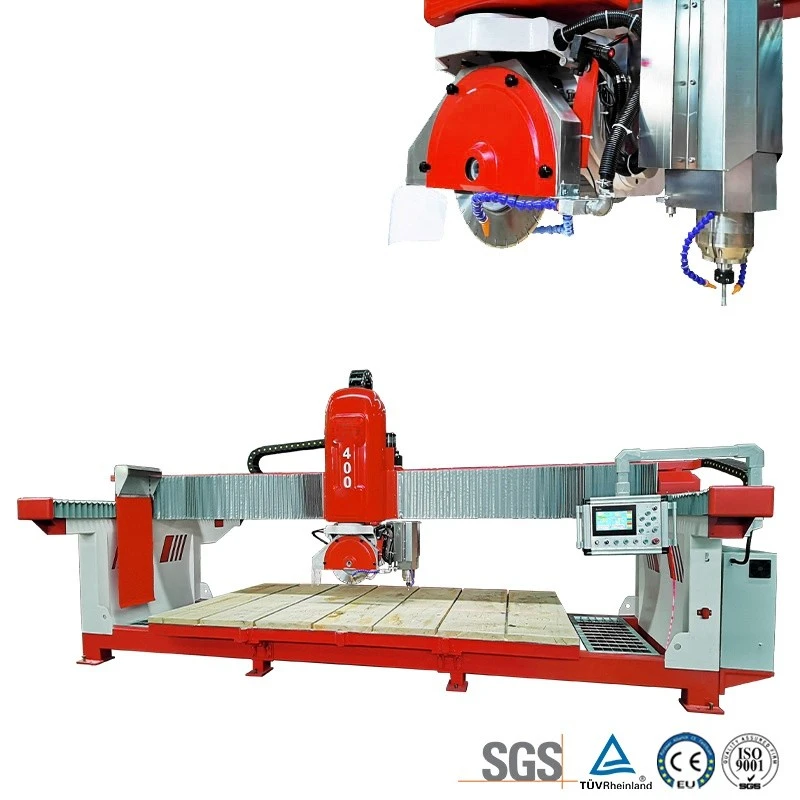

4+1 Axis Marble Granite Cutting Machine

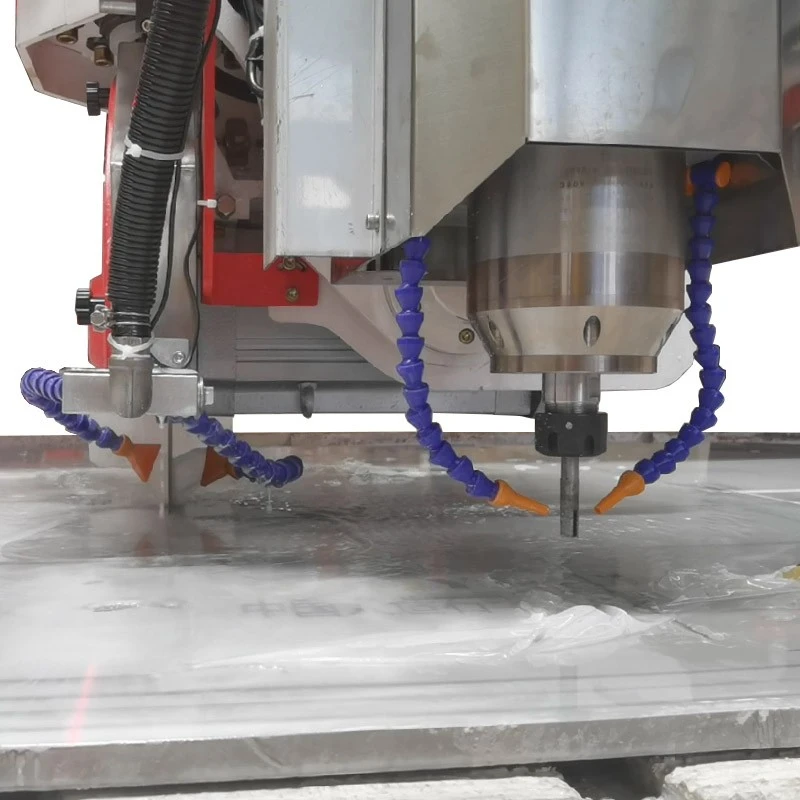

Huayi HLSQ-400 Plus Stone bridge saw with PLC controlled head rotation, is a 4-axis mono-block bridge sawing marble granite cutting machine with router, easy to perform any types of straight and curve cutting, surface profiling and shaping withblade shoulder, round, ellipse and corner cutting with router. it allow you to input module data simply through touchinghuman-machine interface, with no programming required. The operation is easy and intuitive.

An infrared bridge stone cutting machine is a type of cutting machine that is commonly used in the stone industry to cut and shapenatural stone slabs. lt uses infrared technology to guide the cutting process, allowing for precise and efficient cuts.

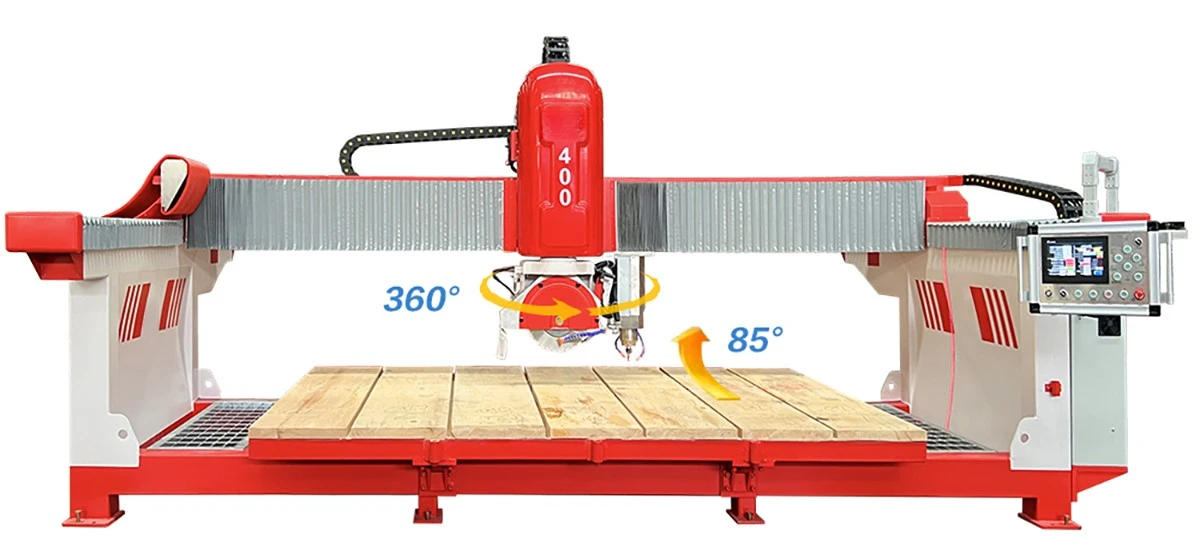

1) 0°- 360° automatic head rotatation and blade positioning.

2) 45° blade tilt auto for mitre cut.

3) Worktable can tilt 0-85°, easy for slab loading.

4) Pre-loaded parametic figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc.

5) The marble granite cutting machine adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning(Omron brand encoder)

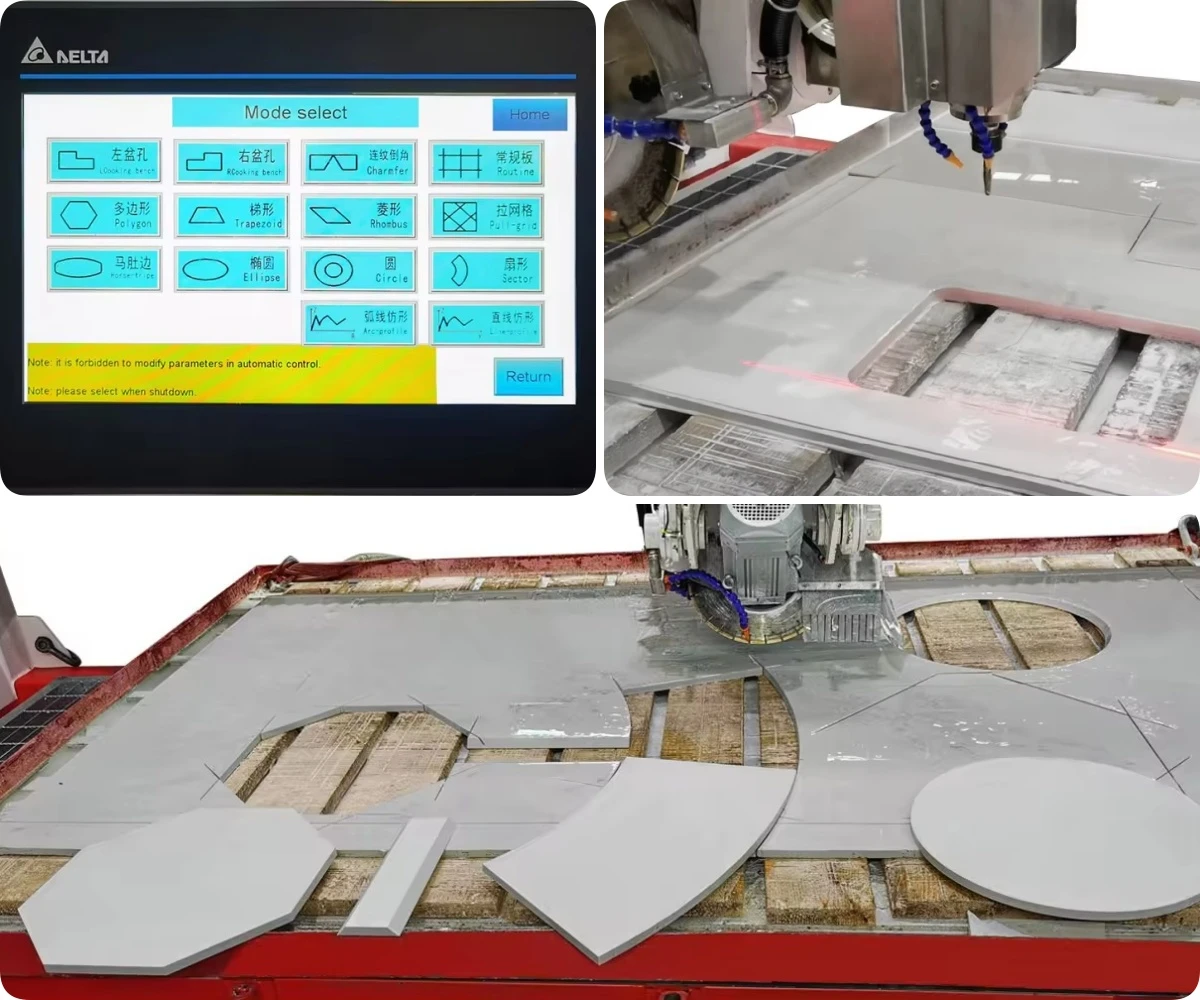

Cutting Mode:

1) Left cooking bench, Right cooking bench

2) Chamfer, Routine

3) Polygon, Trapezoid, Rhombus, Pull-grid

4) Horse-tripe, Ellipse, Circle, sector

5) Optional--Line-Profile, Arc-Profile

We provide skilled and richly experienced technicians for installation and after-sales service.
