Product Introduction

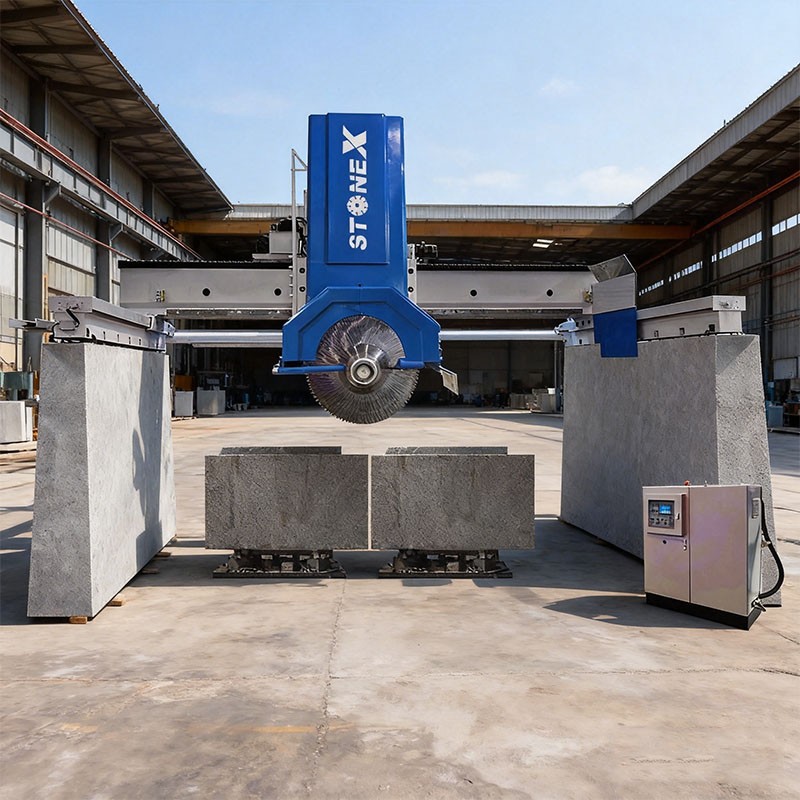

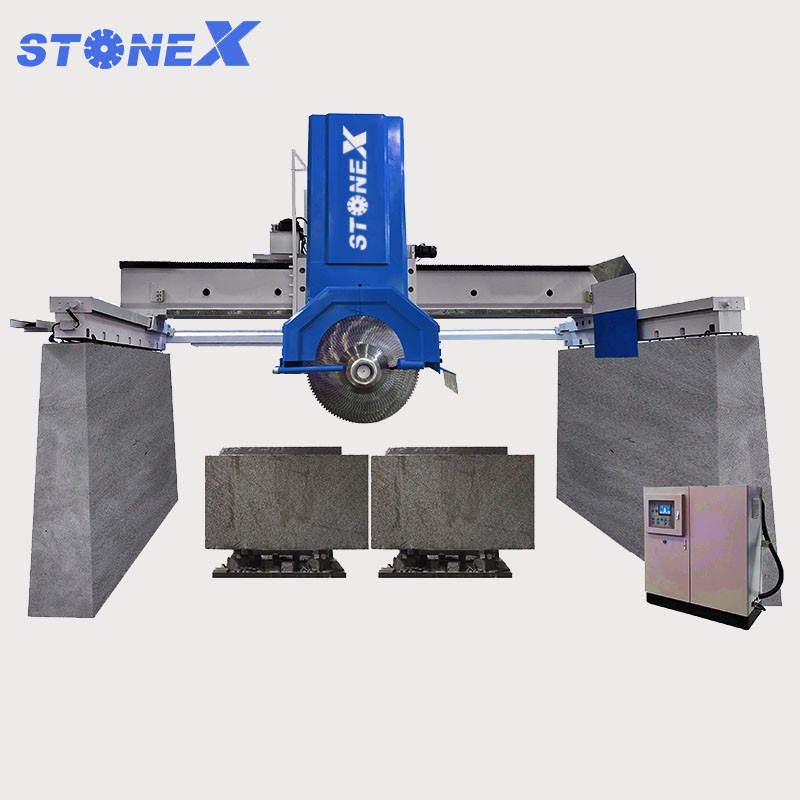

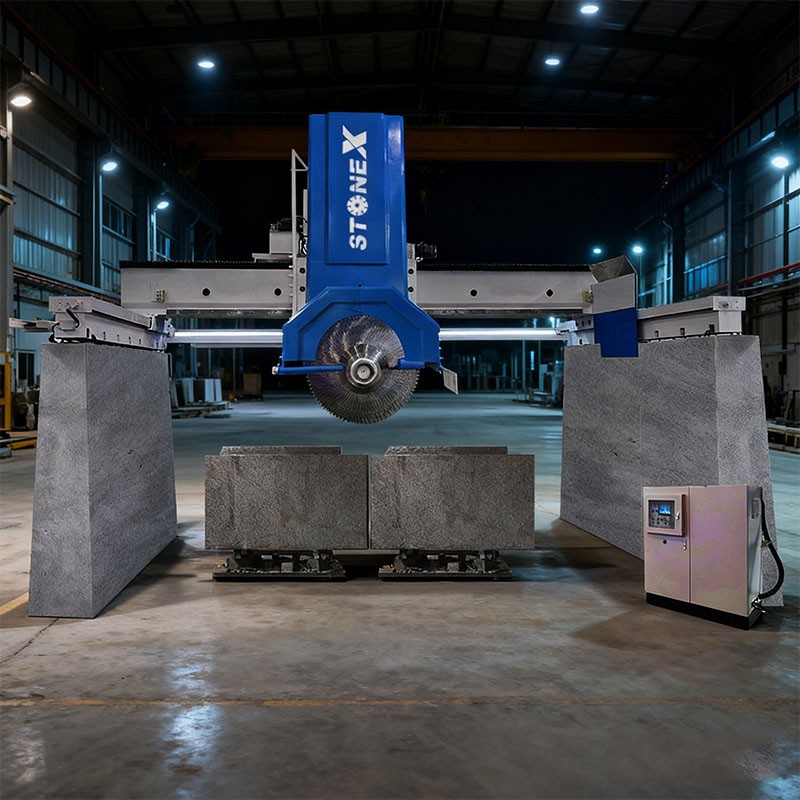

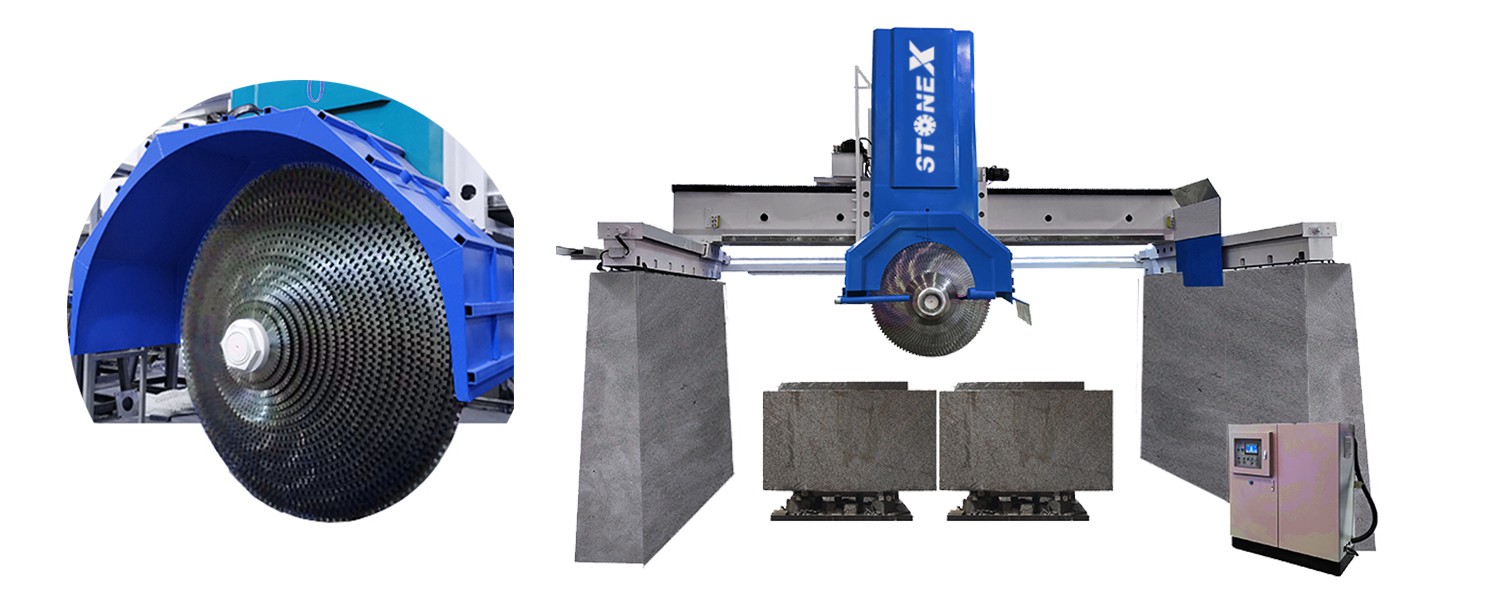

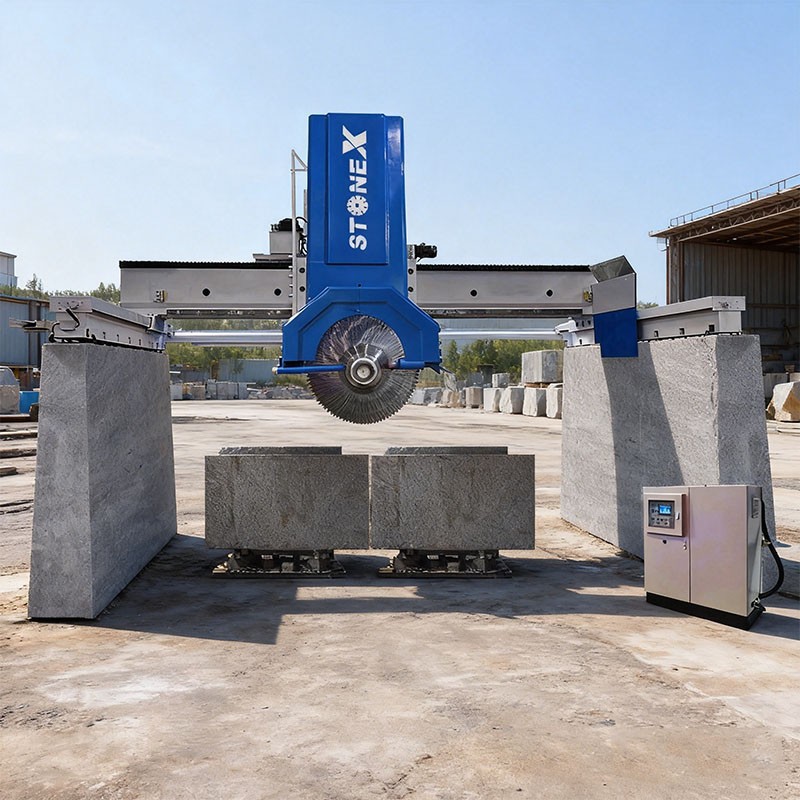

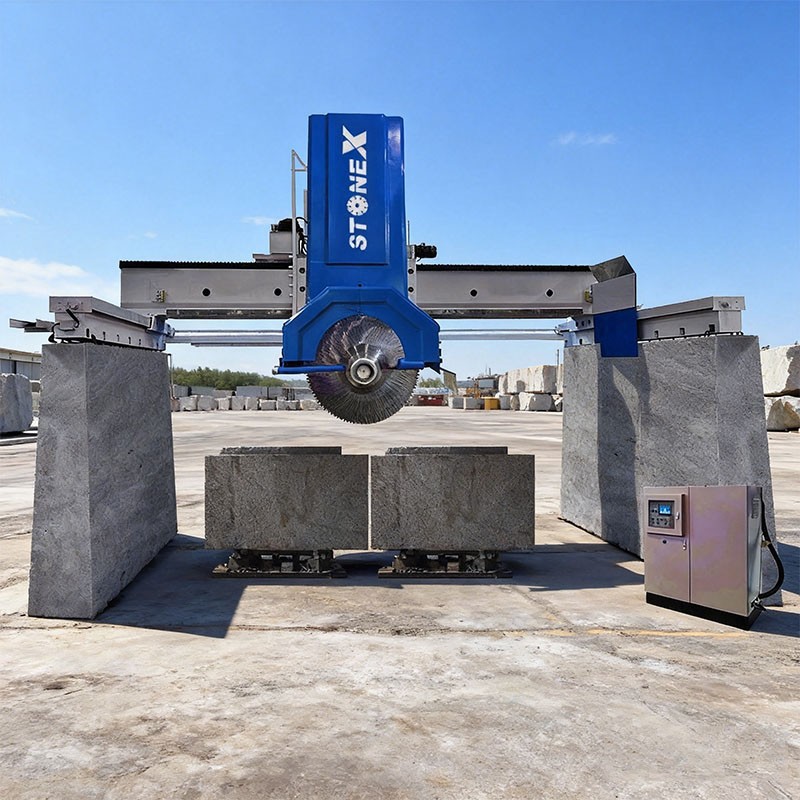

Huayi HYQY-26-1700 stone multi blade cutting machine adopts a PLC control system. It can be equipped with a saw blade with a maximum diameter of 3000 mm, and can hold 9 pieces, 15 pieces or more blocks for simultaneous cutting. With 6 guide columns, the machine features a stable structure. It uses Siemens electrical components to ensure more stable operation.
The machine is mainly used for cutting stone blocks such as marble, granite, limestone and sandstone. Its advantage is that it can cut stone blocks into thin slabs of 20 mm and 30 mm in one pass. It is also suitable for cutting stones for curb stones and tombstone stones.
Product Parameters
|
Name |
Unit |
HYQY-26-1700 |
|
Main motor power |
kw |
110 / 132 / 160 |
|
Max. blade diameter |
mm |
1700–3000 |
|
Cross-beam length |
mm |
8400 / 9800 / 10500 |
|
Longitudinal beam length |
mm |
5700 / 7000 / 10000 |
|
Lifting stroke |
mm |
1500 |
|
Power of pump motor |
kw |
9.2 |
|
Power of stroke motor |
kw |
4 |
|
Power of vertical motor |
kw |
3 |
|
Gross power |
kw |
130 / 150 / 180 |
|
Gross weight |
kg |
33000 (35500) |
|
Dimensions (L×W×H) |
mm |
10956×10600×4843 |
FAQ
Q: What control system does the machine adopt?
A: It adopts a PLC control system.
Q: Does the machine have CE certification?
A: Yes, the machine is CE certified.
Q: Does the machine support customization?
A: Yes, we support customization.
Q: How long is the production cycle?
A: About 30–40 days after receiving the advance payment.
Q: How long is the after-sales warranty period?
A: We provide a 12-month warranty period.
Q: Do you support overseas on-site installation and training?
A: Yes, we provide overseas on-site installation and operation training.
Q: What trade terms are supported?
A: Common terms such as FOB, EXW and CIF are supported.
After-sales Service
* We provide a 12-month warranty for our equipment. Free spare parts will be offered for non-artificial damage within the warranty period.
* We offer lifetime technical support to customers.
* A dedicated after-sales service group will be created for customers to communicate and solve problems quickly.
* Technician dispatch service is available.
