Product Introduction

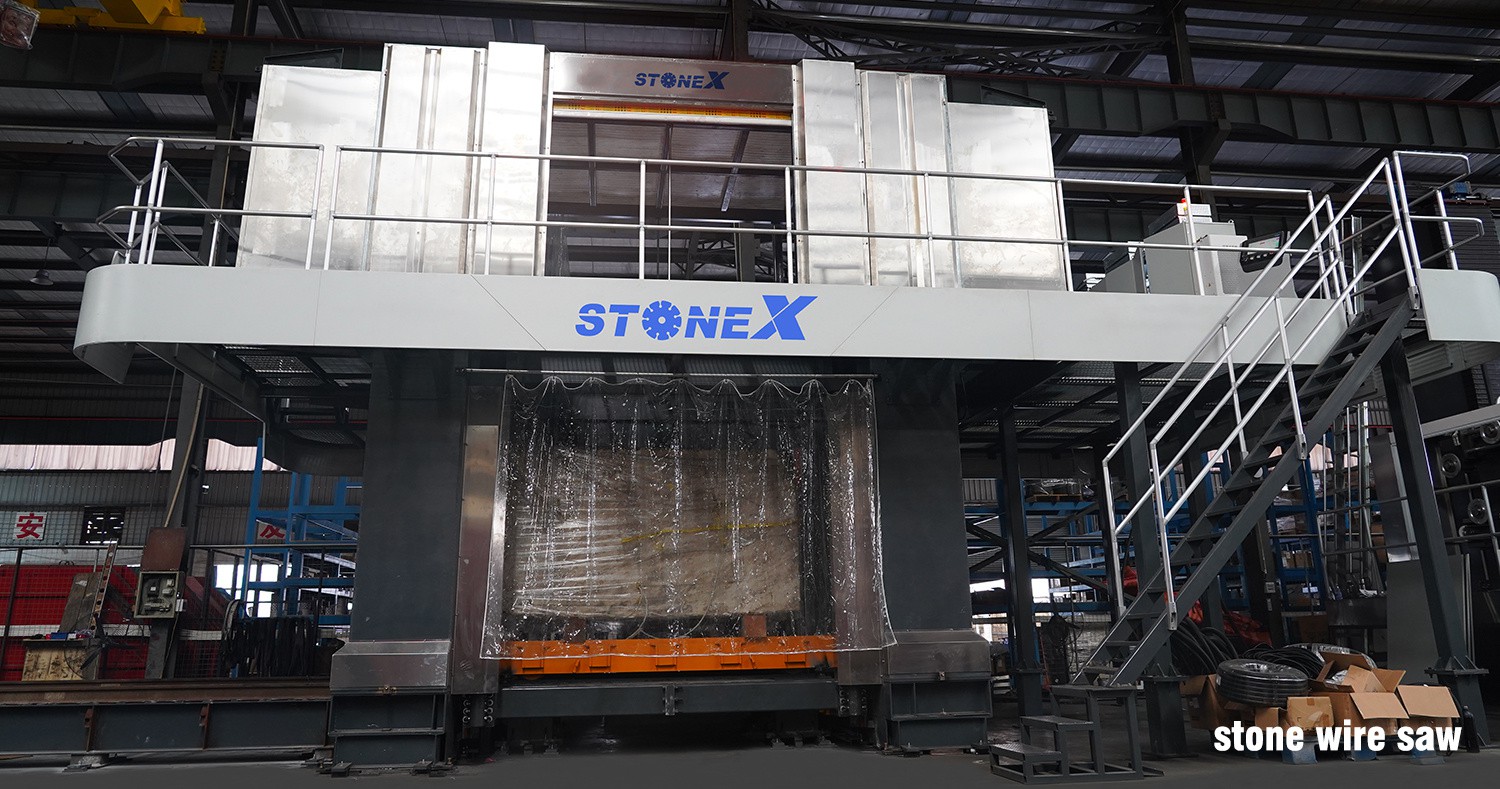

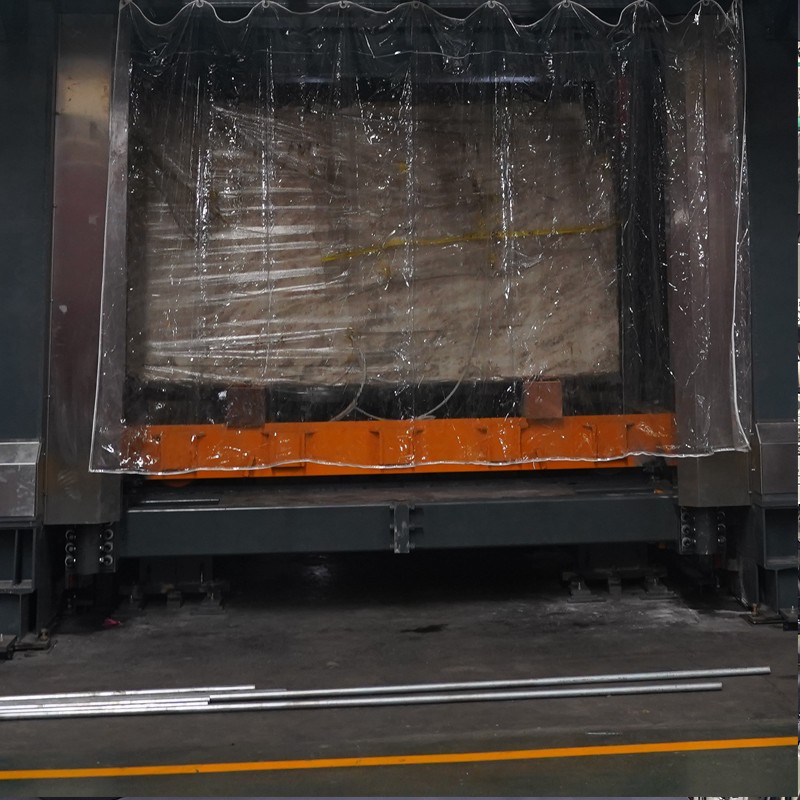

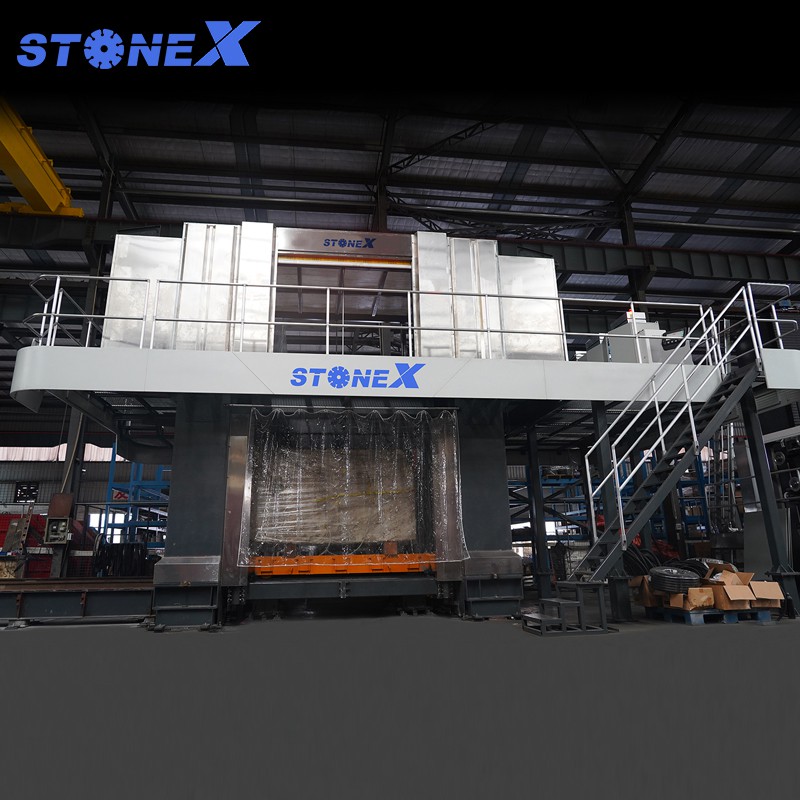

The Huayi HLBMW-100/150 is a stone multi wire saw featuring an upward stone feeding cutting design. It adopts 0.3–1 mm diamond wires for cutting, delivering narrow kerf and smooth cutting surfaces.
Thanks to the ultra-thin cutting gap, the slab yield rate can reach up to 97%. To produce slabs of different thicknesses, users only need to adjust the spacing of the diamond wires.
The machine adopts a double-layer and four-column structure, ensuring solid construction, stable operation and high reliability.
Product Parameters
|
Name |
HYBMW-100/150 |
|
Diameter of diamond wire |
0.3–1 mm |
|
Max. volume of stored wire |
0.3–1 mm |
|
Max. operating line speed |
20–30 m/s |
|
Max. tension |
200–500 N |
|
Down speed |
100–250 mm/h |
|
Max. spindle speed |
1500 r/min |
|
Spindle cooling system |
Oil cooling |
|
Gross Power (high tension 2 group) |
500 kW |
|
Gross Power (low tension 2 group) |
370 kW |
|
Max. cutting length |
3600 mm |
|
Max. cutting height |
2000 mm |
|
Max. dimensions of block processable |
3600×2000×2100 mm |
|
Thickness of slabs |
5–60 mm |
|
Main motor power |
60 kW |
|
Ascending & descending form |
Wire down pressure |
|
Machine dimensions |
10160×4800×7445 mm |
|
Gross Power (high tension 1 group) |
380 kW |
|
Gross Power (low tension 1 group) |
315 kW |
Equipment Advantages
* Equipped with 0.3–1 mm ultra-fine diamond wire, with narrow cutting kerf and a material yield rate up to 97%.
* High cutting flatness, reducing the workload of subsequent polishing.
* Low noise and low dust emission.
* Lower overall operating cost.
FAQ
Q: Is your company a professional manufacturer of stone wire saws?
A: Yes, we are the original factory.
Q: What other machines do you produce?

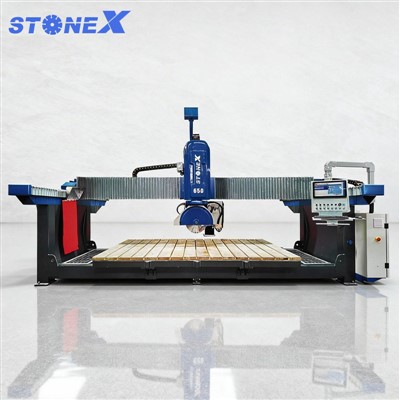

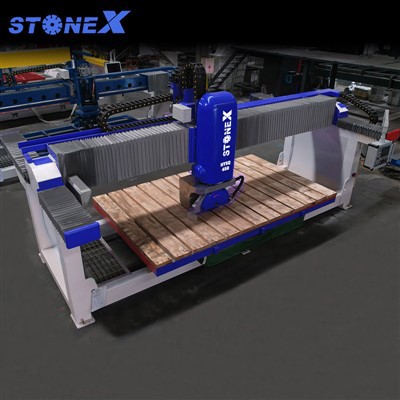

A: CNC bridge saws, stone polishing machines, stone engraving machines and stone block cutting machines.
Q: Are your machines CE certified?
A: Yes, all machines have obtained CE certification.
Q: What trade terms do you accept?
A: We support common trade terms including FOB, EXW and CIF.
Q: What is the warranty period?
A: The standard warranty period is 6 months.
Q: Do you provide overseas on-site installation service?
A: Yes, we offer overseas on-site installation and operation training.
Q: How long is the production lead time?
A: Generally 30 to 40 days after receiving the advance payment.
After-sales Service
* Within the warranty period, free spare parts will be provided for non-man-made damage.
* Lifetime technical support is available.
* Online remote service is offered.
* On-site technician dispatch service is provided.
