Product Introduction

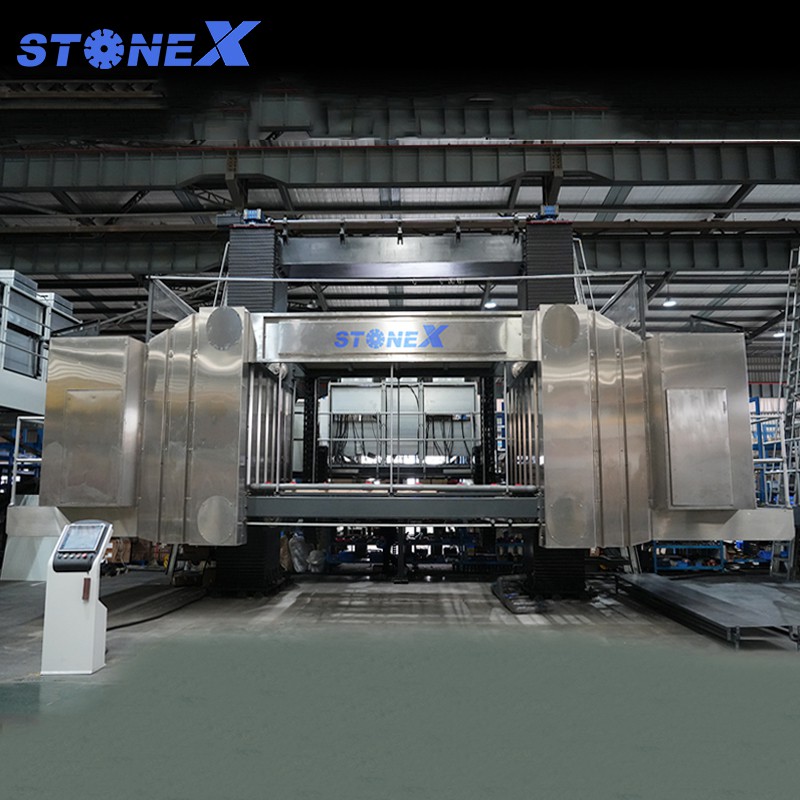

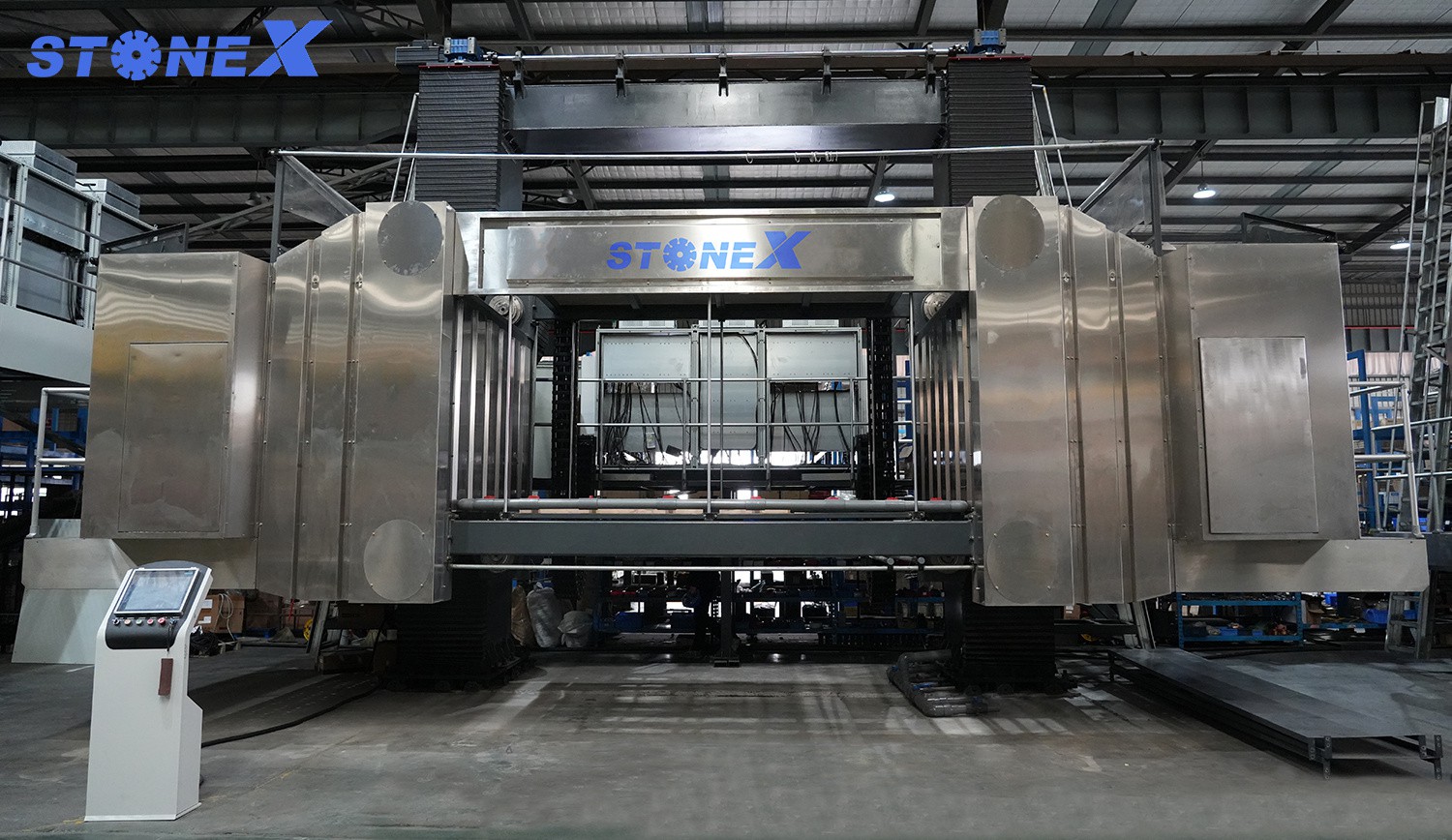

Huayi HYMW-100/150 stone multi wire saw cutting machine is a double-column, down-pressure type stone multi-wire saw. The machine adopts diamond wires with a diameter of 0.3–1 mm to cut stone blocks. Its cutting speed ranges from 100 to 250 mm per hour according to different stone materials. It is specially suitable for cutting marble and luxury stone blocks.
Equipped with a 60 kW main motor, the machine can process stone blocks with a maximum size of 3600 × 2000 × 2100 mm.
Equipment Advantages
* The machine adopts 0.3–1 mm ultra-fine diamond wire for cutting, featuring narrow cutting kerf and high material yield rate.
* Double-column structure saves floor space with a smaller footprint.
* Low cutting vibration and high processing precision ensure excellent flatness of the cutting surface, greatly reducing subsequent polishing workload.
* Low operating noise and low dust emission, meeting environmental protection requirements.
* Equipped with an advanced servo system for more stable operation.
Product Parameters
|
Name |
HYMW-100/150 |
|
Diameter of diamond wire |
0.3–1 mm |
|
Max. volume of stored wire |
40 km |
|
Max. operating line speed |
20–30 m/s |
|
Max. tension |
200–500 N |
|
Down speed |
100–250 mm/h |
|
Max. spindle speed |
1500 r/min |
|
Spindle cooling system |
Oil cooling |
|
Gross Power (high tension 2 group) |
500 kW |
|
Gross Power (low tension 2 group) |
370 kW |
|
Max. cutting length |
3600 mm |
|
Max. cutting height |
2000 mm |
|
Max. dimensions of block processable |
3600 × 2000 × 2100 mm |
|
Thickness of slabs |
5–60 mm |
|
Main motor power |
60 kW |
|
Ascending & descending form |
Wire down pressure |
|
Machine dimensions |
10160 × 4800 × 7445 mm |
|
Gross Power (high tension 1 group) |
380 kW |
|
Gross Power (low tension 1 group) |
315 kW |
FAQ
Q: What is the maximum block size the machine can process?
A: It supports stone blocks of 3600 × 2000 × 2100 mm.
Q: What is the power of the main motor?
A: It is equipped with a 60 kW main motor.
Q: What is the hourly cutting depth?
A: Depending on different stone types, the cutting depth is about 100–250 mm per hour.
Q: Is the machine CE certified?
A: Yes, our machines have obtained CE certification and meet quality and safety standards.
Q: How long is the production lead time?
A: The production cycle is generally 30–40 days after receiving the deposit.
Q: What is the warranty period?
A: The warranty period is 6 months.
Q: Do you provide overseas on-site installation and training?
A: Yes, we offer overseas on-site installation and operational training services.
Q: What trade terms do you accept?
A: We support common trade terms such as FOB, EXW and CIF.
After-sales Service
* Within the warranty period, we provide free spare parts for non-artificial damage.
* We offer lifelong technical support for all customers.
* Overseas technician dispatch service is available.
