Product Introduction

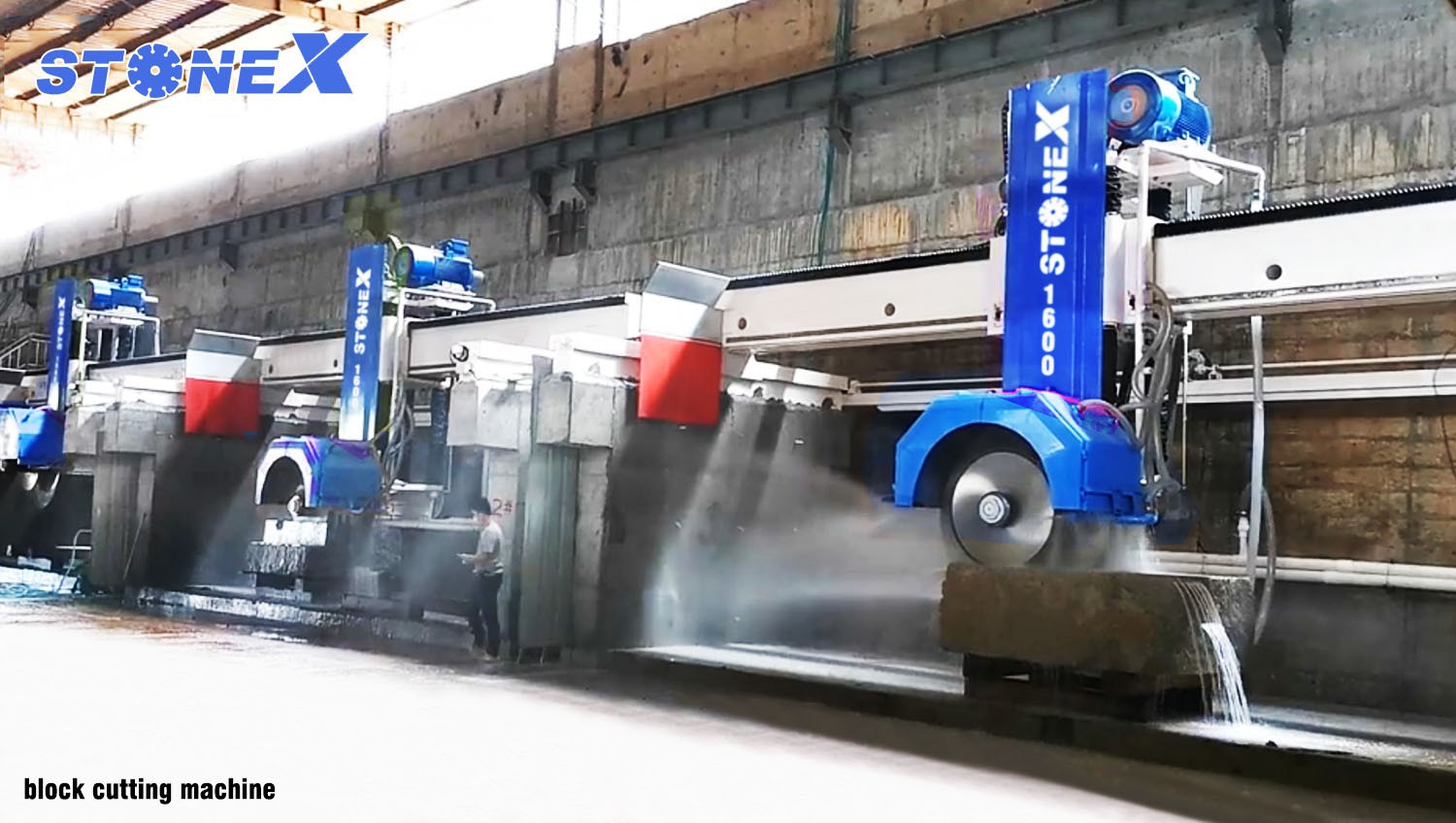

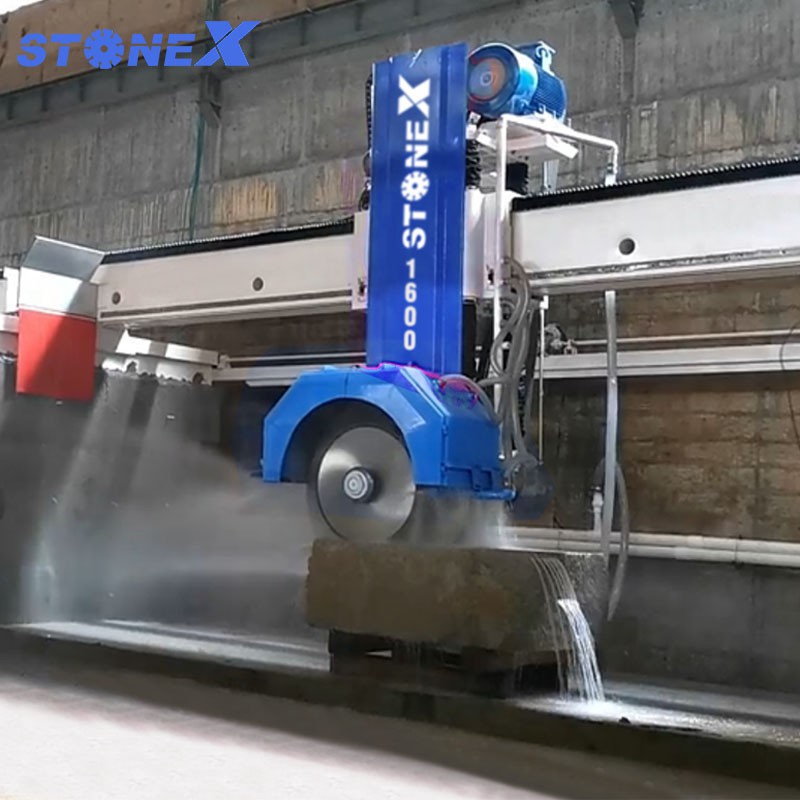

Huayi stone block cutting machine is a stone block multi blade saw equipped with a PLC control system.
It is suitable for cutting marble and granite blocks. It can be fitted with a single or multiple saw blades, and is driven by a 55KW main motor.
The cutting head adopts a 4-column guide structure, and the longitudinal beam guide rails use high-grade guide rails, ensuring stable operation and long service life.
The total weight is about 10 tons, and orders are accepted starting from 1 unit.
Different models of block cutting machines can be customized, such as Model 1650, Model 2500, Model 3000, etc.

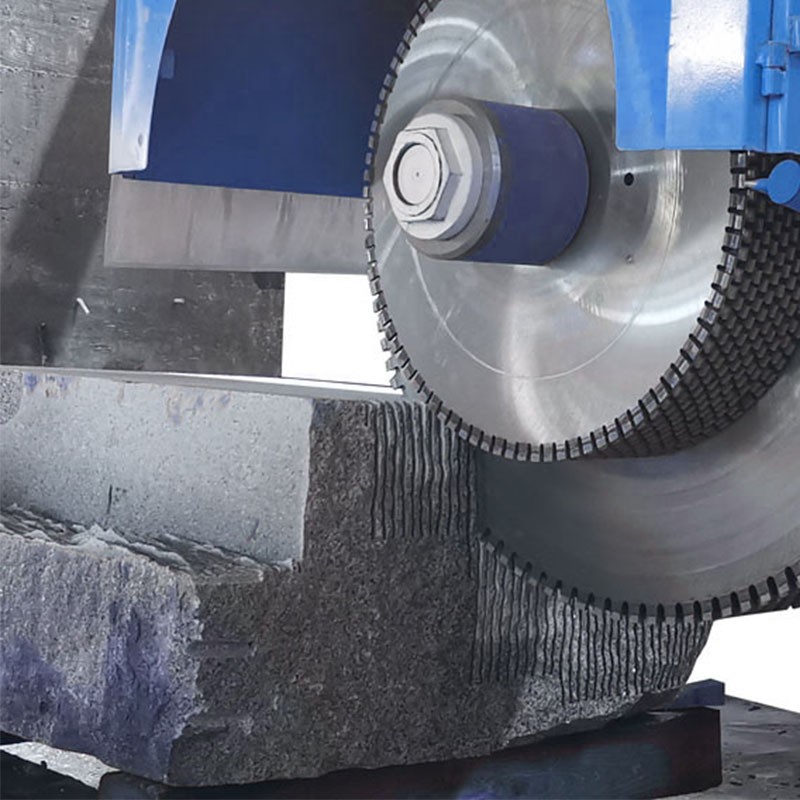

The stone block multi blade saw is mainly used for cutting blocks into thin slabs and processing curb stones.
Product Parameters
|
Name |
Unit |
HYQY-1600 |
HYQY-2300/2500 |
HYQY-3000 |
|
Max. Blade Diameter |
1600 |
2300/2500 |
3000 |
|
|
Cross Beam Type |
A/B |
A/B |
||
|
Cross beam length |
mm |
6000 |
7600/8300 |
8300/9300 |
|
Cutting length |
mm |
3500 |
||
|
Cutting width |
mm |
2000 |
||
|
Lifting stroke |
mm |
800 |
1350 |
1350 |
|
Power of main motor |
kw |
55 (4P) |
||
|
Power of pump motor |
kw |
4 |
||
|
Power of stroke motor |
kw |
2.2 |
||
|
Power of vertical motor |
kw |
1.1 |
||
|
Gross Power |
kw |
62.3 |
||
|
Gross Weight |
kg |
10000 |
13000/14000 |
14000/15500 |
|
Dimensions (L x W x H) |
mm |
6500×5000×4000 |
7800×5000×4500 |
7800×5000×4500 |
FAQ
Q: What control system does the machine adopt?
A: This machine adopts a PLC control system.
Q: Does the machine have CE certification?
A: Yes, this machine has obtained CE certification.
Q: What is the minimum order quantity?
A: We accept orders starting from 1 set.
Q: What trade terms are supported?
A: Common trade terms such as FOB, EXW and CIF are supported.
Q: How long is the whole machine warranty?
A: The whole machine is guaranteed for 12 months.
Q: Do you provide on-site installation and training for overseas customers?
A: Yes, we provide on-site installation and technical training.
Q: How long is the production cycle?
A: Normally 30–45 days after receiving the advance payment.
After-sales Service
* Free spare parts will be provided for non-artificial damage within the warranty period.
* Lifetime technical support is available for all customers.
* A dedicated after-sales service group will be established to solve customers' problems online at any time.
* Technician dispatch service is provided if on-site support is required.
