Product Introduction

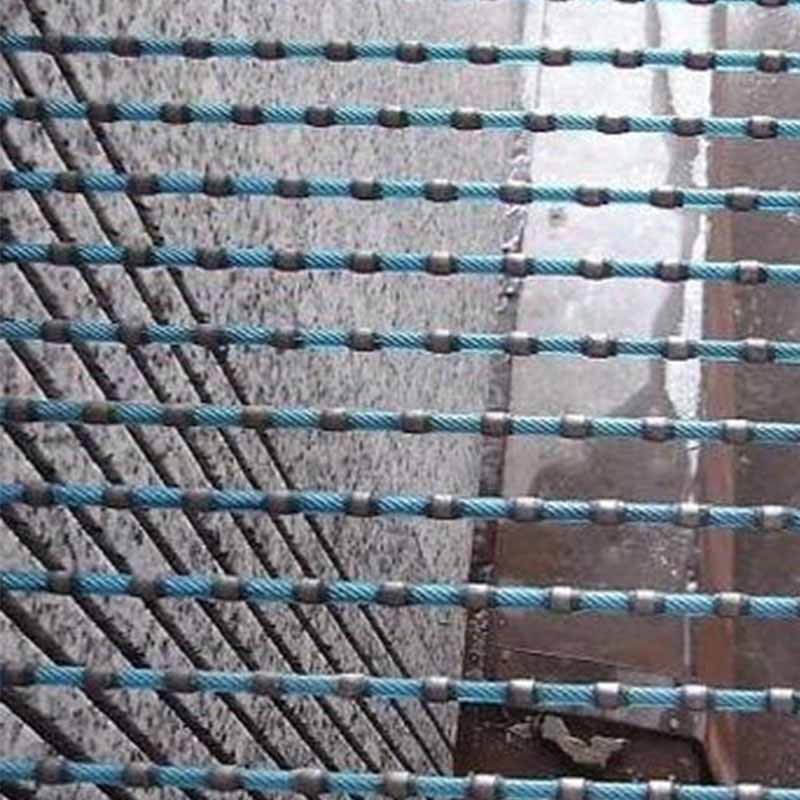

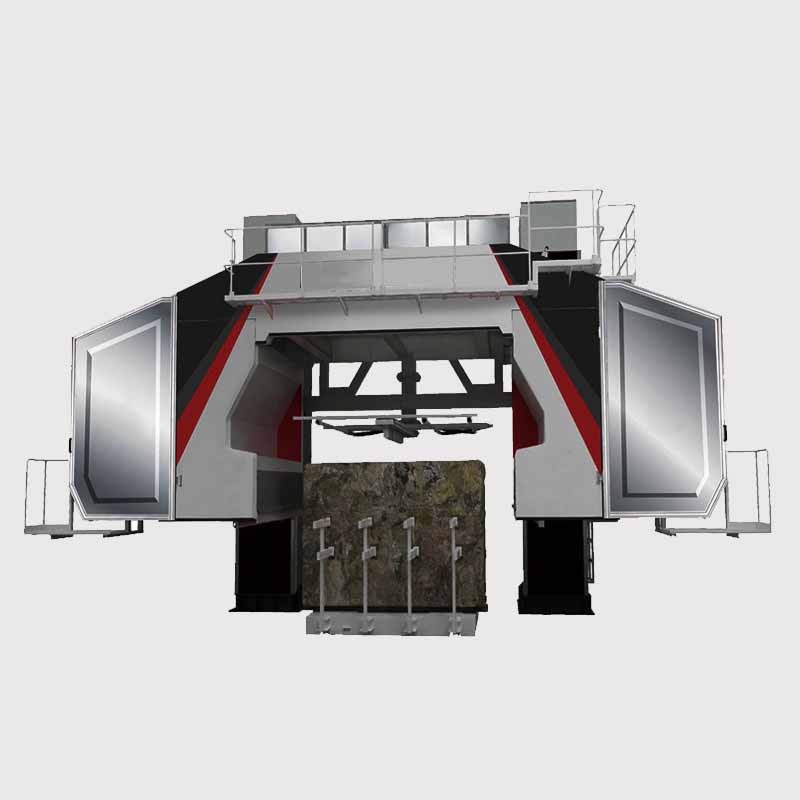

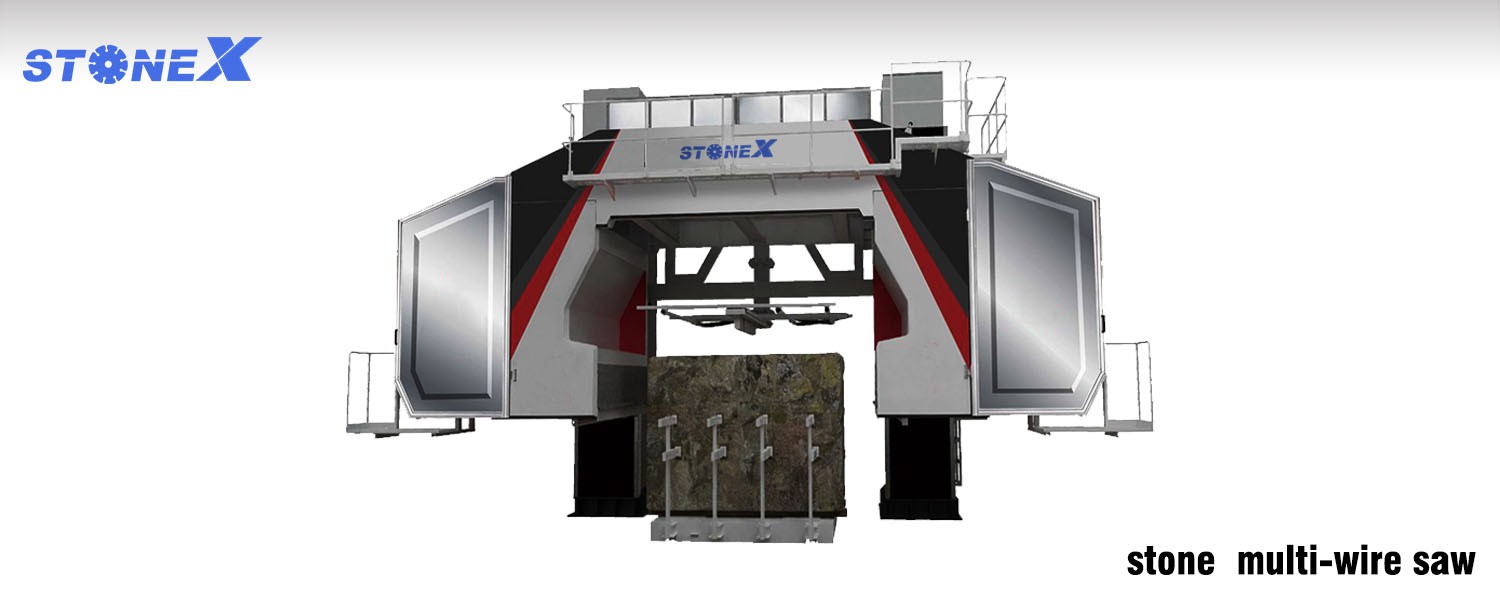

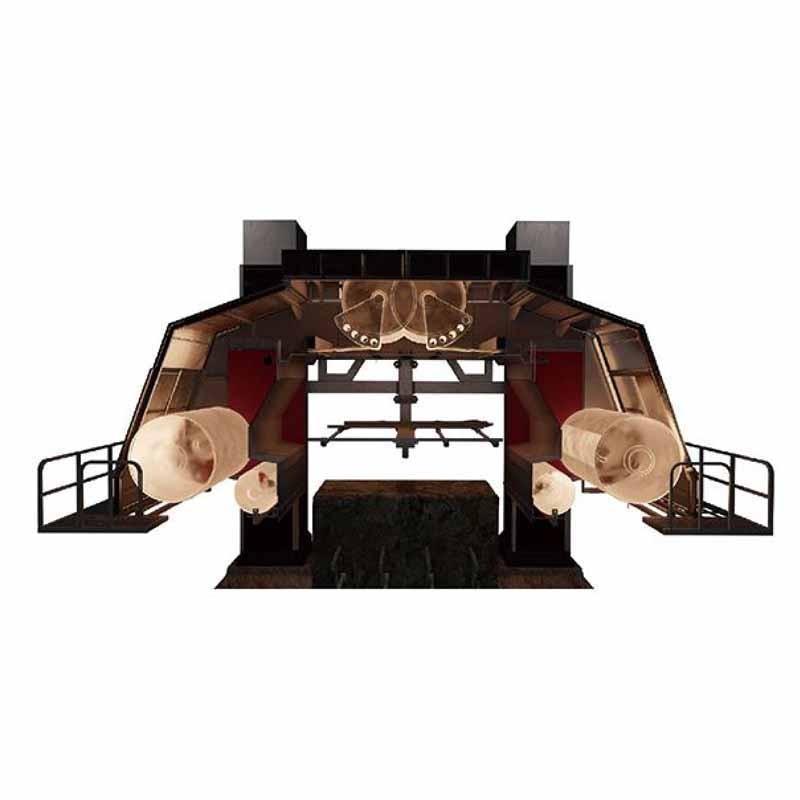

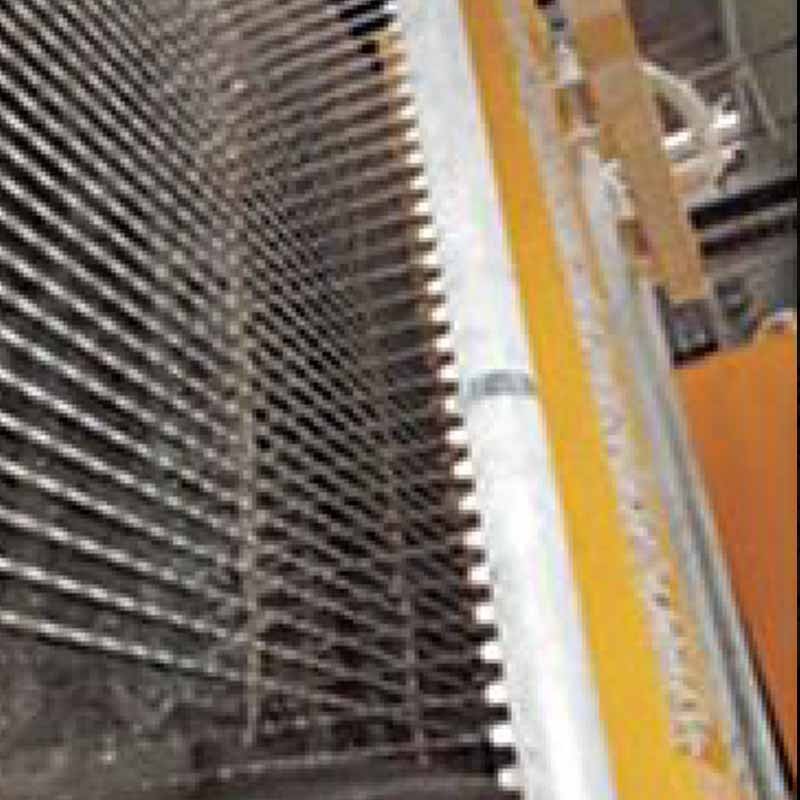

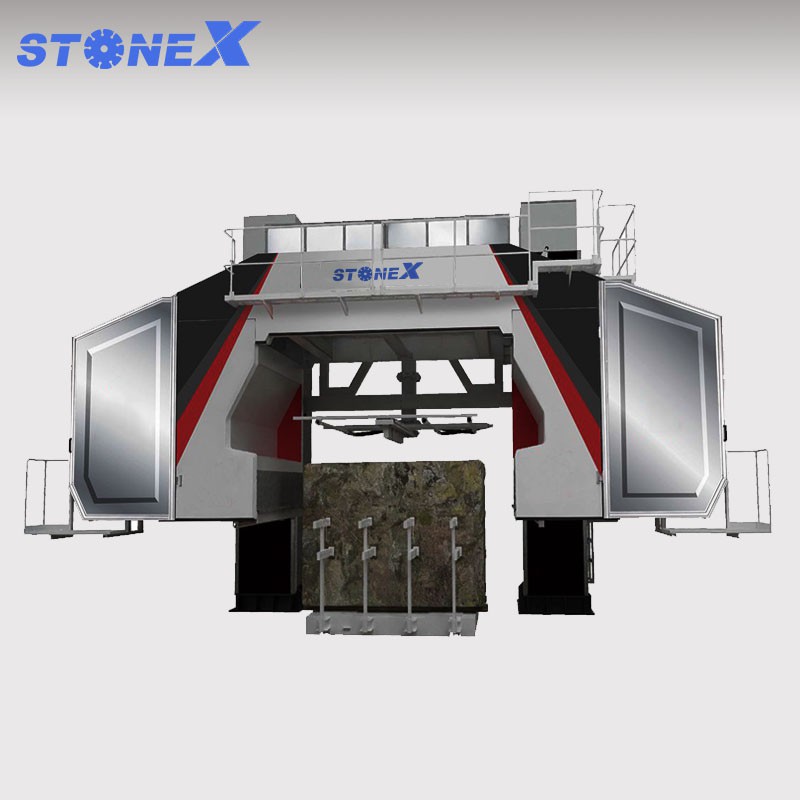

Huayi block multi wire saw machine is suitable for cutting blocks such as marble and granite. It adopts a double-column structure and a down-pressure feeding cutting method. The standard model is equipped with 56 wire saw ropes, which can cut 55 slabs at a time. The standard slab thickness is 20 mm or 30 mm. The machine uses diamond bead ropes with a diameter of 5.3 mm / 6.3 mm, and the maximum feed size (length/height) is 3500 mm / 2200 mm.
Equipment Features
Adopts a sturdy column-type structure with low movement vibration and stable operation.
Equipped with a stable tension system, a result of years of research and development. The service life of tension pulleys can reach 10,000 hours.
The wire speed can be adjusted according to different stone types to achieve the optimal cutting effect.
Adopts a PLC control system.
Built-in automatic broken wire alarm device and a rapid processing system, realizing efficient cutting with no downtime.
Product Parameters
|
Name |
Unit |
HYMW-42U |
HYMW-56U |
HYMW-72U |
HYMW-86U |
|
Max. cutting length |
mm |
3200 |
3200 |
3200 |
3200 |
|
Max. cutting height |
mm |
2200 |
2200 |
2200 |
2200 |
|
Slab standard thickness |
mm |
20/30 |
20/30 |
20/30 |
20/30 |
|
Max. cutting slab quantity |
pcs |
41 |
55 |
41 |
57 |
|
Diamond beads diameter |
mm |
5.3/6.3 |
5.3/6.3 |
5.3/6.3 |
5.3/6.3 |
|
Diamond wire length |
mm |
20000 |
20000 |
20000 |
20000 |
|
Max. individual diamond wire tension |
kg |
180–220 |
180–220 |
180–220 |
180–220 |
|
Wires speed |
m/s |
20–35 |
20–35 |
20–35 |
20–35 |
|
Main motor power |
kw |
132 |
200 |
220 |
280 |
|
Cooling water |
L/min |
600 |
700 |
1000 |
1200 |
|
Machine length(L) |
mm |
10700 |
10700 |
10700 |
10700 |
|
Machine height(H) |
mm |
6800 |
6800 |
6800 |
6800 |
|
Net weight |
t |
46 |
55 |
62 |
68 |
FAQ
Q: What control system does the machine use?
A: It adopts a PLC control system.
Q: What feeding method does the machine adopt?
A: Front feeding or side feeding are optional.
Q: How many models are available?
A: There are 4 standard models: 42U, 56U, 72U and 86U.
Q: What is the maximum feeding size?
A: Length 3200 mm × Height 2200 mm.
Q: Do you support overseas on-site installation?
A: Yes, we provide overseas on-site installation service.
Q: Is operation training available?
A: We provide professional technical training and lifelong technical support.
Q: What is the warranty period?
A: The machine comes with a 6-month warranty.
Q: What trade terms are available?
A: We support common trade terms including FOB, CIF and EXW.
After-sales Service
* Within the warranty period, free spare parts will be provided for non-human damage.
* Online remote technical service is available.
* Engineer dispatch service can be provided on request.
* We offer lifetime technical support.
